Saxby | 95543 | HeroPRO CCT LED Bulkhead | 9W/14W/18W | Microwave Sensor | Step Dimming

SKU: 95543
Available to Order
Estimated Lead Time:
Usually 1 - 2 Working Days
Read More

Elevate your lighting with the Saxby HeroPRO 18W LED bulkhead. This versatile light features a stepped dimming microwave sensor and offers adjustable colour temperatures of 3000K, 4000K, and 6000K. Ideal for corridors, this bulkhead is durable for both indoor and outdoor use.

Saxby 95543 HeroPRO CCT Tri Wattage LED Bulkhead

The Saxby 95543 HeroPRO CCT Corridor LED Bulkhead is a versatile, tri-wattage LED fitting with an integrated step-dimming microwave movement sensor. Designed for corridors, stairwells, communal areas and suitable indoor or outdoor installations, it combines selectable 9W, 14W and 18W power settings with three colour temperatures and automatic lighting control.

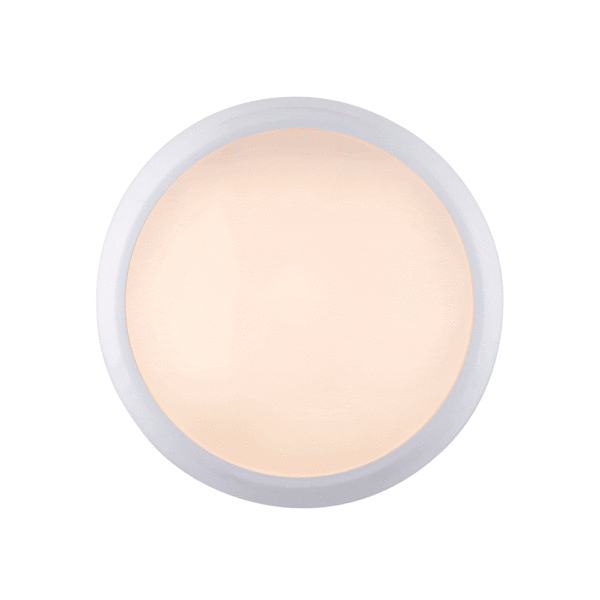

Part of the Saxby HeroPRO range, this circular LED bulkhead features a durable IP65 and IK10-rated polycarbonate housing, a fast-fit hinged gear tray and an integrated microwave sensor. Its corridor lighting function allows the fitting to reduce brightness to 20% after movement stops, helping manage energy consumption in areas with intermittent occupancy.

Key Features and Benefits

  • Tri-wattage selectable: Choose 9W, 14W or 18W to suit the lighting requirements.
  • 3CCT colour selection: Switch between 3000K warm white, 4000K neutral white and 6000K daylight.
  • Up to 1800 lumens: Provides 900lm at 9W, 1400lm at 14W and 1800lm at 18W.
  • Integrated microwave sensor: Automatically responds to movement within the configured detection area.
  • Corridor step dimming: Reduces light output to 20% standby brightness after the selected hold time.
  • IP65 protection: Suitable for appropriately installed indoor and outdoor applications.
  • IK10 impact resistance: Robust construction suitable for demanding communal environments.

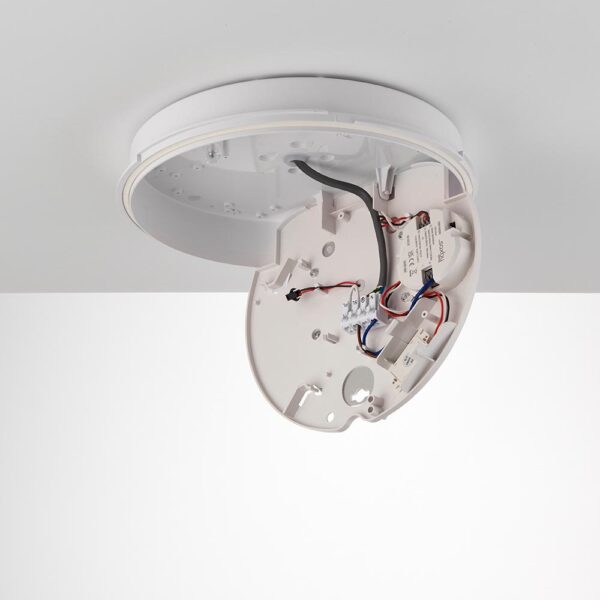

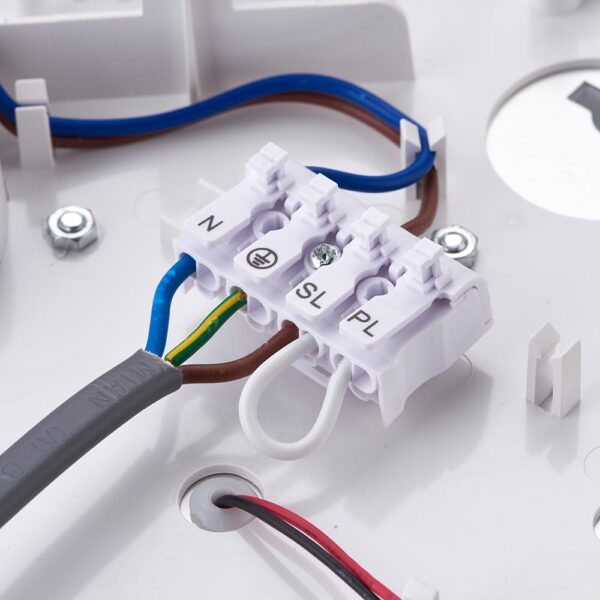

  • Fast-fit hinged gear tray: Designed to simplify installation and access to electrical connections.
  • Interchangeable bezels: Optional decorative bezel finishes and styles available separately.
  • Manufacturer warranty: 2 years plus 3 years extended, subject to warranty conditions.

Selectable 9W, 14W and 18W LED Output

The HeroPRO 95543 features three selectable power settings, allowing installers to adjust the lighting output for different applications without changing the complete fitting.

  • 9W – 900 lumens: Lower-output lighting for smaller circulation spaces or areas where reduced illumination is appropriate.
  • 14W – 1400 lumens: Balanced general lighting for corridors, entrances and communal areas.
  • 18W – 1800 lumens: Maximum output for locations requiring higher illumination levels.

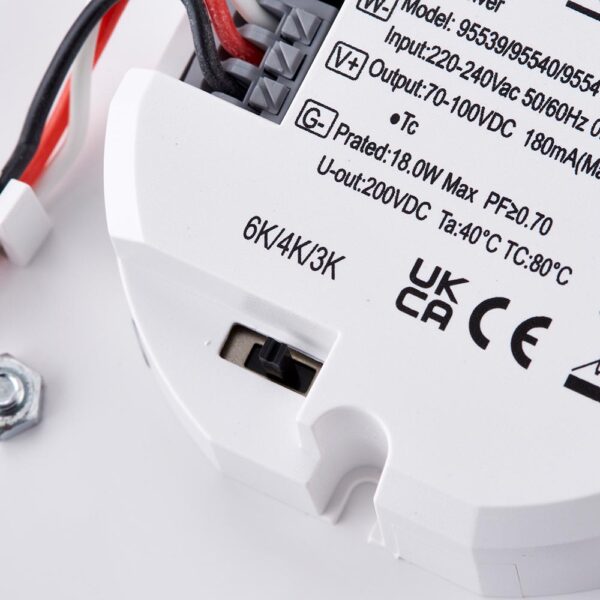

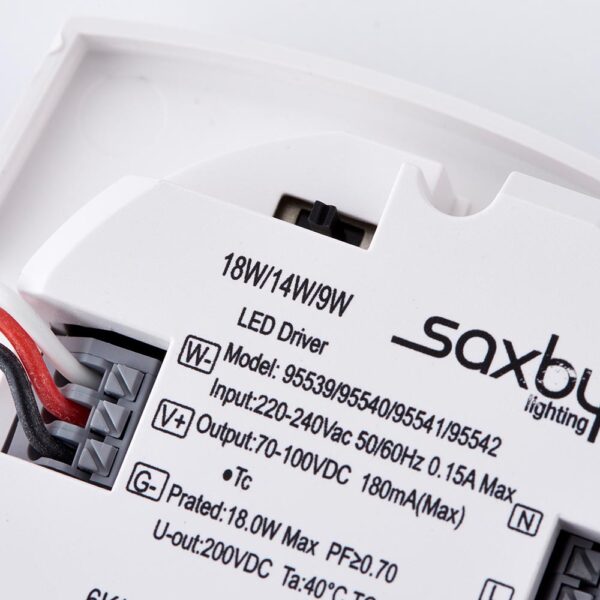

The wattage setting is selected using the switch on the driver before installation, following the manufacturer’s instructions.

Three Selectable Colour Temperatures

The integrated CCT selection switch offers three white light settings:

  • 3000K Warm White: A warmer appearance suited to residential entrances and welcoming communal spaces.
  • 4000K Neutral White: Balanced white lighting for stairwells, corridors and general commercial areas.
  • 6000K Daylight: A cooler white appearance for utility and functional lighting applications.

The selected wattage and colour temperature should be configured with the supply isolated, according to the manufacturer’s installation instructions.

Built-In Microwave Movement Sensor

Unlike standard LED bulkheads, the Saxby 95543 includes an integrated microwave movement sensor. This allows the fitting to respond automatically to movement, reducing the need for separate external sensor equipment.

The sensor offers configurable detection sensitivity, hold time and daylight threshold settings, making it suitable for a range of occupancy-responsive lighting applications.

How Does Corridor Step Dimming Work?

The HeroPRO corridor function provides a controlled transition between full brightness, reduced standby brightness and switching off, depending on the configured settings.

  1. Movement detected: The light operates at full selected output when the sensor’s operating conditions are met.
  2. Movement stops: The fitting remains at full output for the programmed hold time.
  3. Standby lighting: The light reduces to 20% brightness after the hold time expires.
  4. Standby period ends: The fitting switches off or remains at its standby level, depending on the selected standby period.

This operating method is particularly useful in communal corridors and stairwells where permanent full-brightness lighting may be unnecessary.

Note: The fitting uses its integrated sensor-controlled step-dimming system. It is not designed for use with a conventional external dimmer switch.






Brand

Saxby

Colour Temperature

CCT – Colour Selectable
