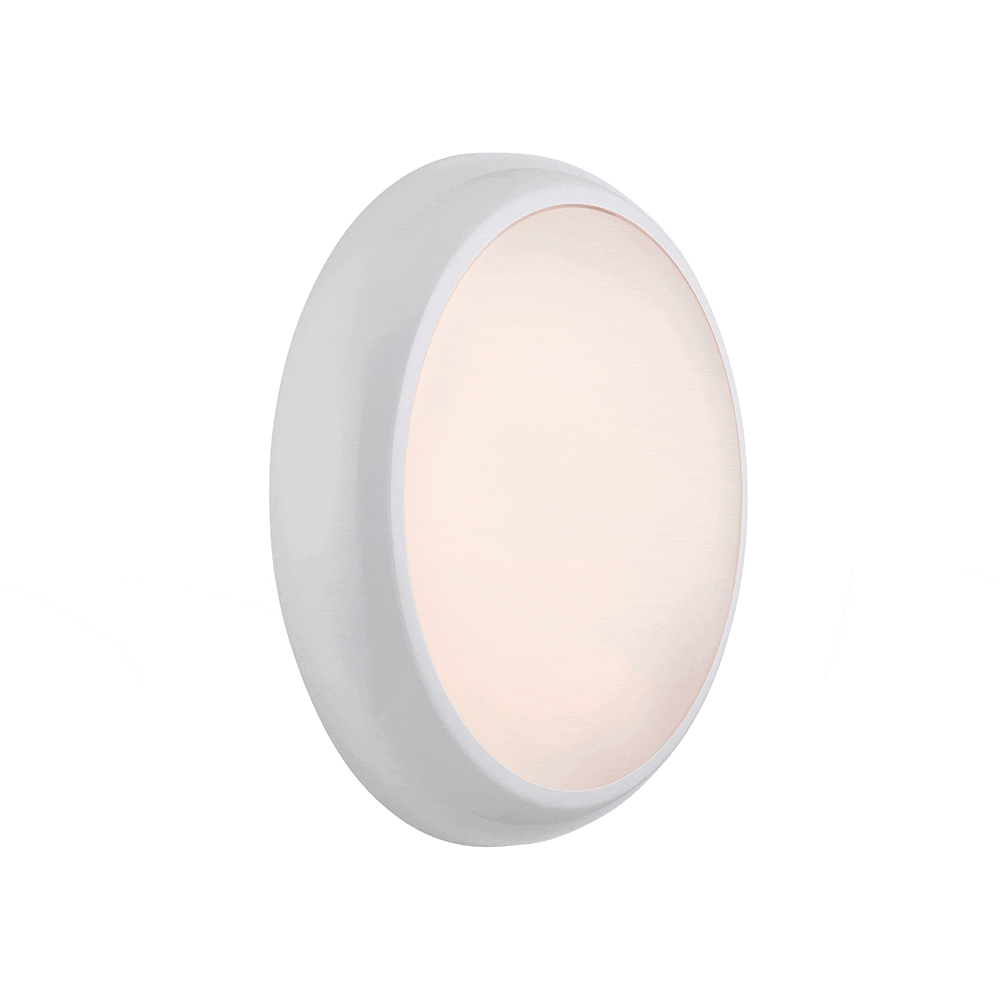

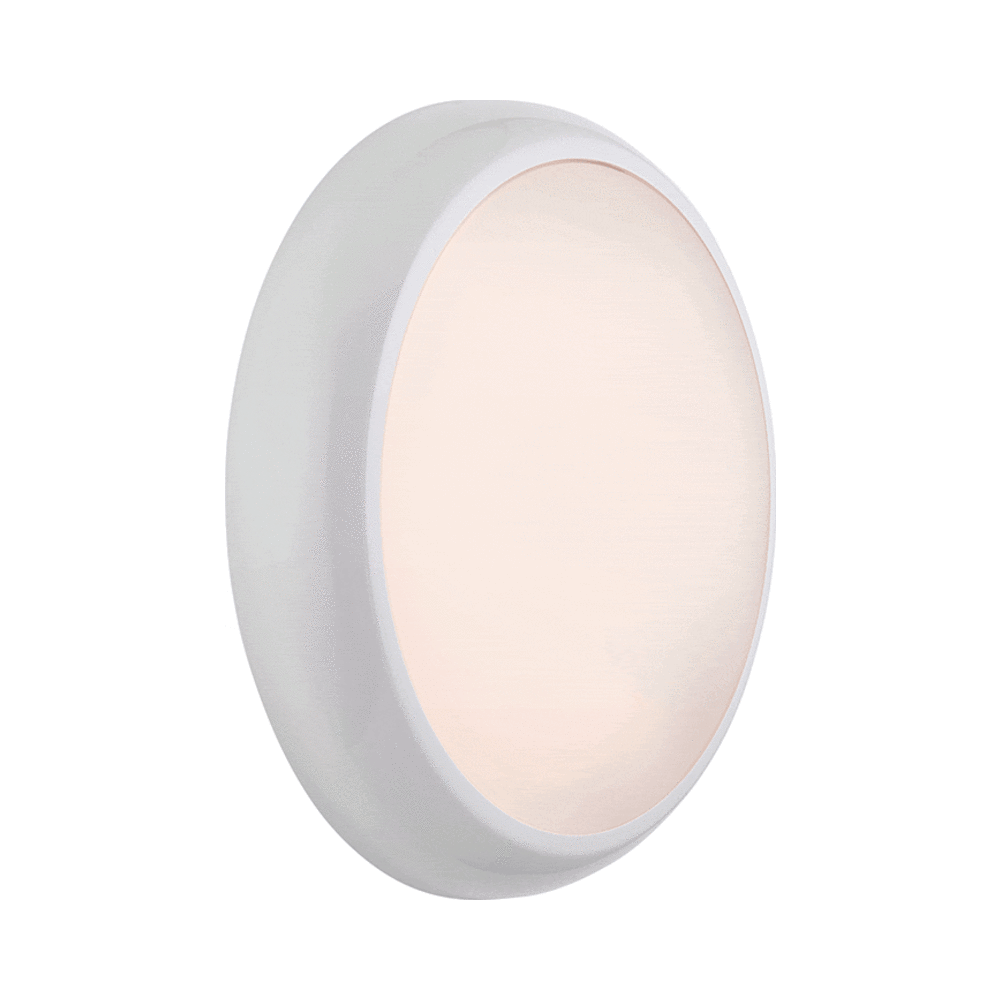

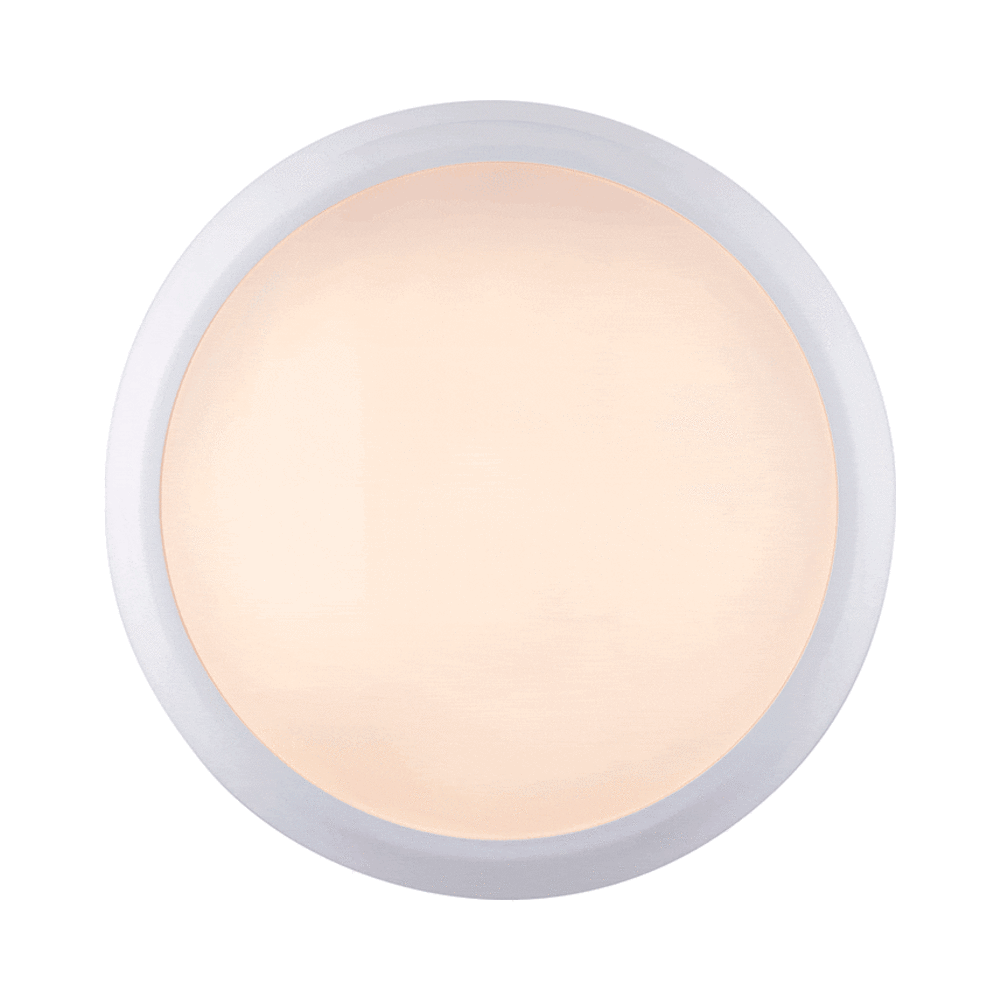

Saxby 95542 Microwave Emergency Bulkhead
The Saxby 95542 HeroPRO CCT Microwave Emergency LED Bulkhead combines automatic movement detection, three-hour emergency lighting and selectable LED output in one robust circular fitting. Designed for residential and commercial installations, it offers 9W, 14W and 18W power settings alongside 3000K, 4000K and 6000K selectable colour temperatures.
Part of the Saxby HeroPRO range, this IP65 and IK10-rated bulkhead incorporates a programmable microwave movement sensor and an integral rechargeable emergency battery. With maintained and non-maintained emergency operation, it is a practical lighting solution for communal corridors, stairwells, entrances and other areas requiring automatic lighting control and emergency illumination.
Key Features and Benefits
- Integrated microwave sensor: Automatically controls lighting when movement is detected within the configured detection area.
- 3-hour emergency lighting: Provides battery-backed emergency illumination during a mains supply failure.
- Maintained and non-maintained: Supports both emergency operating configurations.
- Tri-wattage selectable: Choose between 9W, 14W and 18W depending on lighting requirements.
- 3CCT selectable: Select 3000K warm white, 4000K neutral white or 6000K daylight.
- Up to 1800 lumens: Delivers 900lm, 1400lm or 1800lm depending on the selected wattage.
- IP65 ingress protection: Suitable for appropriately installed indoor and outdoor lighting applications.
- IK10 impact resistance: Robust polycarbonate construction for demanding communal environments.
- Programmable sensor: Adjustable sensitivity, detection range, hold time and daylight threshold.

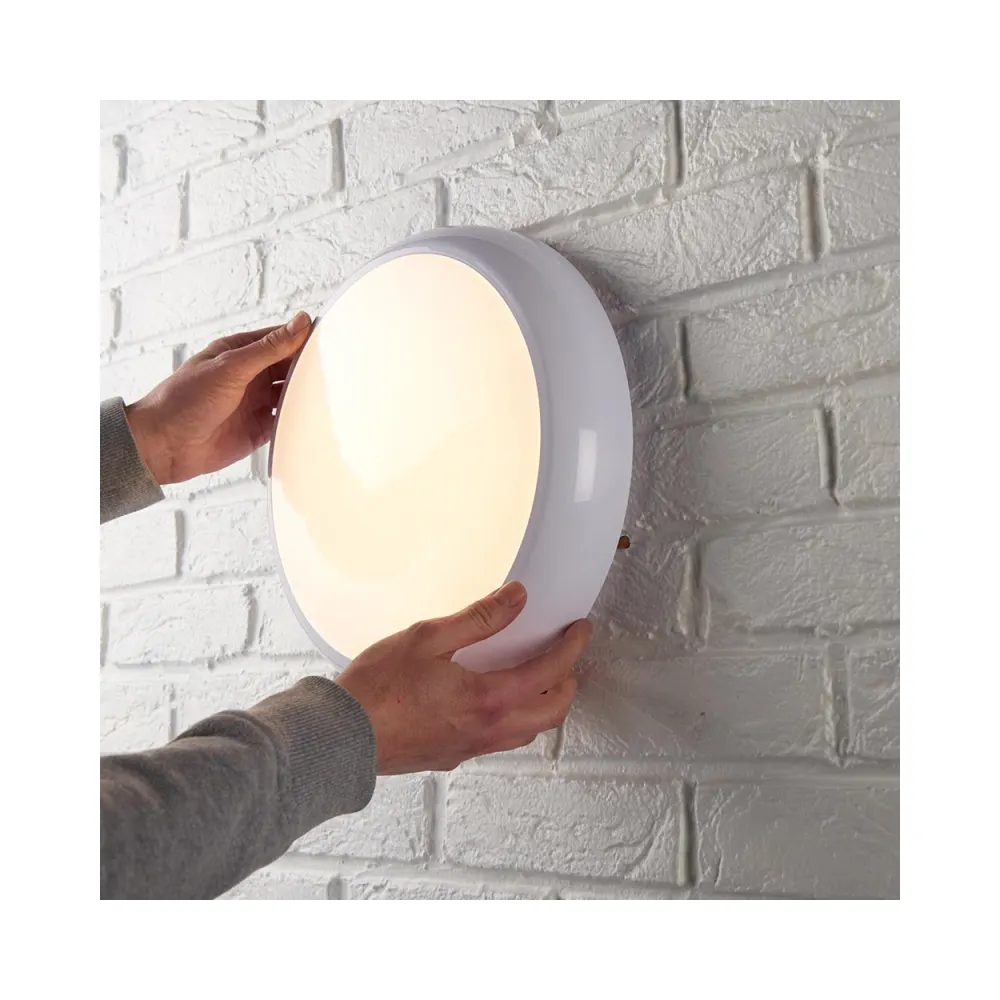

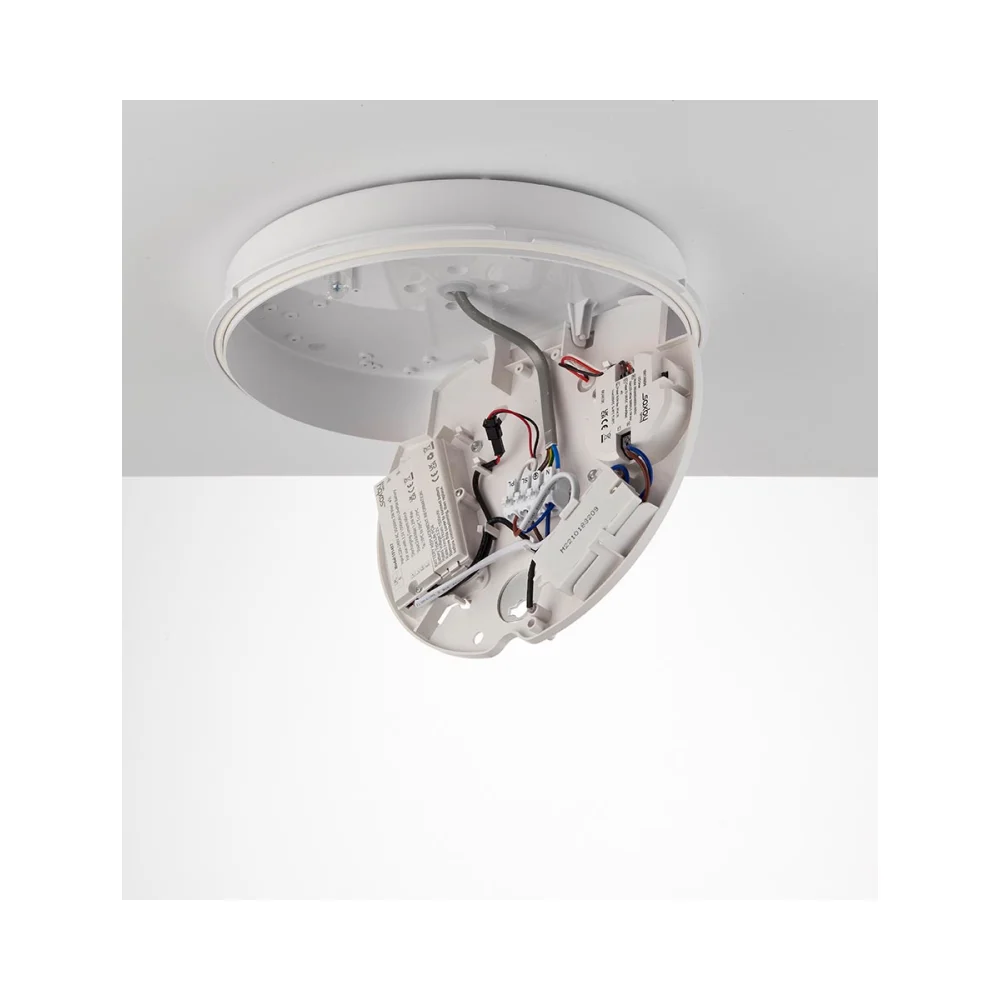

- Fast-fit hinged gear tray: Designed to simplify installation and maintenance.
- Interchangeable bezels: Compatible with selected HeroPRO decorative bezels, eyelids and grilles.
- Extended warranty: Manufacturer’s 2+3-year warranty, subject to conditions.
Selectable 9W, 14W and 18W LED Lighting

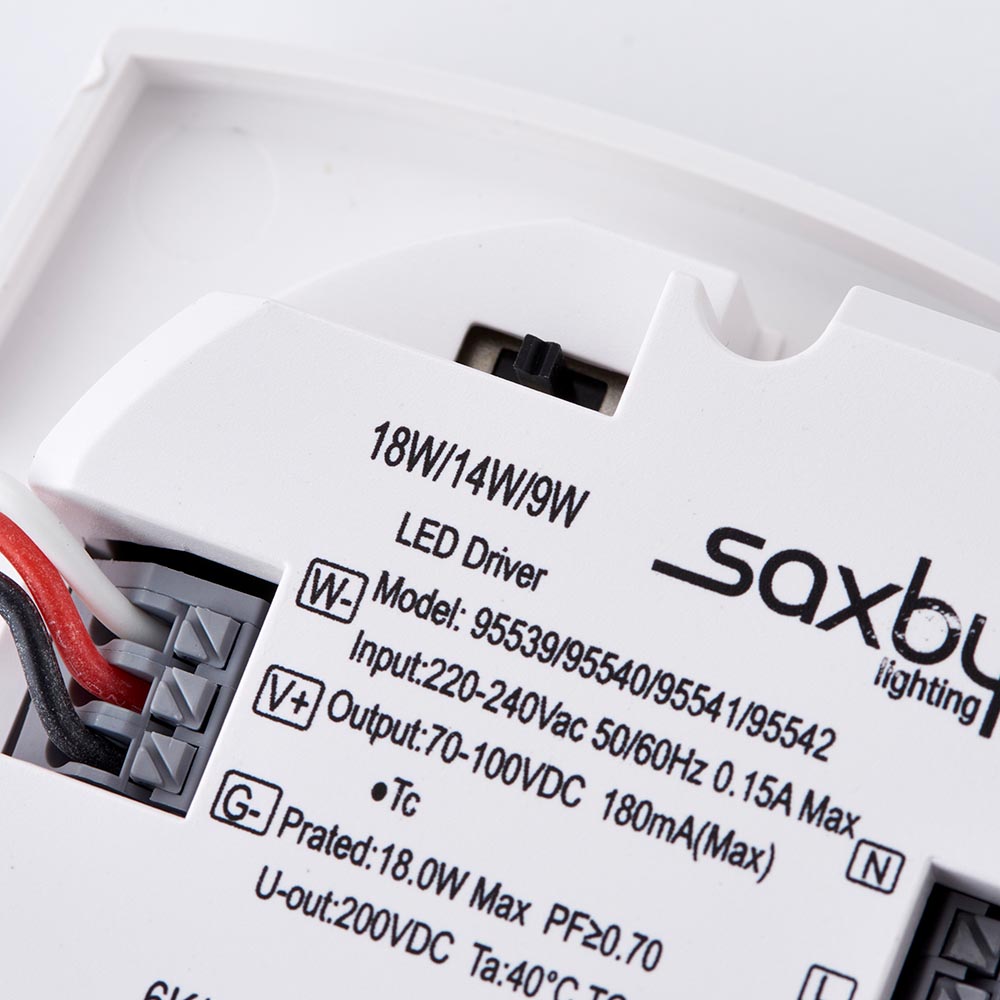

The HeroPRO 95542 features three selectable wattage settings, helping installers choose the required lighting output without changing the complete luminaire.
- 9W – 900 lumens: Lower-output lighting for smaller circulation areas.
- 14W – 1400 lumens: Balanced general illumination for corridors and communal entrances.
- 18W – 1800 lumens: Higher-output lighting for larger areas requiring increased illumination.
The selectable power settings make this fitting suitable for a variety of projects while helping standardise product selection across multiple installation areas.

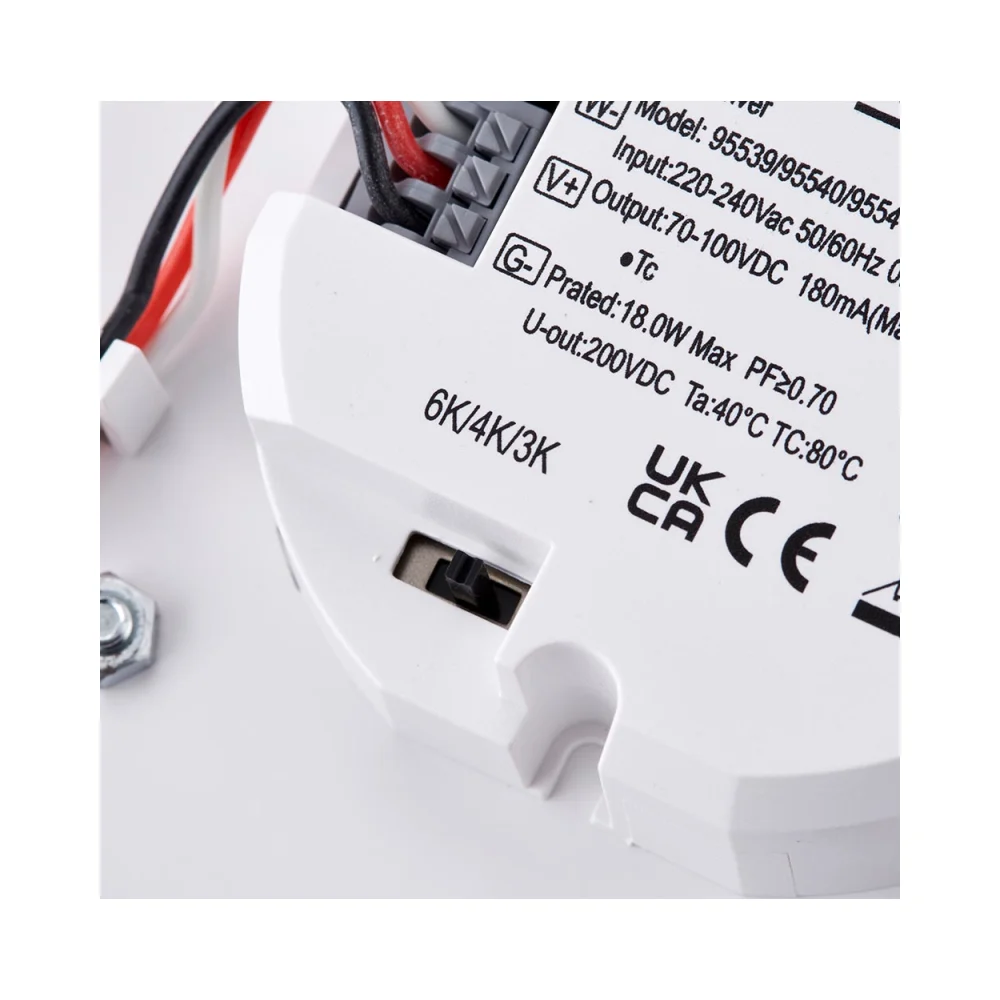

Three Selectable Colour Temperatures

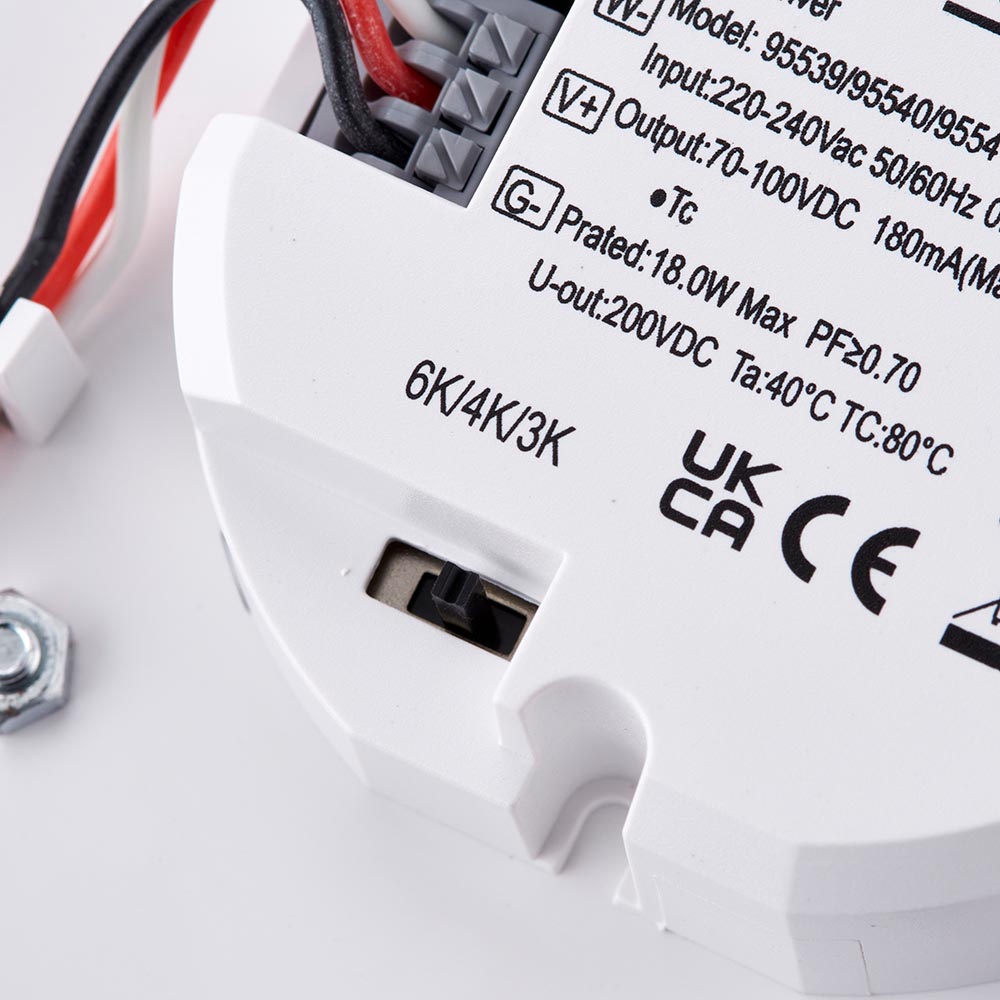

The integrated CCT selection allows installers to choose between three white light appearances:
- 3000K Warm White: A warmer, welcoming appearance for residential and communal entrances.
- 4000K Neutral White: Balanced white illumination for stairwells, corridors and workplace circulation areas.
- 6000K Daylight: Cooler white lighting for utility areas and functional spaces.
Both wattage and colour temperature should be selected according to the manufacturer’s installation instructions with the electrical supply safely isolated.
Built-In Microwave Movement Sensor
The Saxby 95542 incorporates an integrated microwave movement sensor, allowing the LED bulkhead to respond automatically when movement is detected.
The sensor can be programmed to suit different mounting positions, detection requirements and lighting conditions. Its adjustable hold time determines how long the luminaire remains illuminated after movement is no longer detected.
Adjustable Microwave Sensor Settings
- Operating frequency: 5.8GHz ±75MHz.
- Hold time: 5 seconds, 30 seconds, 90 seconds, 3 minutes, 20 minutes or 30 minutes.
- Daylight threshold: 2, 10, 25 or 50 lux, or disabled.
- Ceiling detection: 360° coverage with a maximum 3–6m detection radius, subject to mounting height.
- Wall detection: 120° coverage with the manufacturer’s specified wall-mounting detection range.
- Adjustable sensitivity: Multiple settings for adapting movement detection to the installation.
Actual sensor performance depends on mounting position, movement direction, surrounding materials and the selected settings. Refer to the manufacturer’s instructions for suitable detection coverage.
3-Hour Maintained and Non-Maintained Emergency Lighting
In addition to normal microwave-controlled lighting, the HeroPRO 95542 incorporates a three-hour emergency lighting function with an integral rechargeable LiFePO4 battery.
During a mains power failure, the emergency system provides battery-backed illumination to help maintain visibility within the installed area.
Maintained Emergency Operation
In maintained mode, the fitting can operate as part of the normal lighting installation while retaining emergency functionality during mains failure.
Non-Maintained Emergency Operation
In non-maintained mode, the emergency lighting function is intended to activate when the normal supply fails, according to the approved installation configuration.
Emergency specifications: The manufacturer specifies 1.8W emergency power, 143.8 lumens emergency output and a 3.2V 1500mAh LiFePO4 battery.
Emergency lighting installation, positioning, testing and maintenance should follow the applicable requirements of BS 5266-1 and the manufacturer’s instructions.
IP65 and IK10 Construction

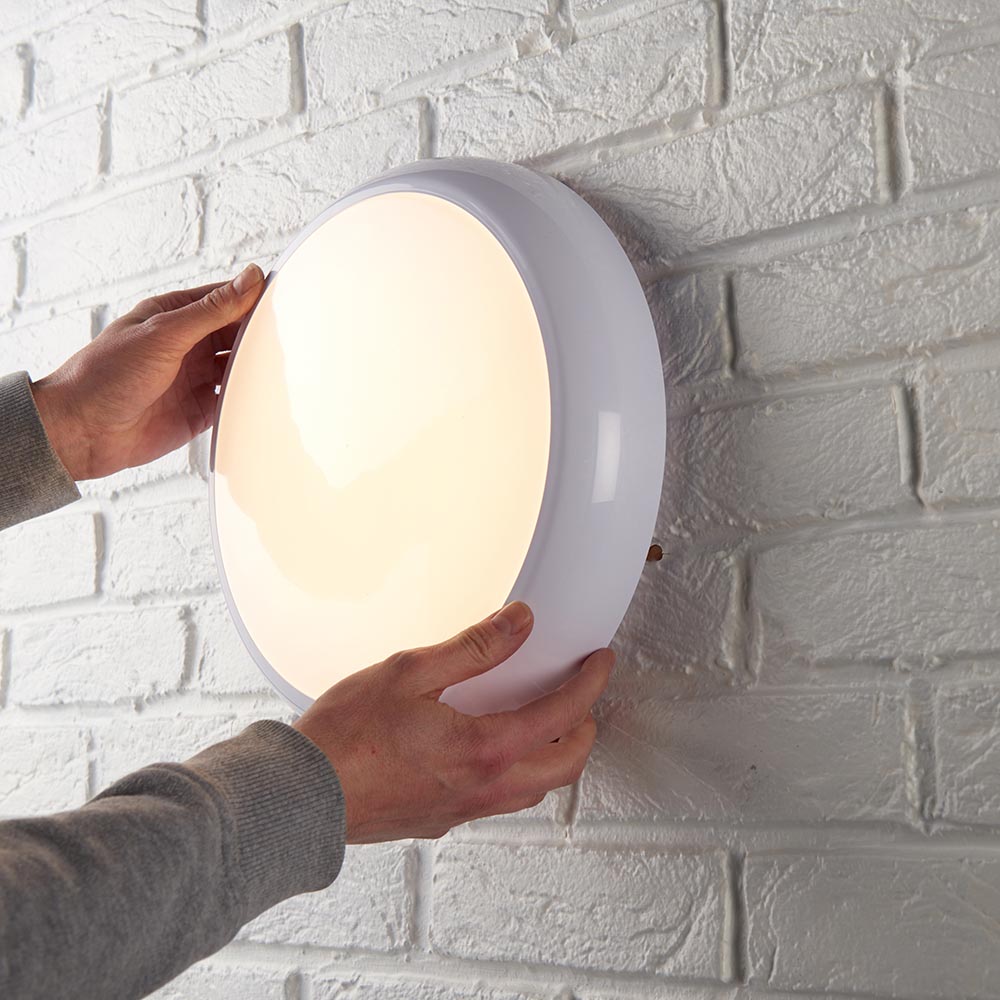

The HeroPRO bulkhead combines IP65 protection with IK10 impact resistance, making it suitable for appropriately installed indoor and outdoor environments where durability is important.

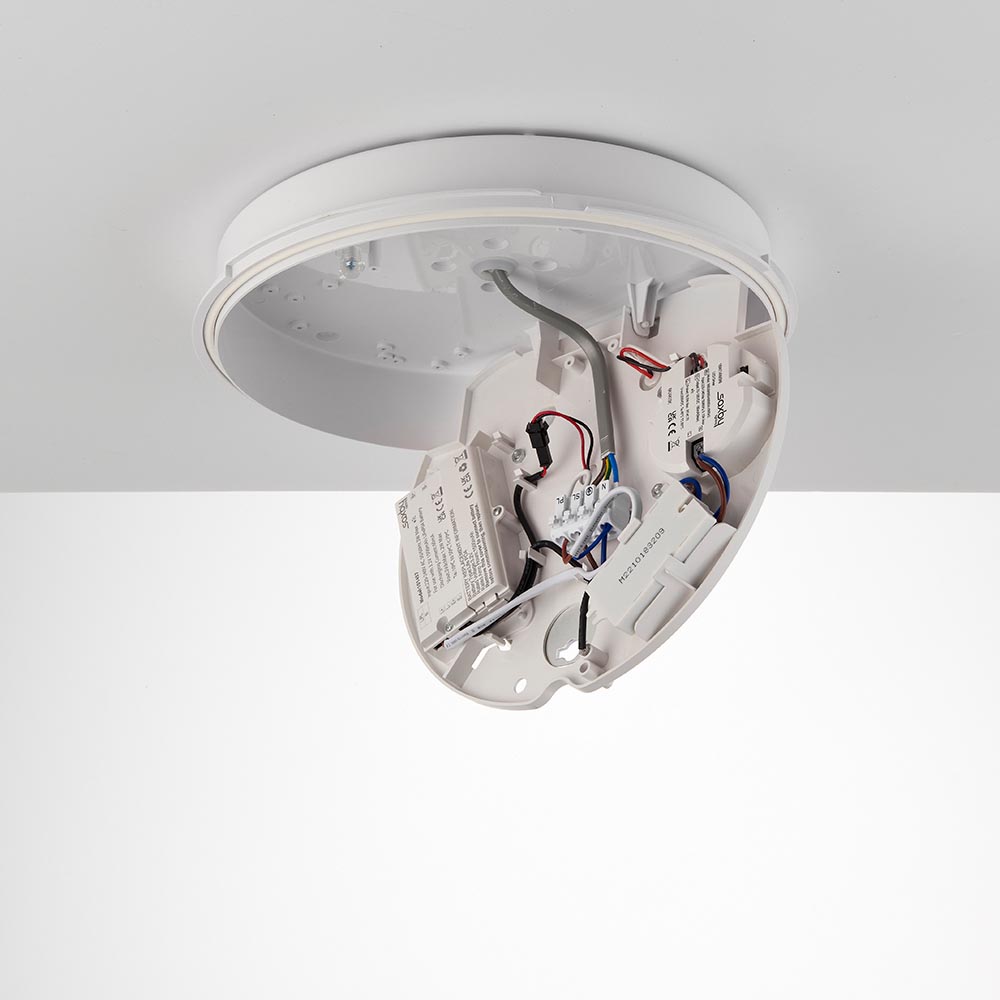

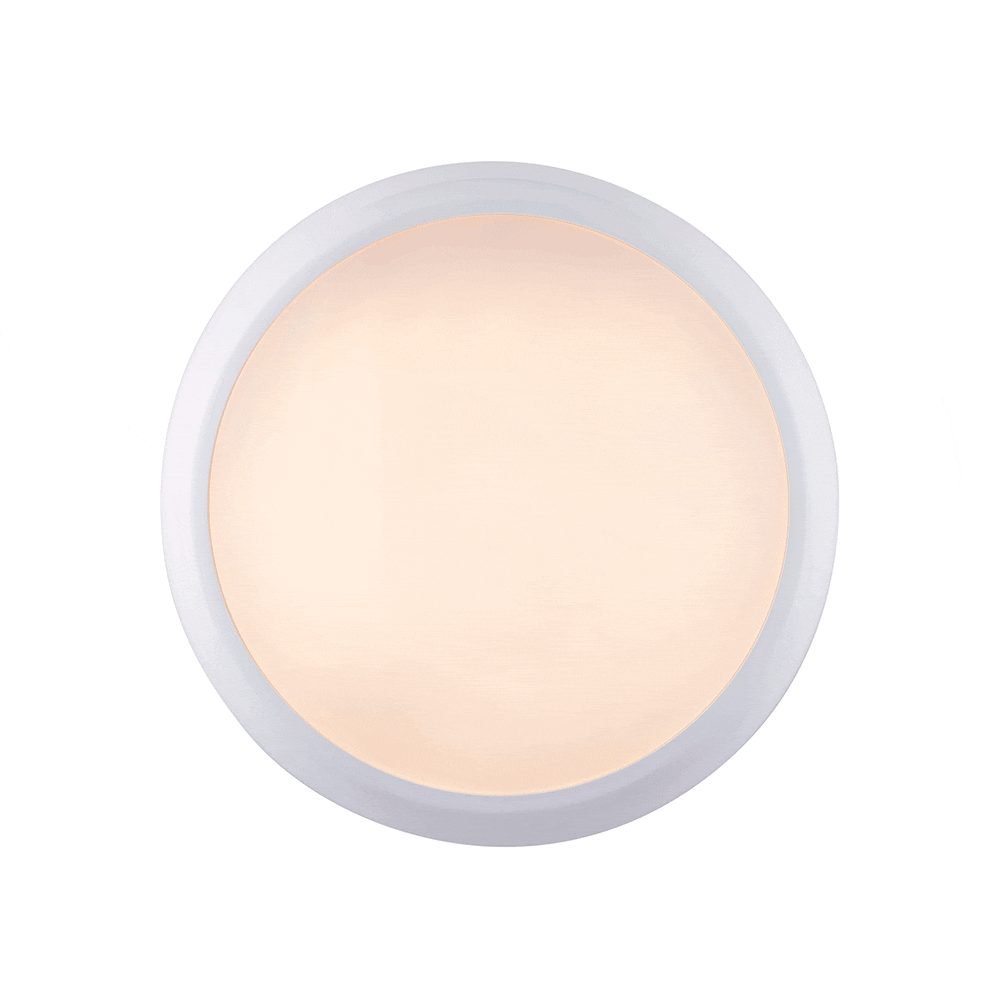

Its polycarbonate construction, opal diffuser and fast-fit hinged gear tray offer a practical solution for professional electrical contractors.
Typical Applications
- Communal stairwells and apartment corridors
- Residential building entrances and shared access areas
- Commercial offices and workplace circulation routes
- Suitable external building entrances
- Utility areas and ancillary spaces
- Locations requiring combined movement detection and emergency lighting
The suitability of an emergency luminaire must be assessed as part of the overall emergency lighting design, including the required illumination levels and duration.
Technical Specifications
| Manufacturer | Saxby Lighting |
|---|---|
| Product Code | 95542 |
| Range | HeroPRO CCT |
| Product Type | Microwave Sensor Emergency LED Bulkhead |
| Selectable Wattage | 9W / 14W / 18W |
| Light Output | 900 / 1400 / 1800lm |
| Colour Temperature | 3000K / 4000K / 6000K |
| Luminous Efficacy | 100lm/W |
| Beam Angle | 120° |
| CRI | >80 |
| Operating Voltage | 220–240V AC |

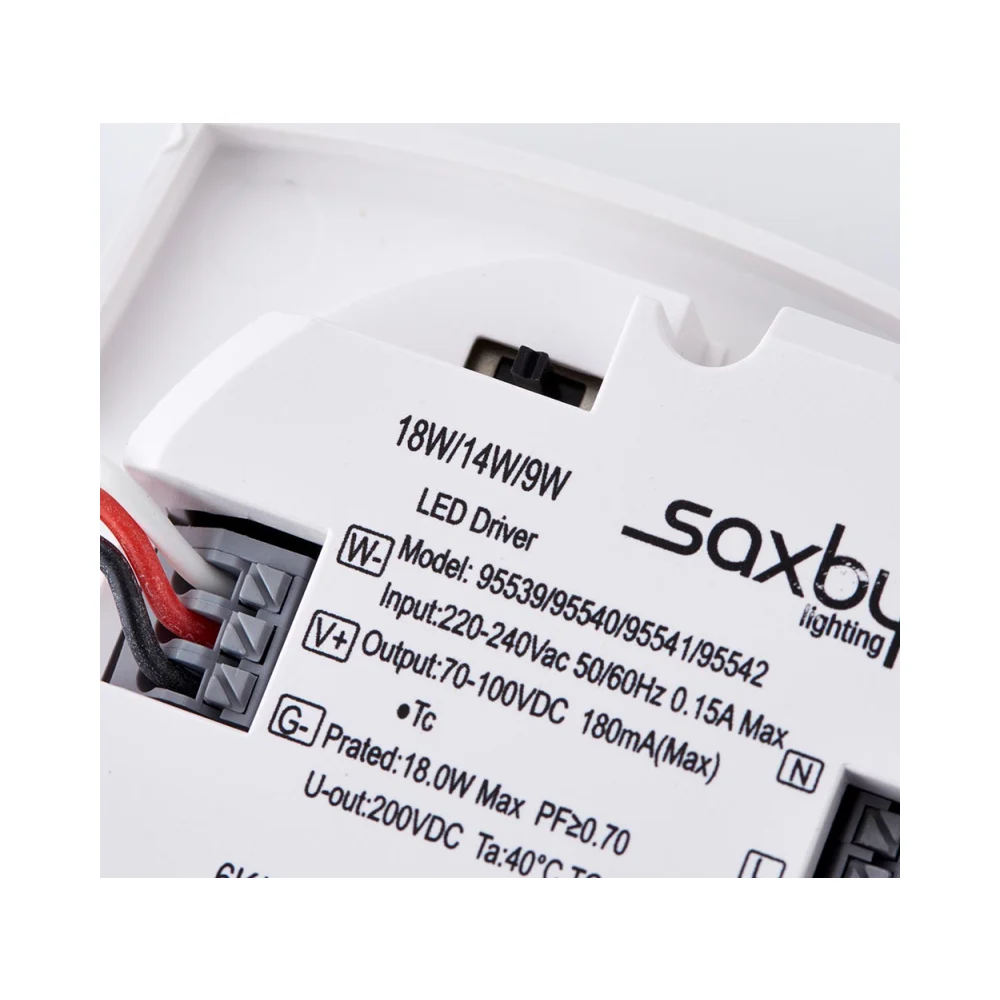

| Driver | Constant Current 180mA |
| LED Type | Epistar |
| Rated Lifetime | 35,000 Hours |
| Dimmable | No – Not for Conventional External Dimmers |
| Microwave Sensor | Integrated |
| Emergency Duration | 3 Hours |
| Emergency Operation | Maintained / Non-Maintained |
| Emergency Power | 1.8W |
| Emergency Light Output | 143.8lm |
| Emergency Battery | LiFePO4 3.2V 1500mAh |
| Ingress Protection | IP65 |
| Impact Resistance | IK10 |
| Diameter | 316mm |
| Projection | 74mm |
| Body Material | Polycarbonate |
| Diffuser | Opal Polycarbonate |
| Finish | Matt White Textured |
| Product Weight | 0.98kg |
| Electrical Class | Class II |
| Warranty | 2+3 Years Extended, Subject to Terms |
Frequently Asked Questions
Does the Saxby 95542 include a microwave movement sensor?
Yes. The HeroPRO 95542 has an integrated microwave sensor with adjustable detection sensitivity, hold time and daylight threshold settings.
Does the Saxby 95542 provide emergency lighting?
Yes. It includes a rechargeable LiFePO4 battery and provides a rated three hours of emergency illumination during a mains supply failure.
Can the bulkhead operate in maintained and non-maintained emergency modes?
Yes. The manufacturer specifies both maintained and non-maintained emergency functionality. The required configuration should be installed according to the manufacturer’s instructions.
Is the Saxby 95542 an 18W-only fitting?
No. It is a tri-wattage fitting with selectable 9W, 14W and 18W settings, delivering 900, 1400 and 1800 lumens respectively.
Can I change the light colour?
Yes. The fitting offers 3000K warm white, 4000K neutral white and 6000K daylight settings.
Is the HeroPRO 95542 suitable for outdoor installation?
Yes. Its IP65 ingress protection and IK10 impact rating make it suitable for appropriately installed outdoor applications, subject to the manufacturer’s installation requirements.
What is the difference between Saxby 95542 and 95543?
The Saxby 95542 combines microwave movement detection with a three-hour emergency lighting function. The Saxby 95543 is the corridor step-dimming microwave sensor version, designed to reduce lighting output to a standby level after movement stops. The two models serve different lighting requirements.
Does the 95542 provide corridor step dimming?
The 95542 is specified as a microwave sensor emergency bulkhead. For corridor step-dimming functionality, select the appropriate HeroPRO corridor model, such as Saxby 95543.
Does the fitting include the emergency battery?
Yes. The emergency function is integrated, with a manufacturer-specified 3.2V 1500mAh LiFePO4 rechargeable battery.
