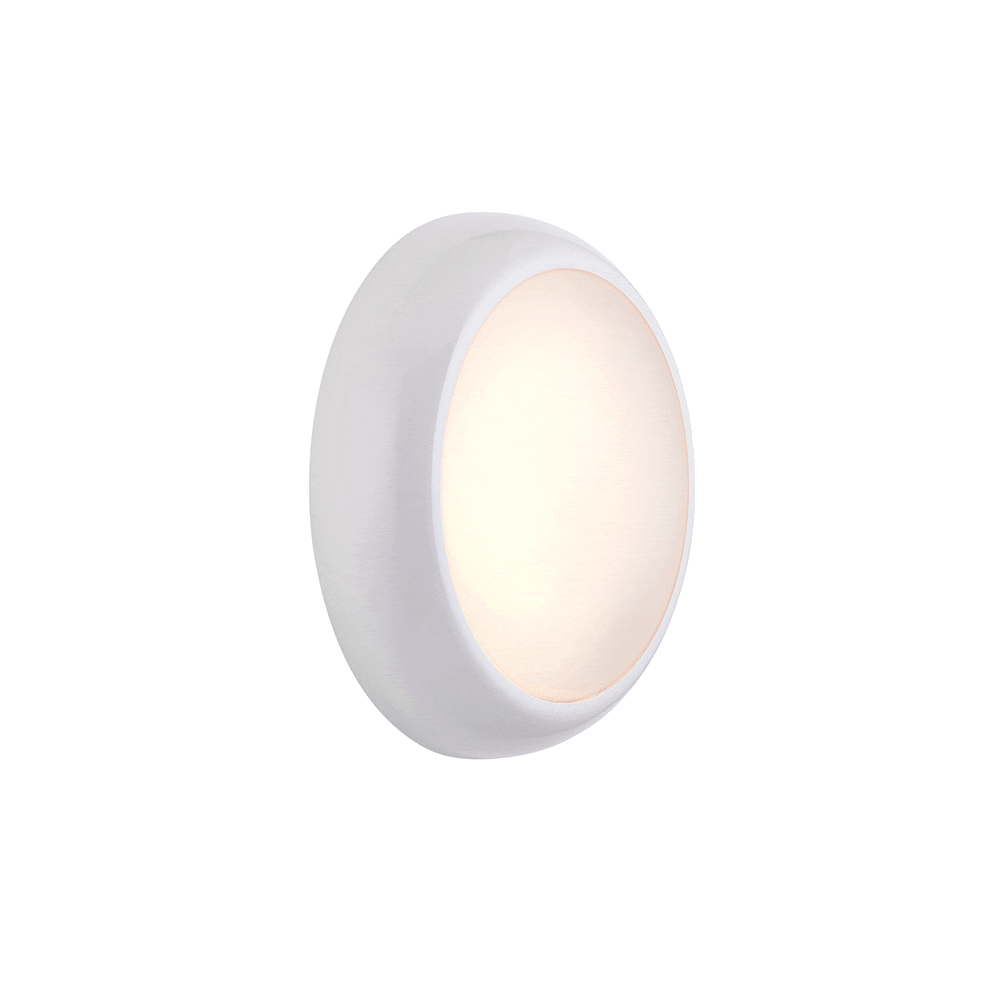

Saxby 103936 12W IP65 Microwave Bulkhead – HeroPRO Mini CCT
The Saxby 103936 12W IP65 Microwave Bulkhead is a compact HeroPRO Mini CCT LED fitting with a built-in programmable microwave movement sensor. Designed for residential, commercial and communal lighting applications, it features selectable 6W, 9W and 12W power settings, three colour temperatures and automatic movement-controlled illumination.
With a 251mm diameter, IP65 ingress protection and IK10 impact resistance, this HeroPRO Mini offers a smaller alternative to full-size LED bulkheads. Its durable polycarbonate construction, fast-fit hinged gear tray and adjustable microwave sensor make it a practical choice for entrances, corridors, stairwells and suitable outdoor lighting installations.
Key Features and Benefits
- Built-in microwave movement sensor: Automatically switches the lighting on when movement is detected.
- Tri-wattage selectable: Choose between 6W, 9W and 12W to suit the installation.
- 3CCT selectable: 3000K warm white, 4000K neutral white or 6000K daylight.
- Up to 1200 lumens: Provides 600lm, 900lm or 1200lm depending on the selected wattage.
- Adjustable microwave detection: Configurable sensitivity, hold time and daylight thresholds.
- IP65 ingress protection: Suitable for appropriately installed indoor and outdoor lighting applications.
- IK10 impact resistance: Robust polycarbonate construction for demanding environments.
- Compact Mini design: 251mm diameter and 74mm projection.
- Fast-fit hinged gear tray: Designed to simplify professional installation.
- Class II construction: Double-insulated electrical design.
- Long rated lifetime: 50,000 hours.
- Extended manufacturer warranty: 2+3 years, subject to warranty conditions.
Selectable 6W, 9W and 12W LED Output
The HeroPRO Mini 103936 features three power settings, allowing installers to select the required light output without purchasing different wattage versions of the fitting.
- 6W – 600 lumens: Lower-output illumination suitable for smaller entrances and circulation spaces.
- 9W – 900 lumens: Balanced general lighting for corridors, communal areas and stairwells.
- 12W – 1200 lumens: Maximum output for applications requiring brighter illumination.
Each setting delivers a manufacturer-specified efficacy of 100lm/W, making the fitting suitable for projects where adaptable lighting output is required.
Three Selectable Colour Temperatures

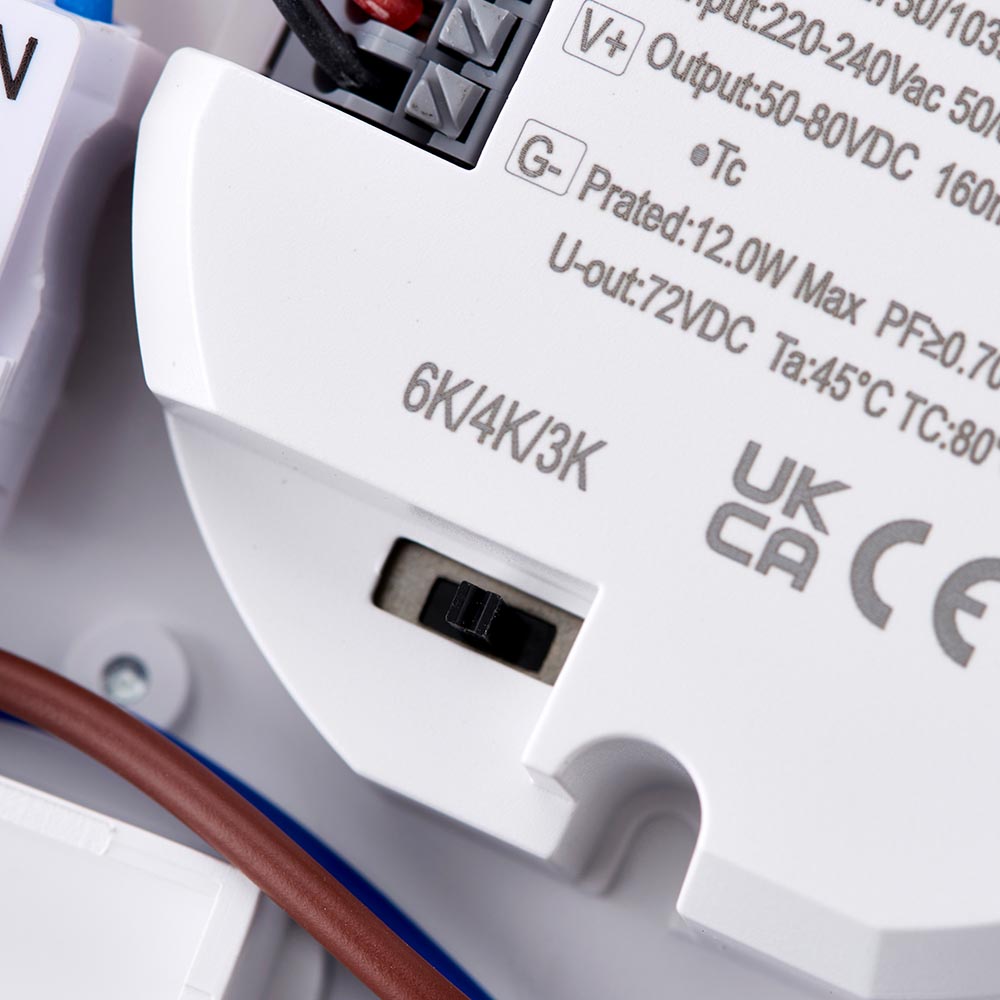

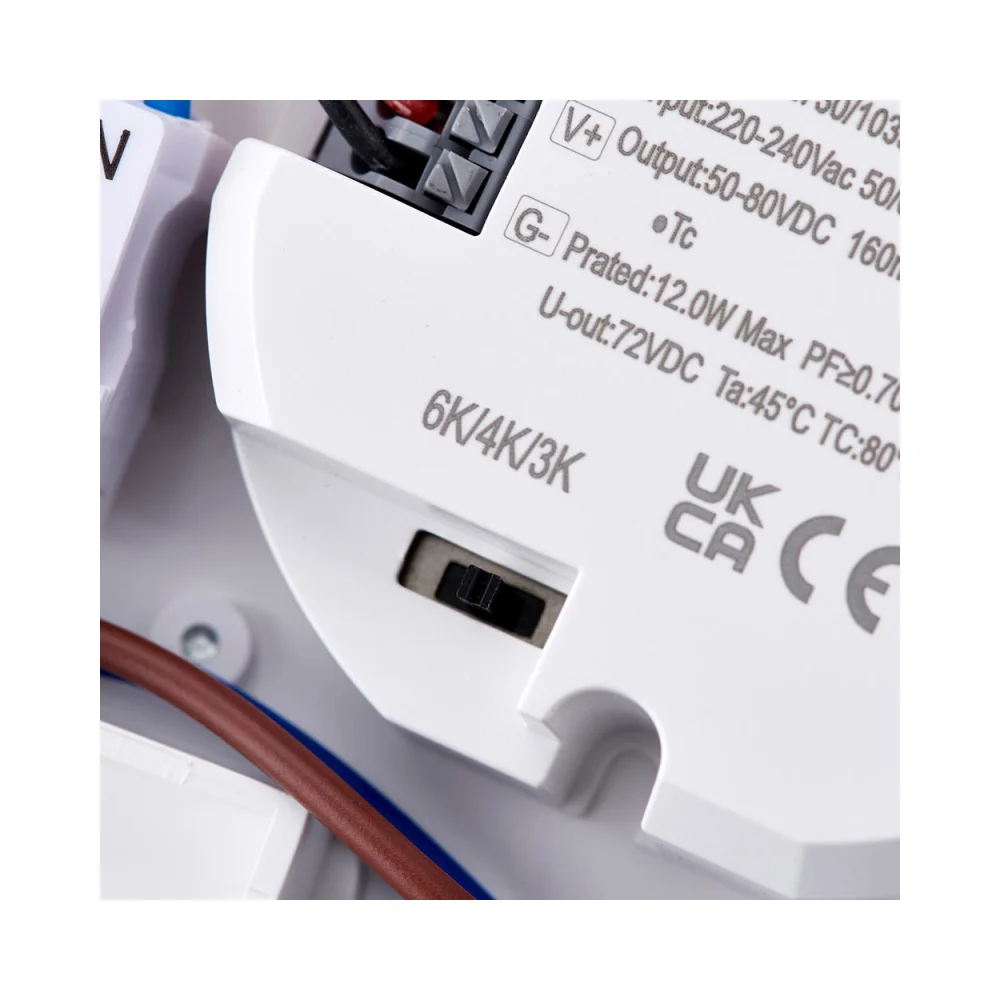

The integrated CCT selector provides three white light options to suit different environments and preferences.
- 3000K Warm White: A warmer appearance suited to residential entrances, porches and welcoming communal areas.
- 4000K Neutral White: Balanced white lighting for corridors, stairwells and general commercial applications.
- 6000K Daylight: A cooler white appearance for functional lighting and utility areas.
Power and colour temperature settings should be selected with the electrical supply isolated, following the manufacturer’s installation instructions.
Integrated Microwave Movement Sensor
The Saxby HeroPRO Mini includes a built-in microwave movement sensor, eliminating the need for a separate external motion detector in suitable installations.
When movement is detected within the configured coverage area and the daylight threshold conditions are met, the sensor automatically activates the LED bulkhead. The light remains illuminated for the selected hold time before switching off when movement is no longer detected.
This automatic on/off operation is particularly useful in corridors, stairwells, shared entrances and circulation areas where lighting is not required continuously.
Adjustable Microwave Sensor Settings
The integrated microwave sensor provides programmable operating parameters to suit different installation conditions.
- Detection sensitivity: 100%, 75%, 50%, 25% or 10%, depending on mounting configuration.
- Hold time: 5 seconds, 30 seconds, 90 seconds, 3 minutes, 20 minutes or 30 minutes.
- Daylight threshold: 2 lux, 10 lux, 25 lux, 50 lux or disabled.
- Ceiling detection: 360° coverage, with a manufacturer-specified 3–6m detection radius.
- Wall detection: 120° coverage, with a specified range of 1.5–12m.
- Microwave operating frequency: 5.8GHz ±75MHz.
Actual detection coverage depends on sensor sensitivity, mounting height, movement direction and surrounding materials. Follow the manufacturer’s instructions when selecting the appropriate settings.
Compact IP65 and IK10 LED Bulkhead

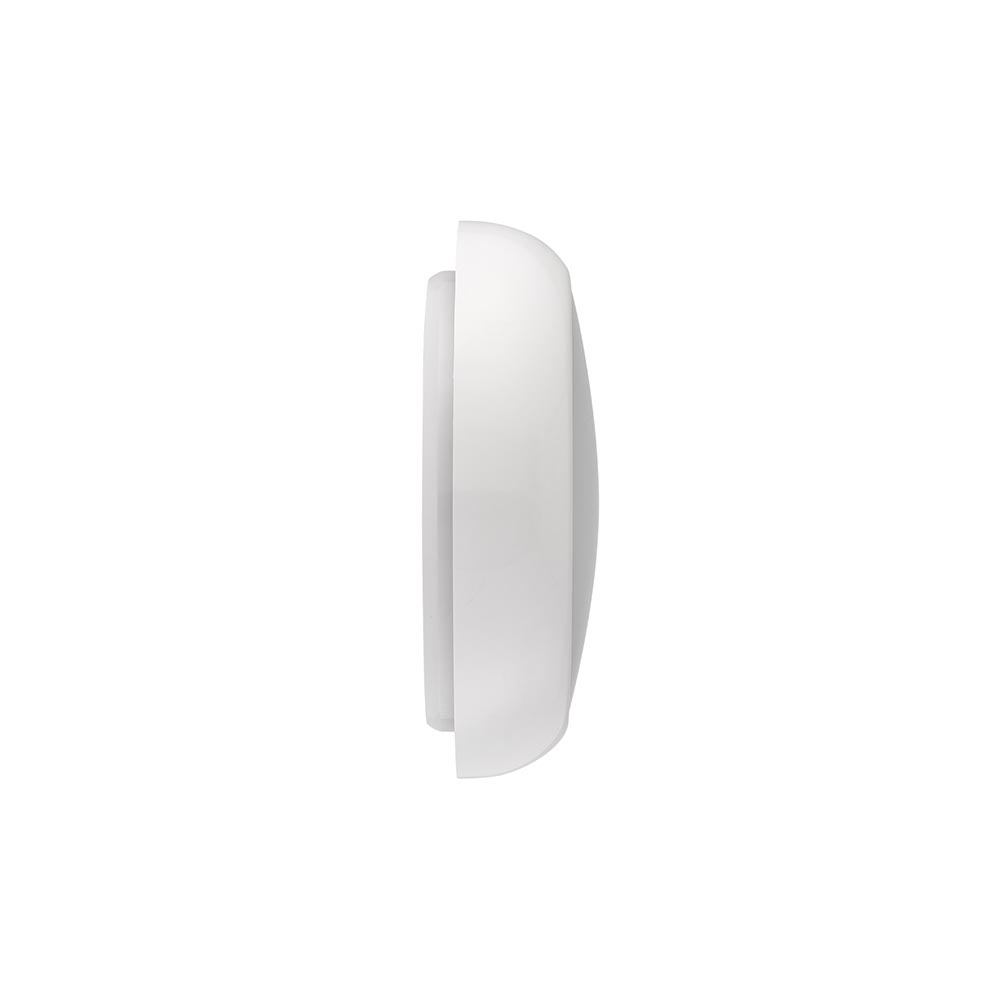

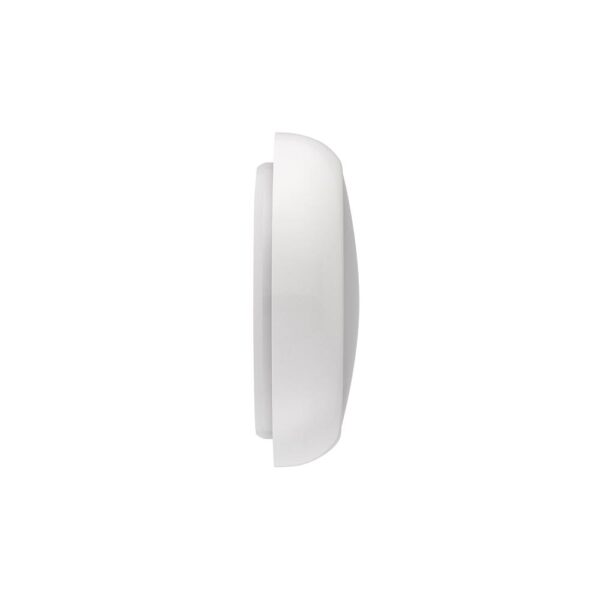

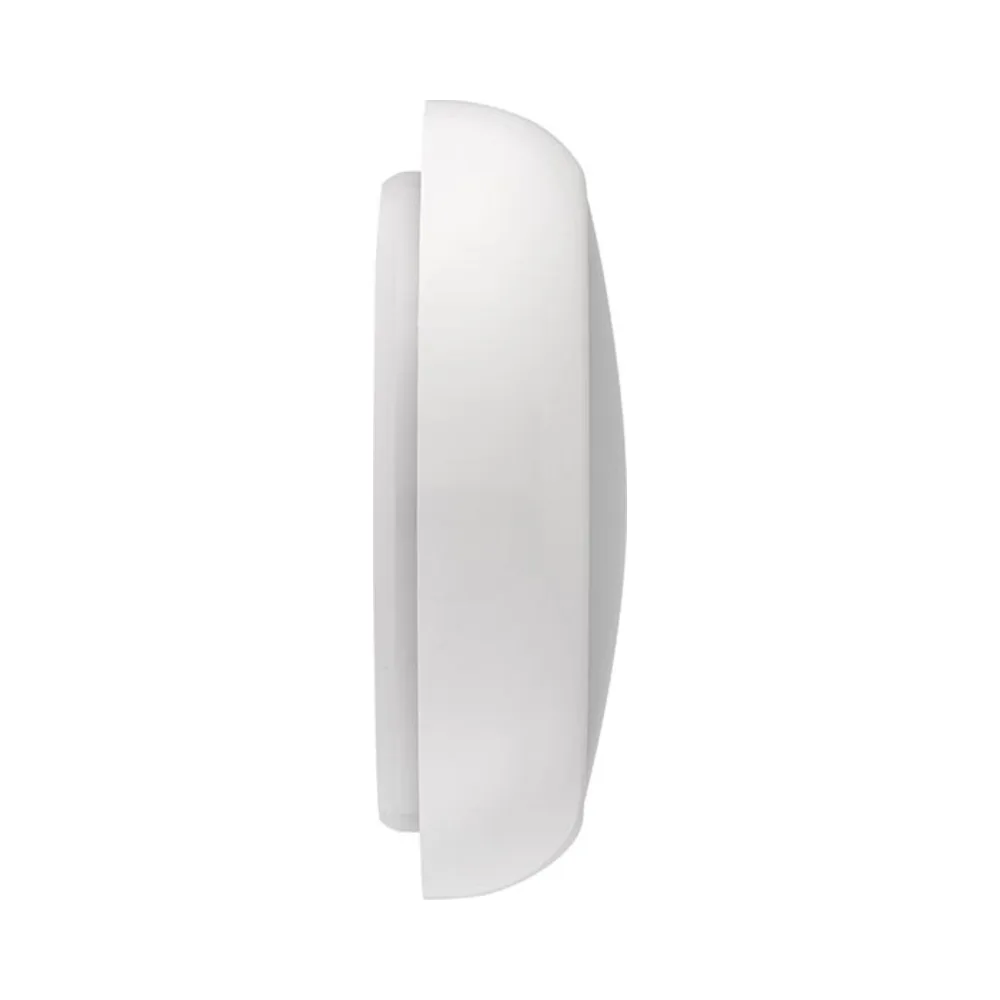

With a diameter of 251mm and projection of 74mm, the HeroPRO Mini offers a compact alternative to larger circular bulkhead fittings.
Its IP65 protection rating provides resistance against dust and water jets when correctly installed, while the IK10 impact rating offers enhanced mechanical durability.
The matt white textured polycarbonate housing and opal diffuser provide a neat appearance suited to residential and commercial environments.

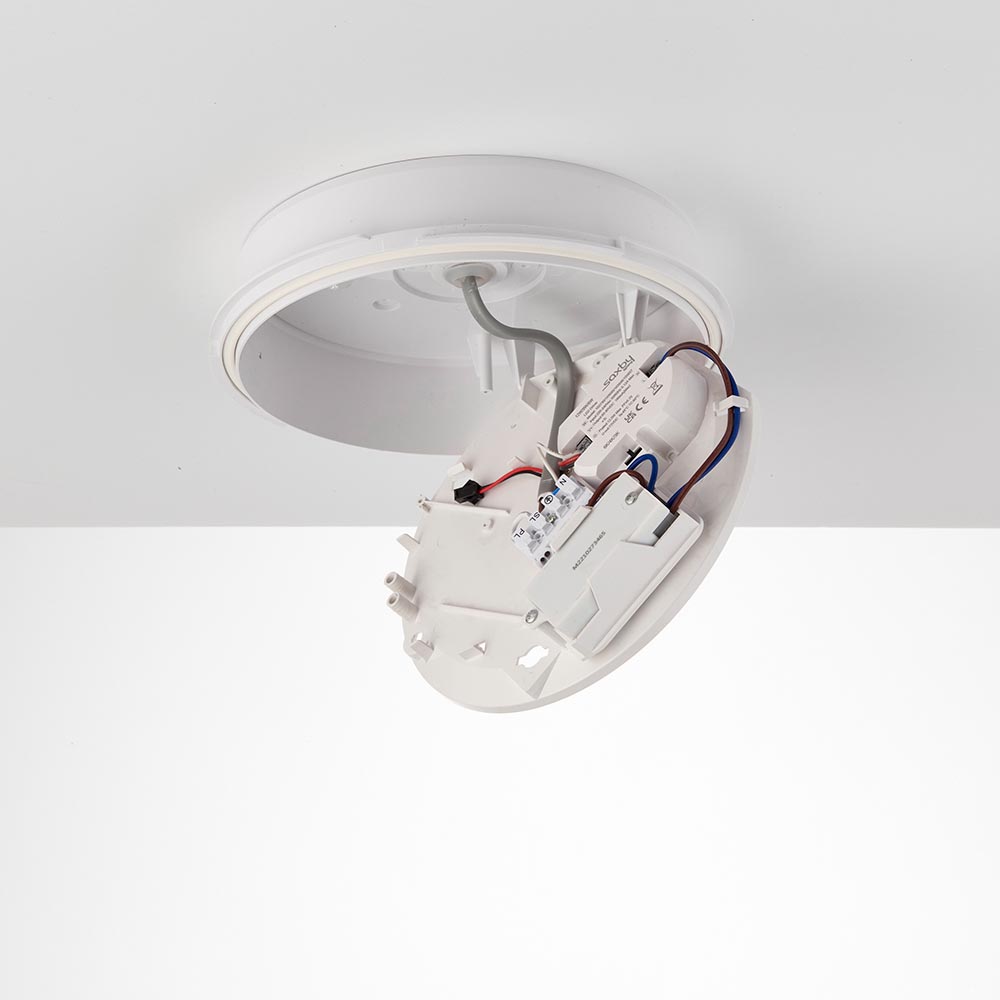

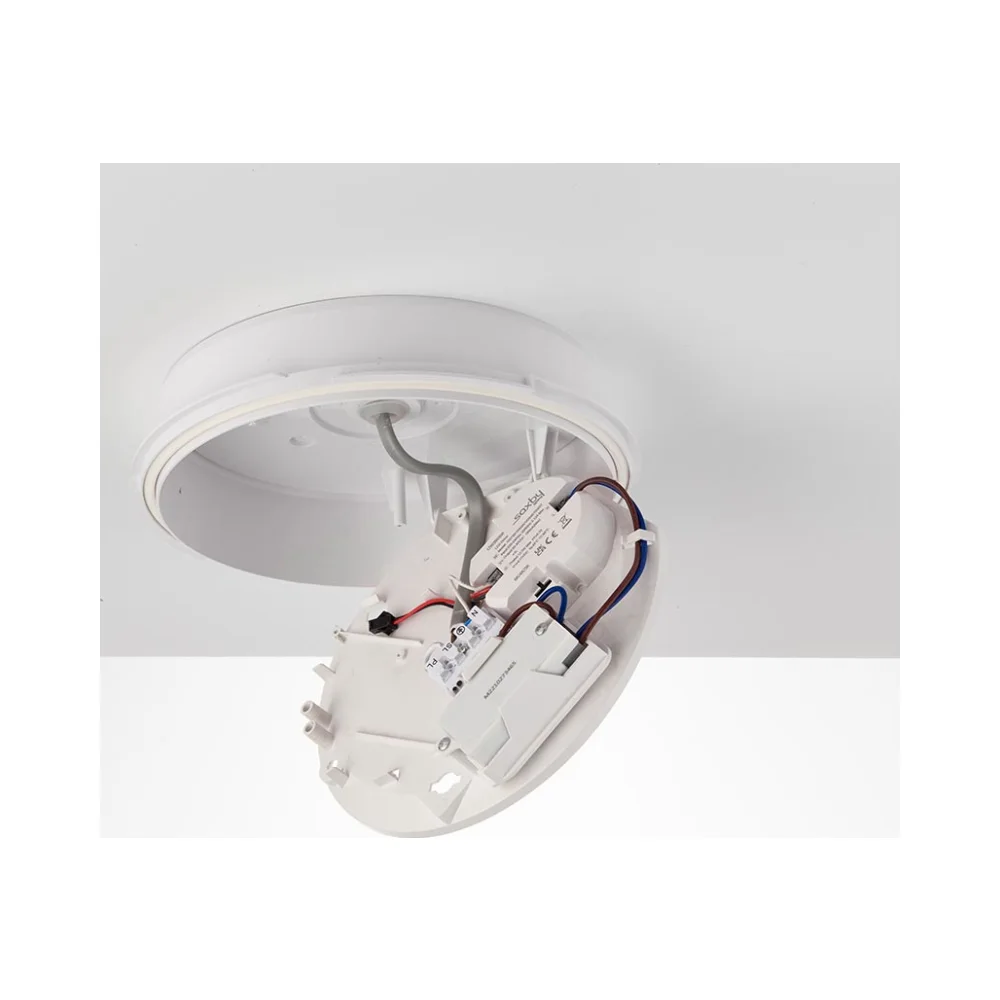

Fast-Fit Installation

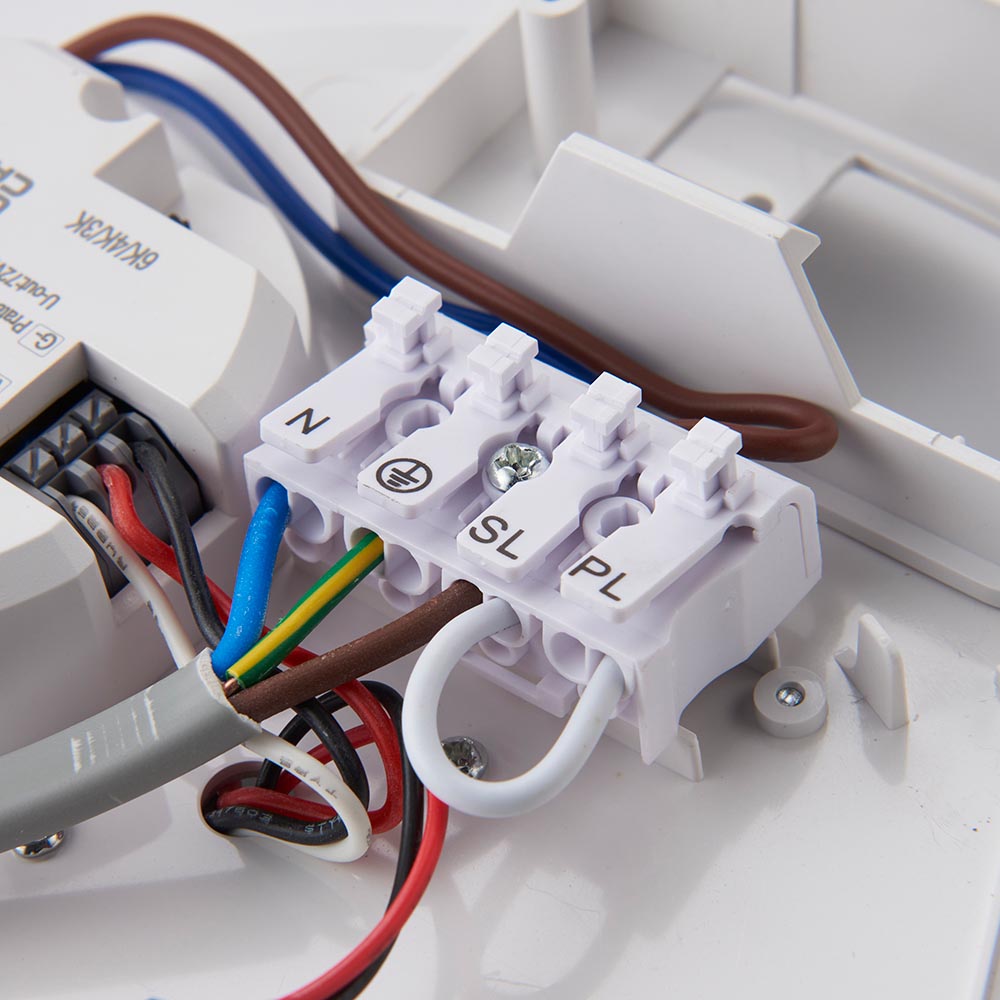

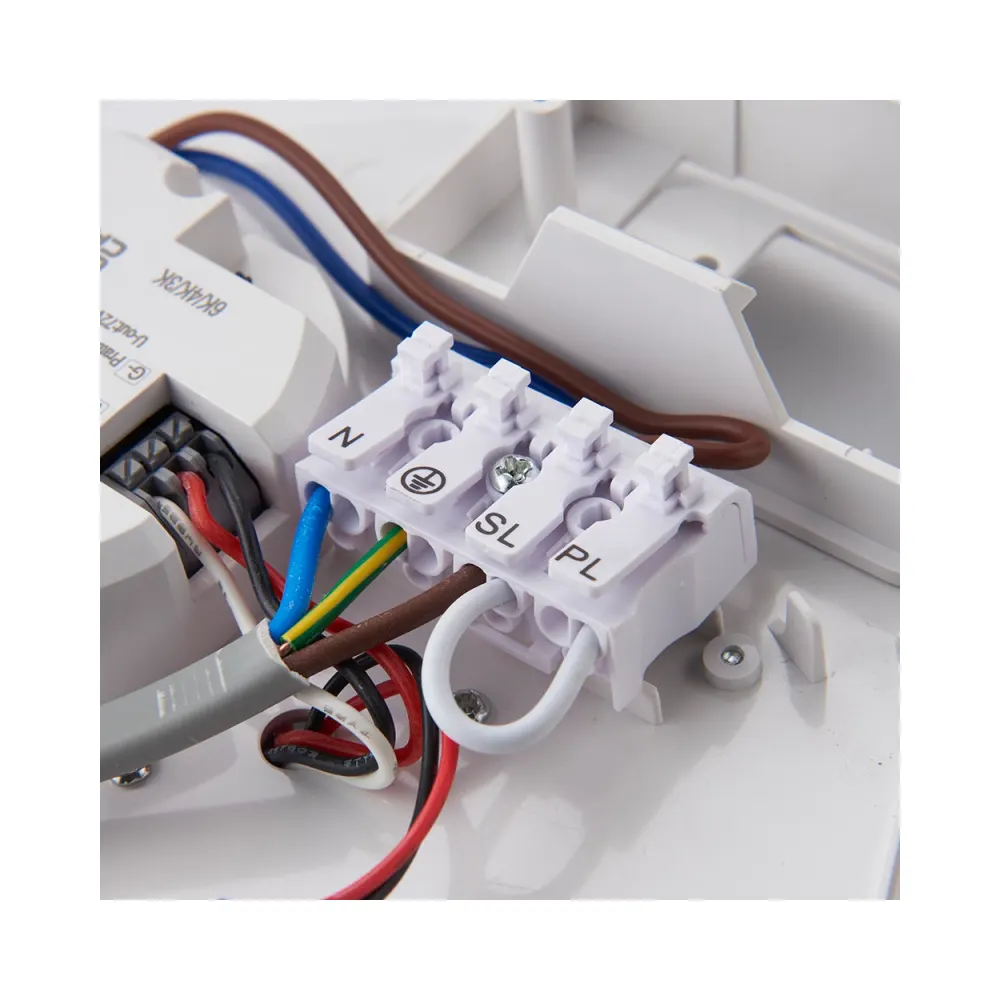

The HeroPRO Mini features a fast-fit hinged gear tray designed to support straightforward installation and access to the electrical connections.
Its Class II double-insulated construction and compact housing make it suitable for professional installation in appropriate wall and ceiling locations.
All electrical work must follow the manufacturer’s instructions and applicable UK wiring requirements.
Typical Applications
The Saxby 103936 is suitable for a range of occupancy-responsive lighting applications, including:
- Residential porches and entrances
- Apartment building corridors
- Communal stairwells and shared access areas
- Office corridors and circulation spaces
- Utility rooms and storage areas
- Suitable external building entrances
- Commercial premises requiring automatic movement-controlled lighting
When selecting a movement-controlled luminaire, consider whether automatic switching is appropriate for the location and whether permanent or emergency lighting is required separately.
Technical Specifications – Saxby 103936 12W IP65 Microwave Bulkhead
| Manufacturer | Saxby Lighting |
|---|---|
| Product Code | 103936 |
| Product Range | HeroPRO Mini CCT |
| Product Type | Microwave Sensor LED Bulkhead |
| Selectable Wattage | 6W / 9W / 12W |
| Luminous Output | 600 / 900 / 1200lm |
| Luminous Efficacy | 100lm/W |
| Colour Temperature | 3000K / 4000K / 6000K |
| Beam Angle | 120° |
| Colour Rendering Index | CRI >80 |
| Operating Voltage | 220–240V AC |
| Frequency | 50/60Hz |
| Power Factor | >0.9 |

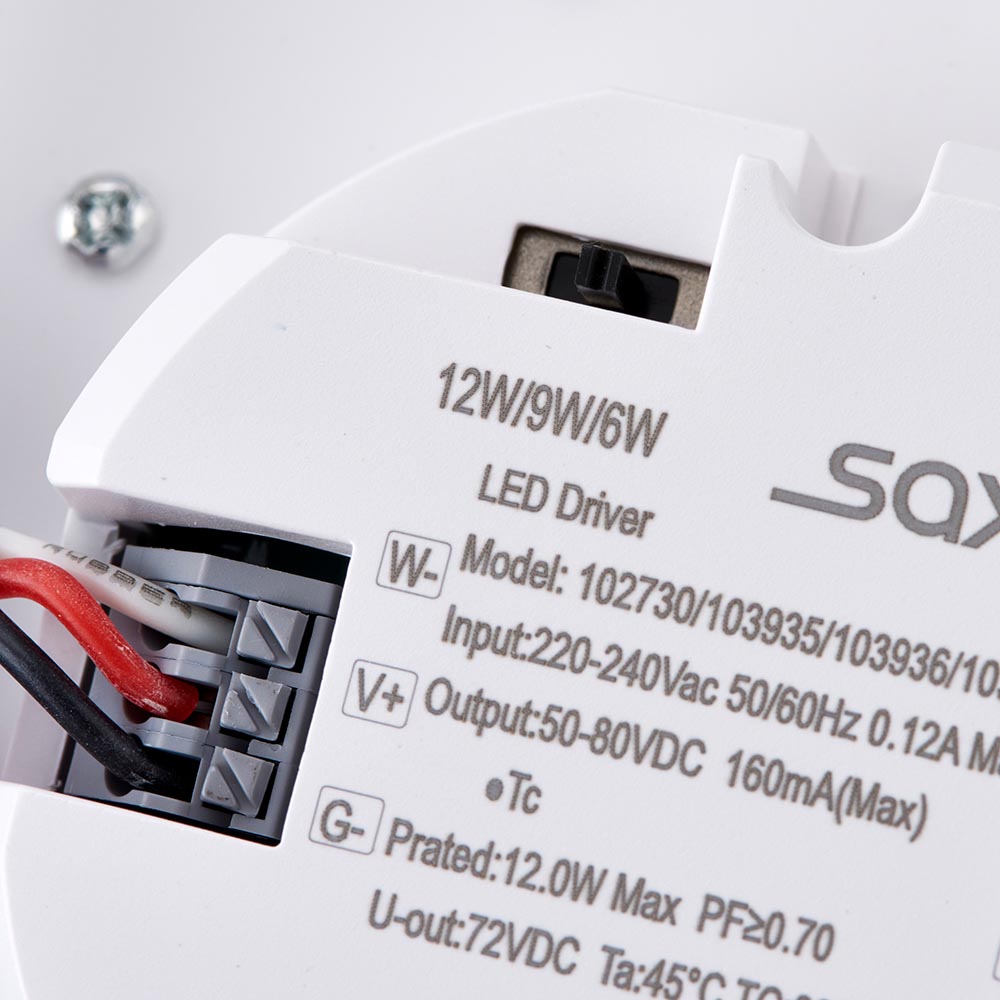

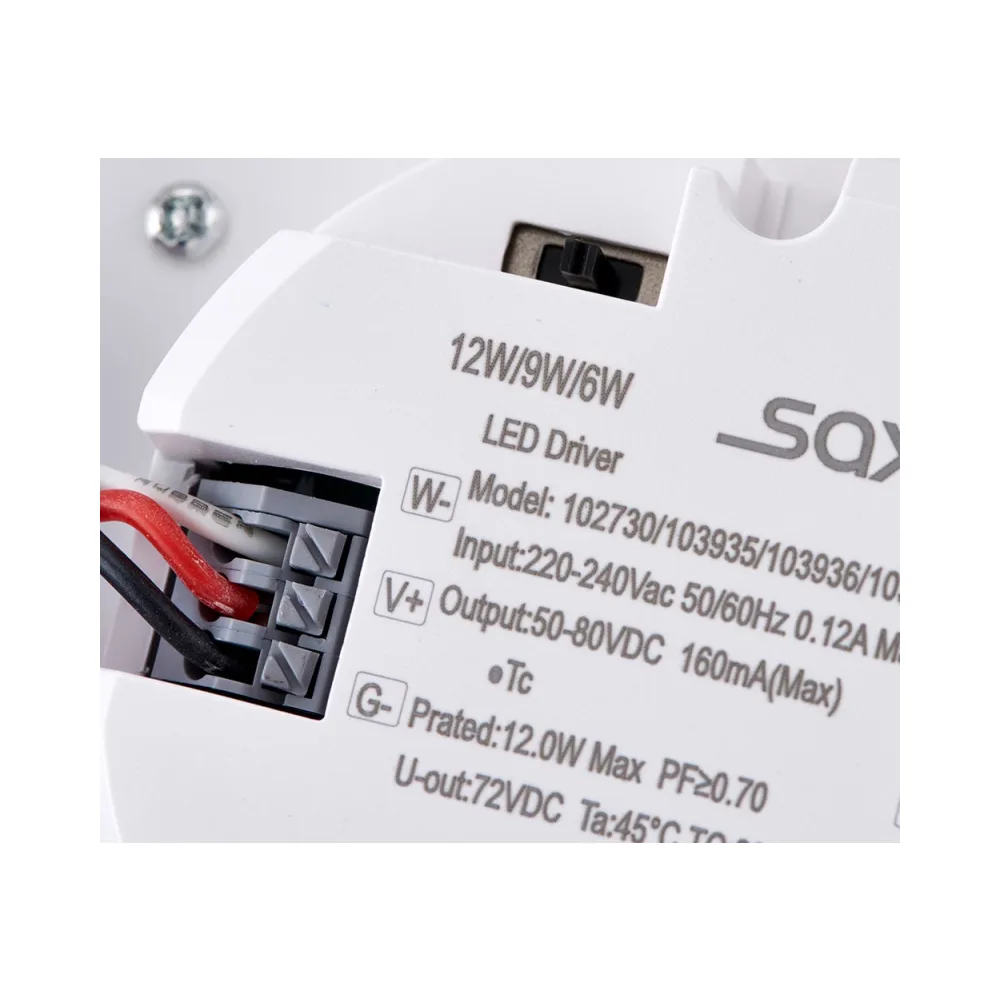

| Driver Type | Constant Current 155mA |
| Dimmable | No |
| Microwave Sensor | Integrated On/Off Sensor |
| Microwave Frequency | 5.8GHz ±75MHz |
| Detection Sensitivity | 100% / 75% / 50% / 25% / 10% |
| Hold Time | 5s / 30s / 90s / 3min / 20min / 30min |
| Daylight Settings | 2 / 10 / 25 / 50 lux / Disabled |
| Ceiling Detection Angle | 360° |
| Wall Detection Angle | 120° |
| Ceiling Detection Radius | 3–6m |
| Wall Detection Range | 1.5–12m |
| Ingress Protection | IP65 |
| Impact Resistance | IK10 |
| Electrical Class | Class II |
| Rated Lifetime | 50,000 Hours |
| LED Brand | EVERLIGHT |
| Housing Material | Polycarbonate |
| Finish | Matt White Textured |
| Diffuser | Opal Polycarbonate |
| Diameter | 251mm |
| Projection | 74mm |
| Product Weight | 0.46kg |
| Operating Temperature | -20°C to +40°C |
| Surge Protection | 3.75kV |
| Emergency Lighting | Not Included |
| Warranty | 2+3 Years Extended, Subject to Terms |
Frequently Asked Questions
Does the Saxby 103936 include a microwave sensor?
Yes. The HeroPRO Mini 103936 incorporates a programmable microwave movement sensor with adjustable sensitivity, hold time and daylight threshold settings.
Is the Saxby 103936 a fixed 12W LED bulkhead?
No. It offers selectable 6W, 9W and 12W output, delivering 600, 900 and 1200 lumens respectively.
Can I change the colour temperature?
Yes. The fitting provides selectable 3000K warm white, 4000K neutral white and 6000K daylight settings.
Is the HeroPRO Mini suitable for outdoor installation?
Yes. Its IP65 ingress protection rating makes it suitable for appropriately installed outdoor lighting applications, subject to the manufacturer’s instructions.
What is the microwave sensor detection range?
The manufacturer specifies a ceiling-mounted detection radius of 3–6m and a wall-mounted range of 1.5–12m. Actual performance depends on mounting height, sensitivity and installation conditions.
Can the sensor hold time be adjusted?
Yes. The integrated sensor offers selectable hold times of 5 seconds, 30 seconds, 90 seconds, 3 minutes, 20 minutes or 30 minutes.
Does the sensor work during daylight?
The sensor includes selectable daylight thresholds of 2, 10, 25 and 50 lux, along with a disabled setting. These allow the installer to configure how ambient light affects automatic operation.
Does the Saxby 103936 include emergency lighting?
No. This is the standard HeroPRO Mini microwave sensor version without an integrated emergency battery. Emergency lighting must be provided separately where required.
Does this model provide corridor step dimming?
No. The Saxby 103936 is a microwave-controlled on/off luminaire. The HeroPRO 95543 is a separate full-size model offering corridor step-dimming functionality.
What is the difference between the HeroPRO Mini and the full-size HeroPRO?
The HeroPRO Mini 103936 measures 251mm in diameter and provides selectable 6W, 9W or 12W output. The full-size HeroPRO 95541 microwave model measures 316mm in diameter and offers selectable 9W, 14W or 18W output.
What is the expected LED lifetime?
The manufacturer specifies a rated lifetime of 50,000 hours for the HeroPRO Mini 103936.
