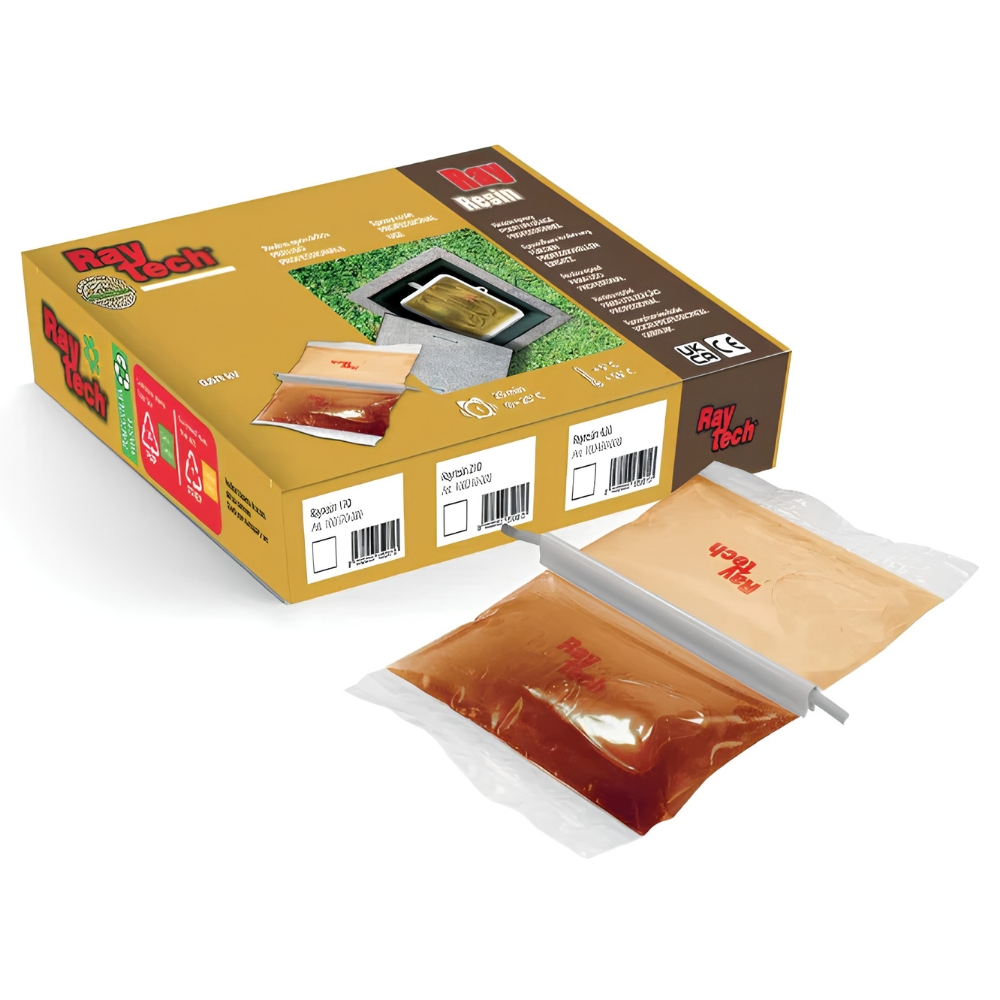

Raytech RAYRESIN 170 Epoxy Resin 170g
The Raytech RAYRESIN 170 Epoxy Resin 170g is a bicomponent epoxy resin supplied in a two-compartment sachet for electrical insulation and protection applications. Designed for installations up to 1kV, it is suitable for protecting thermosetting LV and MV accessories.

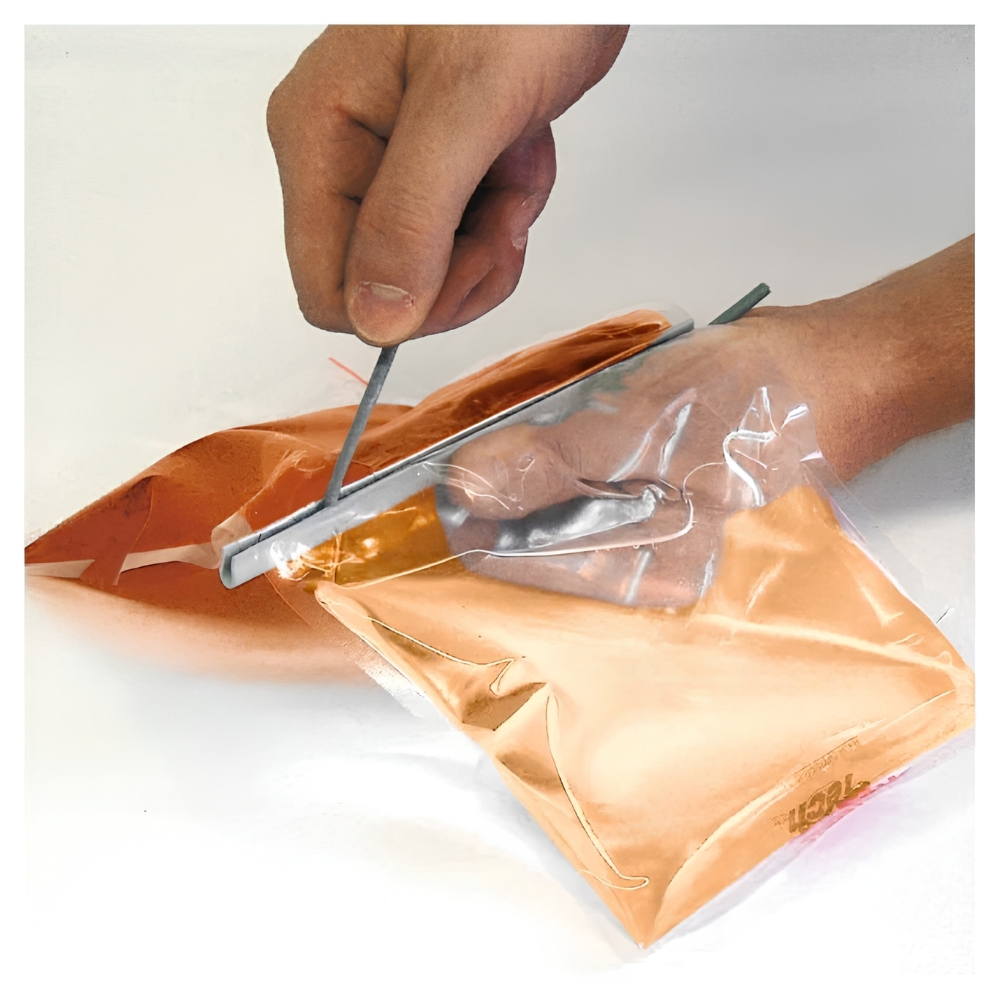

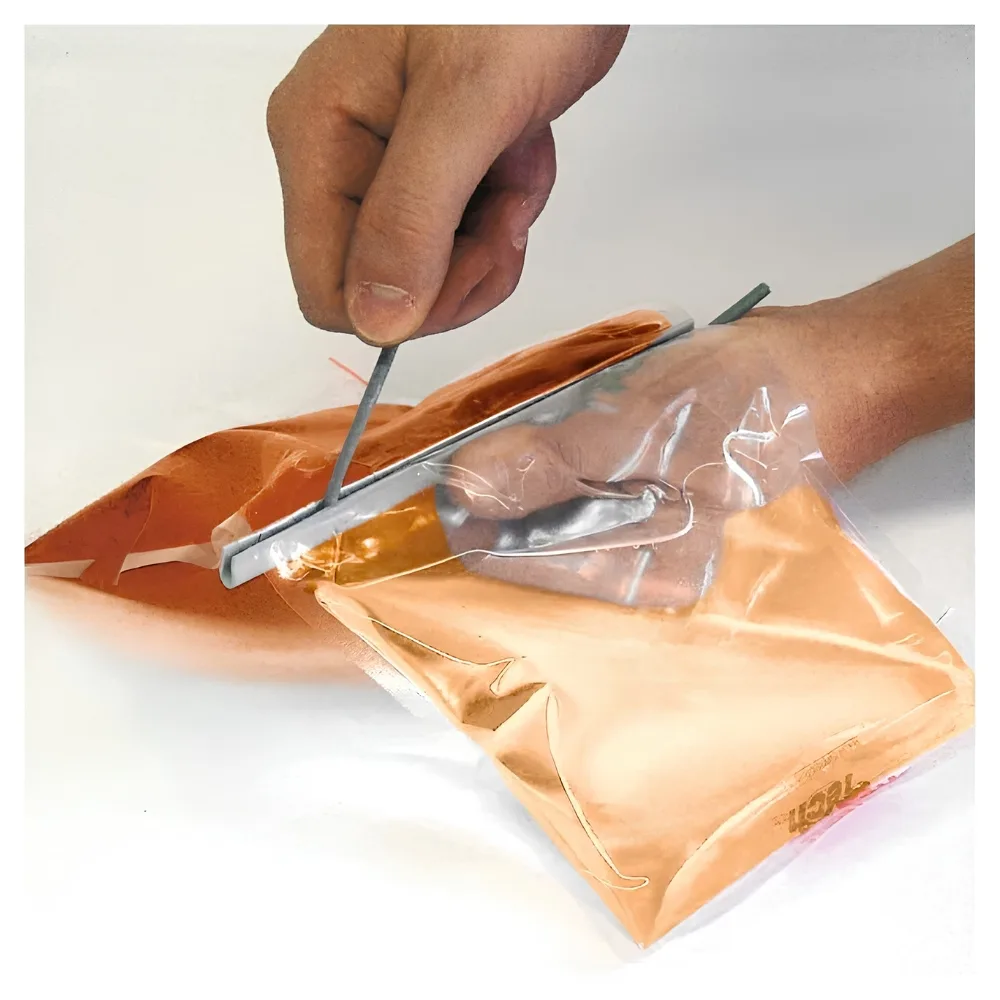

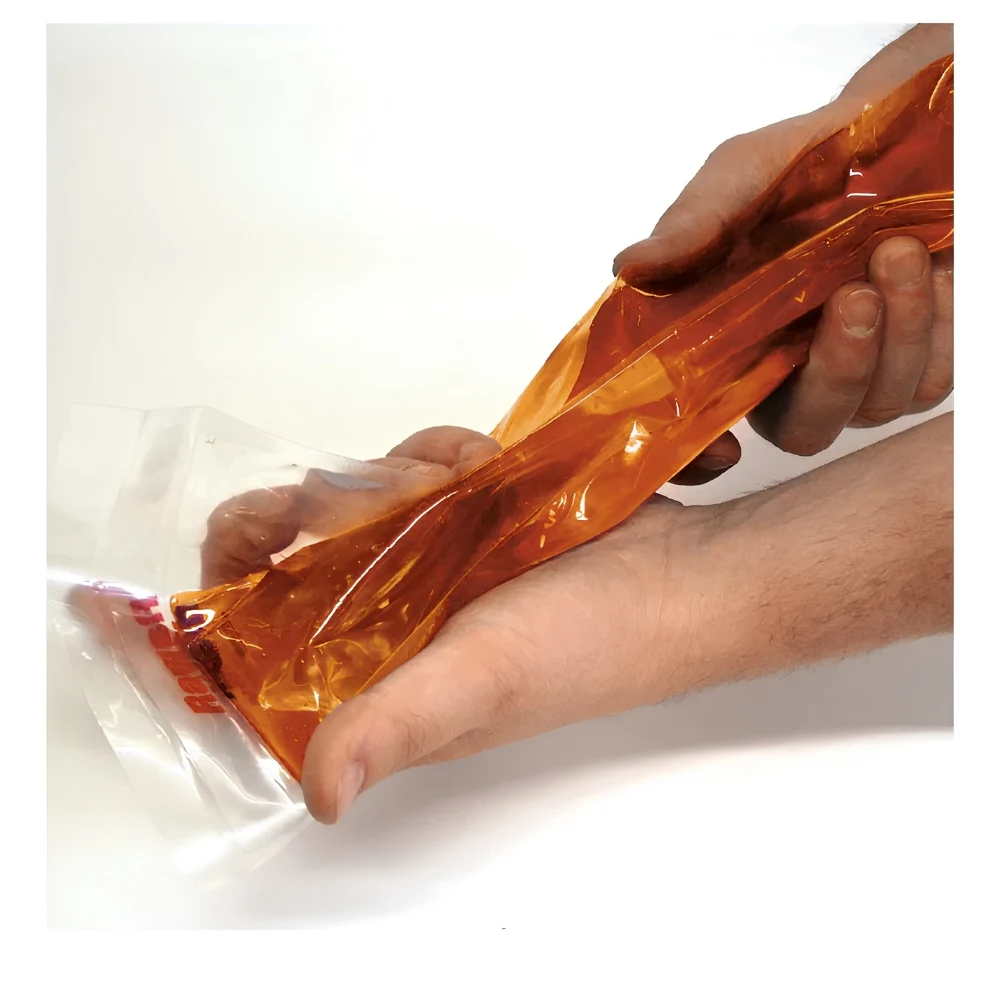

The base resin and hardener are contained separately within the sachet and are mixed together immediately before application. Contact between the two components initiates the cross-linking reaction, producing a hard and durable insulating compound.

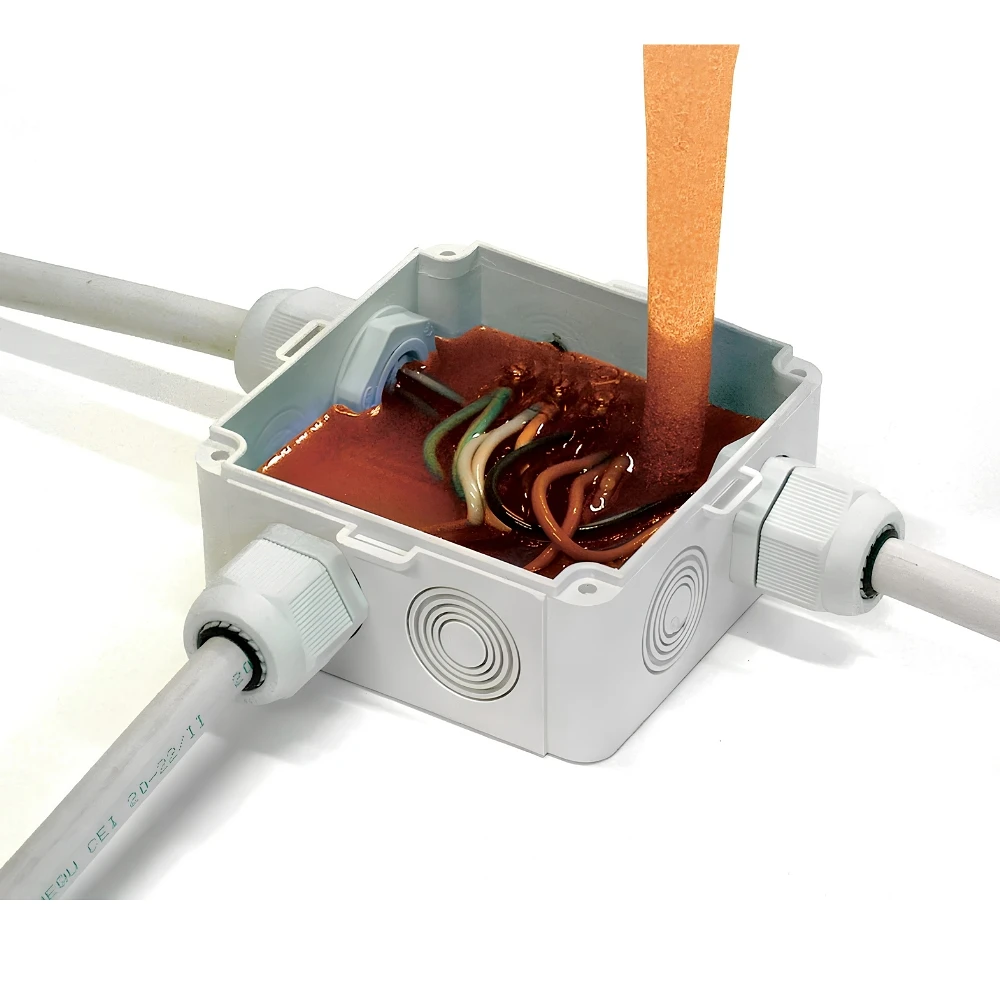

Ray Resin provides excellent adhesion to metal, plastic and rubber components, making it suitable for a wide range of professional electrical jointing, encapsulation and protection applications.
Key Features
- 170g bicomponent epoxy resin
- Supplied in a two-compartment sachet
- Suitable for electrical installations up to 1kV
- Designed for electrical insulation and protection
- Suitable for thermosetting LV and MV accessories
- Excellent bonding to metal, plastic and rubber
- Base resin and hardener mixed immediately before use
Technical Specifications
| Product | Ray Resin 170 |
| Resin Type | Bicomponent epoxy resin |
| Pack Size | 170g |
| Packaging | Two-compartment sachet |
| Maximum Installation Voltage | Up to 1kV |
| Cross-Linking Time | 20 minutes at 20°C |
| Hardness | 70 Shore D |
| Dielectric Strength | 21kV/mm |
| Specific Weight | 1.07kg/dm³ |
| Water Absorption | 0.8% max |
Other Ray Resin Pack Sizes
For a larger quantity, see the Raytech Ray Resin 210 210g or the Raytech Ray Resin 420 420g.
