RayTech Magic Gel 2000 – 2×1000 ml
Bicomponent gel with very high dielectric and thermal characteristics, ideal for connection systems (joint shells or enclosures) for power cables.

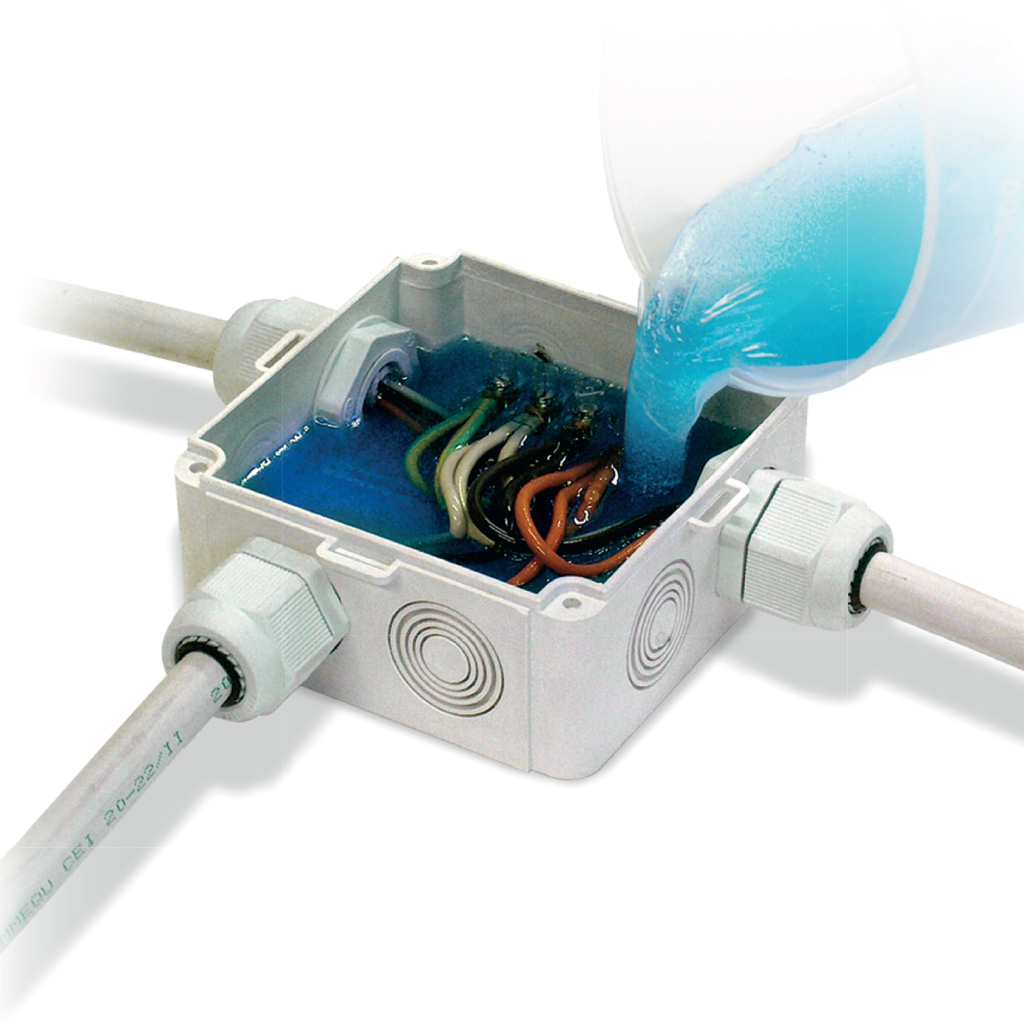

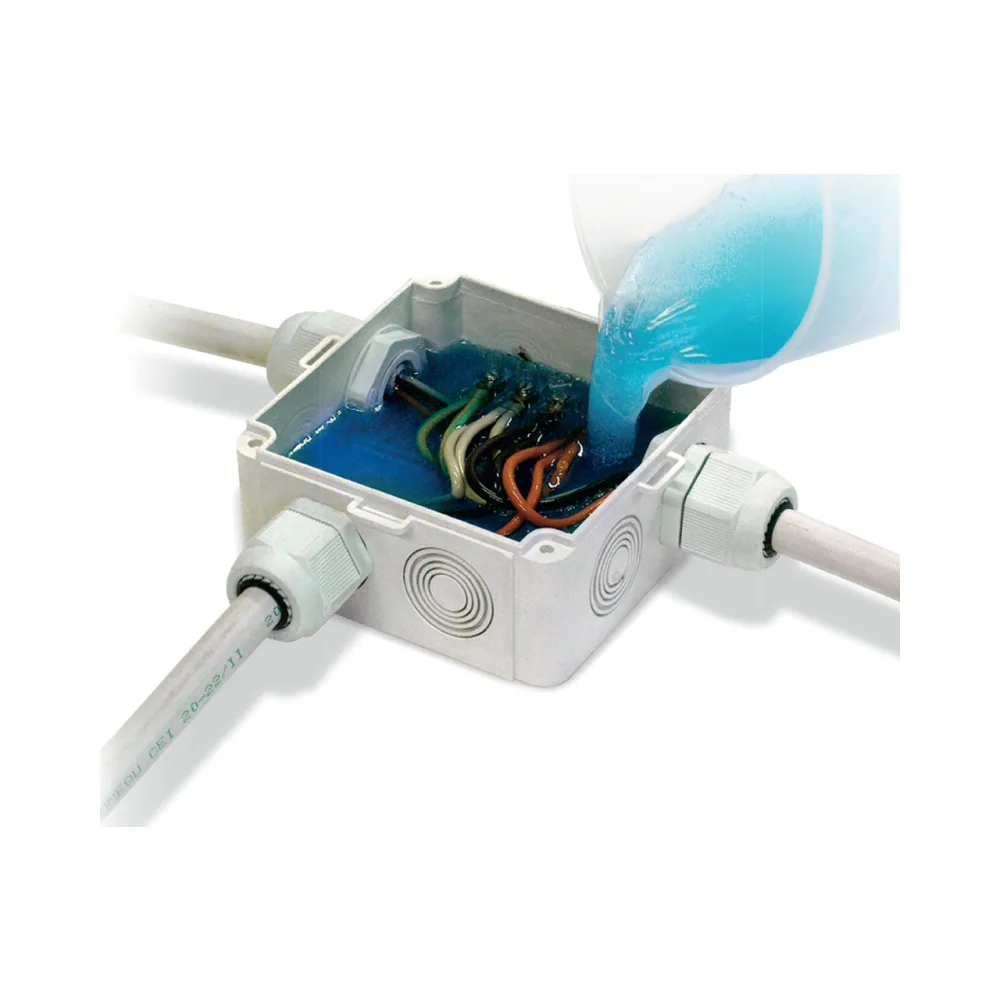

The insulating and sealing gel, when cast in suitable casings, ensures an IP68 degree of protection and can replace all types of resins. This is a self-polymer insulation in two practical bottles, with cold cross-linking. Once poured, the insulation, characterised by very low viscosity, surrounds and envelops any type of material, cross-linking in less than 10 minutes. Completely non-toxic, it cross-links with a very slow isothermal peak that does not thermally stress the materials it contacts.
- For high-temperature applications
- Quick cross-linking (only 10 minutes)
- Re-enterable after long working periods
- Non-toxic and safe with no shelf life
- Low viscosity
- Gel UL 94-HB
- Dielectric strength >23 kV/mm
- Cross-linking time: Fast (about 10 min. at 23°C)
- Volume resistivity >2 x 10¹⁵ Ω cm
- Working temperature: -60°C / +200°C
- Overload temperature for short periods: Up to 250°C
- Stabilised for: Mould – UV
- Degree of protection: IP68 (in proper casings)
Package type:
- 2 bottles
- 1 small basin
- 1 mixing spoon
