Description
Rako Surface Mount Pattress for Wired WK-EOS Keypads
Rako XCE-EOS-SB WK-EOS Surface Mount Pattress is designed for use with Rako WK-EOS wired keypads. It provides a mounting pattress for fitting the WK-EOS keypad into a standard UK or EU backbox, with the matching WP-EOS cover plate range used to complete the finished appearance.

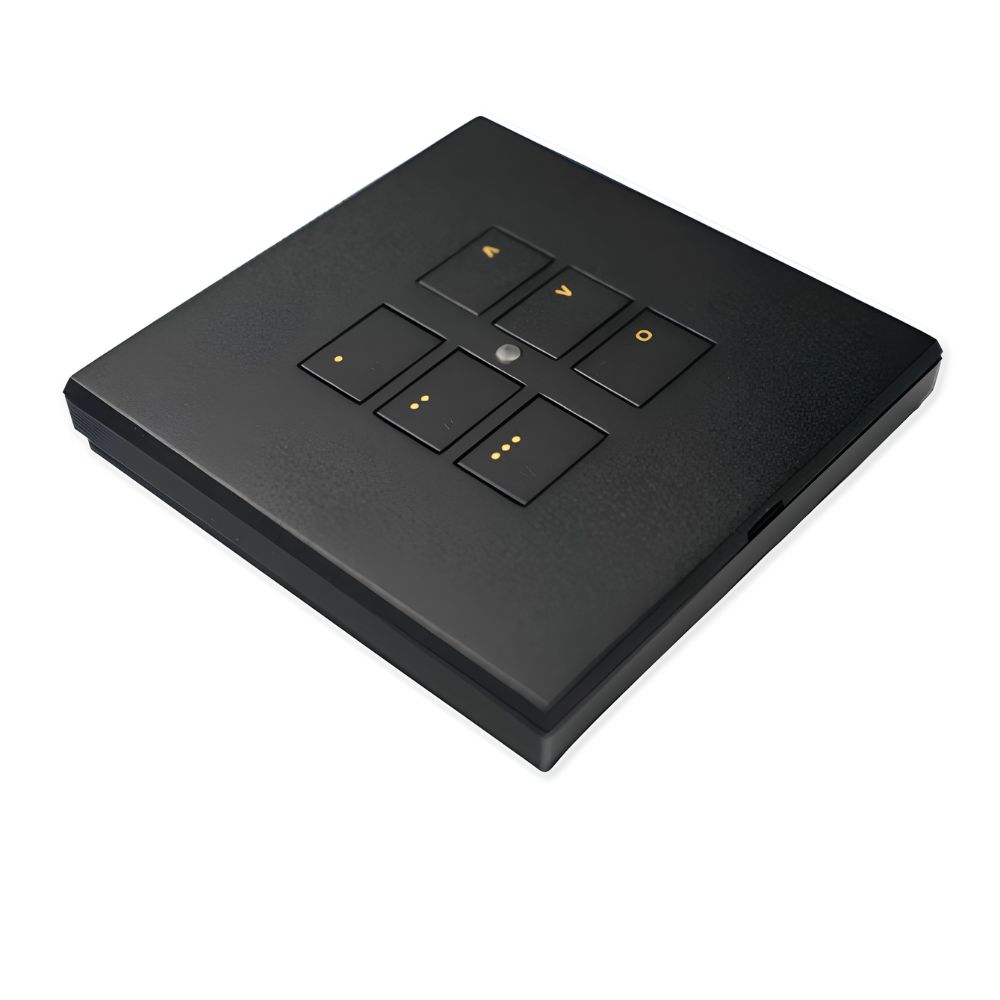

Important image note: product images show the XCE-EOS-SB pattress with a WP-EOS cover plate fitted for illustration only. This listing is for the XCE-EOS-SB (WK-EOS) pattress only. The WK-EOS keypad and WP-EOS screwless cover plate shown or implied by the image are not included and must be ordered separately.
What Is Included?
- Included: Internal pattress, Part B
- Included: Main pattress body, Part A
- Included: 4 x M3 x 5mm pan head cross screws
What Is Sold Separately?
- Sold separately: WK-EOS wired keypad
- Sold separately: WP-EOS screwless cover plate
Key Features – Rako XCE-EOS-SB WK-EOS Surface Mount Pattress
- Surface mount pattress for Rako WK-EOS wired keypads
- Compatible with the WP-EOS decorative cover plate range, sold separately
- Fits standard UK or EU backboxes
- Designed for wired WK-EOS keypad installations
- Requires a minimum 36mm backbox depth
- Useful for completing a clean EOS keypad installation with matching WP-EOS cover plate finishes
Technical Specifications – Rako XCE-EOS-SB WK-EOS Surface Mount Pattress
- Dimensions: 88 x 88 x 12.9mm
- Minimum backbox depth: 36mm
- Fixings: 4 x M3 x 5mm pan head screws
- Weight: 64g
- Materials: UL94 V-0 PC/ABS resin, steel and brass
- Compatible keypad range: WK-EOS keypads, sold separately
- Compatible decorative cover plate range: WP-EOS cover plates, sold separately
Installation Notes
The XCE-EOS-SB (WK-EOS) is compatible with UK and EU backboxes. The manufacturer states that the WK-EOS setup requires a minimum backbox depth of 36mm. The WK-EOS keypad front section connects to the punchdown section inside the backbox via the four-pin connector.
Important Ordering Note
This product is the Rako XCE-EOS-SB WK-EOS Surface Mount Pattress only. The product image may show the pattress with a WP-EOS cover plate fitted to demonstrate the finished appearance. WP-EOS cover plates and WK-EOS keypads are not included and must be purchased separately where required.
