Rako Wireless Modular Control Module – RK-MOD-101 – White Buttons – complete with single gang UK backbox mount and 2x CR2016 lithium batteries.
Rako’s all new Modular push button control modules are available as wired or wireless NFC. Built around a modular, flush fascia design, this contemporary range offers specifiers and end clients a versatile keypad for their projects.

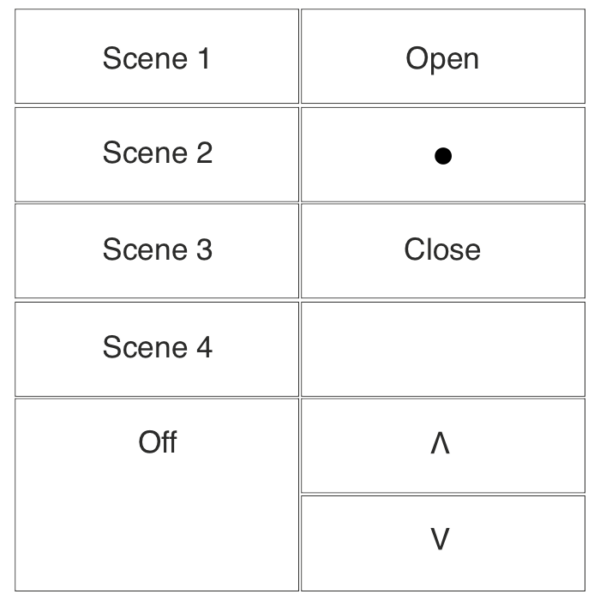

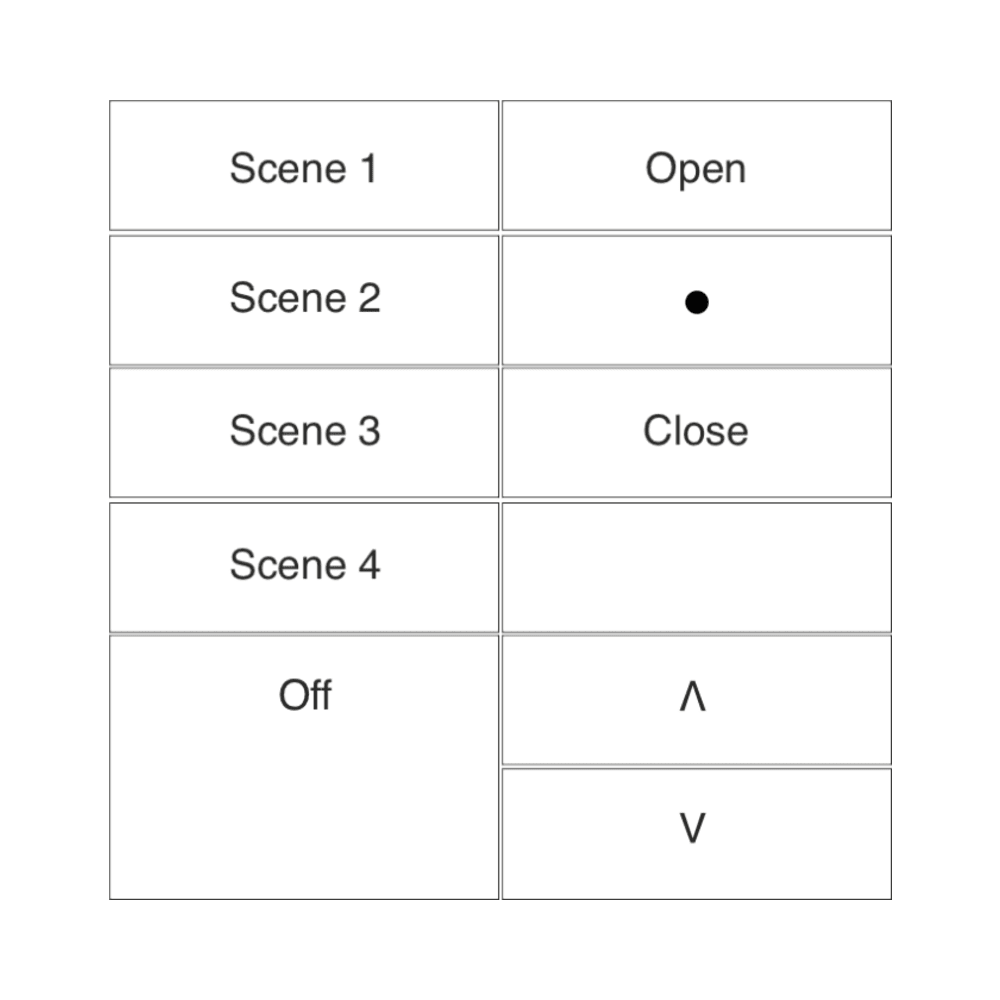

The RK-MOD-xxx-x uses three different button sizes across a range of keypad layouts. This offers a truly flexible range of designs to suit all your lighting control requirements including:
- Multi Room layouts
- Single Room layouts
The wireless Modular control module is programmable via Rako’s patented NFC (Near Field Communication) technology, allowing each button to trigger a single or multiple commands.
A RAMPI or RK-HUB and Rasoft Pro programming software is required for setup and configuration of the RK-MOD-xxx-x. Once addressed it is possible to control any Room/Channel in the system, sending commands to each including:
- Scene selection
- Scene toggle
- Level toggle
- Room/Channel raise & lower
- Macro start/stop/control
- House Master controls
Rako’s coded radio transmission eliminates the need for any data cables ensuring the system can be installed with minimum fuss or disruption.
The wireless Modular control modules are designed to be flush mounted to standard UK single gang back boxes (minimum advised depth: 25mm) and are Lithium battery powered, which means they can be mounted anywhere without having to run cabling.
Hand finished metal surrounds are available in a number of finishes and should be ordered separately.
|Dimensions||Control Panel: 86x86x25mm
|Input supply||6V DC – 2x 3V Lithium coin cell CR2016 (remote power supply version available)|
|Fixing||Flush mounting into standard UK single gang back box
Minimum depth: 25mm
|Climate range||Temperature +2C to +40C
Humidity +5% to 95% non condensing
|Battery life||Greater than 3 years|
|Standards||Emissions – EN61000-6-3 : 2007
Immunity – EN61000-6-1 : 2007
|Communication||433.9MHz coded FM radio
Programming via NFC
|Memory||Flash memory (non volatile)
Firmware upgrades via RASOFT Pro programming software
