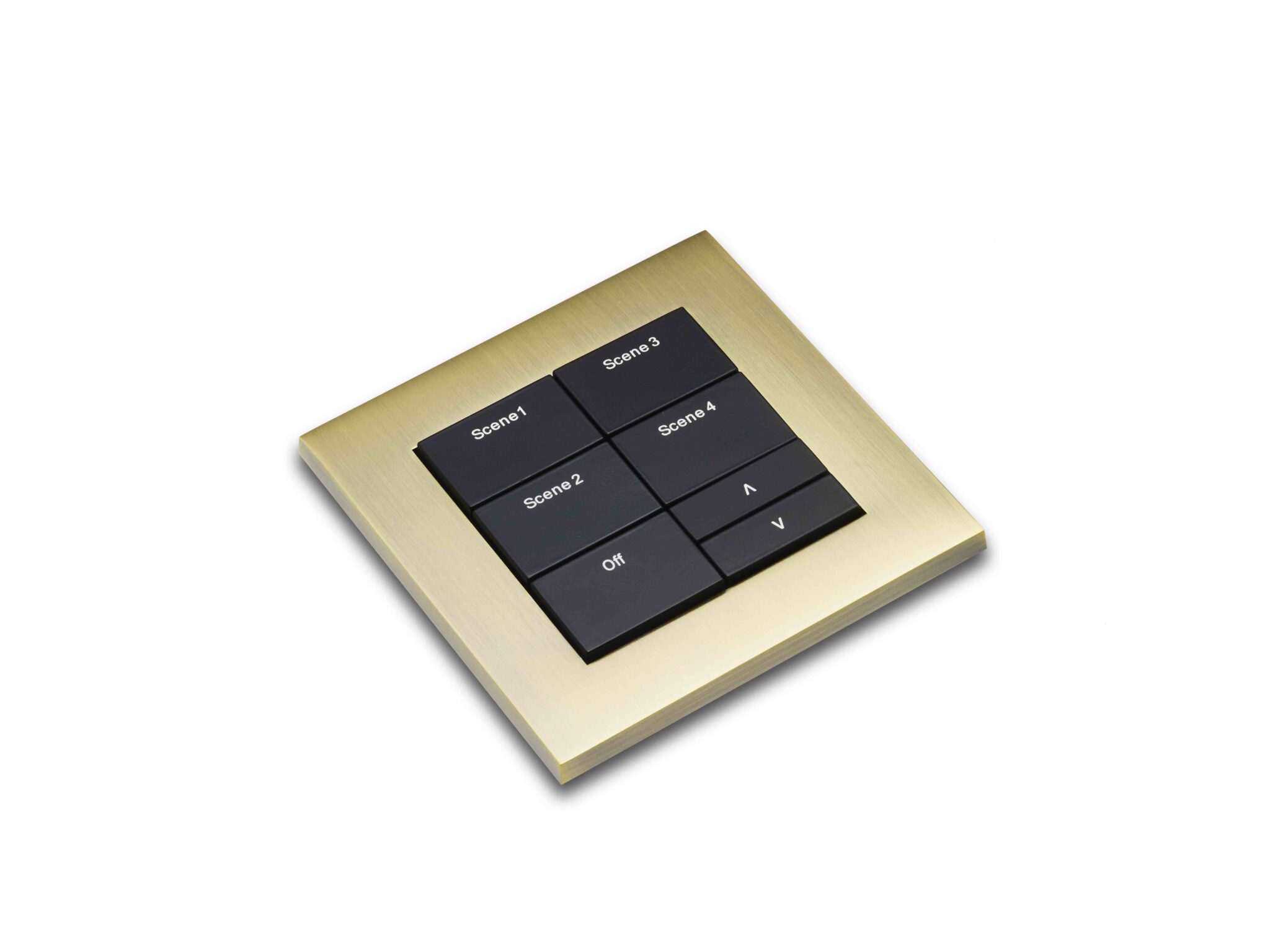

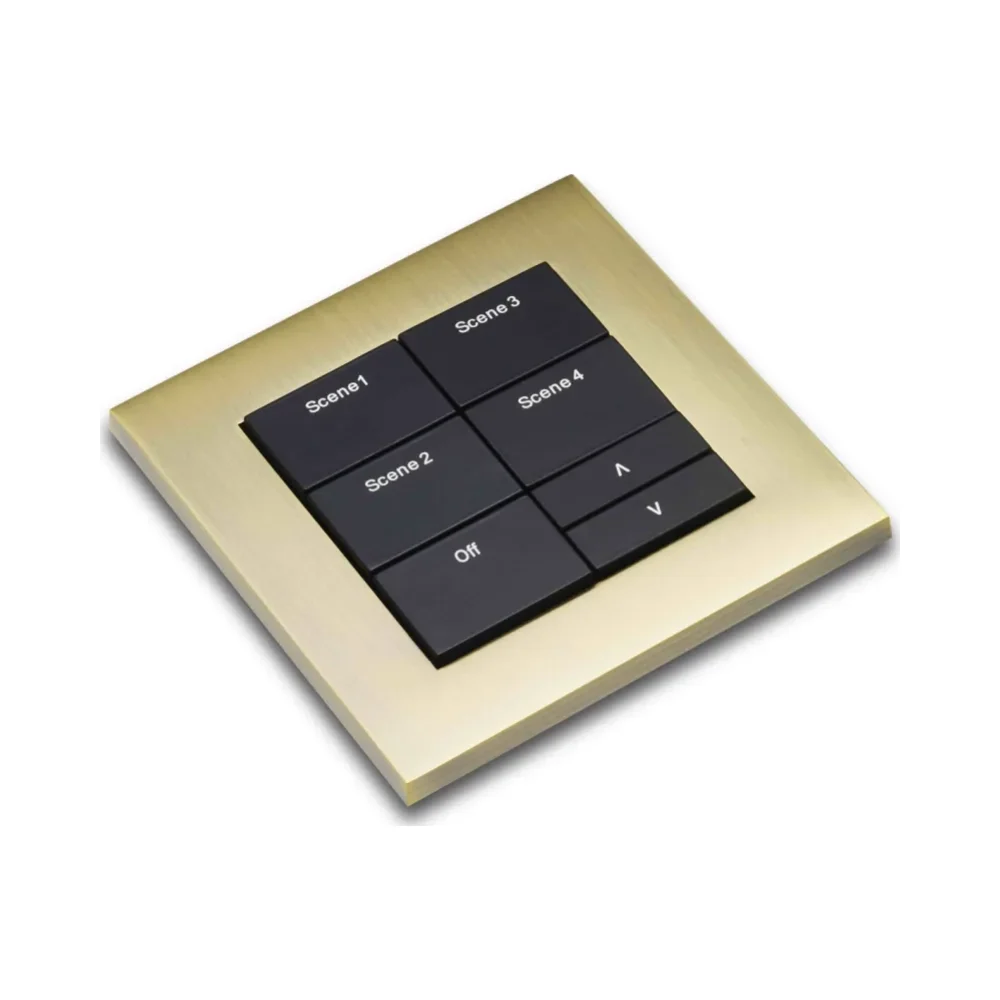

Rako Wired Modular Control Module – WK-MOD-072 – Black Buttons – complete with single gang CAT5e/6 cable punch down mount.
Rako’s all new Modular push button control modules are available as wired or wireless NFC. Built around a modular, flush fascia design, this contemporary range offers specifiers and end clients a versatile keypad for their projects. Each laser etched button are backlit with fully programmable blue LEDs.

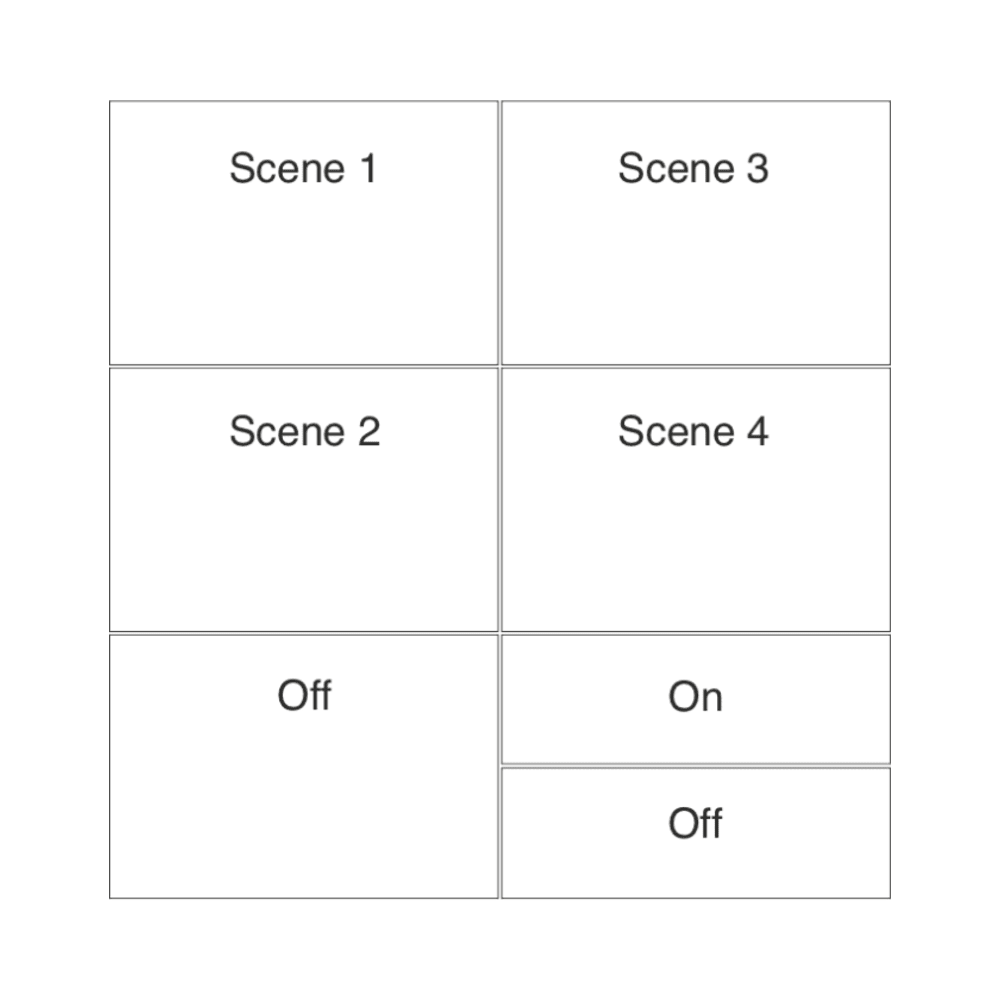

The WK-MOD-xxx-x uses three different button sizes across a range of keypad layouts. This offers a truly flexible range of designs to suit all your lighting control requirements including:
- Multi Room layouts
- Single Room layouts
Wired Modular wall plate controller connects to the RAKOM wired CAT5 network.
The wired Modular control module is programmable via Rako’s Rasoft Pro software. Each input is fully customisable and can be addressed to separate Rako Rooms or Channels and activate on press or release, giving a ‘Press and Hold’ function. Additionally each input can trigger an internal macro function.
A WK-HUB and Rasoft Pro programming software is required for setup and configuration of the WK-MOD-xxx-x. Once addressed it is possible to control any Room/Channel in the system, sending commands to each including:
- Scene selection
- Scene toggle
- Level toggle
- Room/Channel raise & lower
- Macro start/stop/control
- House Master controls
WK-MOD control modules are designed to be flush mounted to standard UK single gang back boxes.
Hand finished metal surrounds are available in a number of finishes and should be ordered separately.
|Dimensions||Control Panel: 86x86x35mm
|Input supply||15V DC from Rako wired system|
|Fixing||Flush mounting into standard UK single gang back box
Minimum depth: 35mm
|Climate range||Temperature +2C to +40C
Humidity +5% to 95% non condensing
|Cable type||UTP CAT5e or CAT6|
|Terminal type||8 way Krone punch down (screw terminal available by special arrangement)|
|Standards||Emissions – EN61000-6-3 : 2007
Immunity – EN61000-6-1 : 2007
|Communication||Wired Network: CAN|
|Memory||Flash memory (non volatile)
Firmware upgrades via RASOFT Pro programming software
