Description

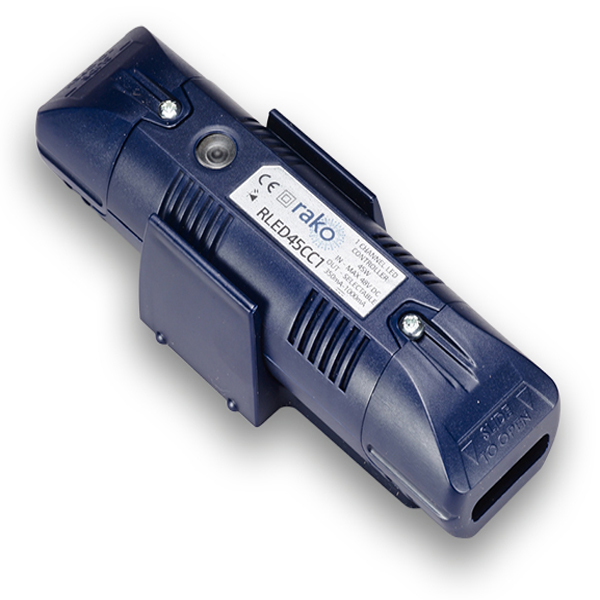

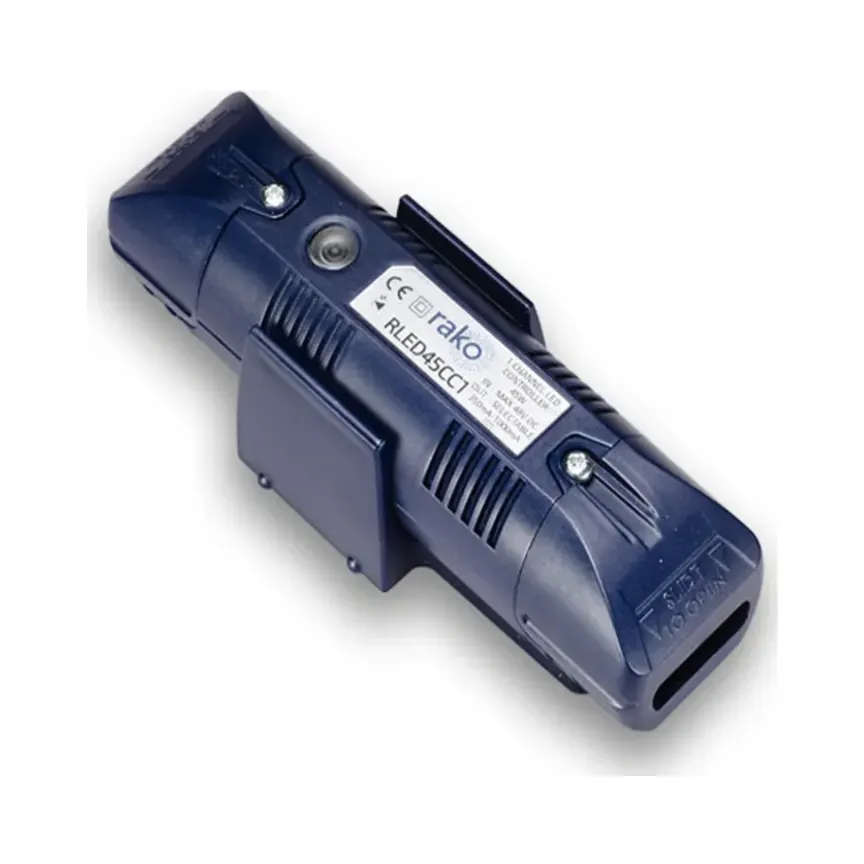

Rako RLED45CC1 Dimmer
A 45W constant current LED dimmer with in-built RF receiver and Rako processor for constant current LED fittings.
Selectable outputs of 350, 500, 600, 700 and 1000mA with a forward voltage range of 3-45V DC.
The RLED45CC1 is fed from a suitable DC power supply to provide an adequate forward voltage, Rako recommends the RAPSU48.
The module is connected in-line before the first fitting and can control up to 13 LEDs in series (note: some fittings may use multiple LEDs, if in doubt refer to Rako’s technical department) with a maximum wattage of 45W.
Controlled from any Rako Rakom device, e.g. RCM wall plates or Bridge interface units.
