Description
DIN Bus to RAKO Wired Network Communication Unit
RAKO DIN-LINK power and communication unit is the communication device between the DIN Bus and the RAKO Wired Network (RWN). It provides the link between RAKO DIN modules and the wider wired control network.
The DIN-LINK has a 24V DC input, supplied via the DIN-PSU-100, and is used to power the DIN Bus and RAKO Wired Network. Using Rasoft Pro, the DIN-LINK is used to map DIN module outputs into rooms and channels.

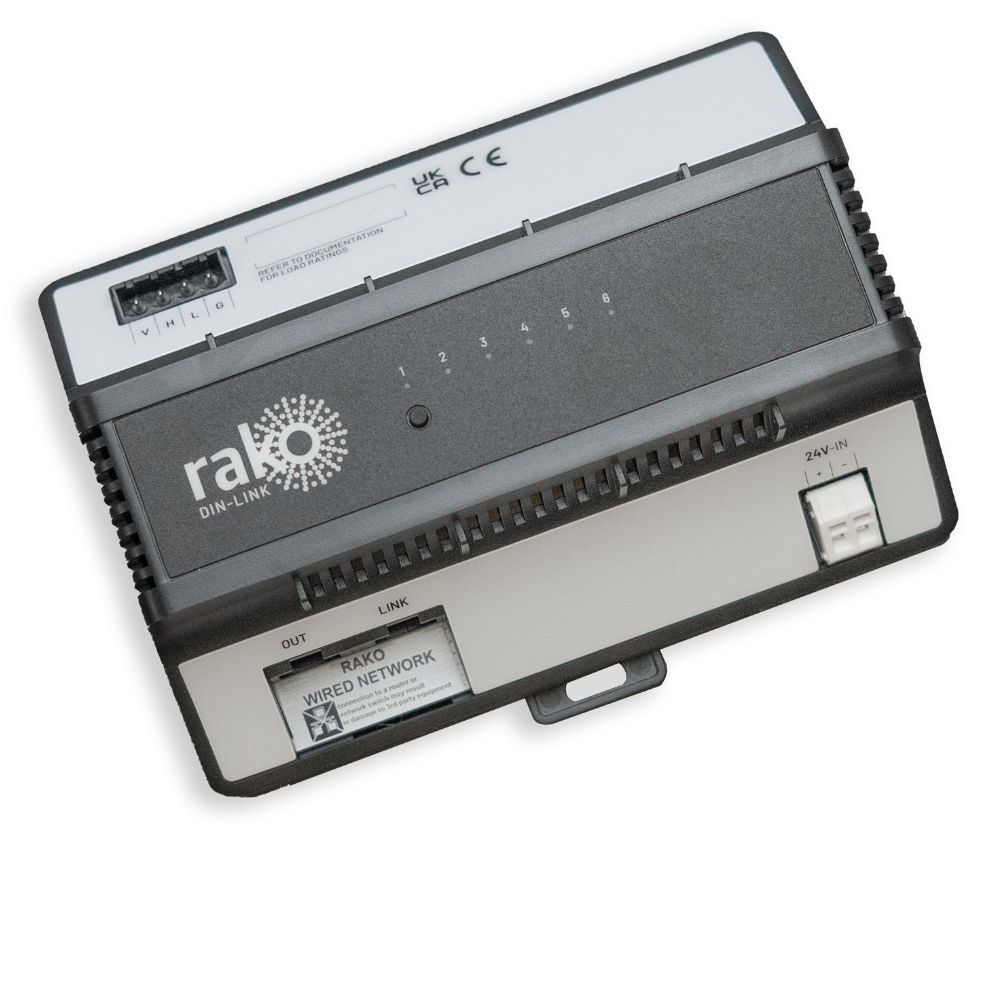

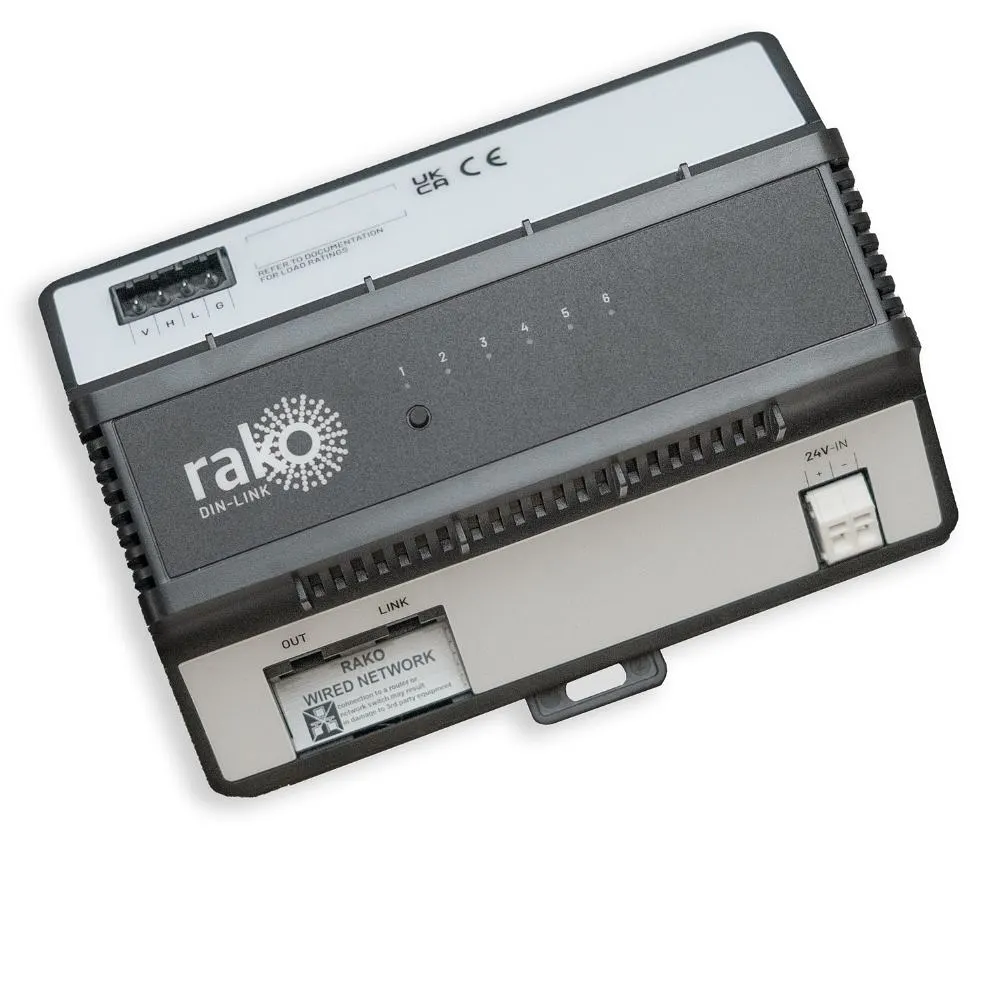

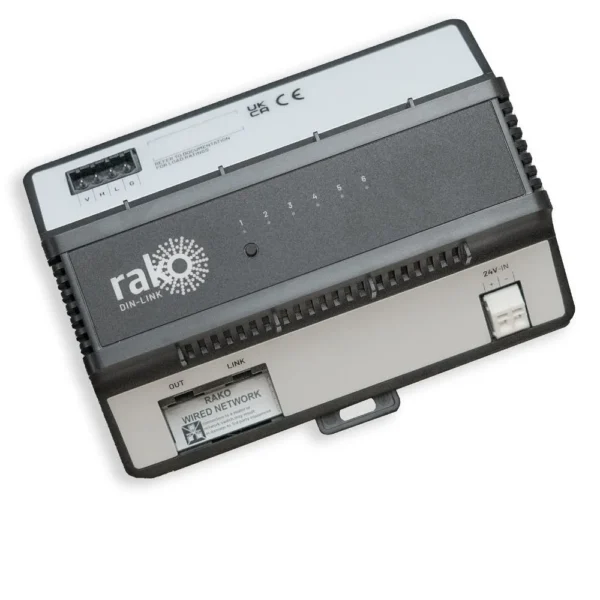

RAKO DIN-LINK Power and Communication Unit
The DIN-LINK is designed for DIN rail-mounted RAKO control installations where DIN modules need to communicate with the RAKO Wired Network. It includes DIN Bus terminals, RWN RJ45 and RJ11 ports, and a 24V DC input connection.
Key Features – RAKO DIN-LINK Power and Communication Unit
- Power and communication unit for RAKO DIN systems
- Connects the DIN Bus to the RAKO Wired Network
- 24V DC input via DIN-PSU-100
- Used to power the DIN Bus and RAKO Wired Network
- Maps DIN module outputs into rooms and channels using Rasoft Pro
- Designed for DIN rail-mounted enclosures
- Width equal to 9 DIN modules
- DIN DPU limit of 64 DPU
- RWN connection via RJ45 and RJ11 ports
- Over current, over voltage, under voltage lockout and reverse polarity protection
- Soft start protection
- UKCA, CE and RoHS certified
Technical Specifications – RAKO DIN-LINK Power and Communication Unit
- Brand: RAKO
- SKU: DIN-LINK
- Product type: Power and communication unit
- Mounting: Top Hat DIN rail to IEC/EN 60715
- Dimensions: W157 x H110 x D59mm
- DIN width: 9 DIN modules
- Weight: 270g
- Vertical clearance: 150mm
- Input supply voltage: 24V DC via DIN-PSU-100
- DIN Bus cable size: 0.5–1.5mm²
- Input cable size: 1.0–2.5mm²
- DIN Bus terminals: 4-way screw terminal
- RWN ports: RJ45 port and RJ11 port
- DC input terminal: Push terminal
- DIN DPU limit: 64 DPU
- DPU examples: DIN-4T = 8 DPU, DIN-8S = 8 DPU, DIN-4C = 8 DPU
- RWN power capacity: RJ45 = 30, RJ11 = 1
- Protection: Over current protection, over voltage protection, under voltage lockout, reverse polarity protection and soft start
- Communication: DIN Bus and RWN
- Operating temperature: +2°C to +40°C
- Humidity: +5% to 90% non-condensing
- Certification: RoHS, UKCA, CE
- Standard: EN 60669-2-5
Applications – RAKO DIN-LINK Power and Communication Unit
The RAKO DIN-LINK power and communication unit is used in professional RAKO DIN rail control systems where DIN modules need to be connected to the RAKO Wired Network. It is suitable for centralised smart lighting and control installations using RAKO DIN modules.
Important Compatibility Note
The DIN-LINK requires a 24V DC supply via the DIN-PSU-100. DIN module DPU usage and RWN power capacity should always be checked during system design. The DIN-LINK should be installed and configured by a competent installer as part of a suitable RAKO control system.
