Description
DIN Rail Multi-Room DALI Controller
RAKO DIN-DLI multi-room DALI controller is designed for use in a DALI addressable network, providing DIN rail-mounted control for multi-room lighting applications.
The DIN-DLI allows up to 64 ballasts to be grouped using its room grouping feature, with a maximum of 16 rooms. When paired with compatible DT6 or DT8 ballasts, it supports RGBW and colour-tunable LED control.

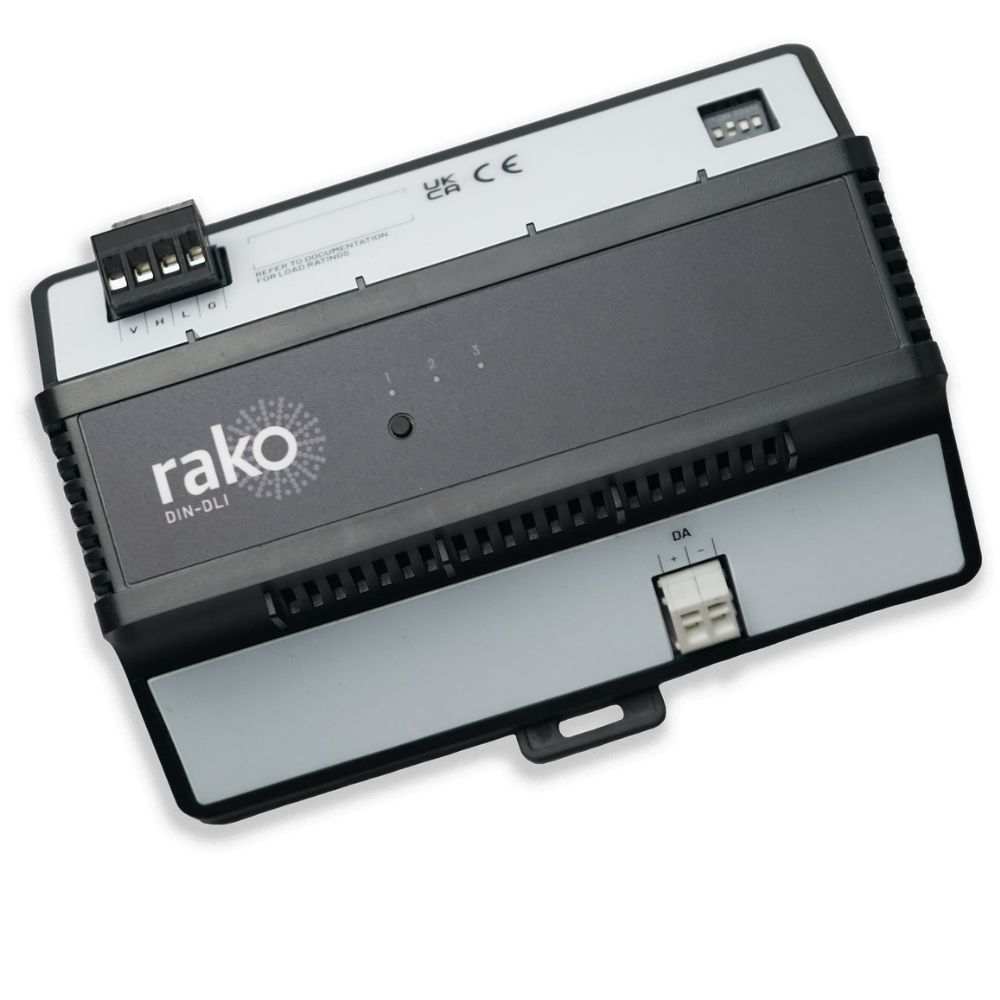

RAKO DIN-DLI Multi-Room DALI Controller
Once configured in Rasoft Pro, the DIN-DLI can be controlled from the RAKO Wired Network using compatible RAKO wired controllers such as WCM, WK-EOS, WK-MOD, WK-PIR, WAVFR and WAVMI.
The DIN-DLI communicates using DIN Bus and DALI, making it suitable for professional RAKO lighting control installations where DALI addressable ballast control is required from a DIN rail enclosure.
Key Features – RAKO DIN-DLI Multi-Room DALI Controller
- Multi-room DALI controller for DIN rail-mounted installations
- Designed for use in a DALI addressable network
- Supports grouping of up to 64 ballasts
- Maximum of 16 rooms
- Compatible with DT6 ballasts
- Compatible with DT8 ballasts for RGBWAF/Tc applications
- Supports RGBW and colour-tunable LED control with compatible ballasts
- Configured using Rasoft Pro
- Controlled from the RAKO Wired Network
- DIN Bus communication with DPU usage of 16
- DALI power source via DIN Bus
- UKCA, CE and RoHS certified
Technical Specifications – RAKO DIN-DLI Multi-Room DALI Controller
- Brand: RAKO
- SKU: DIN-DLI
- Product type: Multi-room DALI controller
- Mounting: Top Hat DIN rail to IEC/EN 60715
- Dimensions: W157 x H110 x D59mm
- DIN width: 9 DIN modules
- Weight: 210g
- Vertical clearance: 150mm
- DALI power source: Via DIN Bus
- Load types: DT6 ballasts and DT8 ballasts RGBWAF/Tc
- Maximum load: 64 ballasts, 128mA
- DIN Bus cable size: 0.5–1.5mm²
- DALI cable size: 1.0–2.5mm²
- DIN Bus terminals: 4-way screw terminal
- DALI output terminals: Push terminal
- Communication: DIN Bus, DPU usage 16, DALI
- Operating temperature: +2°C to +40°C
- Humidity: +5% to 90% non-condensing
- Certification: RoHS, UKCA, CE
- Standard: EN 60669-2-5
Applications – RAKO DIN-DLI Multi-Room DALI Controller
The RAKO DIN-DLI multi-room DALI controller is ideal for DIN rail-mounted DALI lighting control installations where multiple rooms, groups or addressable ballasts need to be managed from a RAKO Wired Network.
Compatible RAKO Wired Controllers
The DIN-DLI can be controlled using compatible RAKO wired controllers including WCM, WK-EOS, WK-MOD, WK-PIR, WAVFR and WAVMI once configured in Rasoft Pro.
Important Compatibility Note
The DIN-DLI is intended for DALI addressable lighting systems. Ballast type, room grouping, DALI addressing and RAKO system compatibility should always be checked before installation. The DIN-DLI should be installed and configured by a competent installer as part of a suitable RAKO control system.
