Technical Specifications – RAKO DIN-CONNECT Wired Network Connector

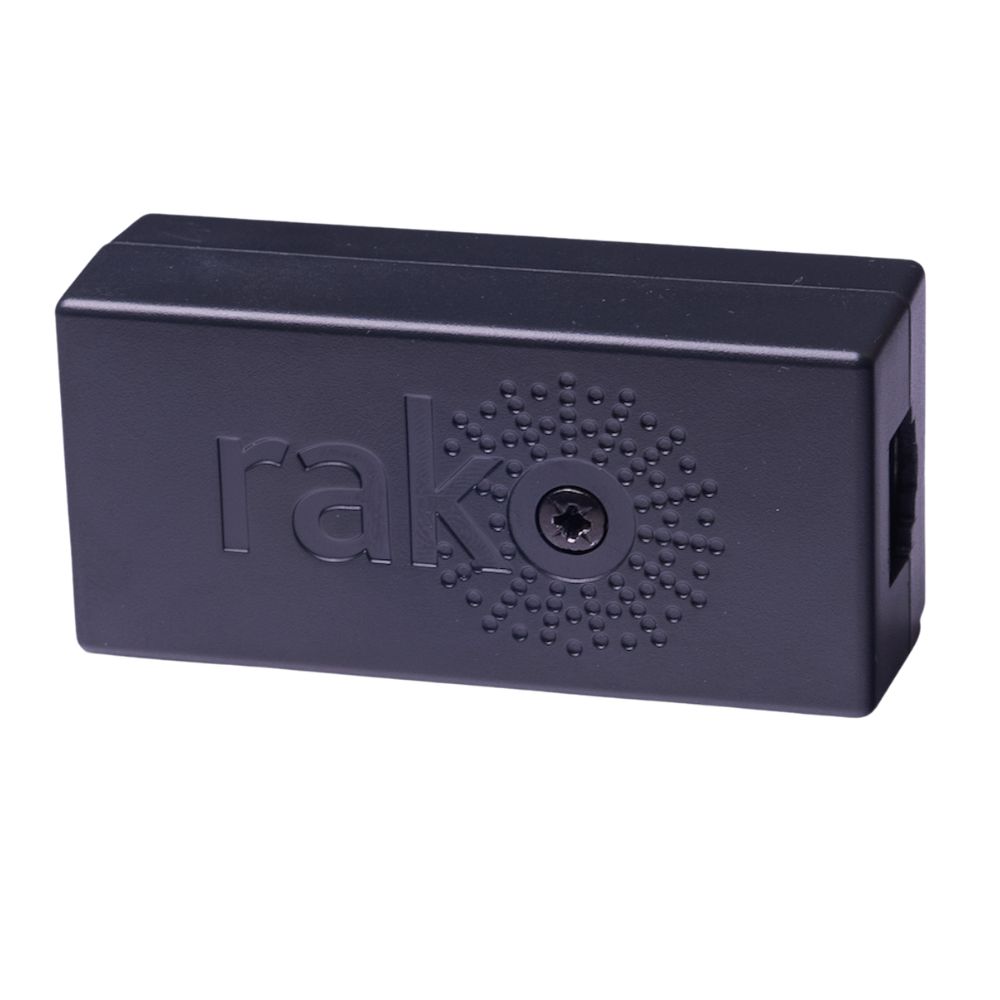

RAKO DIN-CONNECT wired network connector is designed for use with the RAKO DIN system and RAKO Wired Network. It provides a compact connection point between the DIN-LINK and CAT5 or CAT6 wiring used within the RAKO Wired Network.
The DIN-CONNECT provides two connection points: an RJ45 port for connecting to the DIN-LINK and a krone connector that accommodates up to two CAT5 or CAT6 connections to the RAKO Wired Network.
Technical Specifications – RAKO DIN-CONNECT Wired Network Connector
The DIN-CONNECT can be used in radial and star wiring arrangements on the RAKO Wired Network. It is suitable for professional RAKO control installations where structured CAT5 or CAT6 network cabling is required between the DIN system and RAKO wired devices.
Technical Specifications – RAKO DIN-CONNECT Wired Network Connector
- DIN-LINK to RAKO Wired Network connector
- Designed for use with the RAKO DIN system
- Suitable for RAKO Wired Network installations
- RJ45 port for connection to DIN-LINK
- 8-way krone connector
- Accepts up to two CAT5 or CAT6 connections
- Suitable for radial and star wiring arrangements
- Compact housing with UL94-V0 rating
- Fixed using 3mm pan head screw with pozi drive
- UKCA, CE and RoHS certified
Technical Specifications – RAKO DIN-CONNECT Wired Network Connector
- Brand: RAKO
- SKU: DIN-CONNECT
- Product type: DIN-LINK to RAKO Wired Network connector
- Dimensions: W67.6 x H32.0 x D22.5mm
- Weight: 30g
- Housing: UL94-V0
- Fixings: 3mm pan head screw, pozi
- Connections: 8-way krone connector and RJ45 port
- Cable type: CAT5, CAT6
- Operating temperature: +2°C to +40°C
- Humidity: +5% to 90% non-condensing
- Certification: RoHS, UKCA, CE
- Standard: EN 60669-2-5
Applications – RAKO DIN-CONNECT Rako Wired Network Connector
The RAKO DIN-CONNECT Rako Wired Network connector is used in RAKO DIN system installations where the DIN-LINK needs to connect into the wider RAKO Wired Network. It is suitable for smart lighting and control projects using CAT5 or CAT6 cabling.
Important Compatibility Note
The DIN-CONNECT is designed for use with the RAKO DIN system and RAKO Wired Network. Wiring arrangement, cable type and connection method should always be checked before installation. The DIN-CONNECT should be installed by a competent installer as part of a suitable RAKO control system.
