Rako Classic Plate 6 Button Wired Push Button Module
The 6-Button Wired Modular Panel connects to the RAKOM wired CAT5 network.
A hard wired 6 button push button control module that has several fixing options. Based upon the widely used 50x50mm Euro Module switch plate accessory standard.

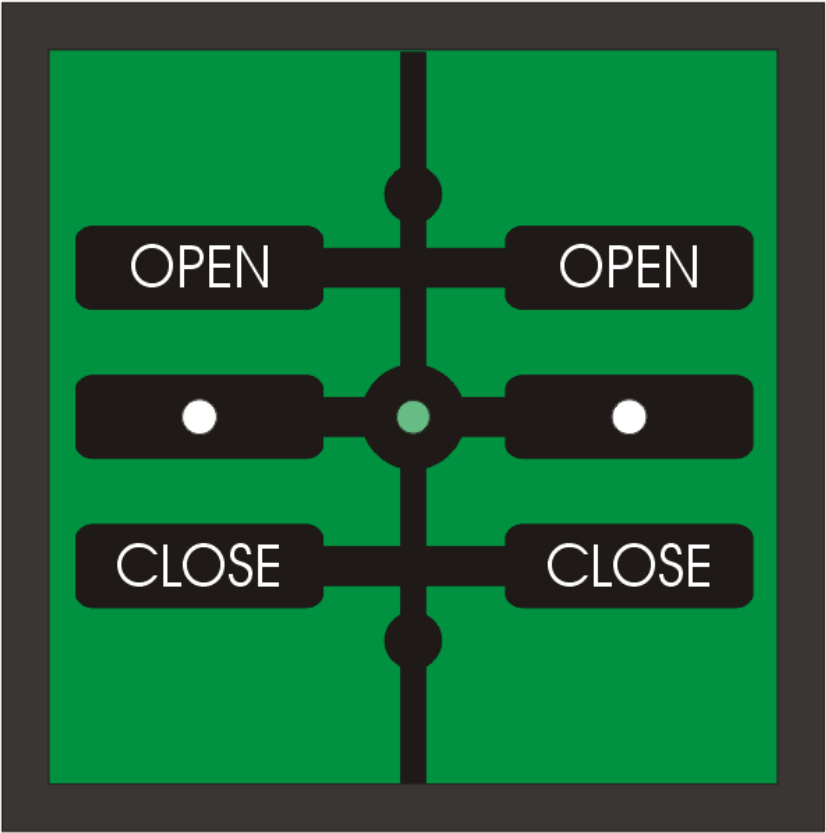

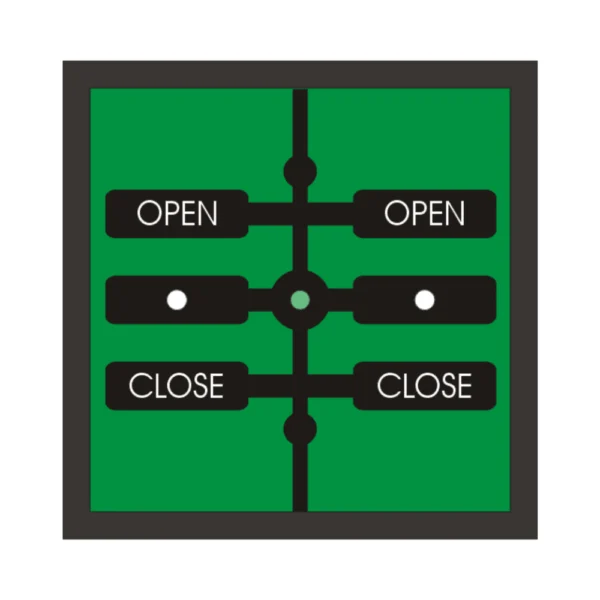

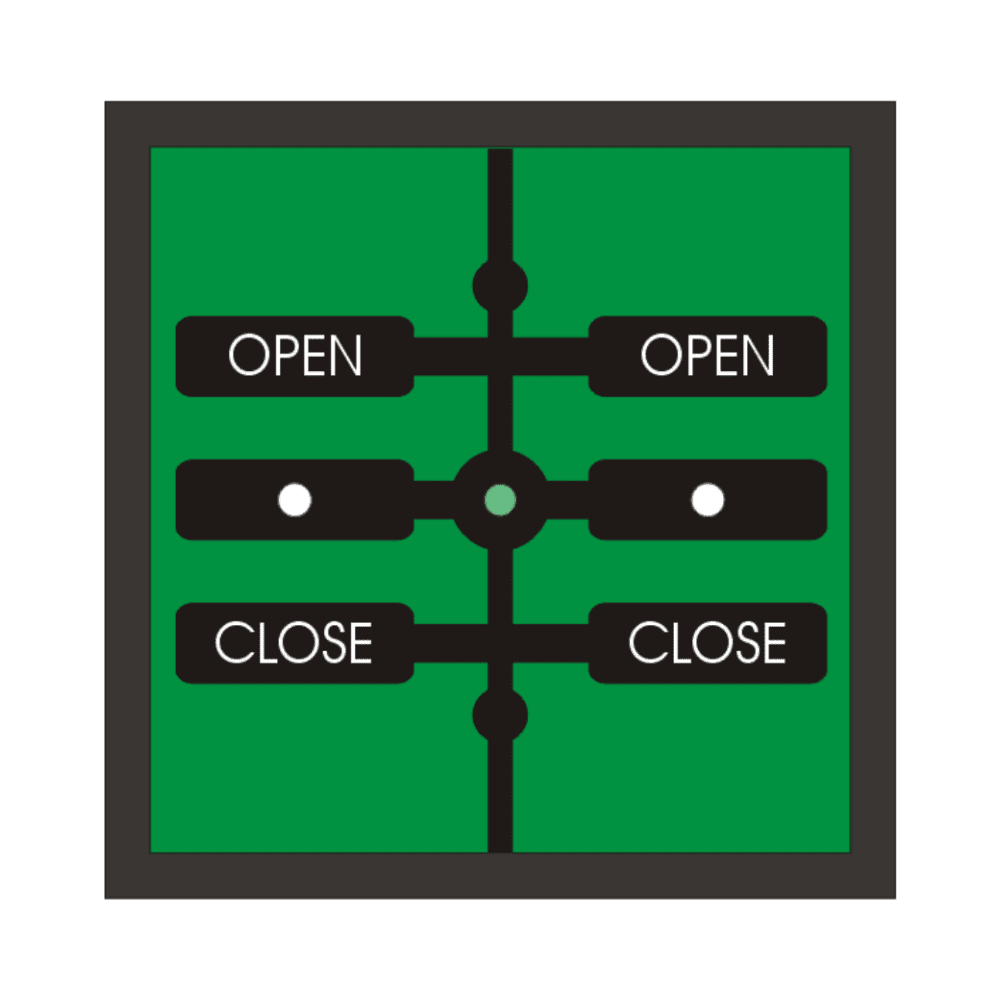

The WCM-060 push button control module comes preconfigured for dual open, stop and close control for curtains, blinds & projector screens and is used with the RAK4-R. Each button is complete with a blue LED indicator and day-night etched buttons.
Easy connection to the RAKOM wired CAT5 network is by a removable 8 way Krone punch down module that can be installed at first fix stage prior to the push button front control module. This protects the control module from being damaged while building works are being finished.
The module is suitable for installation in any of the standard Rako fixing solutions and is also suitable for all switch accessory plates that use a 50x50mm grid and cover plate arrangement.
Using RASOFT programming software it is possible to configure each button individually to carry out a number of different tasks, for example:
- Scene selection
- Scene toggle on/off
- Channel toggle on/off
- Master raise & lower
- Channel raise & lower
- Macro start/stop
- Local room or global off
LED indicators are individually programmable to follow the logic of the above functions.
Technical data
| Dimensions | 50x50x36mm |
|---|---|
| Input supply | 12-18V DC supply from Rakom CAT5 wired network. |
| Fixing | Flush mounting into standard UK single gang back box, minimum 35mm deep. |
| Weight | 50g |
| Climate range | Temperature +2C to +40C Humidity +5% to 90% non condensing. |
| Cable type | UTP CAT5e or CAT6 |
| Terminal type | 8 way Krone punch down (screw terminal option available) |
| Standards | Emissions – EN61000-6-3 : 2001 Immunity – EN61000-6-1 : 2001 |
| Communication | Rakom wired network |
| Memory | Flash memory (non volatile) Firmware upgrades via RASOFT programming software |
