Description

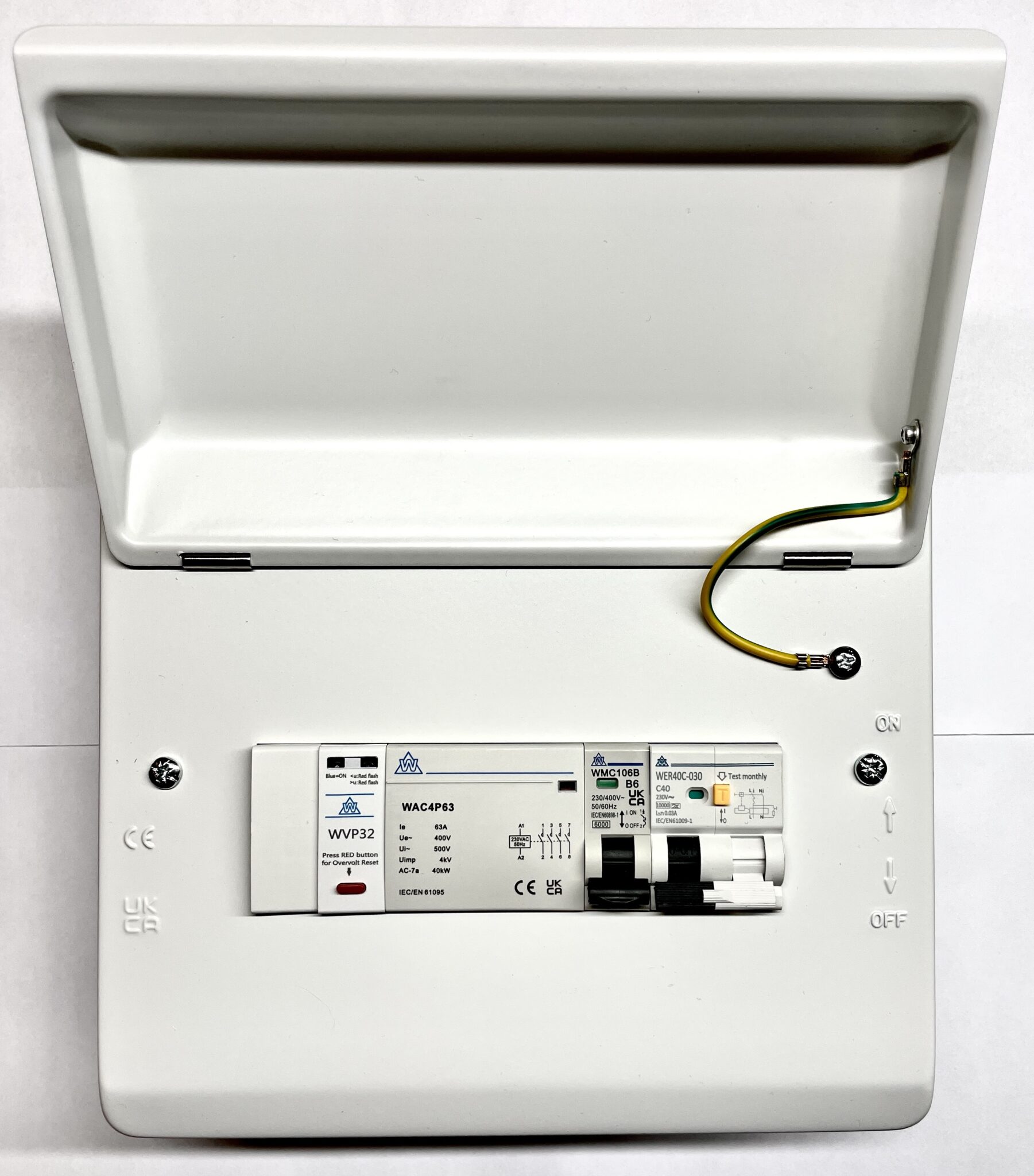

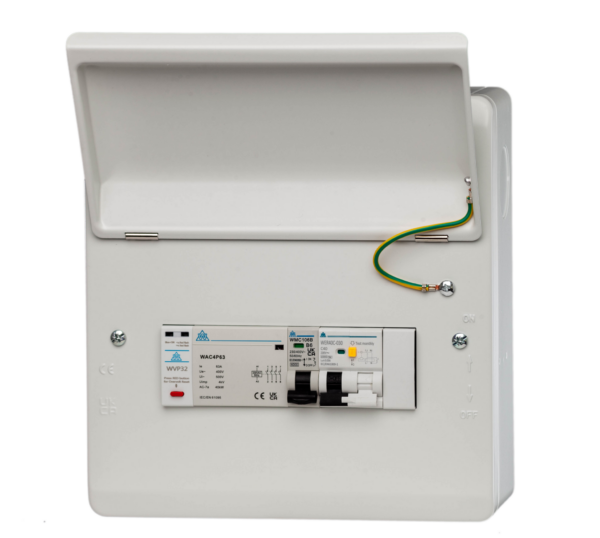

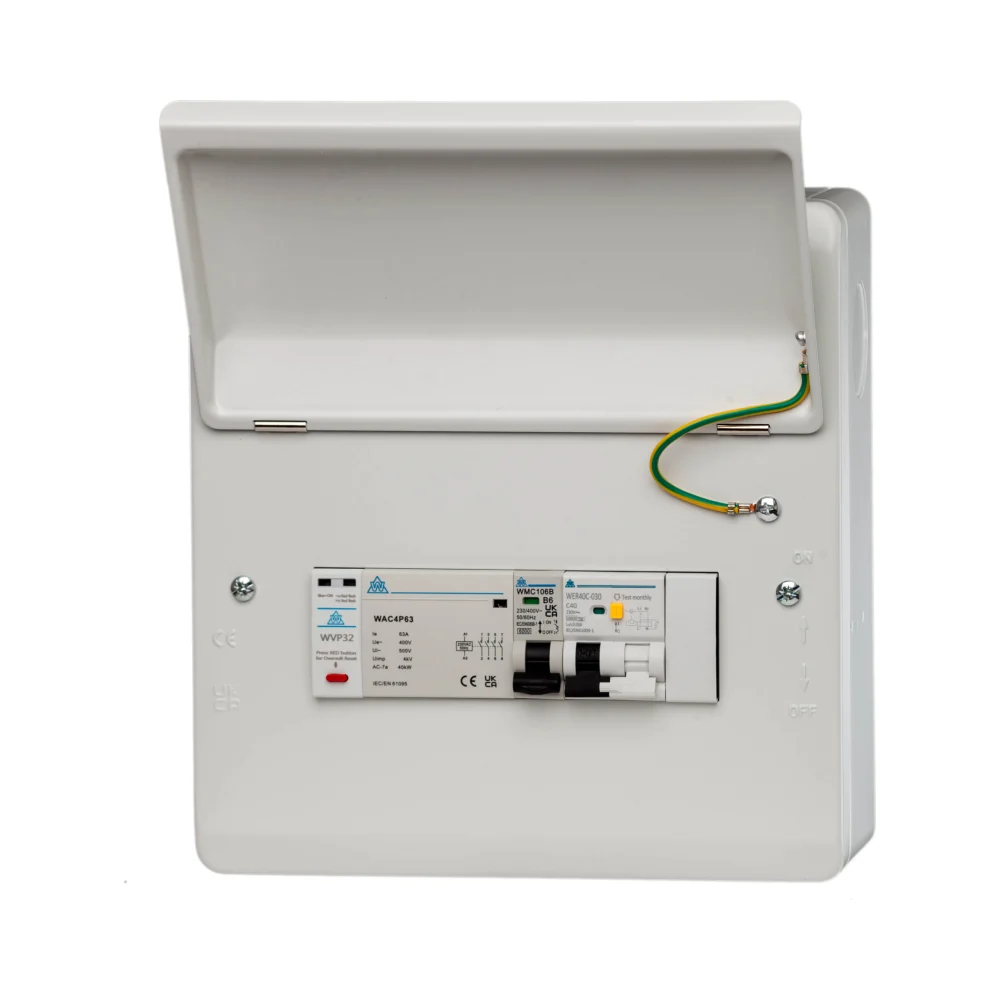

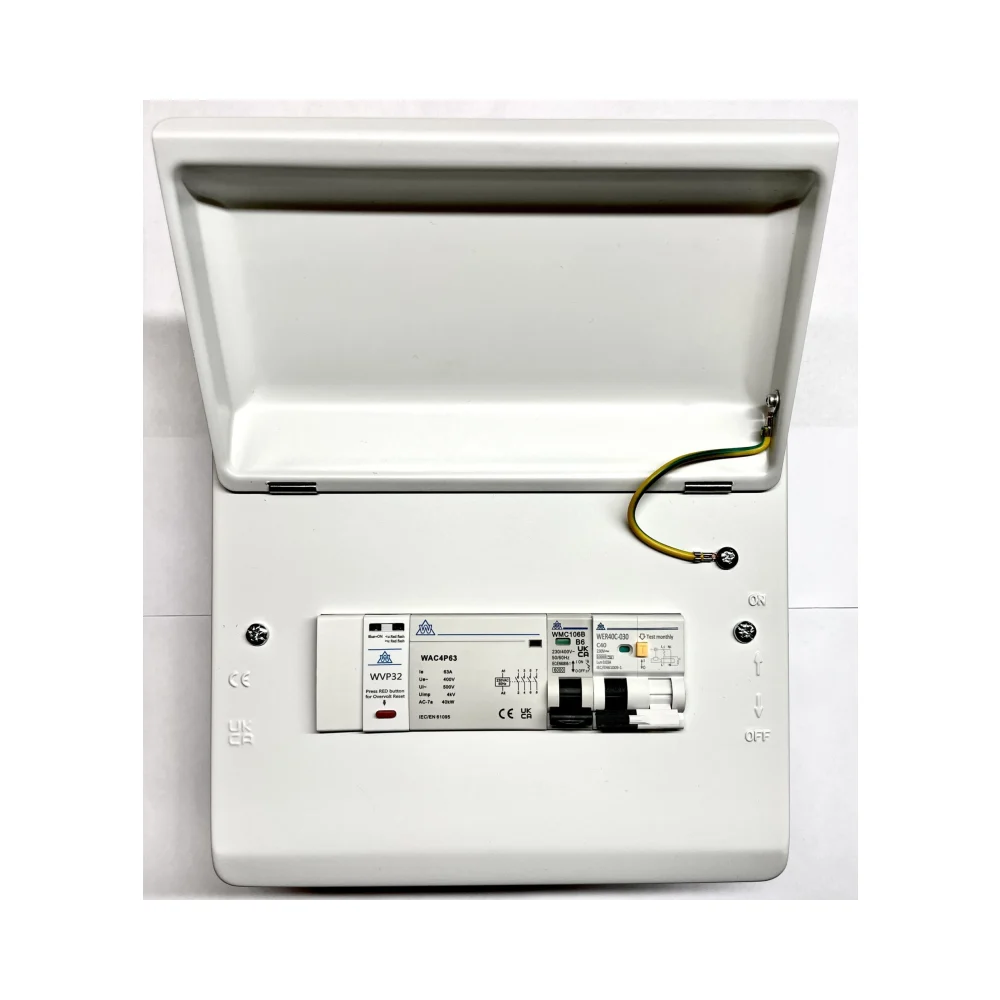

PME / PEN Fault Detection Unit for EV Chargers
WCED WMEPME06/C40
The PME / PEN Fault Detection Unit is a vital safety device for EV chargers, especially for models like Tesla that lack integrated PEN fault detection. Designed for use in PME (Protective Multiple Earthing) systems, it carefully monitors and detects PEN faults or PEN loss—a condition where the PEN conductor becomes compromised. This compact 6-module unit not only enhances safety but also ensures compliance with modern standards for EV charging.
What is PEN Loss?
PEN loss happens when the combined Protective Earth and Neutral (PEN) conductor in a PME system is damaged or disconnected. As a result, the protective earth conductor (PE) can become live, creating a hazardous situation. If left undetected, PEN loss can electrify connected devices, such as an EV during charging, and pose serious safety risks. Fortunately, this unit mitigates such risks by detecting PEN loss and isolating the fault quickly, ensuring safe operation.
Included Switchgear and Specifications of PME / PEN Fault Detection Unit WMEPME06/C40
Included Switchgear:
- C40 RCBO (Double Pole, Type A): Protects against overcurrent and detects AC and pulsating DC faults with a 40A rating.
- 4 Pole 63A Contactor: Provides reliable switching and control, making it ideal for three-phase systems.
- PME Relays: Constantly monitor PME systems to detect PEN loss and isolate faults efficiently.
Specifications:
- Brand: WCED.
- Model: WMEPME06/C40.
- Modules: Compact 6-module design for efficient installation.
- Dimensions: Width: 230mm, Height: 235mm, Depth: 110mm.
- Voltage: 220-240V AC.
- Applications: Perfect for EV chargers with DC leakage protection but no built-in PME/PEN fault detection.
- Material: Constructed with durable materials to ensure long-lasting performance.
- Installation: Easily integrated into standard electrical panels, suitable for professional electricians.
Applications
- Residential: Provides safety for Tesla and other EV chargers in homes using PME systems by addressing both PME faults and PEN loss.
- Commercial: Improves safety for EV charging stations in offices, retail centers, and parking areas.
- Industrial: Essential for high-demand EV charging facilities requiring advanced fault detection and robust safety.
- PEN Fault and Loss Detection: Identifies and isolates PEN faults and PEN loss to prevent electric shock hazards, ensuring reliable EV charging.
Why This Unit is Essential
This PME / PEN Fault Detection Unit is indispensable for safeguarding EV chargers, especially those without integrated fault detection. With its C40 RCBO, 4P 63A contactor, and PME relays, it provides comprehensive protection against PME faults and PEN loss. Moreover, it delivers peace of mind for both EV owners and professionals by maintaining safety and compliance.
