Description

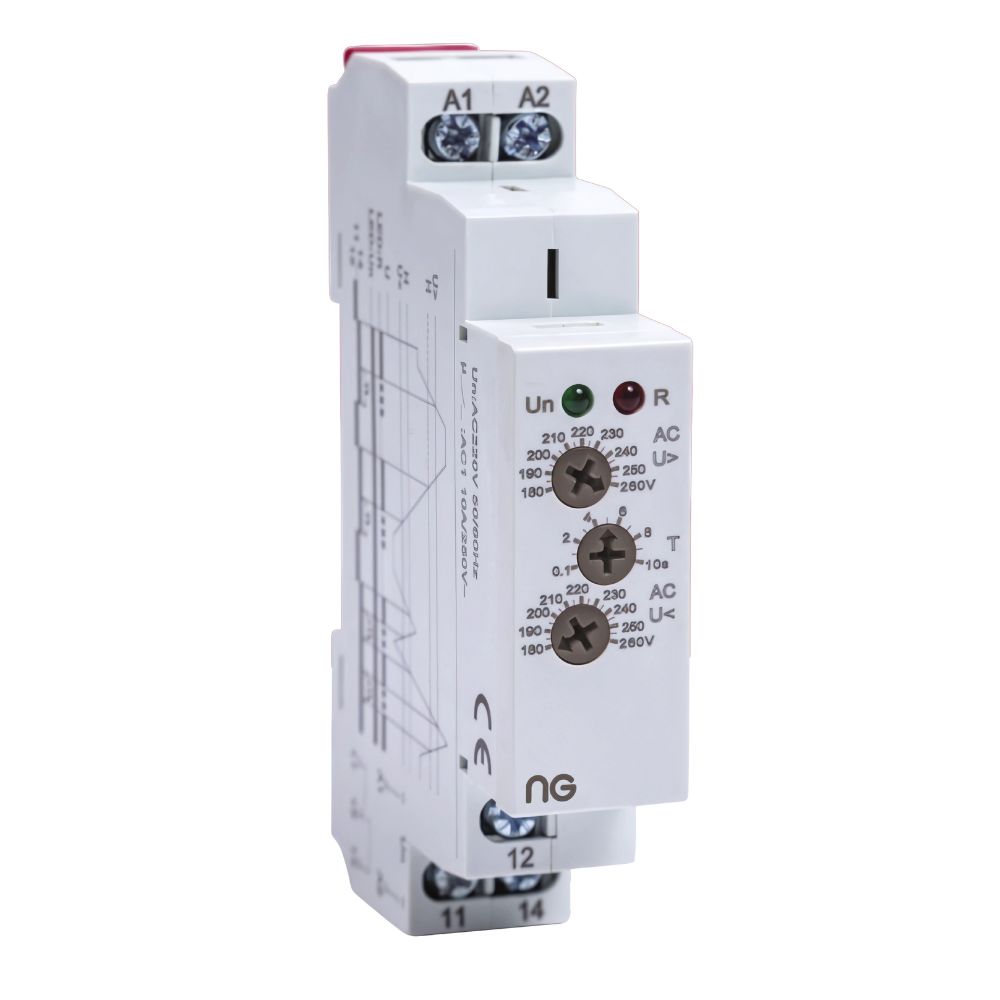

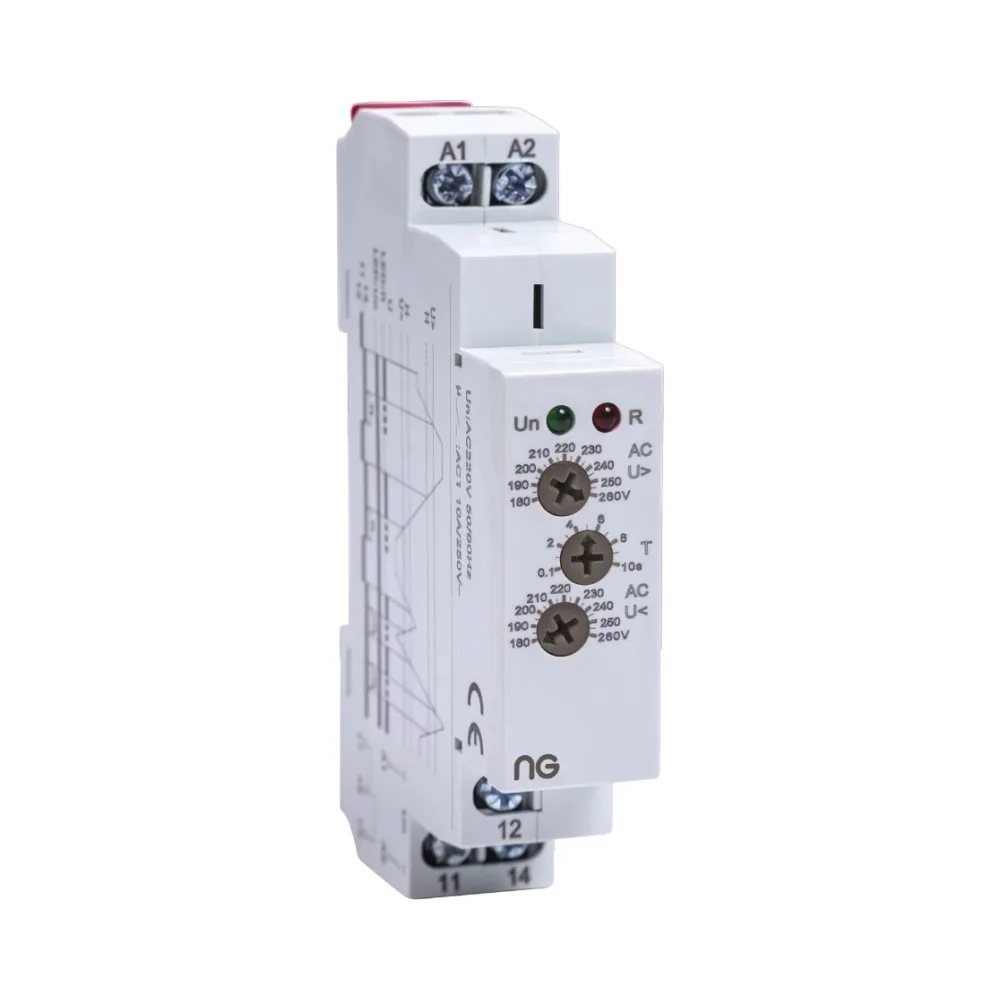

DIN Rail Mounted Voltage Monitor for Timed Control and Protection
The Niglon VMT1 DIN Rail Mounted Voltage Monitor offers reliable delay-off functionality in a compact housing. With selectable AUTO, ON, and OFF modes, it provides flexible timing control for automation, lighting, and energy-saving setups. It features a 16A changeover contact and clear LED indicators for power and active timing status.
⚙️ DIN Timer Relay with Delay OFF Function
The VMT1 works on 230V AC and supports a timing range of 0.5 to 20 minutes. It has high repeat accuracy (±0.2%) and a fast power-up response. Its slim 17.5mm DIN rail design fits easily into control panels and switchboards.
Key Features
- Function: Delay OFF with selectable AUTO, ON, OFF modes
- Rated Voltage: 230V AC (50/60Hz)
- Timing Range: 0.5–20 minutes
- Output: 1 × 16A changeover contact (AgNi)
- LED Indicators: Show coil status and timing activity
- Accuracy: ±0.2% of set time
- Power-Up Time: 200 ms
- Mounting: DIN rail (17.5mm width)
- Terminals: Screw clamp (up to 2.5 mm²)
- Standards: EN61812-1, EN60669-2-3, EN60947-5-1
Dimensions
- Width: 17.5 mm
- Height: 90 mm
- Depth: 64 mm
- Weight: 86 g
Best For
- Staircase lighting and corridor timers
- Automation and control panels
- Delayed shutdowns for fans or lights
- Energy-saving time control in commercial setups
Summary
The Niglon VMT1 DIN Rail Mounted Voltage Monitor delivers dependable delay-off timing in a space-saving design. It’s easy to install and ideal for timed lighting or control applications in industrial and commercial systems.
