Description
⏱️ True Delay OFF Timer for DIN Rail Control Applications

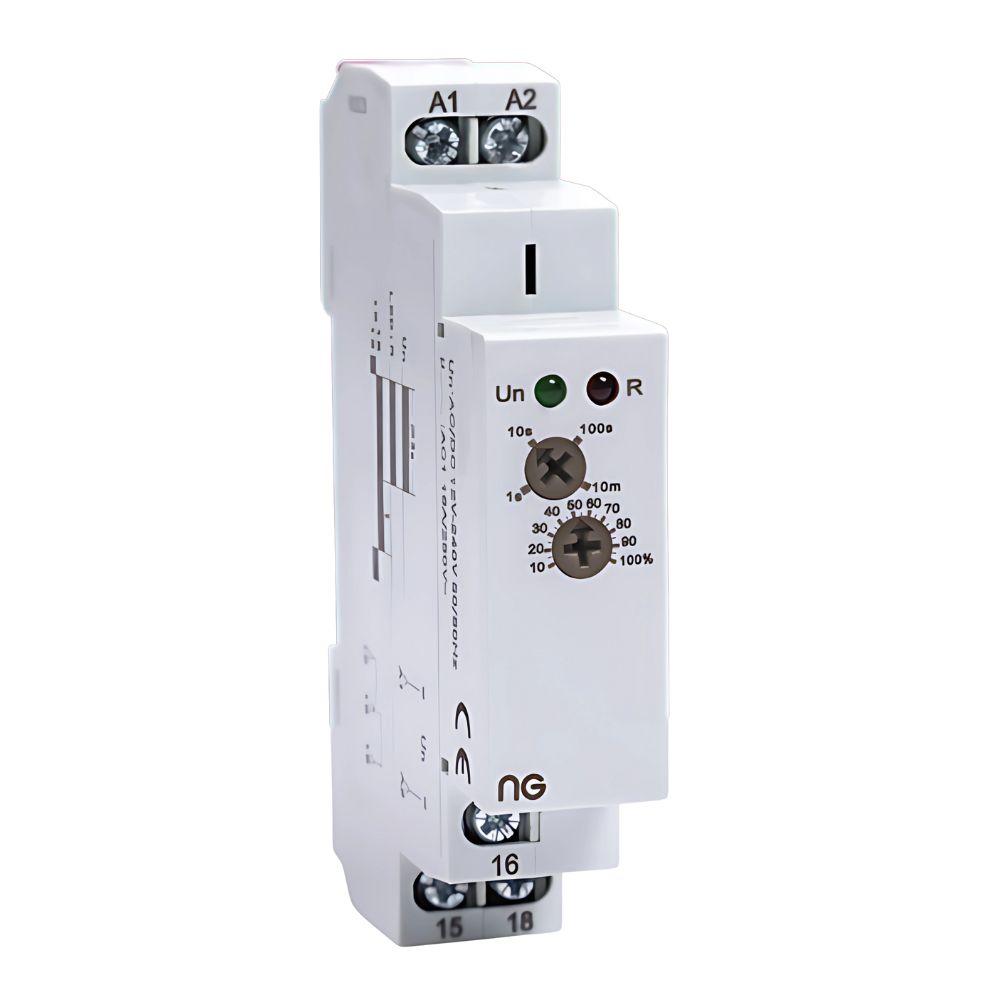

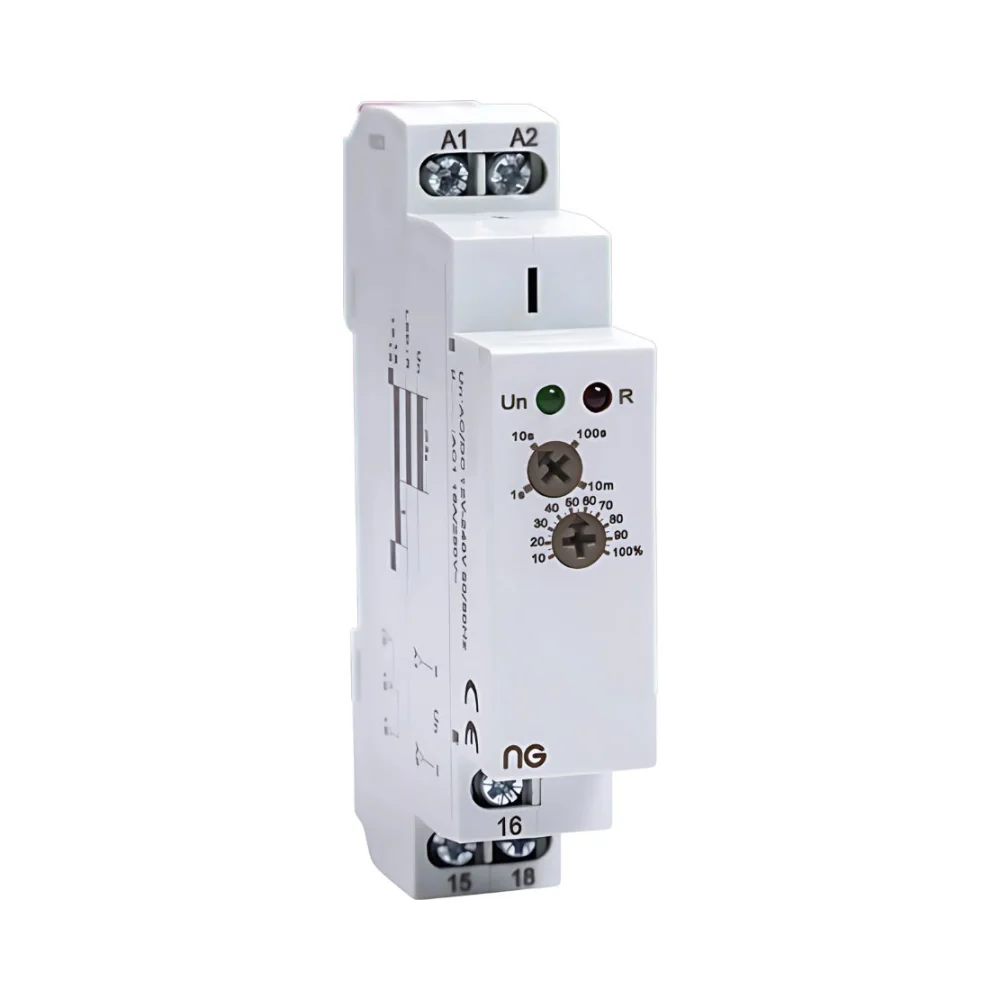

The Niglon TDOT True Delay OFF Timer is a compact DIN rail relay that delays the switch-off after a control signal ends. It works without needing power during the delay, making it reliable in safety or energy-saving systems. It’s a perfect choice for control panels, motors, and timed lighting.
⚡ DIN Rail True Delay OFF Timer with Multi-Voltage Input
This timer accepts 12–240V AC/DC and provides a precise delay after deactivation. It includes LED indicators and a high-power 16A contact. Choose from four simple time ranges between 0.1 seconds and 10 minutes.
Key Features
- Function: True Delay OFF – keeps timing after signal ends
- Input Voltage: 12–240V AC/DC
- Timing Options:
- • 0.1–1 sec
- • 1–10 sec
- • 10–100 sec
- • 1–10 min
- Output Contact: 1 × 16A SPDT (changeover)
- LED Indicators: Show power and timing
- Repeat Accuracy: ±0.2%
- Power-Up Delay: 3 seconds
- Mounting: DIN rail, 17.5mm wide
- Certifications: EN61812-1, EN60947-5-1
Technical Dimensions
- Width: 17.5 mm
- Height: 76 mm
- Depth: 61 mm
- Weight: 86 g
Where to Use a True Delay OFF Timer
- Delayed motor stop circuits
- Fan or lighting run-on systems
- Safety shut-downs after loss of power
- Industrial control and automation cabinets
Why Choose a Delay OFF Timer Like TDOT
This True Delay OFF Timer offers reliable post-power delay in all conditions. It’s easy to install, widely compatible with different voltages, and gives precise control in panel setups.
