Niglon Protego 15 Way Main Switch SPD Consumer Unit
PCU1816M/SPD – 100A Main Switch Consumer Unit with Type 2 Surge Protection

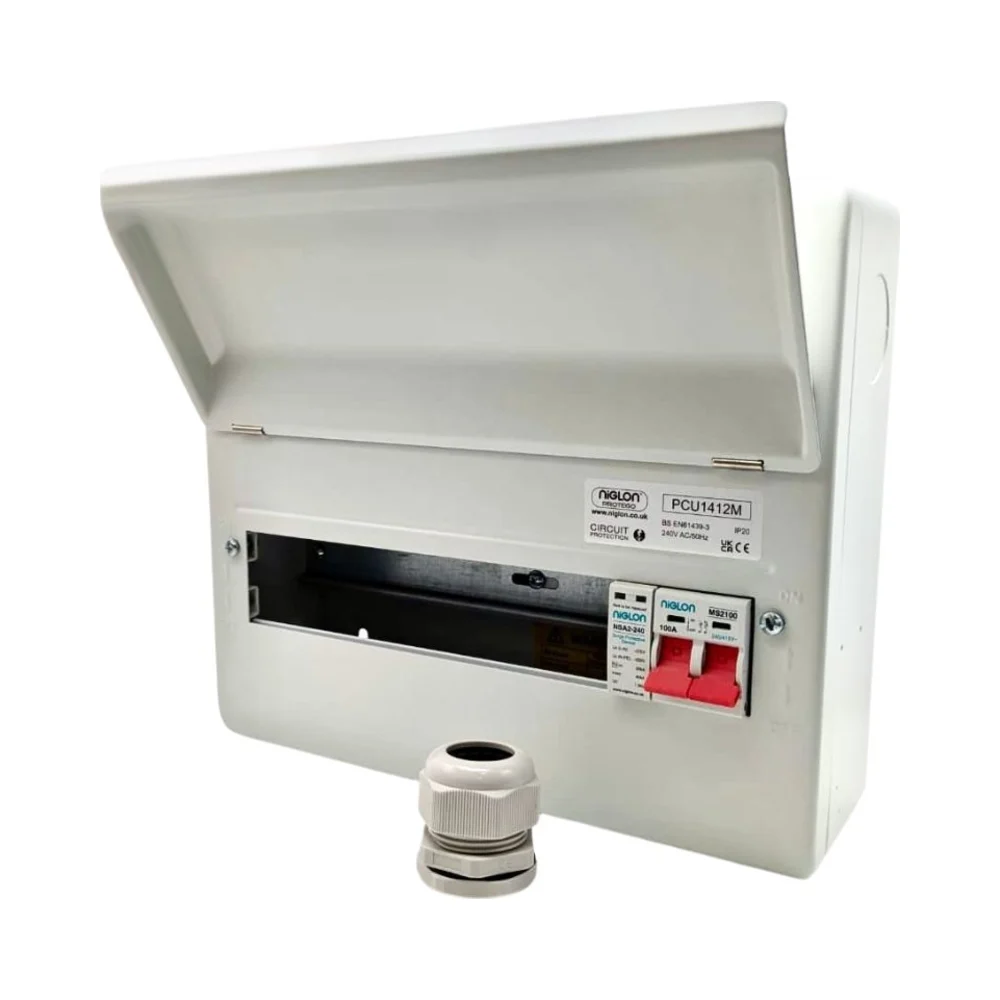

The Niglon Protego 15 Way Main Switch SPD Consumer Unit is an Electrical4Less combination designed for electricians installing or replacing consumer units in domestic and suitable light commercial properties. Featuring a 100A double-pole main switch, 18-module metal enclosure and compatible Type 2 surge protection device, this package provides 15 usable outgoing ways for individual circuit protection.
Created using the original Niglon Protego PCU1816M consumer unit, the package also includes a meter tails gland for incoming cable entry. The Niglon Protego 15 Way Main Switch SPD Consumer Unit is supplied without outgoing RCBOs, allowing installers to choose the appropriate protective devices for their circuits.
Electrical4Less Exclusive – Why 15 Ways Instead of 16?
The Niglon Protego 15 Way Main Switch SPD Consumer Unit is a special combination created by Electrical4Less using genuine Niglon components.
Niglon supplies the original PCU1816M consumer unit with 16 free ways and a 100A main isolator. However, this particular Protego model is not offered as a standard factory-packaged version with an SPD included. Electrical4Less therefore combines the original consumer unit with a compatible Niglon single-module Type 2 SPD.
The surge protection device occupies one of the original 16 free ways, leaving 15 usable ways for outgoing circuit protection devices. This explains why Niglon’s manufacturer datasheet specifies 16 ways, while our Electrical4Less combination is advertised as a 15-way consumer unit.
The supplied SPD is intended for direct busbar connection in the specified configuration, without requiring a separate MCB for the surge protection device.
PCU1816M/SPD is an Electrical4Less combination SKU rather than a separate Niglon factory-manufactured model. Both the original consumer unit and the additional SPD are genuine Niglon products.
Niglon Protego Range – Designed for Electricians
The Niglon Protego range combines robust steel construction with practical features intended to make consumer unit installation, conductor termination and routine maintenance more convenient for electricians.

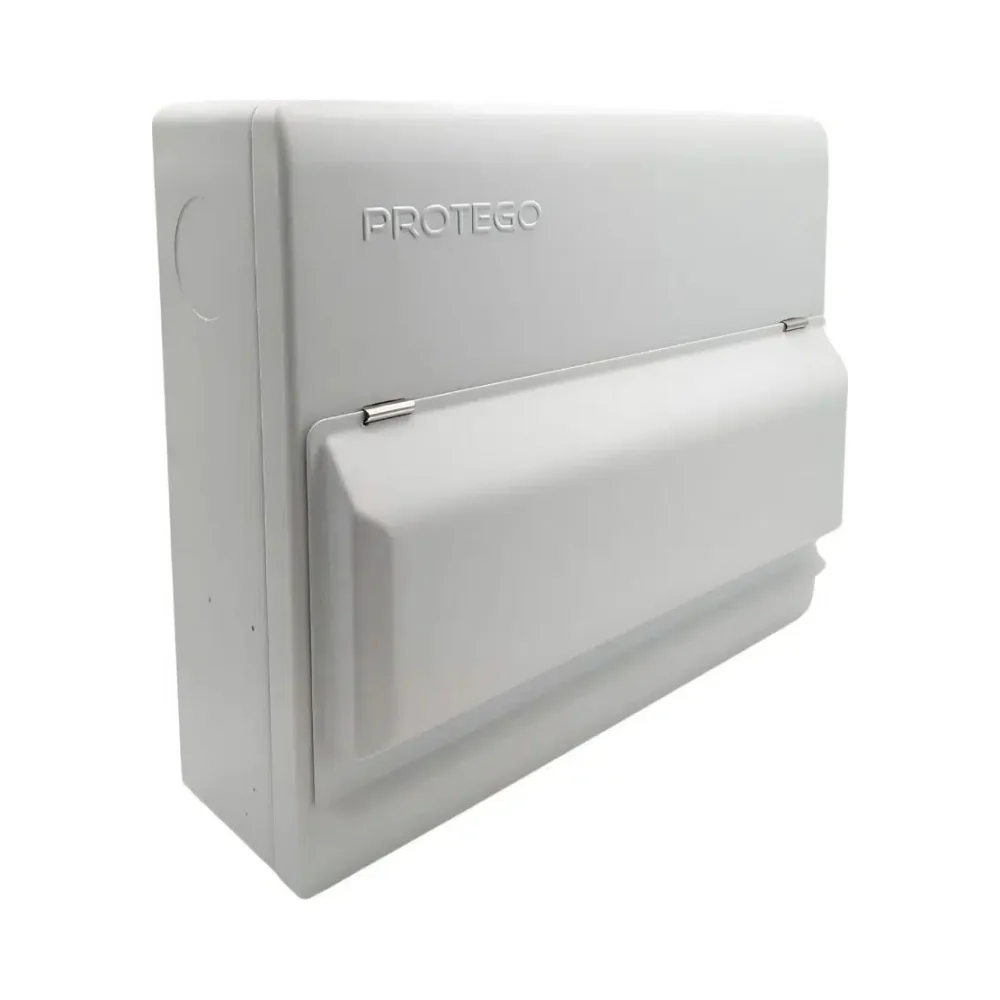

The Niglon Protego 15 Way Main Switch SPD Consumer Unit benefits from a compact 18-module enclosure measuring 376mm wide, 260mm high and 110mm deep. Its layout makes it suitable for installations requiring multiple individual circuit protection devices without the additional height of a double-row board.
Protego installer-friendly features include:
- Built-in spirit level to assist with accurate wall mounting.
- Raised DIN rail providing additional space for cable routing and access to protective device terminals.
- Multiple round knockouts for flexible cable entry.
- Square rear knockouts for cables entering through the back of the enclosure.
- Robust curved steel cover with a 1.2mm lid construction.
- Accessible earth and neutral terminal bars for outgoing circuit connections.
- Large terminal screws designed to assist with secure conductor termination.
- Powder-coated steel housing with a clean white finish.
- Right-hand main switch incomer arrangement.
These practical features can be particularly useful during consumer unit replacements, where incoming cables, existing circuit conductors and available mounting space often influence the installation arrangement.
15 Usable Ways for Domestic Electrical Installations
The Niglon Protego 15 Way Main Switch SPD Consumer Unit provides 15 usable outgoing ways once the included single-module Type 2 SPD is installed.
This makes the board a practical option for properties requiring several individually protected final circuits, including installations with separate lighting, socket outlets, cooking equipment and dedicated supplies.
Typical applications include:
- Domestic consumer unit replacements and rewires.
- New residential electrical installations.
- Properties with separate upstairs and downstairs lighting circuits.
- Multiple socket outlet circuits and kitchen appliance supplies.
- Electric showers and suitable electric heating circuits.
- Utility room and laundry equipment circuits.
- Garage, outbuilding and external electrical supplies.
- Suitable small commercial installations requiring individual circuit protection.
The available circuit capacity allows electricians to organise protection for different areas and electrical loads. The actual number and type of circuits must be determined according to the electrical installation design and applicable BS 7671 requirements.
Type 2 Surge Protection Included
The Niglon Protego 15 Way Main Switch SPD Consumer Unit includes a compatible single-module Niglon Type 2 surge protection device intended to help protect connected electrical equipment against transient overvoltages.
Transient overvoltages can result from electrical switching operations and indirect lightning-related events. These short-duration voltage disturbances can damage or shorten the service life of sensitive electronic equipment.
Modern homes often contain numerous electronic devices, including:
- Computers and home office equipment.
- Televisions and entertainment systems.
- Smart home automation equipment.
- Boiler and heating control electronics.
- Household appliances containing electronic control boards.
- Network equipment and communication devices.
The specified Type 2 SPD connects directly to the consumer unit busbar without requiring an additional MCB in its intended arrangement. By occupying only one module, the device allows the original 16-way consumer unit to retain 15 outgoing ways for protective devices.
SPD selection, connection requirements, earthing arrangements and protective coordination must follow the relevant manufacturer’s instructions and BS 7671.
100A Double Pole Main Switch with Twin-Screw Terminals
The original PCU1816M is fitted with a 100A double-pole main isolator positioned on the right-hand side of the enclosure.
The main switch provides a means of isolating the consumer unit assembly and incorporates a twin-screw terminal arrangement for incoming supply connections.
Niglon specifies a main switch terminal capacity of 35mm², a rated operational voltage of 230V AC and a rated frequency of 50Hz for this model.
The Niglon Protego 15 Way Main Switch SPD Consumer Unit must be installed in accordance with the supply characteristics, upstream protection, conductor sizing and manufacturer’s installation requirements.
Meter Tails Gland Included with the Electrical4Less Package
Electrical4Less includes a meter tails gland with the Niglon Protego 15 Way Main Switch SPD Consumer Unit, providing an additional installation accessory for the incoming supply conductors.
When correctly selected and fitted, the gland helps provide a neat, secure cable entry arrangement and supports a professional finish to the consumer unit installation.
Including the meter tails gland alongside the original Protego board and Type 2 SPD means electricians can source these components together, rather than ordering the gland separately.
The gland must be suitable for the chosen cable arrangement and enclosure entry.
Compatible Niglon 6kA Bi-Directional RCBOs
The Niglon Protego 15 Way Main Switch SPD Consumer Unit is supplied without outgoing RCBOs, allowing installers to choose the appropriate protective devices for individual circuits.
RCBOs combine residual current protection and overcurrent protection within a single device. Using individual RCBOs can help reduce unwanted disruption by allowing an affected circuit to disconnect without necessarily interrupting other circuits.
Electrical4Less supplies Niglon 6kA bi-directional RCBOs in different current ratings to accommodate a range of circuit protection requirements.
Browse our Niglon 6kA Bi-Directional RCBOs for Consumer Units to select suitable outgoing protective devices.
Protective devices must be compatible with the consumer unit assembly and selected according to circuit loading, prospective fault current, disconnection requirements and the manufacturer’s instructions.
Outgoing RCBOs are not included in the PCU1816M/SPD package and must be purchased separately.
Technical Specifications – PCU1816M/SPD
- Brand: Niglon
- Range: Protego
- Electrical4Less combination SKU: PCU1816M/SPD
- Original manufacturer model: PCU1816M
- Consumer unit type: Main switch metal consumer unit with additional Type 2 SPD
- Configuration: Right-hand incomer
- Total modules: 18
- Original free ways: 16
- Usable ways with included SPD: 15
- Main switch: 100A double-pole isolator
- Main switch terminal arrangement: Twin screw
- Rated current of assembly: 100A
- Rated operational voltage: 230V AC
- Rated frequency: 50Hz
- Main switch terminal capacity: 35mm²
- Surge protection: Compatible single-module Type 2 SPD included
- SPD connection: Direct busbar connection in the specified arrangement
- Enclosure material: Powder-coated steel
- Ingress protection: IP20
- Impact resistance: IK05
- Dimensions: 376mm (W) × 260mm (H) × 110mm (D)
- Consumer unit standard: BS EN 61439-3
- Main isolator standard: EN 60947-3
- Certification: SEMKO, CE, UKCA
What’s Included in the PCU1816M/SPD Combination?
- 1 × Niglon Protego PCU1816M 18-module, 16-way metal consumer unit.
- 1 × 100A double-pole main isolator fitted to the consumer unit.
- 1 × Compatible Niglon single-module Type 2 SPD.
- 1 × Meter tails gland.
- Original manufacturer-supplied busbar arrangement, earth and neutral terminal bars and standard fitting accessories.
The single-module Type 2 SPD occupies one of the original 16 outgoing ways, leaving 15 usable ways for separately purchased protective devices.
Niglon Consumer Unit Accessories – Including PSTAND02
For installations where additional clearance is required behind the consumer unit, the Niglon PSTAND02 Protego 18 Module Rear Stand Off Plate is an accessory designed for this enclosure size.
The PSTAND02 can be useful where cables need to enter from behind the consumer unit, subject to the installation arrangement and manufacturer’s fitting instructions.
Electrical4Less also offers Niglon module blanks and Protego consumer unit lid magnets.
Explore our Niglon Consumer Unit Accessories category for suitable accessories to complete the installation.
Explore Other Niglon Protego Consumer Units
The Niglon Protego 15 Way Main Switch SPD Consumer Unit provides an option for installations requiring 15 individually protected outgoing ways together with Type 2 surge protection.
For smaller properties, garages or installations requiring fewer circuits, other Protego enclosure sizes may be more appropriate. Larger consumer units are also available for projects requiring additional outgoing ways.
Browse our Niglon Protego Consumer Units range to compare available configurations.
You can also explore the full Niglon Circuit Protection Range, including RCBOs, MCBs, surge protection devices and associated electrical installation products.
Manufacturer Technical Datasheet
For the original enclosure dimensions, electrical ratings and manufacturer specifications, view the Niglon PCU1816M technical datasheet.
Please note that the manufacturer’s datasheet describes the original 16-way PCU1816M consumer unit before the additional SPD is included in the Electrical4Less combination.
