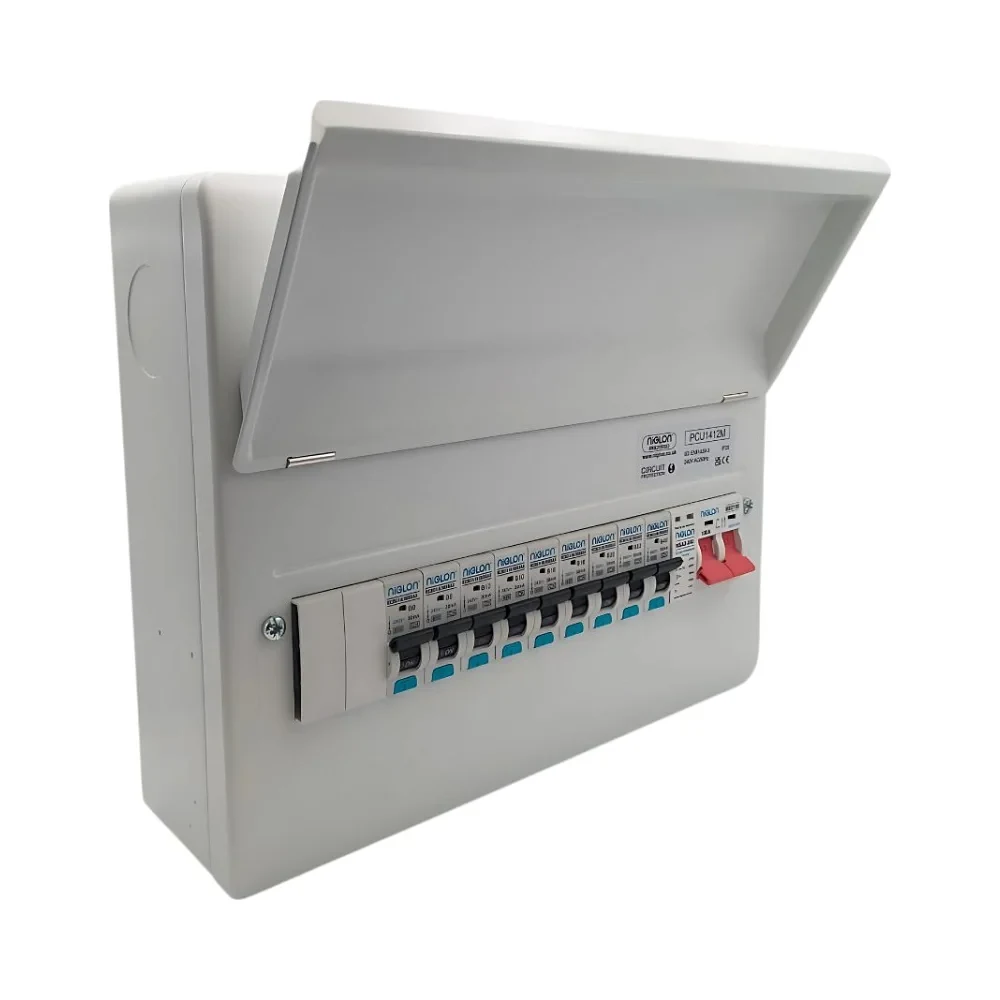

Niglon PCU1412M 9 RCBO SPD Consumer Unit Kit
11 Way Consumer Unit Kit with 9 Bi-Directional RCBOs, Type 2 SPD & Tails Gland
The Niglon PCU1412M 9 RCBO SPD Consumer Unit Kit is a complete Protego solution designed for larger domestic installations. Supplied with 9 Niglon 6kA bi-directional Type A Curve B RCBOs, a 100A twin screw main switch, a Type 2 SPD and an included Niglon meter tails gland, it provides individual circuit protection and surge protection in one ready-to-install package.
The 14-module metal enclosure provides 11 usable ways and features a right-hand incomer with direct busbar SPD connection, helping simplify internal wiring and avoid the need for an additional MCB for the surge protection device.
Important – RCBO Selection and Default Configuration
This kit is supplied with our standard selection of 9 Niglon 6kA bi-directional Type A Curve B RCBOs unless you request a different amperage combination.
If you require different RCBO ratings, please add your required combination to the order notes at checkout, send us a WhatsApp message with your order number, or email your requirements immediately after ordering.
If no alternative RCBO requirements are received, the default configuration shown below will be dispatched.
Default RCBO Configuration
- 2 × B6A Type A Bi-Directional RCBOs
- 2 × B16A Type A Bi-Directional RCBOs
- 2 × B20A Type A Bi-Directional RCBOs
- 3 × B32A Type A Bi-Directional RCBOs
Alternative bi-directional RCBO ratings of 6A, 10A, 16A, 20A, 32A or 40A can be requested, subject to availability. Customers may change the amperage mix, but this product is supplied with bi-directional RCBOs only.
Please note: This kit is supplied with Niglon 6kA Bi-Directional RCBOs for Consumer Units.
Product Overview

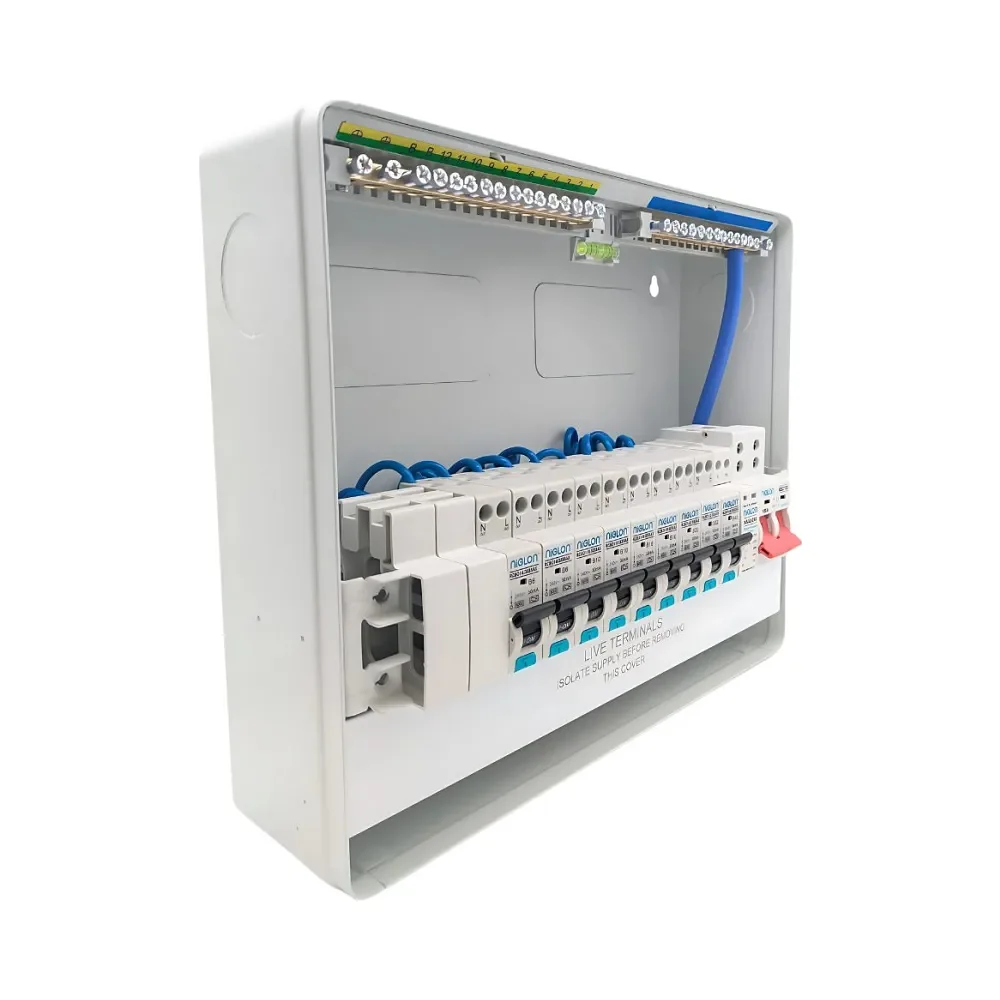

The Niglon PCU1412M 9 RCBO SPD Consumer Unit Kit features a 14-module metal enclosure with 11 usable ways, making it suitable for larger domestic installations and upgrades requiring additional circuit capacity.

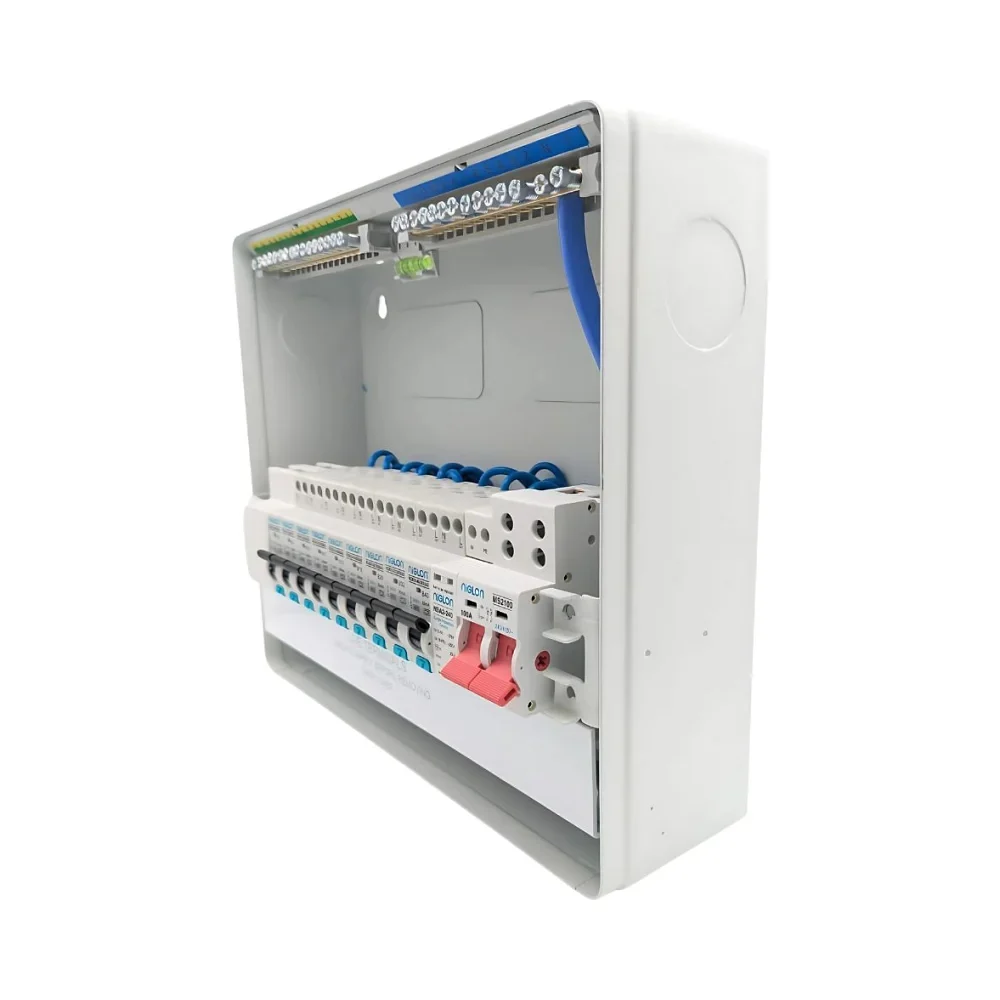

A 100A double pole twin screw main switch is positioned on the right-hand side for improved cable routing. The integrated Type 2 SPD connects directly to the busbar, reducing wiring complexity and removing the need for an additional protective MCB for the SPD.
Nine bi-directional Type A RCBOs provide individual overload, short-circuit and residual current protection. The board is supplied with our standard RCBO combination unless an alternative amperage mix is requested when ordering.
Kit Contents
- 1 × Niglon PCU1412M Protego Metal Consumer Unit – 14 Module, 11 Way
- 1 × 100A Double Pole Twin Screw Main Switch – right-hand incomer

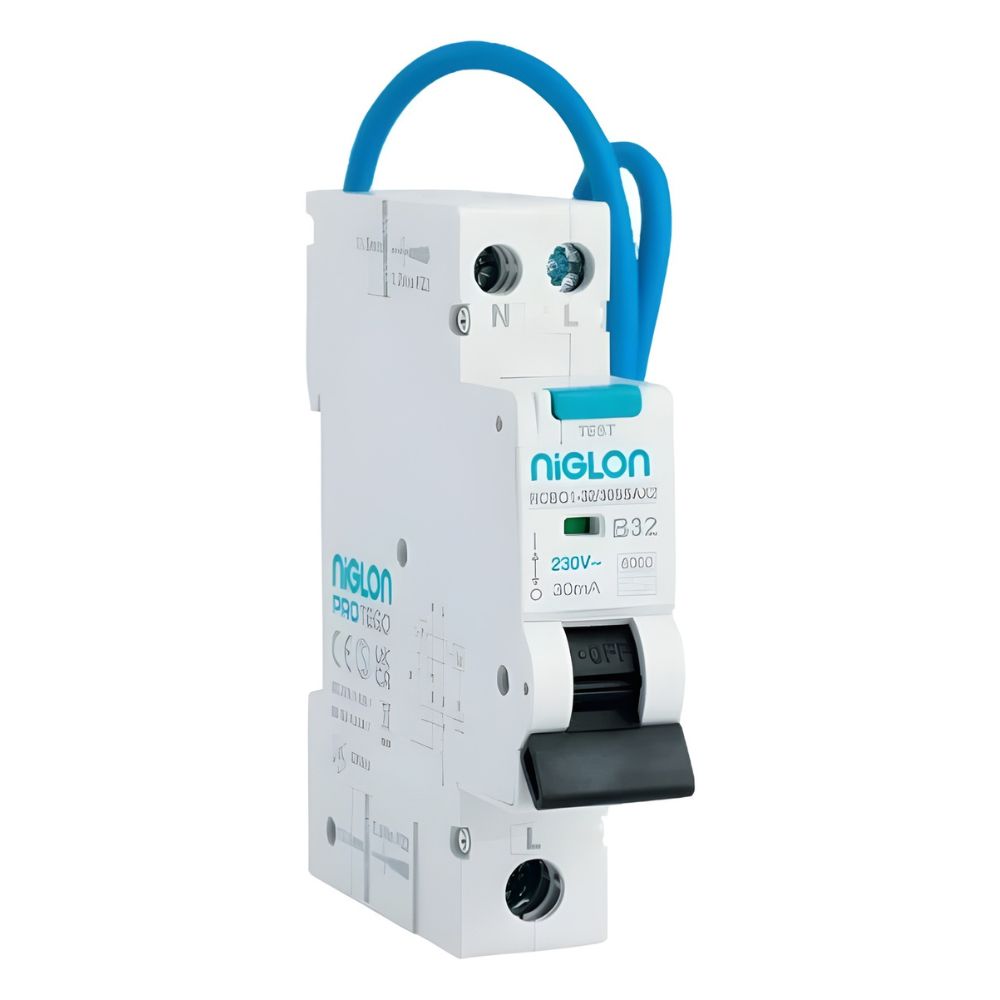

- 9 × Niglon 6kA Bi-Directional Type A Curve B RCBOs – 30mA
- 1 × Type 2 SPD with direct busbar connection
- 1 × Niglon Meter Tails Cable Gland
- Internal neutral and earth bars
- Knockouts, blanks and fixing kit
Key Features
- 11 usable ways within a 14-module enclosure
- 9 Niglon 6kA bi-directional Type A Curve B RCBOs included
- Default RCBO mix: 2×6A, 2×16A, 2×20A and 3×32A
- Alternative RCBO amperages can be requested when ordering
- 100A twin screw main switch for secure cable termination
- Type 2 SPD connects directly to the busbar – no additional MCB required
- Right-hand incomer for improved wiring layout
- Niglon meter tails gland included
- Powder-coated steel construction – RAL 9010
- IP20 rated with IK05 impact resistance
Technical Specifications
- Model: PCU1412M/9RCBO
- Range: Protego
- Total modules: 14
- Usable ways: 11
- Main switch: 100A Double Pole Twin Screw – right-hand
- RCBO quantity: 9
- RCBO type: Type A, Curve B, bi-directional
- RCBO breaking capacity: 6kA
- Residual current rating: 30mA
- Available RCBO ratings: 6A, 10A, 16A, 20A, 32A and 40A
- SPD: Type 2, direct busbar fit
- Meter tails gland: Included
- Material: Powder-coated steel, RAL 9010
- IP rating: IP20
- Impact rating: IK05
- Dimensions: 304mm (W) × 260mm (H) × 110mm (D)
Standards & Compliance
- BS 7671:2018 – 18th Edition Wiring Regulations
- BS EN 61439-3 – Consumer Unit Standard
- EN 60947-3 – Switchgear Standard
Ideal Applications
- Larger domestic rewires and new-build installations
- Properties requiring individual RCBO protection and surge protection
- Installations requiring a ready-to-fit bi-directional RCBO consumer unit
Why Choose the Niglon PCU1412M 9 RCBO SPD Consumer Unit Kit?
The Niglon PCU1412M 9 RCBO SPD Consumer Unit Kit combines 9 Niglon 6kA bi-directional Type A RCBOs, a 100A twin screw main switch and direct busbar Type 2 surge protection within an 11-way Protego enclosure.
The standard RCBO configuration makes ordering quicker while still allowing electricians to request different bi-directional amperage ratings. If no alternative RCBO requirements are provided, the default configuration of 2×6A, 2×16A, 2×20A and 3×32A will be dispatched.
