Description

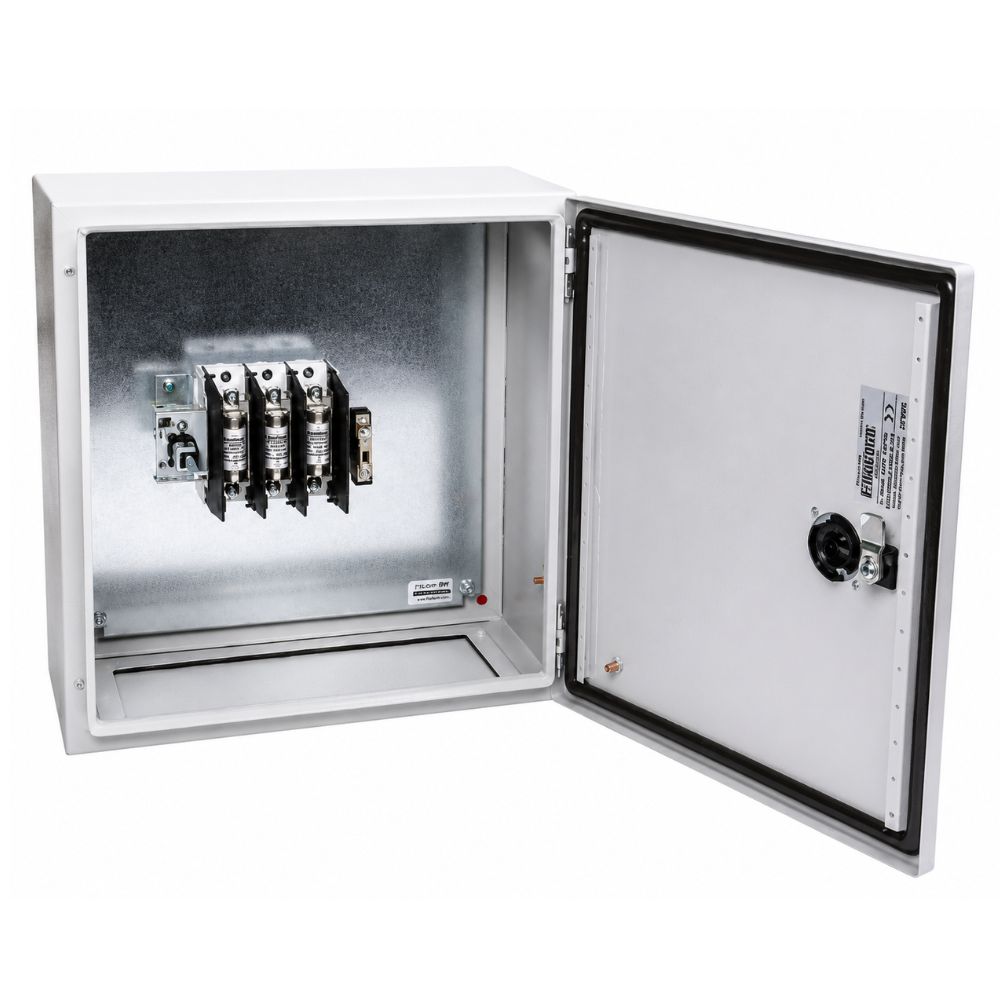

Niglon MS8003PSF-L 800A Switchfuse
Niglon MS8003PSF-L 800A Switchfuse is designed for electrical isolation and protection applications using BS88 fuse links. The switchfuse is housed within a mild steel enclosure with IP65 protection and features a padlockable defeatable handle.
The enclosure includes a separate lock, reversible door for top or bottom gland plate orientation, fitted earth studs, fixing brackets and earth straps. All terminals are supplied with protective shrouds.
BS88 fuse links sold separately.
Key Features – Niglon MS8003PSF-L 800A Switchfuse
- 800A 3 pole enclosed switchfuse
- IP65 rated mild steel enclosure when fitted
- Compatible with BS88 fuse links
- Fuse link range: 355-800A
- Padlockable defeatable handle accepting 3 padlocks
- Separate enclosure lock
- Reversible door for top or bottom gland plate configuration
- Epoxy powder coated mild steel enclosure
- Earth studs, fixing brackets and earth straps included
- All terminals fitted with protective shrouds
Technical Specifications – Niglon MS8003PSF-L 800A Switchfuse
- SKU: MS8003PSF-L
- Product Type: Mild Steel Enclosed Switchfuse
- Poles: 3 Pole
- Rated Thermal Current at 40°C: 800A
- Rated Operational Current AC-22A up to 550V: 800A
- Rated Operational Current AC-23A up to 550V: 800A
- Rated Operational Power AC-23: 380kW
- Rated Breaking Capacity AC-23 at 690V: 5760A
- Rated Insulation Voltage at 50/60Hz: 1000V
- Dielectric Strength: 10kV
- Rated Impulse Withstand Voltage: 12kV
- Fuse Link Type: BS88 C1 – C3
- Fuse Link Range: 355-800A
- Mechanical Endurance: 10000
- Defeatable Handle: Accepts 3 Padlocks
- Terminal Bolt Size: M12 x 40
- Terminal Tightening Torque: 50-75
- Fuse Link Bolt Tightening Torque: 40Nm
- Operating Torque: 28Nm
- Enclosure Construction: 1.2mm Mild Steel
- Finish: Epoxy Powder Coat
- Colour: RAL7035
- Degree of Ingress When Fitted: IP65
- Overall Dimensions: 1200 x 800 x 300mm
- Weight: 34.6kg
- Standards: BSEN60947-3
- Standards: BSEN61439-1
