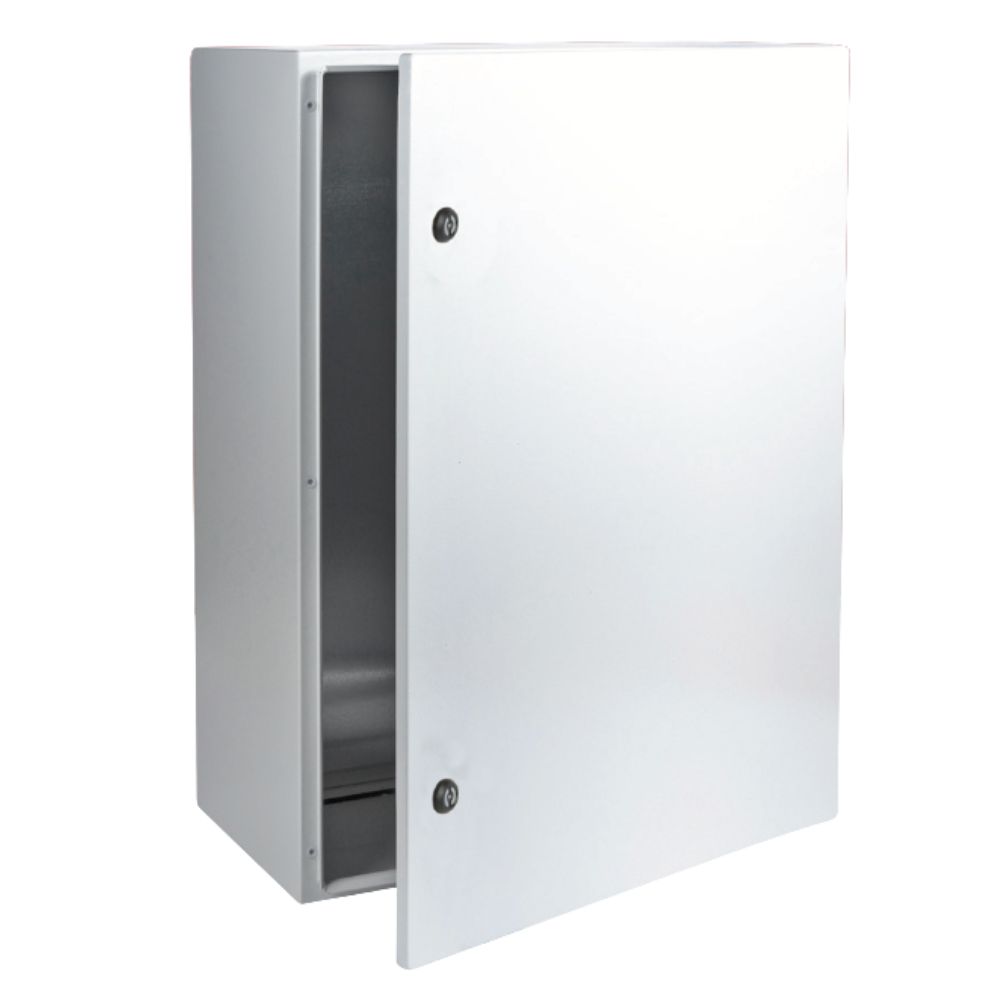

Niglon MS1008030 Painted Mild Steel Enclosure IP66

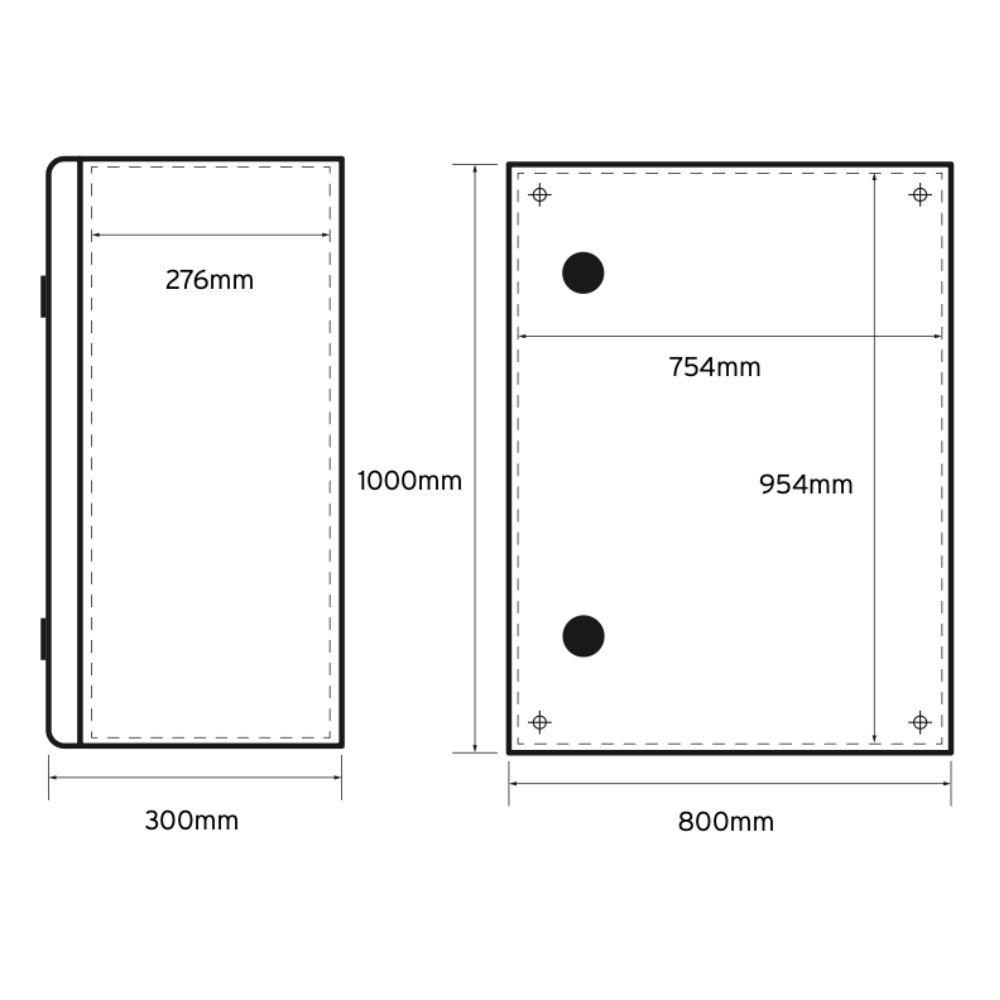

The Niglon MS1008030 Painted Mild Steel Enclosure IP66 is a wall-mounted enclosure measuring 1000mm high, 800mm wide and 300mm deep. Manufactured from 1.2mm mild steel and finished in a durable RAL 7035 epoxy-polyester powder coating, it provides IP66 ingress protection for electrical control and automation equipment. The enclosure is supplied complete with a 2mm galvanised steel backplate measuring 954mm x 754mm and provides 276mm usable depth with the backplate fitted. Additional features include a reversible door opening to 125°, two lock points, welded earth studs top and bottom, polyurethane gasket sealing and gland plate access. The enclosure weighs 39.8kg and is designed to BS EN 61439-1, BS EN 60529, BS EN 62208 and BS EN 62262 standards.
Applications – Niglon MS1008030 Painted Mild Steel Enclosure IP66
The MS1008030 is suitable for commercial and industrial electrical installations requiring a durable steel enclosure with IP66 protection. Typical applications include control panels, automation systems, machinery controls, electrical distribution equipment, building services installations and panel-building projects where internal components need to be mounted securely onto a galvanised backplate.
Key Features – Niglon MS1008030 Painted Mild Steel Enclosure IP66
- IP66 ingress protection
- 1000mm x 800mm x 300mm enclosure dimensions
- Manufactured from 1.2mm painted mild steel
- RAL 7035 epoxy-polyester powder-coated finish
- 2mm galvanised steel backplate included
- Backplate dimensions 954mm x 754mm
- 276mm usable depth with backplate fitted
- Reversible door opening to 125°
- Two lock points for secure access
- Polyurethane gasket seal
- Welded earth studs fitted top and bottom
- One gland plate can be fitted top or bottom
Technical Specifications – Niglon MS1008030 Painted Mild Steel Enclosure IP66
- Standards: BS EN 61439-1, BS EN 60529, BS EN 62208 & BS EN 62262
- Ingress Protection: IP66
- Height: 1000mm
- Width: 800mm
- Depth: 300mm
- Enclosure Material: Mild Steel
- Enclosure Steel Thickness: 1.2mm
- Backplate Thickness: 2mm
- Backplate Height: 954mm
- Backplate Width: 754mm
- Usable Depth with Backplate Fitted: 276mm
- Gland Plate Dimensions: 2 x 308mm x 109mm
- Number of Locks: 2
- Operating Temperature: -25°C to +55°C
- Operating Relative Humidity at +20°C: 90%
- Operating Relative Humidity at +40°C: 50%
- Weight: 39.8kg
- Colour: RAL 7035
Compatible Accessories
Compatible accessories for the Niglon MS1008030 include the A4DOCW document pocket, STBK spare T-bit key, MSKL mild steel key lock, SPAK spare key, SSWB wall mounting brackets and ES22 220mm earth strap.
