Description

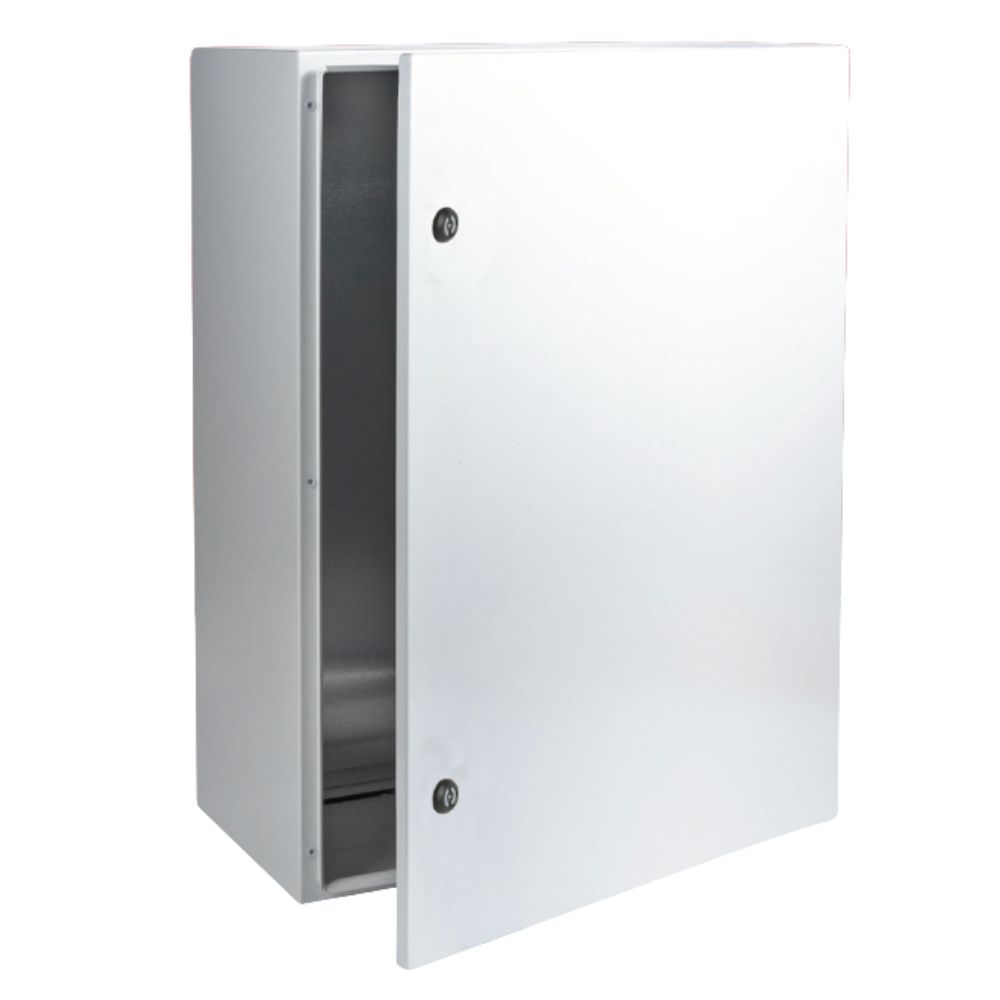

Niglon MS1006030 Painted Mild Steel Enclosure IP66
The Niglon MS1006030 Painted Mild Steel Enclosure IP66 is a wall-mounted enclosure measuring 1000mm high, 600mm wide and 300mm deep. Manufactured from 1.2mm mild steel and finished in a durable RAL 7035 epoxy-polyester powder-coated finish, it provides IP66 ingress protection against dust and water ingress. The enclosure is supplied complete with a 2mm galvanised steel backplate measuring 954mm x 554mm and provides 276mm usable internal depth with the backplate fitted. Additional features include a reversible door opening to 125°, welded earth studs, two lock points, gland plate access and an operating temperature range of -25°C to +55°C. The enclosure complies with BS EN 61439-1, BS EN 60529, BS EN 62208 and BS EN 62262 standards and weighs 36.7kg.
Applications – Niglon MS1006030 Painted Mild Steel Enclosure IP66
The MS1006030 is designed for industrial and commercial electrical installations requiring a robust steel enclosure with a high level of ingress protection. Typical applications include control panels, automation systems, machinery controls, electrical distribution equipment, building services installations and other projects where electrical equipment requires protection from dust and water.
Key Features – Niglon MS1006030 Painted Mild Steel Enclosure IP66
- IP66 ingress protection
- 1000mm x 600mm x 300mm enclosure dimensions
- Manufactured from 1.2mm painted mild steel
- RAL 7035 epoxy-polyester powder-coated finish
- 2mm galvanised steel backplate included
- Backplate dimensions 954mm x 554mm
- 276mm usable depth with backplate fitted
- Reversible door opening to 125°
- Two lock points for secure access
- Polyurethane gasket seal
- Welded earth studs fitted top and bottom
- Suitable for industrial and commercial applications

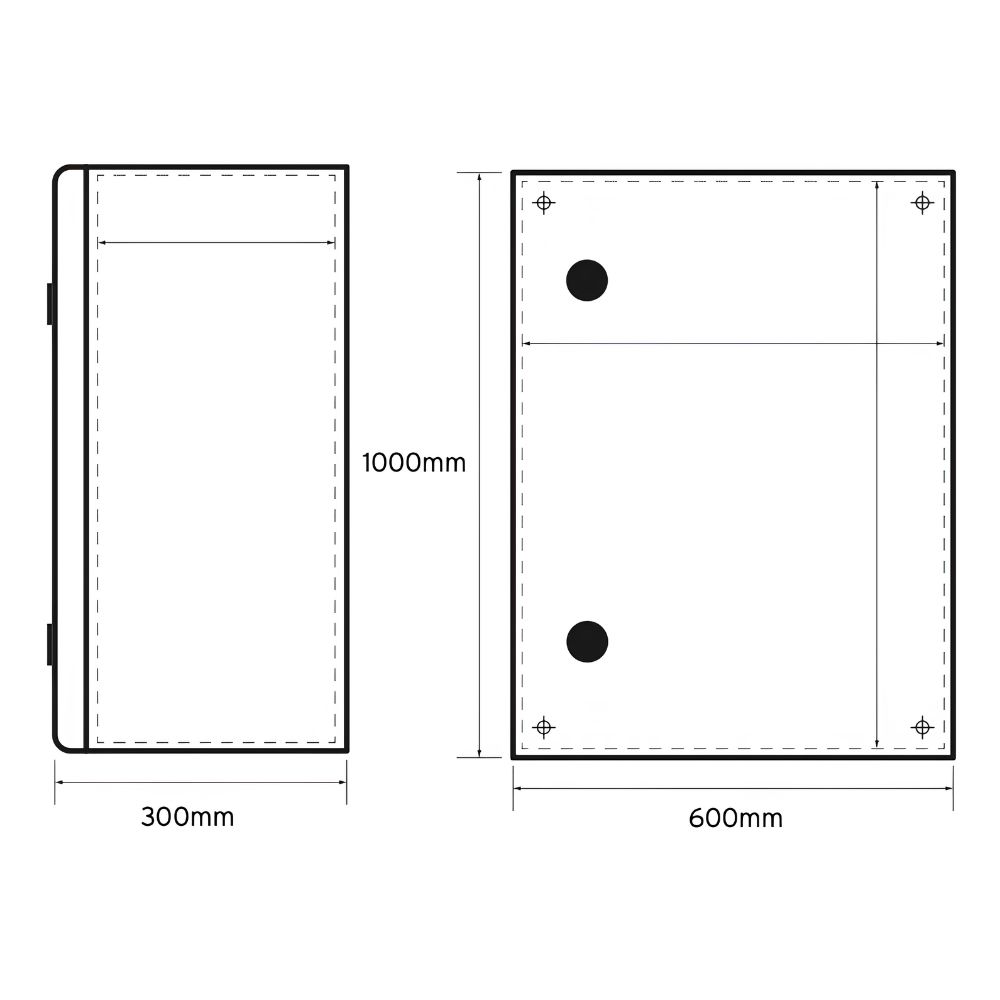

Technical Specifications – Niglon MS1006030 Painted Mild Steel Enclosure IP66
- Standards: BS EN 61439-1, BS EN 60529, BS EN 62208 & BS EN 62262
- Ingress Protection: IP66
- Height: 1000mm
- Width: 600mm
- Depth: 300mm
- Enclosure Thickness: 1.2mm
- Backplate Thickness: 2mm
- Backplate Height: 954mm
- Backplate Width: 554mm
- Usable Depth with Backplate Fitted: 276mm
- Gland Plate Dimensions: 2 x 308mm x 109mm
- Number of Locks: 2
- Operating Temperature: -25°C to +55°C
- Relative Humidity at +20°C: 90%
- Relative Humidity at +40°C: 50%
- Weight: 36.7kg
- Colour: RAL 7035
Compatible Accessories
Compatible accessories for the MS1006030 include the Niglon PPS6030 plinth, A4DOCW document pocket, SSWB wall mounting brackets, ES22 earth strap, STBK spare T-bit key, SPAK spare key and MSKL replacement key lock.
