Compact, Compliant, and Ready to Install with Bi-Directional RCBOs
Niglon M3CU10SP 10 RCBO SPD Consumer Unit Kit
The Niglon M3CU16SP 10 RCBO SPD Consumer Unit Kit is a complete, 18th Edition-ready solution designed to save installation time while delivering maximum circuit protection. Supplied with 10 bi-directional Type A RCBOs, a 100A double pole main switch, and a pre-installed Type 2 SPD, this kit ensures full compliance and reliable performance straight out of the box.
Built into a robust powder-coated steel enclosure, the Niglon SPD consumer unit kit offers excellent durability, clean cable management, and efficient circuit separation—ideal for both domestic and light commercial installations.
Product Overview
The Niglon M3CU16SP 10 RCBO SPD Consumer Unit Kit features a compact design with 13 usable ways. It includes a 100A main switch isolator and a 20/40kA Type 2 SPD to protect against transient overvoltages, helping safeguard sensitive electrical equipment.
The IP20-rated steel enclosure includes multiple knockouts for flexible cable entry and a removable front cover for easy installation and maintenance.
This kit includes 10 bi-directional RCBOs, providing flexible installation regardless of supply direction while ensuring reliable individual circuit protection.
Kit Contents
- 1 x 100A Double Pole Main Switch Isolator
- 1 x 20/40kA Type 2 SPD (BS EN 61643-11 compliant)

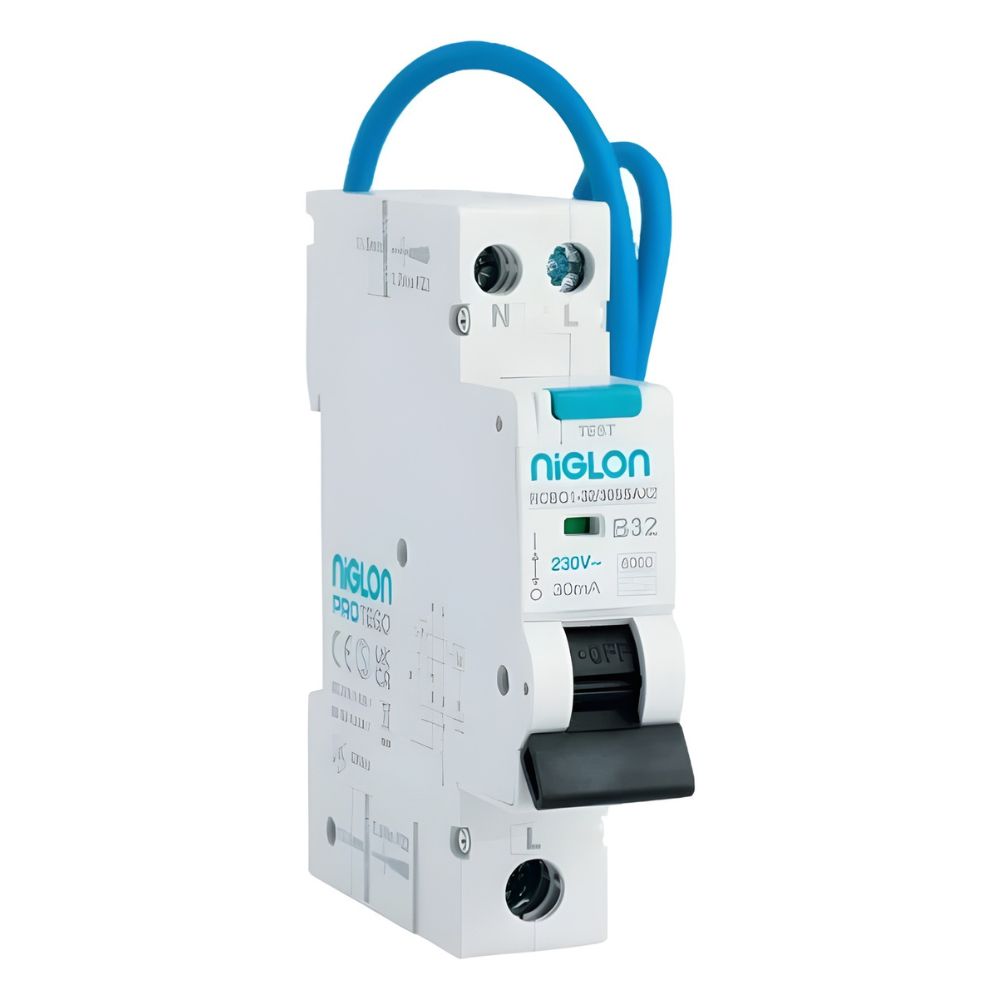

- 10 x Bi-Directional Type A RCBOs – B Curve, 30mA, compact format – add requirements in the notes at checkout
- 3 x Blanking Plates
- FREE 32mm Meter Tail Gland
- Steel enclosure with top and bottom knockouts
Your RCBO, Your Choice
This Niglon M3CU16SP 10 RCBO SPD Consumer Unit Kit allows full flexibility on circuit design:
- Available RCBO ratings: 6A, 10A, 16A, 20A, 32A, 40A
- Default kits supplied with a balanced mix
- Custom configurations available on request
Add your requirements at checkout or contact us after purchase.
View compatible RCBOs here:
Niglon 6kA Bi-Directional RCBO Range
Key Features
- 11 usable ways within a compact 14-module enclosure
- Supplied with 10 bi-directional RCBOs for flexible installation
- Integrated 100A double pole main switch
- Pre-installed Type 2 SPD (20/40kA surge protection)
- Durable powder-coated steel construction
- Multiple cable entry points for faster installs
- Designed for BS 7671 (18th Edition) compliance
Technical Specifications
- Total Modules: 19
- Usable Ways: 16
- Voltage: 230V AC
- Frequency: 50Hz
- Max Incoming Cable Size: 35mm²
- Material: Powder-coated steel (RAL 9010 white)
- IP Rating: IP20
- IK Rating: IK05
- Dimensions: 343mm (W) x 237mm (H) x 110mm (D)
Standards & Compliance
- BS 7671:2018 (18th Edition Wiring Regulations)
- BS EN 61439-3 (Consumer Unit Standard)
- BS EN 61643-11 (Surge Protection Devices)
- Certified: CE, UKCA, Intertek, Semko, Kema Keur, CSA, UR, EAC
Ideal Applications
- Domestic rewires and new build installations
- Small commercial properties
- Garages, workshops, and outbuildings
- Installers requiring compact SPD protection with RCBO separation
Why Choose This Kit?
The Niglon SPD consumer unit kit offers a complete, installer-friendly solution with bi-directional RCBO technology, reducing installation constraints and improving flexibility on site. Combined with trusted Niglon build quality and full compliance, it’s a reliable choice for modern electrical installations.
