Description

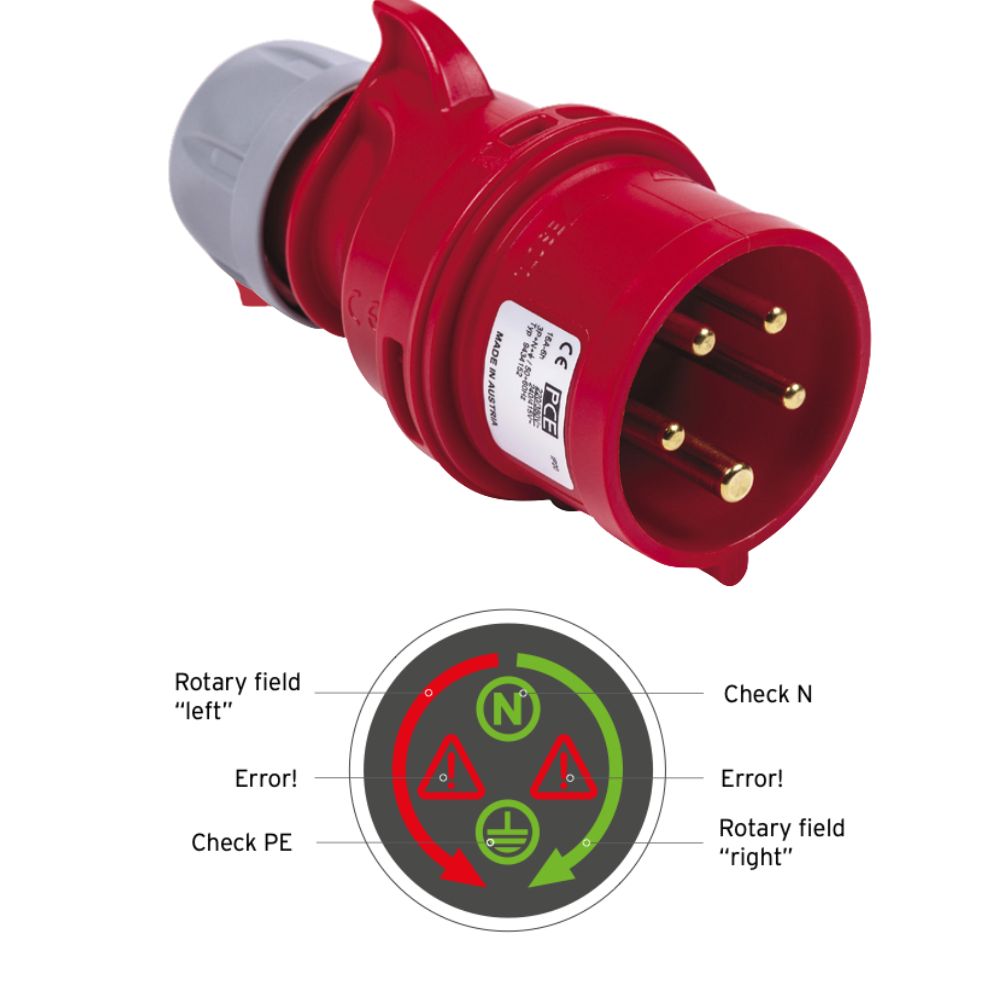

Niglon CEED32 IP20 Diagnostic Plug with LED Display
Niglon CEED32 IP20 Diagnostic Plug with LED Display is designed for temporary testing and diagnostic verification of 32A industrial socket installations. Suitable for 415V 3P+E+N applications, this professional diagnostic plug provides clear LED indication for rotary field direction, neutral faults and protective earth faults.
Manufactured with a shock resistant thermoplastic enclosure, the CEED32 diagnostic plug is ideal for industrial testing, commissioning and maintenance applications where fast visual verification of socket wiring and phase rotation is required.
Key Features – Niglon CEED32 IP20 Diagnostic Plug with LED Display
- 32A industrial diagnostic test plug
- Suitable for 415V applications
- 3P + E + N pin configuration
- LED display indication system

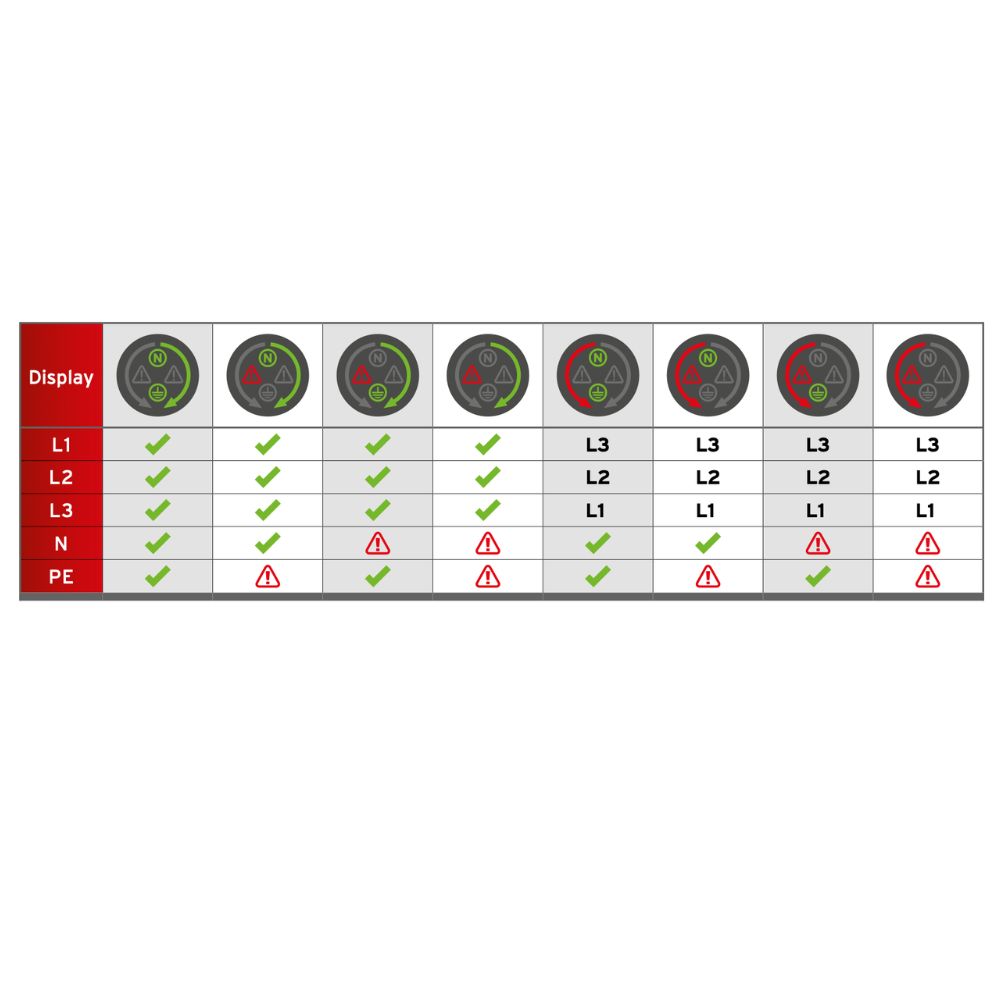

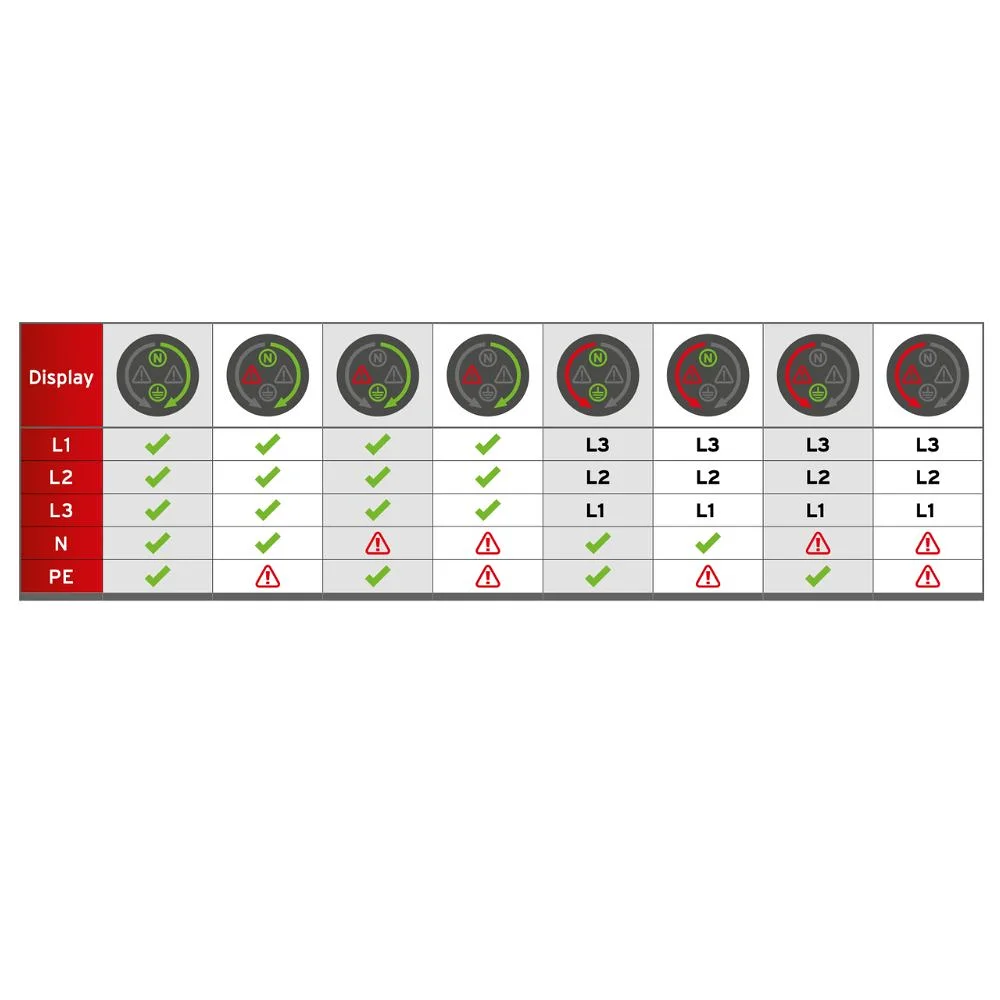

- Rotary field direction indication
- Neutral and PE fault indication
- Shock resistant thermoplastic enclosure
- IP20 rated
- Suitable for industrial testing and commissioning
Technical Specifications – Niglon CEED32 IP20 Diagnostic Plug with LED Display
- Brand: Niglon
- SKU: CEED32
- Product Type: Diagnostic Plug with LED Display
- Rated Current: 32A
- Rated Voltage: 415V
- Pin Configuration: 3P + E + N
- IP Rating: IP20
- Material: Shock resistant thermoplastic enclosure
- Operating Temperature: Approx. +25°C
- Standards: EN60309-2, EN61000-6-3, EN61000-6-2, EN55022
- Certification: OVE & CE
- Dimensions: 125 x 72mm (L x H)
Professional Industrial Accessories from Niglon
Niglon industrial accessories and control components are designed for professional electrical installations, testing and maintenance applications across commercial and industrial environments.
