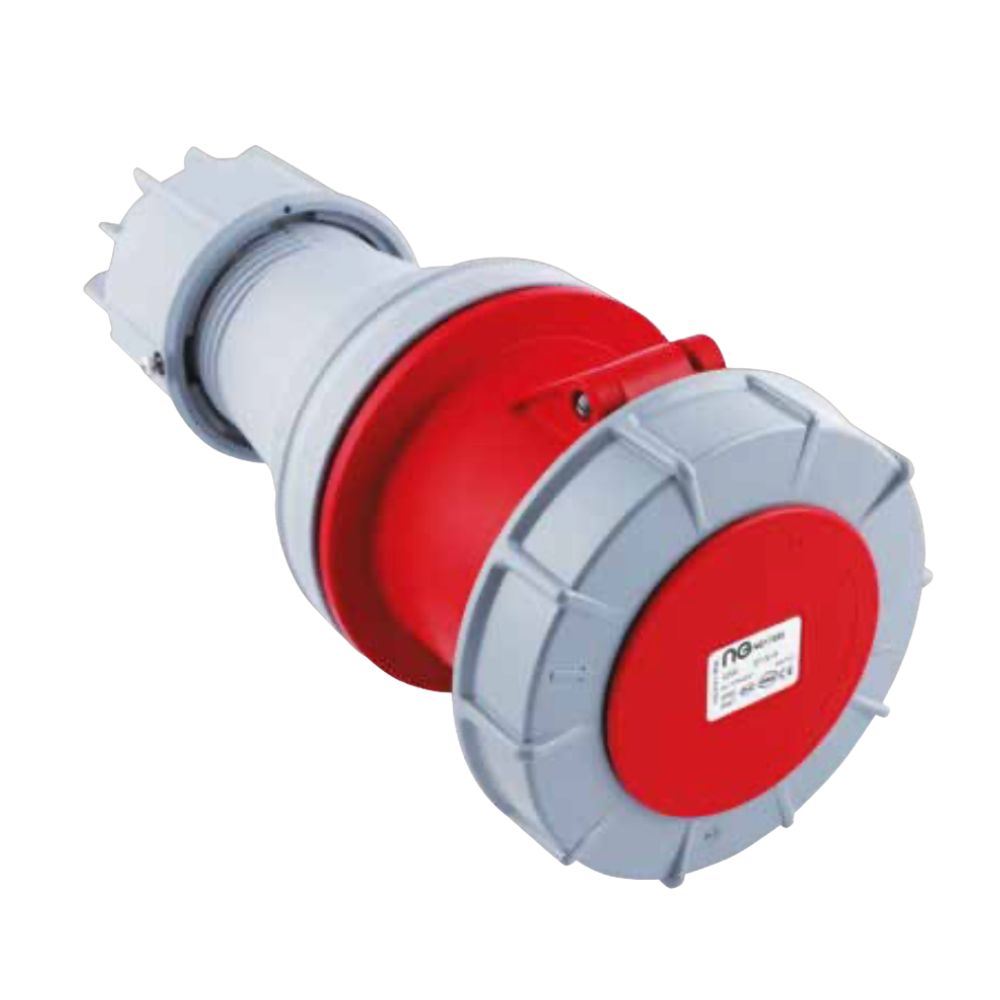

125A 415V IP67 In-Line 5 Pin Industrial Socket
Niglon 17495
Heavy-Duty 5 Pin Socket for Secure Three-Phase Power Distribution
The Niglon 17495 IP67 in-line industrial socket is designed for high-power three-phase electrical systems, ensuring reliable and stable connections in industrial and commercial environments. With a 125A rating and 415V operation, this 3P+E+N (5 pin industrial socket) configuration provides balanced power distribution, making it ideal for applications requiring a neutral connection.
Constructed with a durable PA6 housing and brass contacts with CuBe lamellar technology, this socket ensures high conductivity and long-lasting performance. Its IP67 rating guarantees full protection against dust and water, making it suitable for outdoor and demanding industrial conditions.
Key Features
- 125A capacity for high-power industrial and commercial applications
- 3P+E+N (5 pin industrial socket) configuration for three-phase power with a neutral connection
- IP67 protection ensures resistance against dust and water ingress
- Durable PA6 housing for impact resistance and long-term reliability
- Brass contacts with CuBe lamellar technology for enhanced conductivity and durability
- Secure cable clamping with a cable diameter range of 22.5–50mm
- High-strength contact screws with 450Ncm torque for safe and secure wiring
- Compatible with flexible wires from 16–50mm²
Technical Specifications
- Amperage: 125A
- Voltage: 415V
- Pin Configuration: 3P + E + N (5 pin industrial socket)
- IP Rating: IP67
- Housing Material: PA6
- Contacts: Brass with CuBe lamellar contact
- Cable Diameter: 22.5–50mm
- Wire Size (Flexible): 16–50mm²
- Contact Screw Torque: 450Ncm
- Spanner Width (SW): 81mm
- Dimensions:
- A: 287mm
- B: 124mm
- Weight: 1266g
- Certifications: OVE & CE
- Standards: BS EN 60309-1 & 2
Why Choose This Product?
The Niglon 17495 IP67 in-line industrial socket is a robust and high-performance power connector, designed for three-phase electrical systems requiring a neutral connection. With rugged construction, superior ingress protection, and secure cable clamping, it is the ideal choice for industrial, commercial, and outdoor applications requiring reliable 5 pin power distribution.
