Description

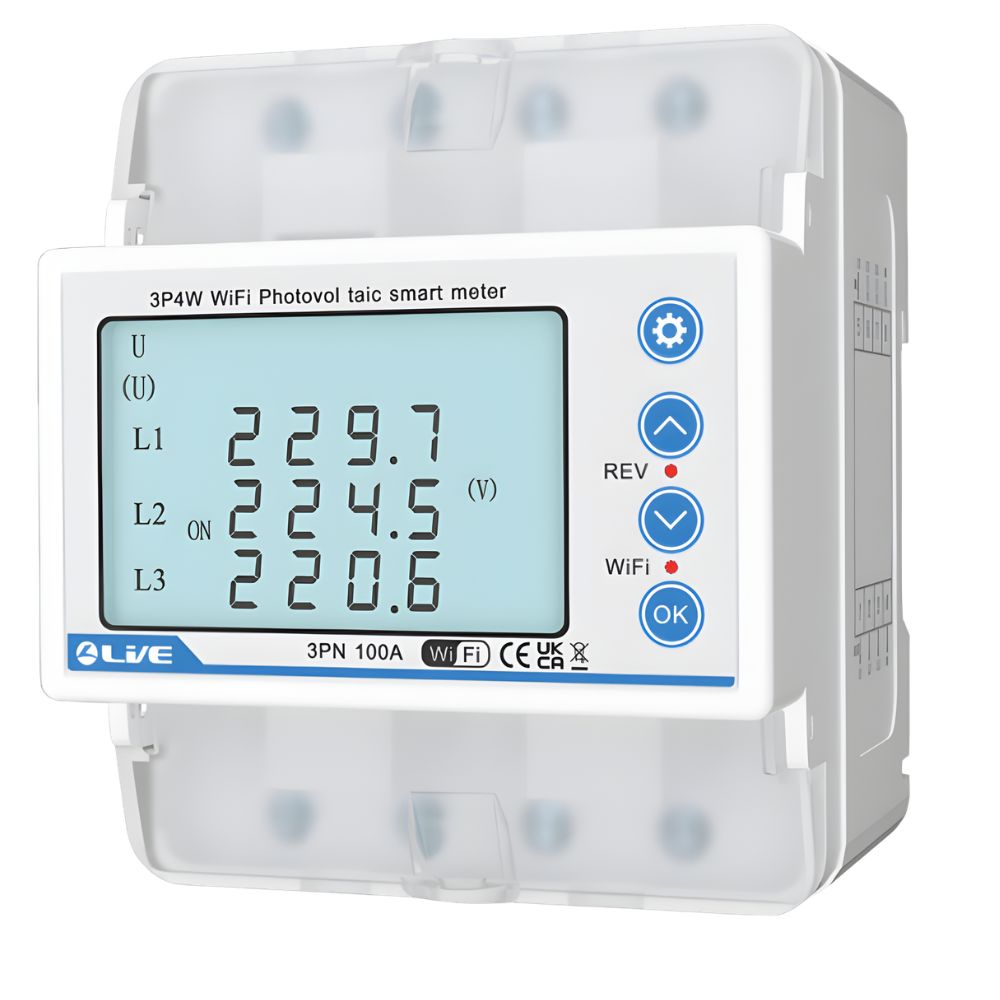

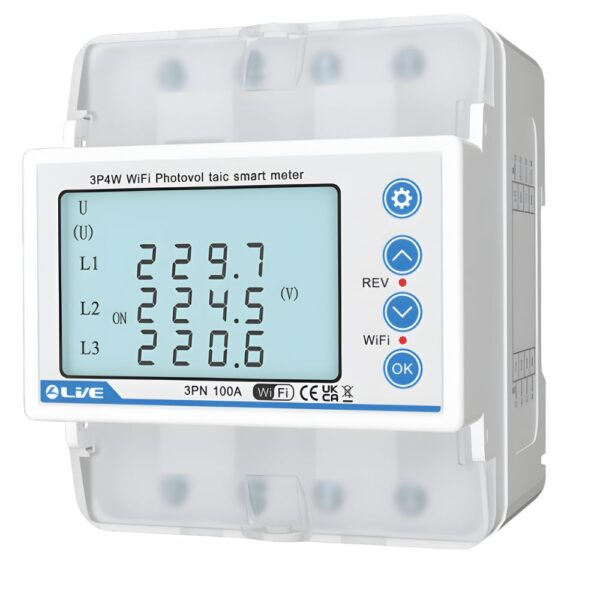

MP3100 WiFi Smart Three Phase Energy Meter Protector
Adjustable 100A 3 Phase Energy Meter with Protection Functions
The MP3100 WiFi smart three phase energy meter protector is an advanced monitoring and protection device designed for modern electrical installations. Combining real-time energy measurement with intelligent protection features, it provides enhanced control and safety for commercial and industrial systems.
With an adjustable current range of 1–100A and support for 230V / 400V AC systems, the MP3100 delivers accurate monitoring of voltage, current, power consumption, frequency and power factor across all three phases.
Integrated WiFi connectivity allows remote access and monitoring via mobile app, enabling users to track energy usage, view fault records and adjust protection parameters with ease.
The unit includes comprehensive protection features such as over voltage, under voltage, over current, under current and temperature protection, along with phase sequence, imbalance and shortage phase protection to ensure system stability and safety.
Designed for DIN rail mounting, the MP3100 is suitable for a wide range of applications including distribution boards, plant systems and energy monitoring installations.
Key Features – MP3100 WiFi Smart Three Phase Energy Meter Protector
- WiFi smart three phase energy meter with protection
- Adjustable current range: 1–100A
- Real-time monitoring of voltage, current, power and frequency
- Remote access and control via mobile app
- Over voltage and under voltage protection
- Over current and under current protection
- Phase sequence and phase loss protection
- Voltage and current imbalance protection
- High temperature protection
- Bidirectional energy monitoring
- Fault recording and history tracking
- Adjustable protection thresholds and delay settings
- DIN rail mounted (35mm)
Technical Specifications
- Model: MP3100
- Type: WiFi Smart Three Phase Energy Meter Protector
- Phases: 3 Phase + Neutral (3P+N)
- Current Range: 1–100A
- Rated Voltage: 60–300V
- Operating Frequency: 50/60Hz
- Installation: 35mm DIN Rail
- Max Cable Capacity: 35mm²
- Impulse Withstand Voltage: 4kV
- Operating Temperature: -20°C to 60°C
- Humidity: <85%
- Standard: EN/IEC 60934
- IP Rating: IP20
