60W 0–10V Dimmable Constant Current LED Driver – Multi-Output, Push Dim, AUX Out
Versatile 0–10V Dimmable Driver for Flexible LED Control and High Performance – Mean Well LCM-60 0-10V Dimmable LED Driver

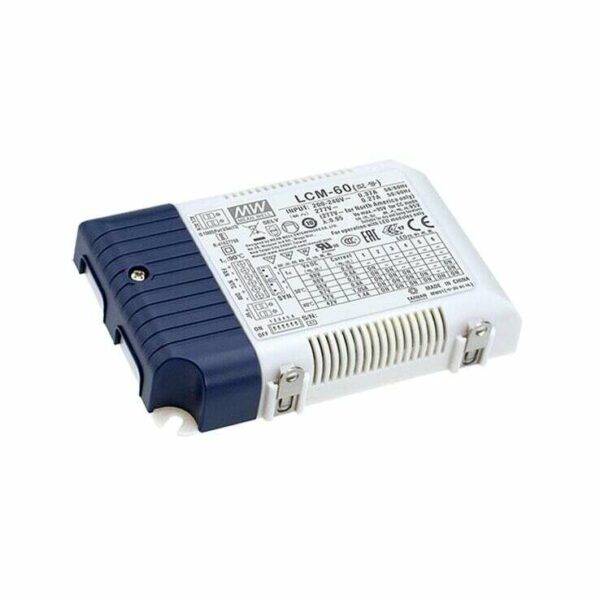

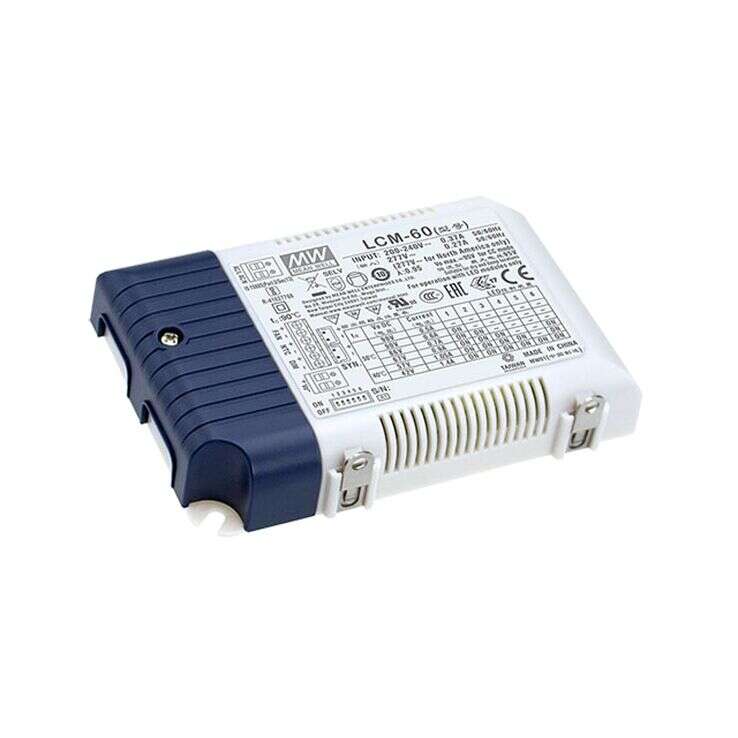

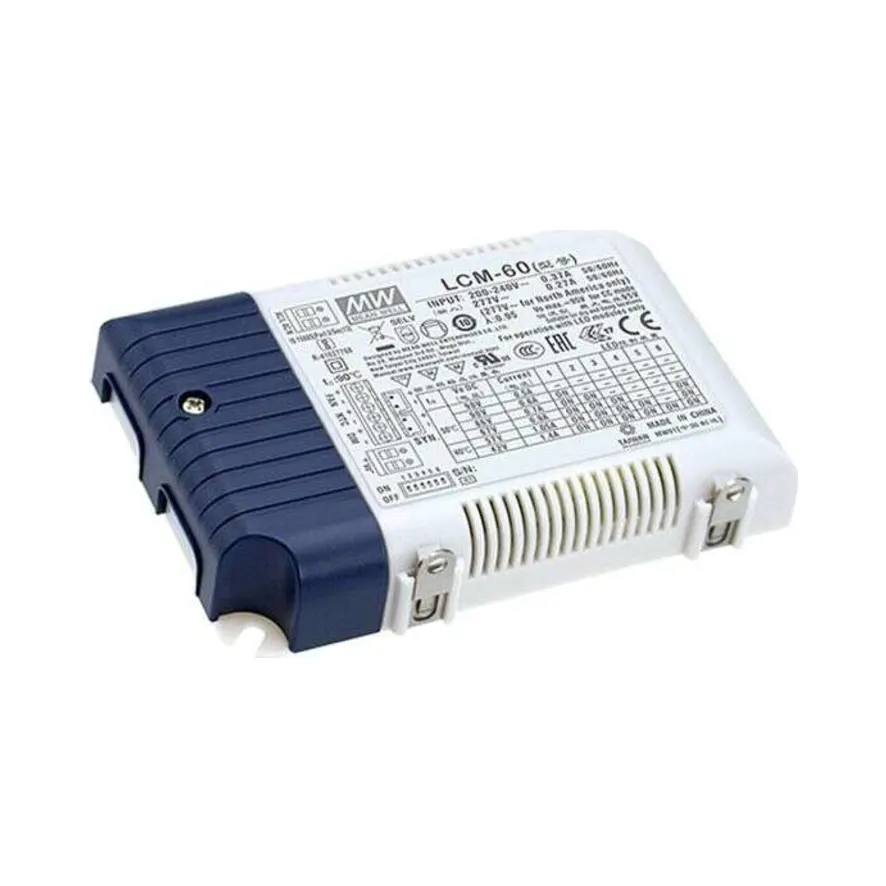

Mean Well LCM-60
The Mean Well LCM-60 is a 60W constant current LED driver with 0–10V, PWM, and resistive dimming control, as well as a built-in push dimming function. Offering multi-current outputs selectable via DIP switch, this model is ideal for applications where flexibility, safety, and intelligent dimming are required.
Designed with a Class II plastic housing, the LCM-60 ensures electrical isolation, while its active PFC function, <1W standby power, and free air convection cooling contribute to efficient, low-maintenance operation. It also includes a 12V/50mA auxiliary DC output, useful for powering sensors or small controllers.
In addition to its 3-in-1 dimming interface and synchronisation support for up to 10 drivers, it features robust protection against short circuit, over-voltage, and over-temperature, making it a reliable choice for commercial and architectural LED lighting systems.
Key Features of the Mean Well LCM-60 LED Driver
- Output Power: 60W
- Output Current: Multi-level selectable via DIP switch
- Input Voltage: 180~295VAC
- Dimming Interfaces:
- 0–10V
- PWM
- Resistive dimming
- Push dimming (onboard)
- Auxiliary Output: 12V/50mA for sensors or controls
- Synchronisation: Supports up to 10 drivers
- Temperature Compensation: External NTC input
- Cooling: Free air convection
- Standby Power: <1W (typical); no-load <1.2W
- Design Class: Class II, no FG connection required
- Housing: Fully isolated polycarbonate case
- Protections:
- Short circuit
- Over voltage
- Over temperature
- Warranty: 3 years
Applications
- Commercial LED panel lighting
- Linear and architectural lighting schemes
- Office, retail, and hospitality environments
- Lighting systems with external dimming or control sensors
- Installations requiring auxiliary output for smart control
Why Choose the Mean Well LCM-60 LED Driver?
The Mean Well LCM-60 0-10V Dimmable LED Driver offers dependable LED control with wide dimming compatibility, multi-current output settings, and auxiliary power support. Its combination of robust safety features and low standby power makes it ideal for energy-efficient and intelligently controlled lighting systems.
Summary
The Mean Well LCM-60 60W LED driver features 0–10V, PWM, resistive and push dimming, selectable output current, and 12V auxiliary output. It is a versatile, efficient, and protected solution for modern LED lighting.
