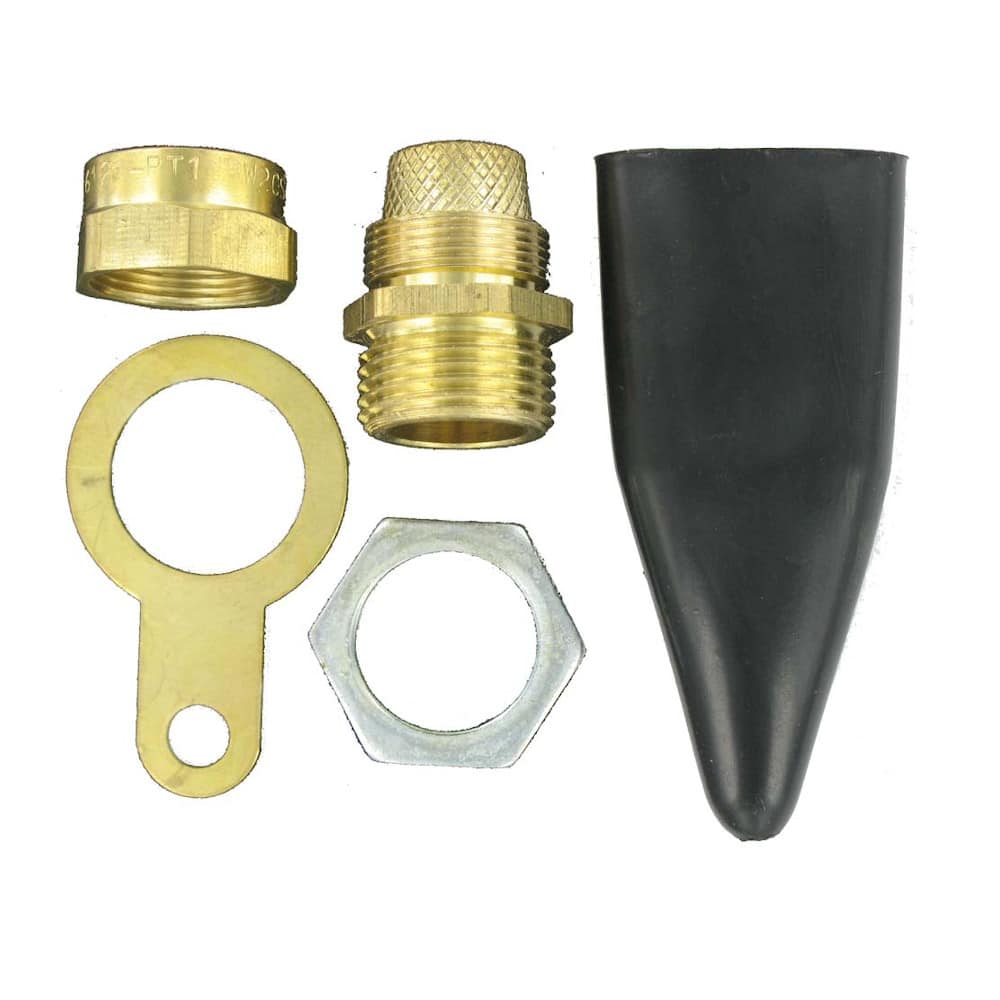

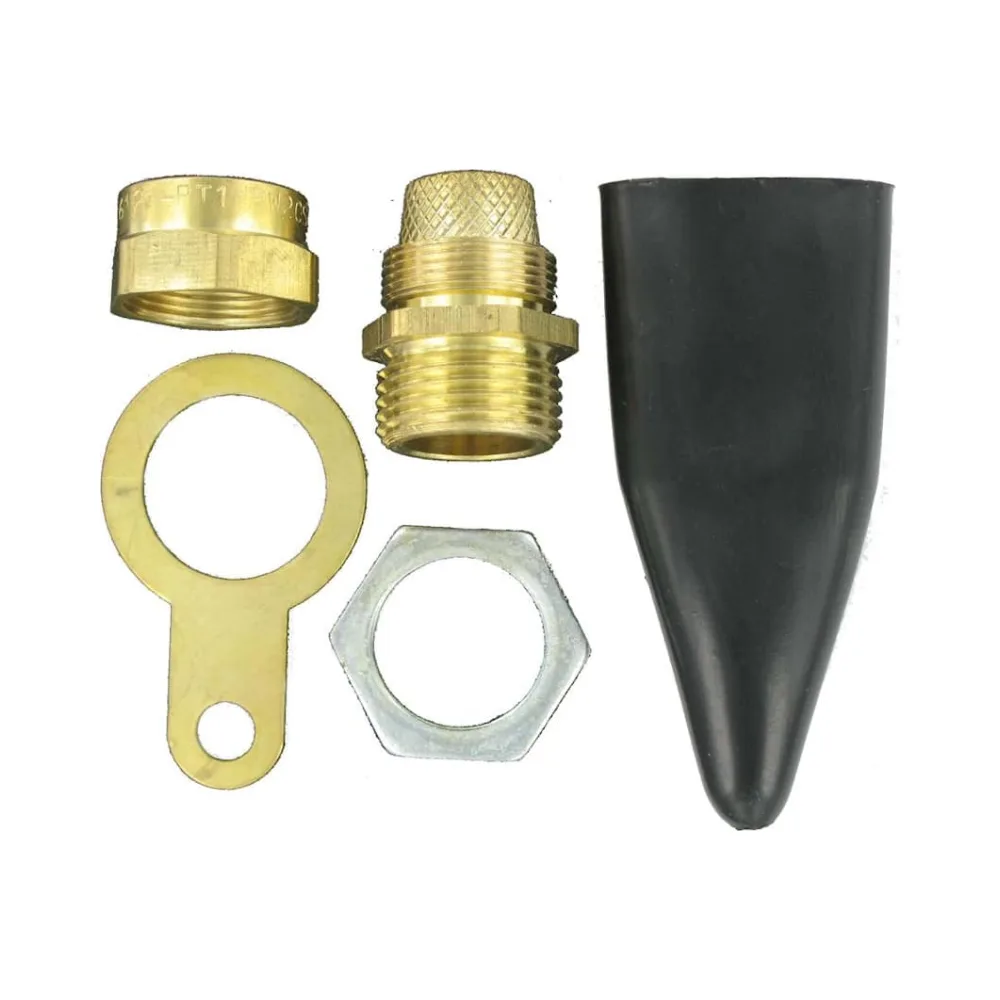

CW25LSF LSF External SWA Cable Gland 25 – Pack of 2
The CW25LSF LSF External SWA Cable Gland 25 – Pack of 2 is designed to provide secure and reliable termination for Steel Wire Armoured (SWA) cables (H694-XL). These Low Smoke and Fume (LSF) glands ensure strong clamping of the armour wire, maintaining electrical continuity and mechanical retention. Built for outdoor use, they feature a waterproof seal, making them suitable for demanding environments.
Recommended Applications
This gland is suitable for the following SWA cable configurations:
- 2 Core SWA: 16-25mm²
- 3 Core SWA: 16-25mm²
- 4 Core SWA: 16mm²
- 5 Core SWA: 16mm²
Key Features of CW25LSF External SWA Cable Gland 25
- LSF Brass Construction: Manufactured with durable LSF brass for enhanced safety and long-term performance.
- Secure Clamping: Clamps the armour wire securely to ensure reliable electrical continuity and mechanical retention.
- Waterproof Design: Delivers a dependable seal, ideal for outdoor environments exposed to moisture and harsh conditions.
- Versatile Use: Compatible with Steel Wire Armoured cables (H694-XL), supporting various cable sizes.
Size Guide for Cable Glands
Cable Gland Selection Chart
| Conductor Size (sqmm) | 2 Cores | 3 Cores | 4 Cores | 5 Cores |
|---|---|---|---|---|
| 1.5 | 20s/16 | 20s/16 | 20s | 20s |
| 2.5 | 20s | 20s | 20s | 20s |
| 4 | 20s | 20 | 20 | 20 |
| 6 | 20 | 20 | 20 | 20 |
| 10 | 20 | 20 | 20 | 25 |
| 16 | 20 | 20 | 25 | 25 |
| 25 | 20 | 25 | 32 | 32 |
| 35 | 25 | 32 | 32 | 32 |
| 50 | 32 | 32 | 40 | 40 |
| 70 | 32 | 40 | 40 | 40 |
| 95 | 40 | 40 | 50 | 50 |
Important Note
This chart and data are for guidance purposes only. Always consider the actual dimensions of the cables and glands before making a final selection. Manufacturing tolerances as per BS6121: Part 1: 1989 should be taken into account to ensure the correct fit and functionality.
Conclusion
The CW25LSF LSF External SWA Cable Gland 25 – Pack of 2 is an excellent choice for safe and durable SWA cable installations. With robust LSF brass construction, waterproof sealing, and compatibility with a wide range of cable sizes, this gland ensures reliability in outdoor and challenging conditions.
