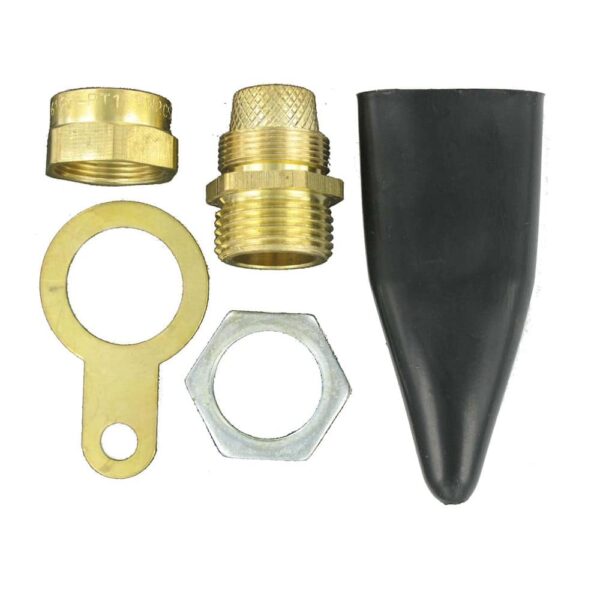

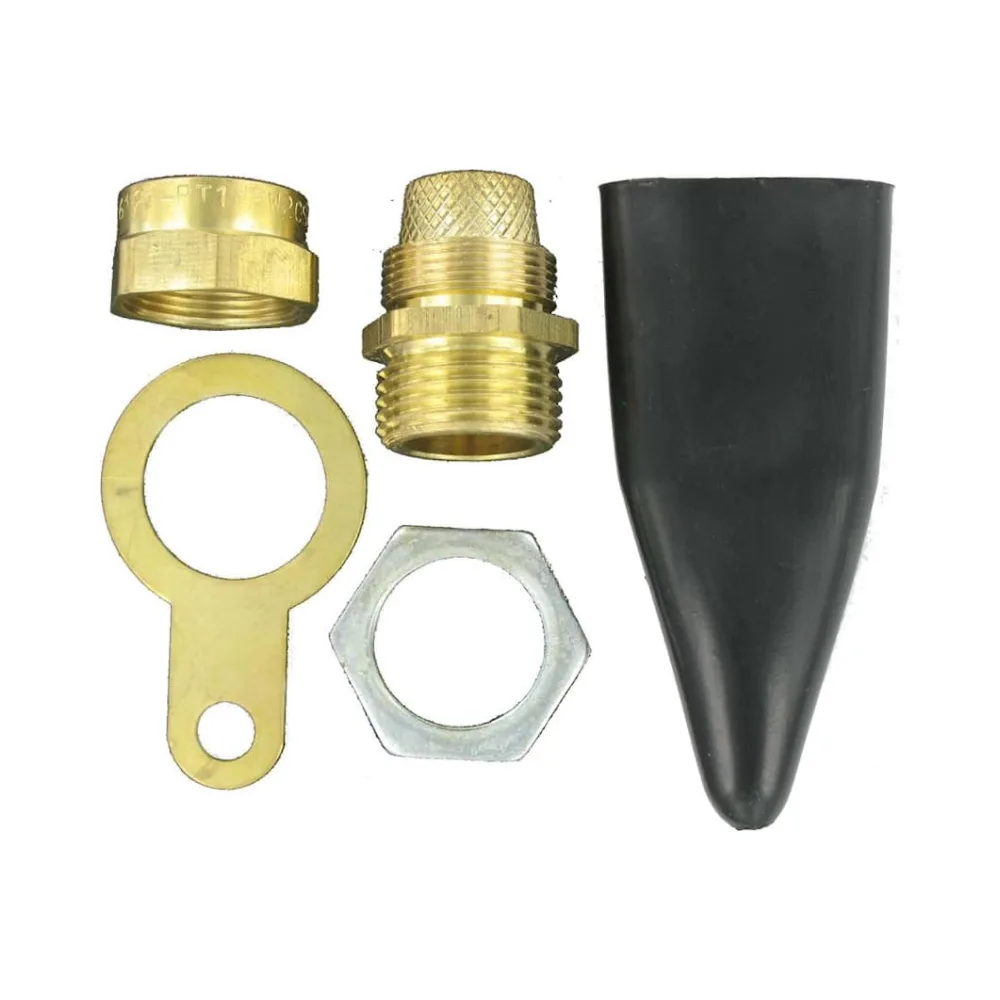

CW20LSF External SWA Cable Gland 20S – Pack of 2
The LSF External SWA Cable Gland 20S – Pack of 2 includes two high-quality brass cable glands designed for Steel Wire Armoured (SWA) cables (H694-XL). These LSF (Low Smoke and Fume) glands provide secure clamping, ensuring electrical continuity and mechanical retention. They are ideal for outdoor applications where a dependable waterproof seal is essential.
Recommended Applications
This gland is suitable for the following SWA cable configurations:
- 2 Core SWA: 1.5-4mm²
- 3 Core SWA: 1.5-4mm²
- 4 Core SWA: 1.5-2.5mm²
- 5 Core SWA: 1.5mm²
Key Features
- LSF Brass Construction: Made from durable brass with Low Smoke and Fume properties for enhanced safety.
- Secure Clamping: Ensures reliable armour wire clamping for both electrical continuity and mechanical retention.
- Waterproof Design: Specifically built for outdoor environments, delivering a moisture-resistant seal.
- Versatile Use: Compatible with Steel Wire Armoured cables (H694-XL), suitable for a range of cable sizes.
Size Guide for Cable Glands
Cable Gland Selection Chart
| Conductor Size (sq.mm) | 2 Cores | 3 Cores | 4 Cores | 5 Cores |
|---|---|---|---|---|
| 1.5 | 20s/16 | 20s/16 | 20s | 20s |
| 2.5 | 20s | 20s | 20s | 20s |
| 4 | 20s | 20 | 20 | 20 |
| 6 | 20 | 20 | 20 | 20 |
| 10 | 20 | 20 | 20 | 25 |
| 16 | 20 | 20 | 25 | 25 |
| 25 | 20 | 25 | 32 | 32 |
| 35 | 25 | 32 | 32 | 32 |
| 50 | 32 | 32 | 40 | 40 |
| 70 | 32 | 40 | 40 | 40 |
| 95 | 40 | 40 | 50 | 50 |
Important Note
This chart and data are for guidance purposes only. Always consider the actual dimensions of the cables and glands before making a final selection. Manufacturing tolerances as per BS6121: Part 1: 1989 should be taken into account to ensure the correct fit and functionality.
Conclusion
The LSF External SWA Cable Gland 20S – Pack of 2 is the ideal choice for safe and secure SWA cable installations. Designed for outdoor use, these LSF brass glands deliver waterproof sealing, secure clamping, and reliable performance. Whether for residential, commercial, or industrial applications, these glands provide professional results.
