2-Pole Type 2 DC Surge Protection Device for 1000V Photovoltaic Circuits
Live Electrical SPV240 Type 2 DC Surge Device
The Live Electrical SPV240 Type 2 DC Surge Device provides reliable protection for photovoltaic DC circuits up to 1000V DC. Designed for solar PV installations, it protects the two active DC conductors (DC+ and DC−) by safely diverting transient overvoltages to protective earth (PE).
Utilising high-energy varistor technology and an ultra-fast response time, the SPV240 helps safeguard sensitive DC equipment from lightning-induced surges and switching overvoltages, supporting long-term system reliability in residential and commercial photovoltaic systems.
Key Features – Live Electrical SPV240 Type 2 DC Surge Device
- High-energy varistor technology for effective surge absorption
- Ultra-fast response time of under 25 nanoseconds
- Manufactured to IEC/EN 61643-31 for DC surge protection
- Suitable for photovoltaic circuits up to 1000V DC
- Maximum continuous operating voltage (Uc) of 1300V DC
- Nominal discharge current 20kA, maximum discharge current 40kA
- Voltage protection level (Up) ≤ 4.0kV
- IP20 rated enclosure for panel and combiner box installation
- Reliable operation from -40°C to +80°C

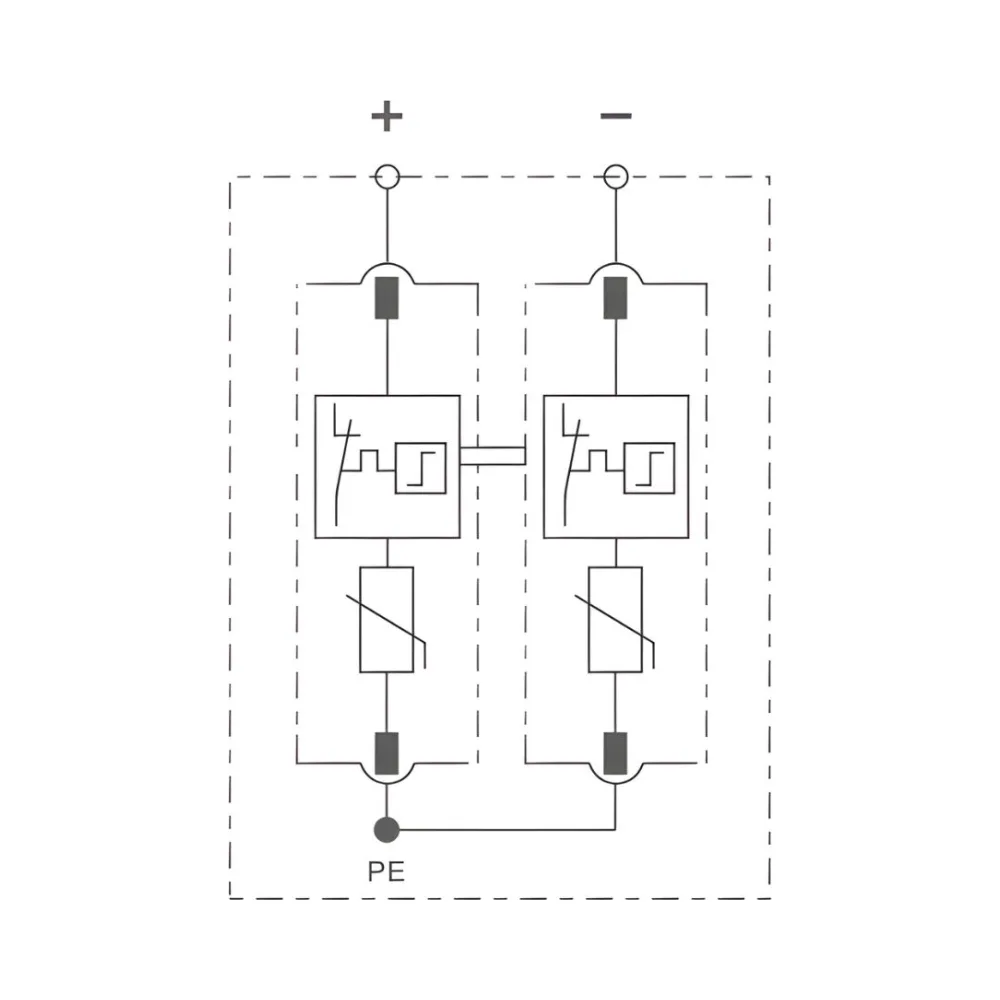

- 2-pole DC protection (DC+ / DC−) with surge diversion to protective earth (PE)
