Description
Type 2 SPD Surge Protection Device

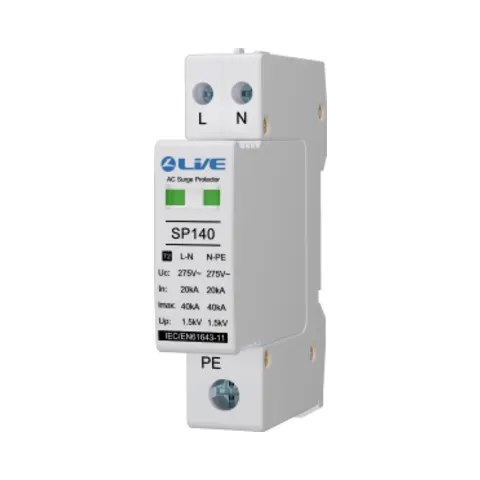

Live Electrical SP1401P+N/2
The Live Electrical SP1401P+N/2 Type 2 SPD Surge Protection Device is engineered for reliable surge protection in residential, commercial, and industrial electrical systems. With a nominal discharge capacity of 20kA and a maximum of 40kA, this device safeguards against harmful voltage surges and power spikes.
Key Features
- High discharge capacity: Nominal (In) 20kA, Maximum (Imax) 40kA
- Type 2 SPD: Compliant with BS EN 61643-11, Type Test Class II
- Uc (Maximum continuous operating voltage): 275 VAC
- Up (Voltage protection level): 1.5 kV (L-N, N-PE)
- Short circuit current rating: 25kA (lsccr)
- Green window indicator changes when the device is spent for easy monitoring
- Remote indication terminals for enhanced system feedback
- Degree of protection: IP20 (indoor use)
- Cable terminal capacities:
- L (Live): 10mm²
- N (Neutral): 10mm²
- PE (Protective Earth): 16mm²
Why Choose This Surge Protection Device?
- Protects electrical systems from harmful surges and spikes, extending their lifespan.
- Features a visual indicator for quick maintenance checks.
- Designed for versatile applications in residential, commercial, and industrial environments.
- Ensures compliance with safety standards for reliable and secure operation.
A few other Single Pole SPDs from Live Electrical below:
- Live Electrical SP1401P+N/1 20kA/40kA
- Live Electrical 1 Pole 10kA/20kA
- Live Electrical 1 Pole 20kA/40kA
Discover our extensive range of
- Single Pole MCB miniature Circuit Breakers
- Three Pole MCB miniature Circuit Breakers
- RCBOs for Consumer Units
- RCBOs for Three Phase Distribution Boards
- Double Pole RCBOs
- AFDDs
- RCDs
- Consumer Units
- Consumer Units Accessories including Busbars
- SPD Consumer Units
- Three Phase Distribution Boards
- Empty Enclosures
Experience the quality and reliability of Live Electrical across all your electrical needs.
