Description
EV Consumer Unit – 4 Way | 32A B Curve EV-Optimised RCBO + Type 2 SPD + Busbar

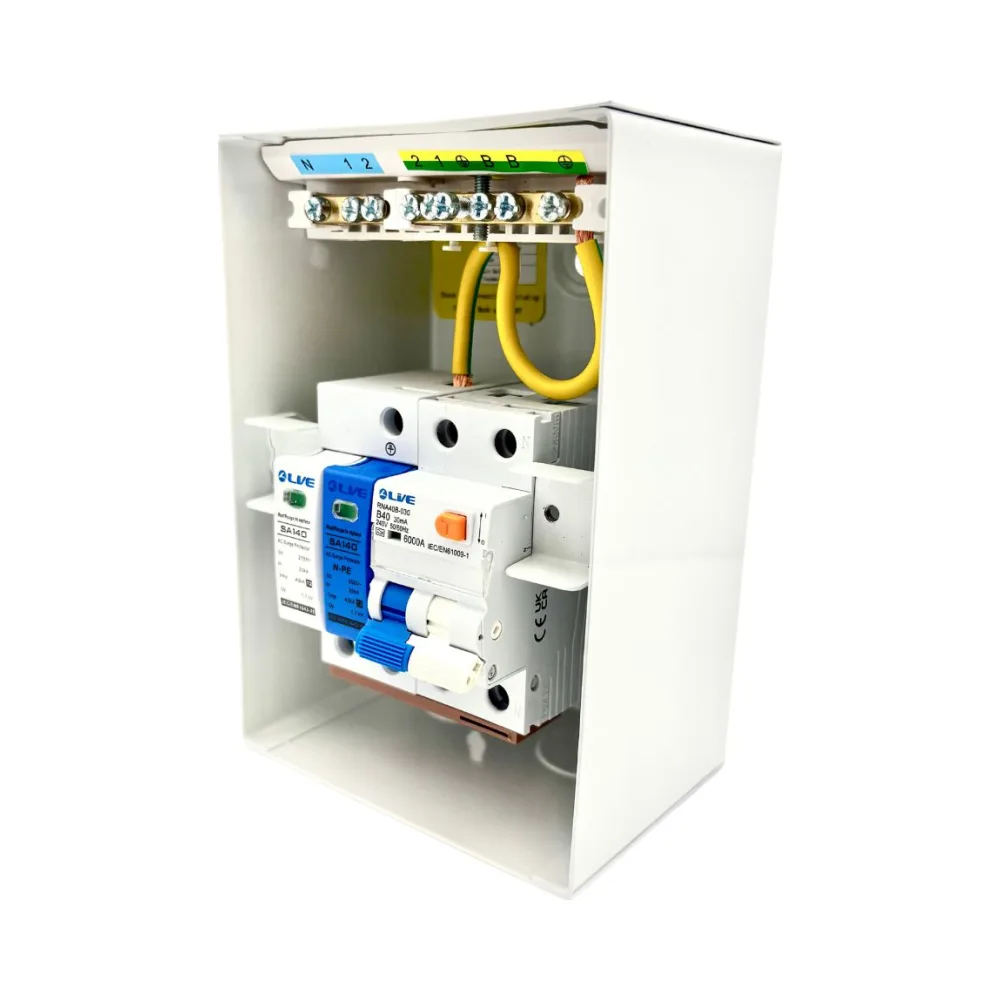

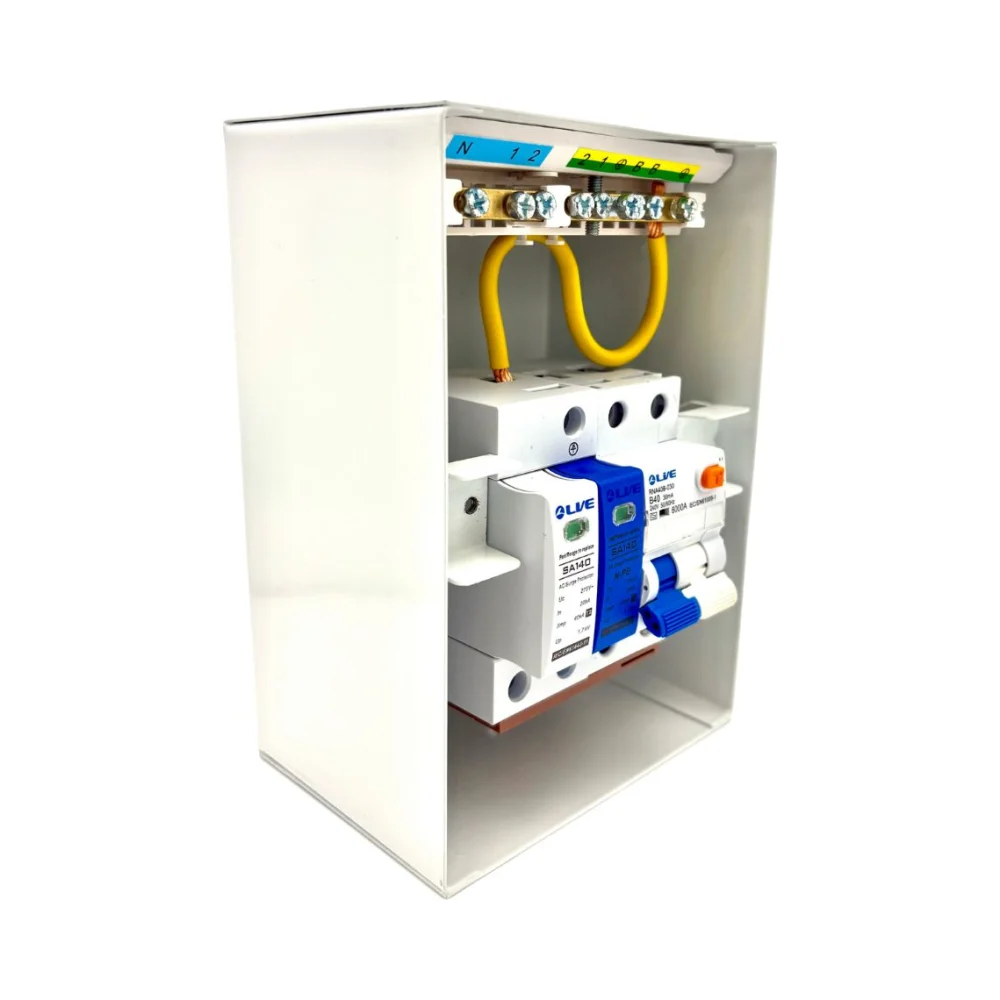

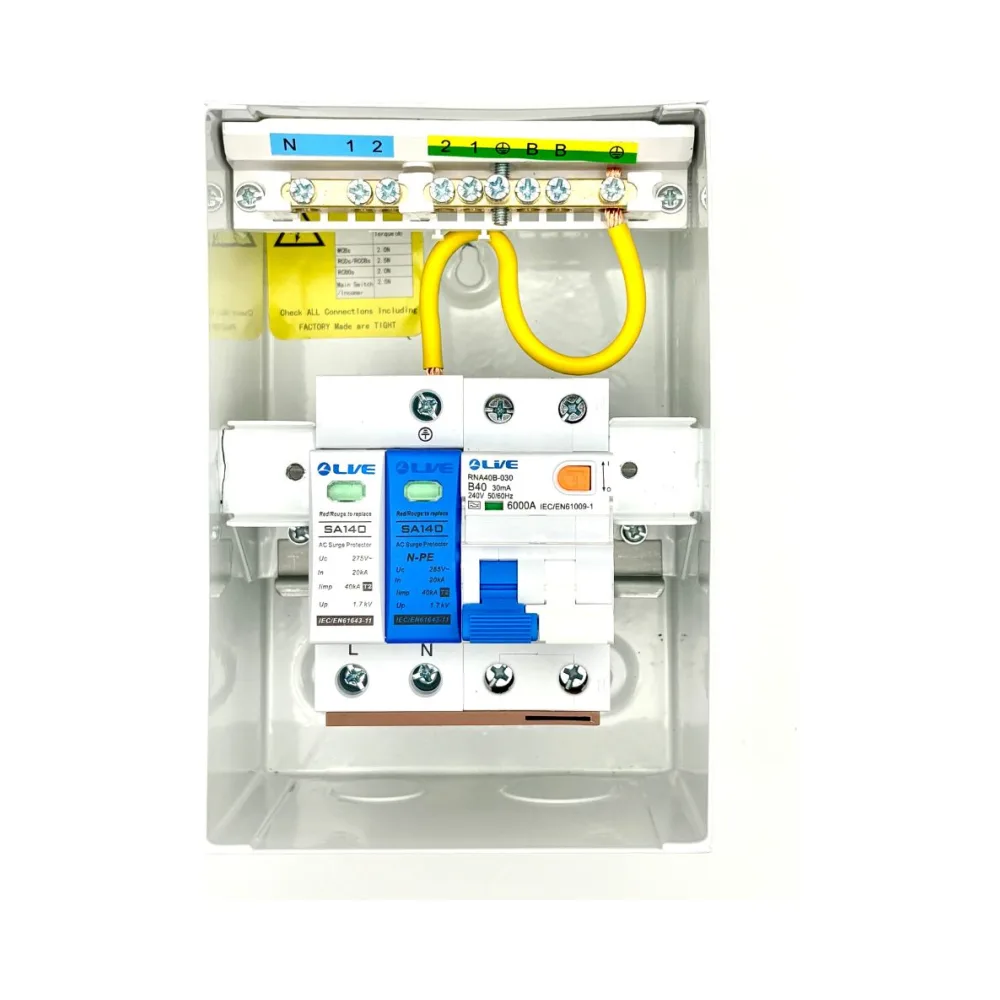

Live Electrical MMGU32B-SP EV Consumer Unit

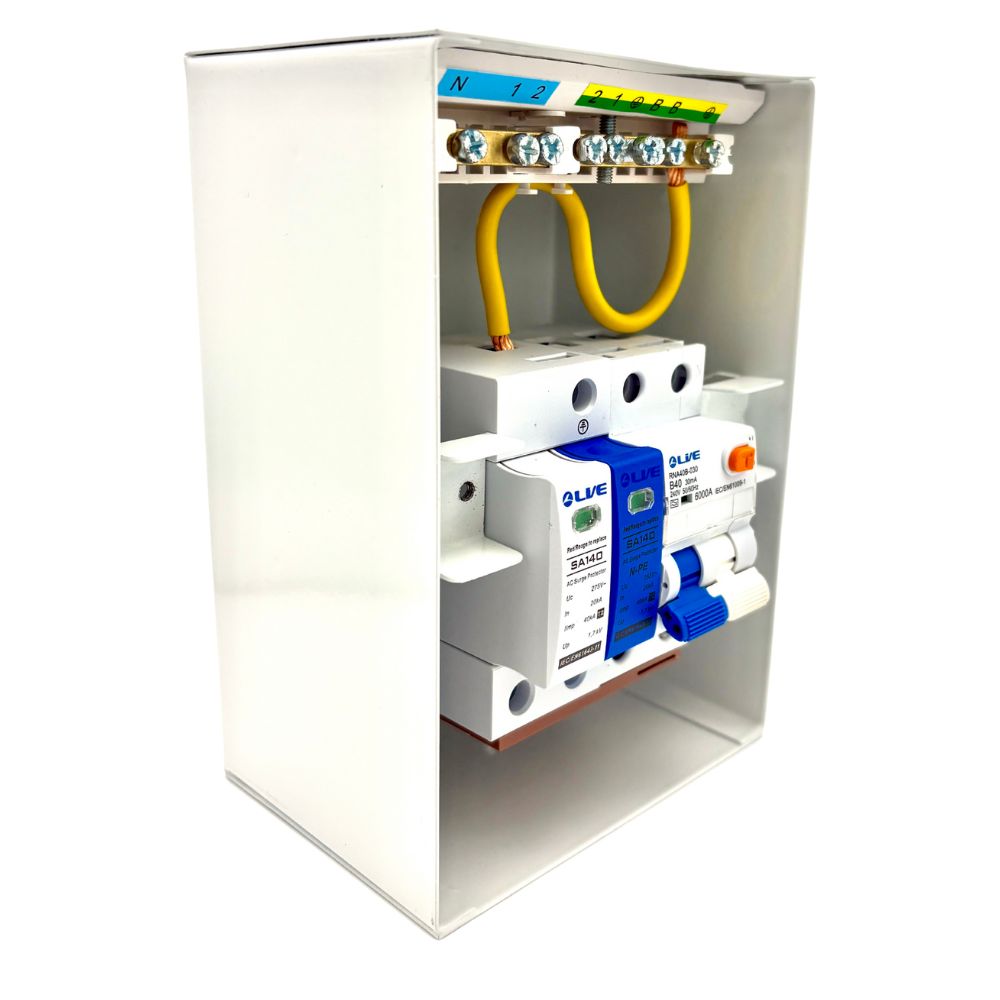

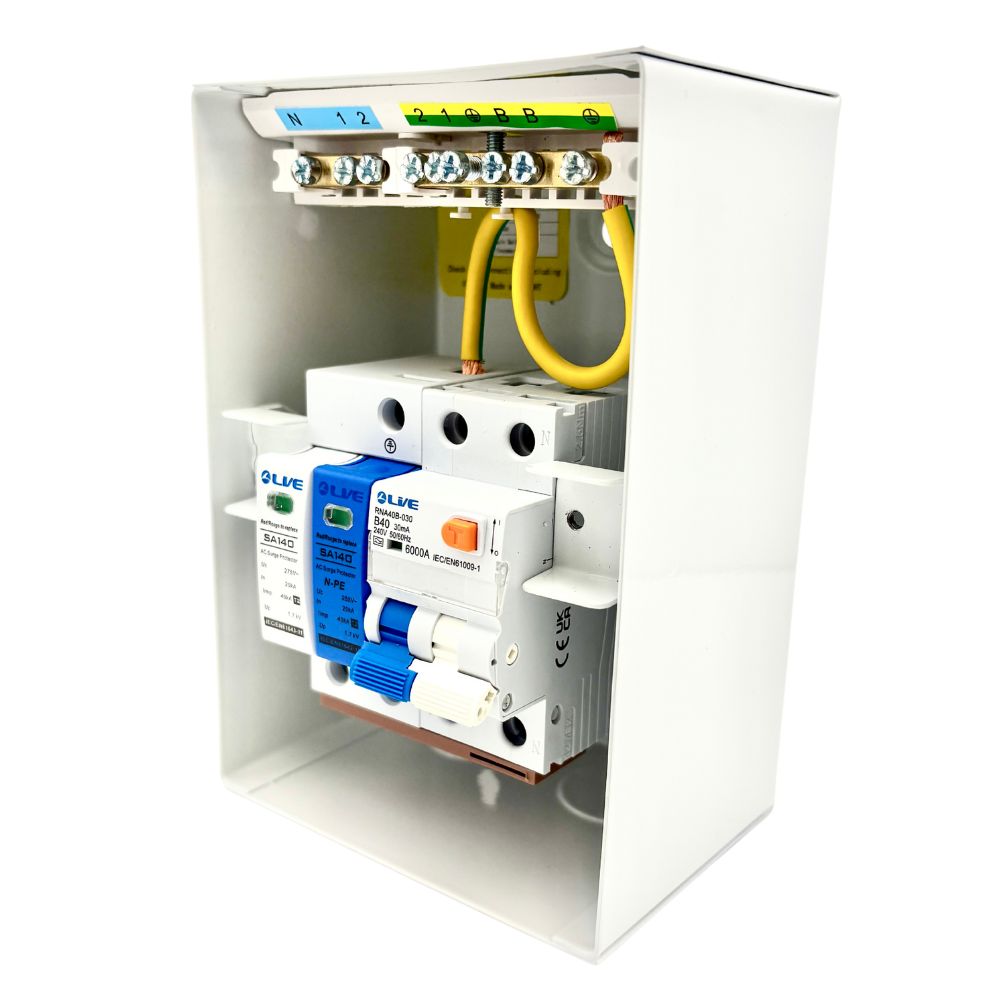

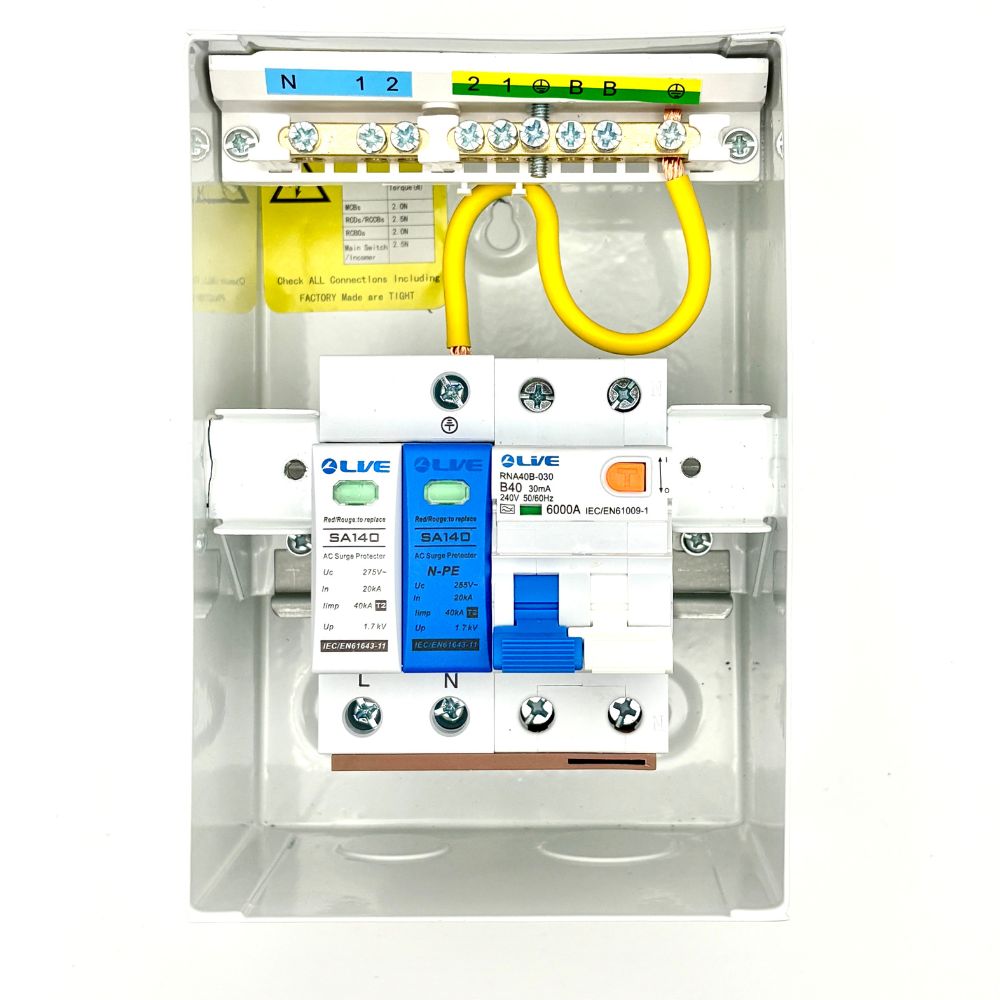

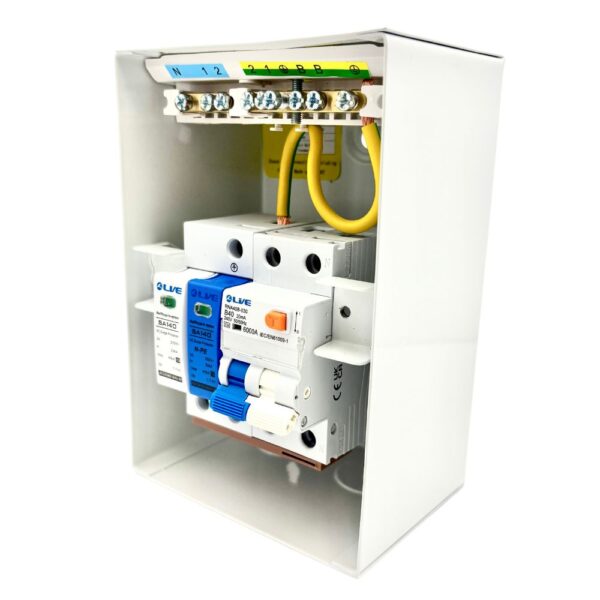

The Live Electrical MMGU32B-SP is a compact, high-performance EV consumer unit designed for residential and commercial EV charger installations. It features a 2P 32A B Curve EV-Optimised RCBO, an integrated Type 2 SPD, and a pre-installed internal busbar, providing a complete protective solution within a sleek, IP20-rated metal enclosure.
Manufactured in China under the close supervision of Live Electrical’s UK-based design team in Manchester, this unit is part of a trusted product range that prioritises quality, compliance, and performance. All products are tested to ensure they meet the latest BS 7671 wiring regulations.
⚠️ Note: This is an IP20-rated unit and is suitable for indoor use only. All electrical work must be performed by a qualified electrician and in accordance with BS 7671.
Key Features of the Live Electrical MMGU32B-SP EV Consumer Unit
- 32A B Curve EV-Optimised RCBO (Type A) – Specifically designed to handle regular EV charging loads with minimal inrush current. Provides essential overcurrent and residual current protection.
- Integrated Type 2 Surge Protection Device (SPD) – Shields the EV charger and electrical infrastructure from transient overvoltages caused by lightning strikes or switching surges.

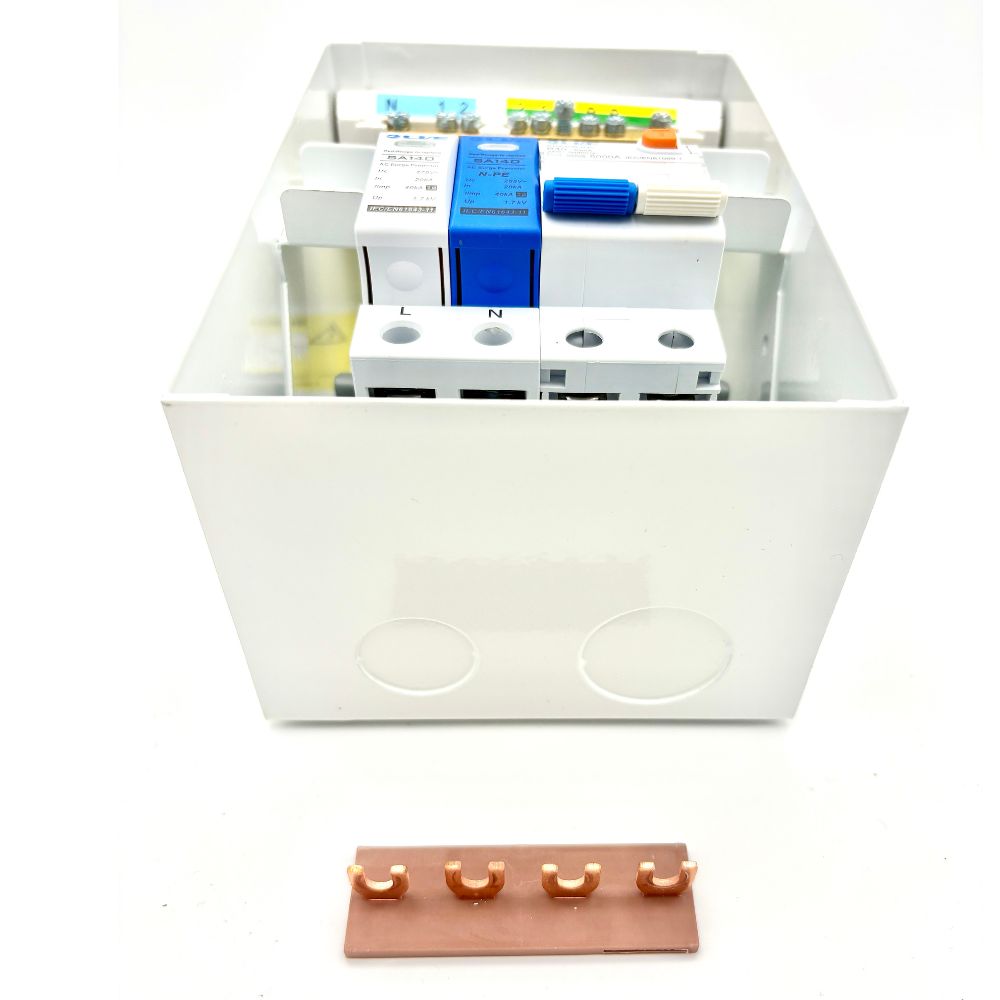

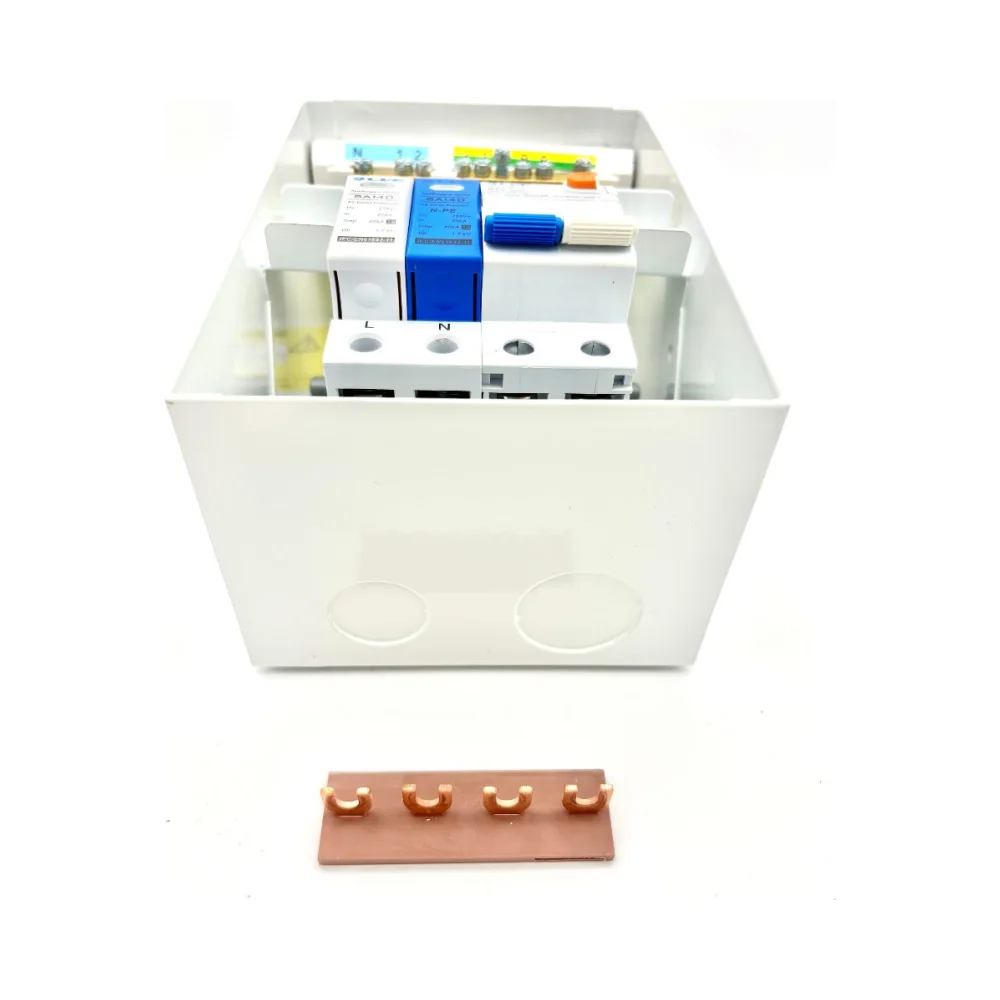

- Pre-Fitted Internal Busbar – Enables clean and safe internal connections for quicker, easier installations.
- 4-Way Metal Enclosure – Finished in RAL9010 white powder coating for a durable and modern appearance.

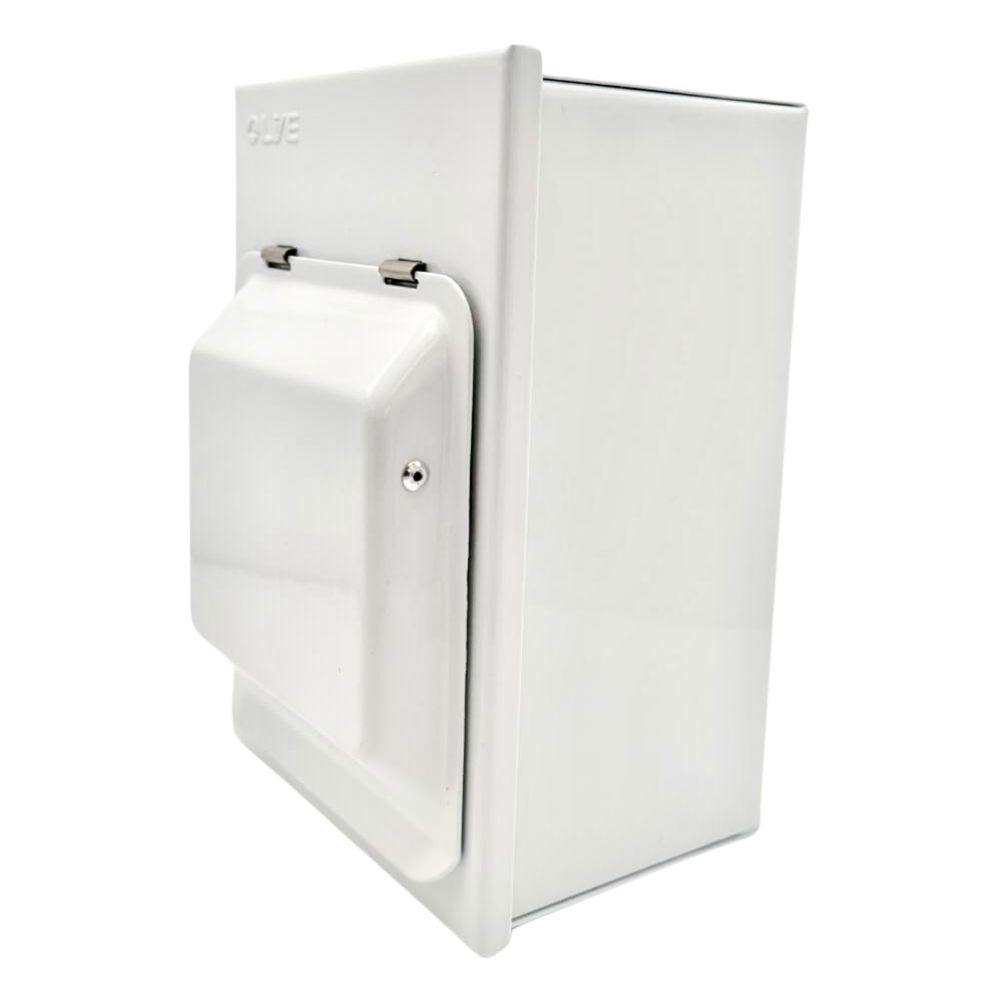

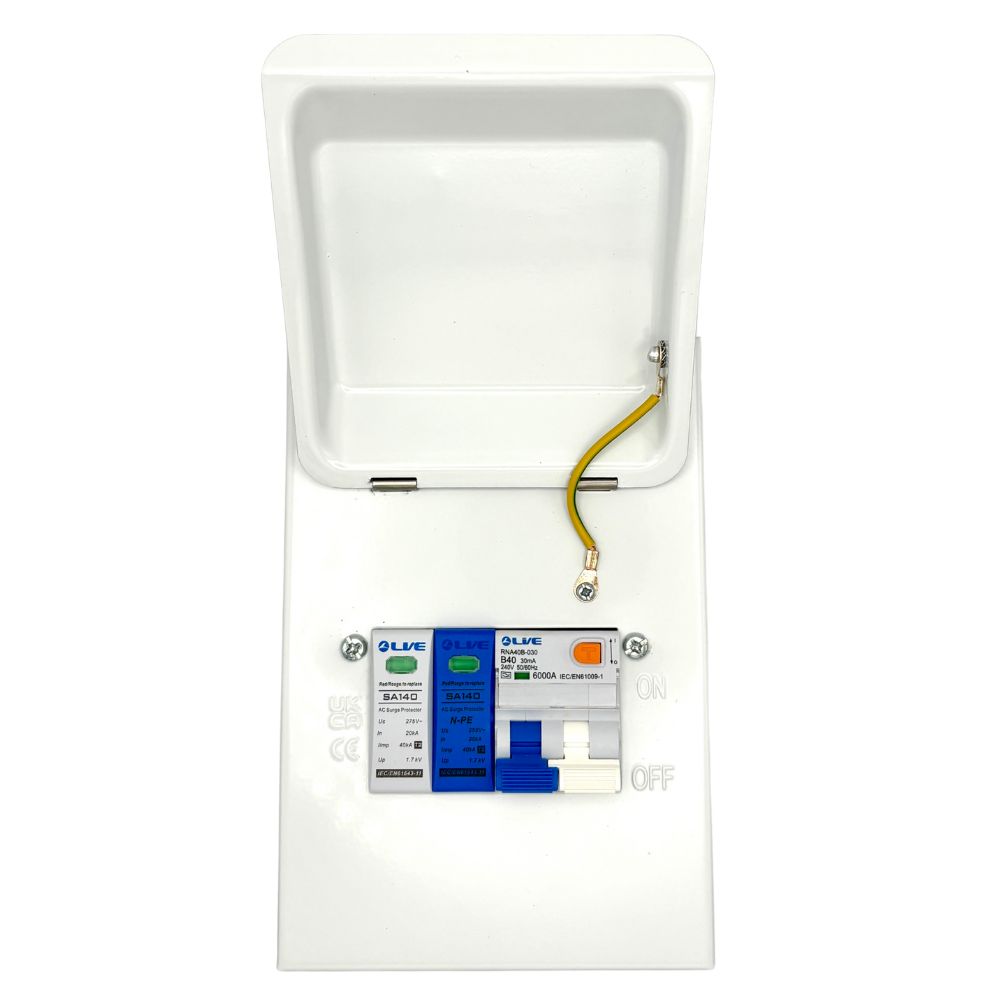

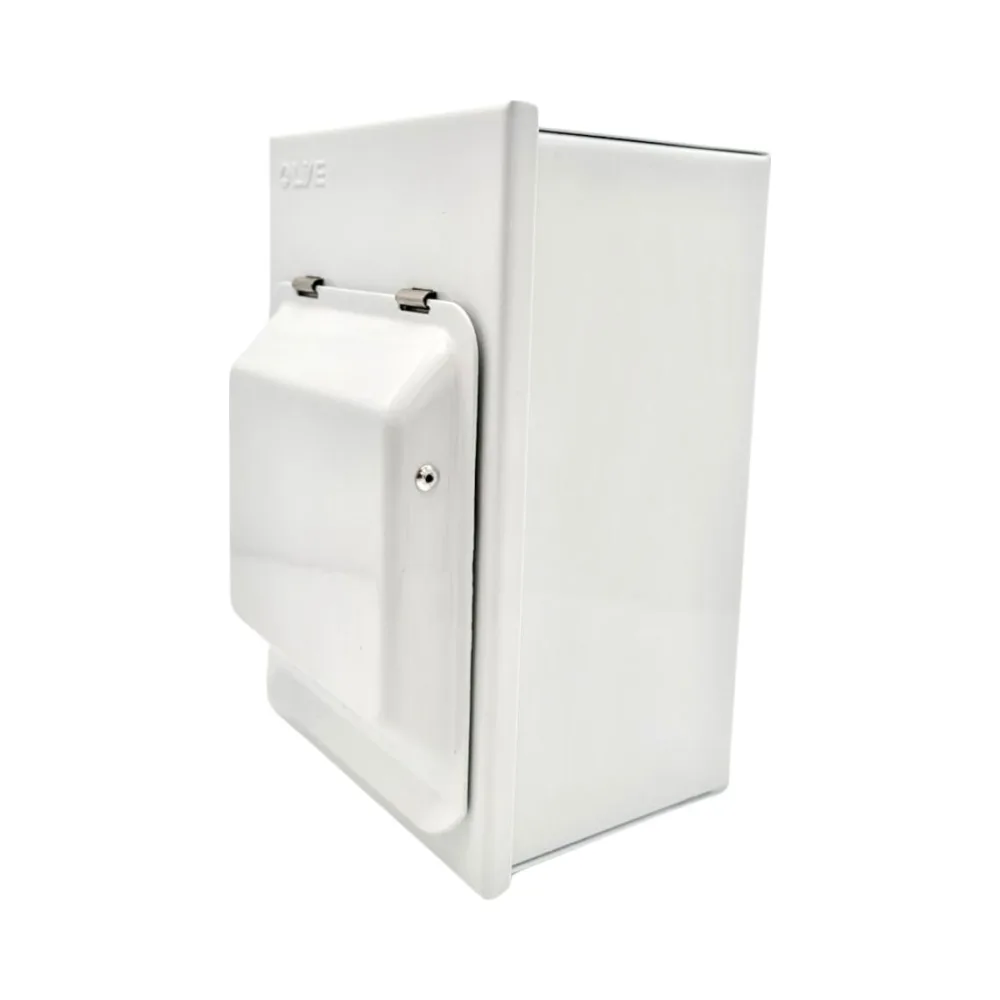

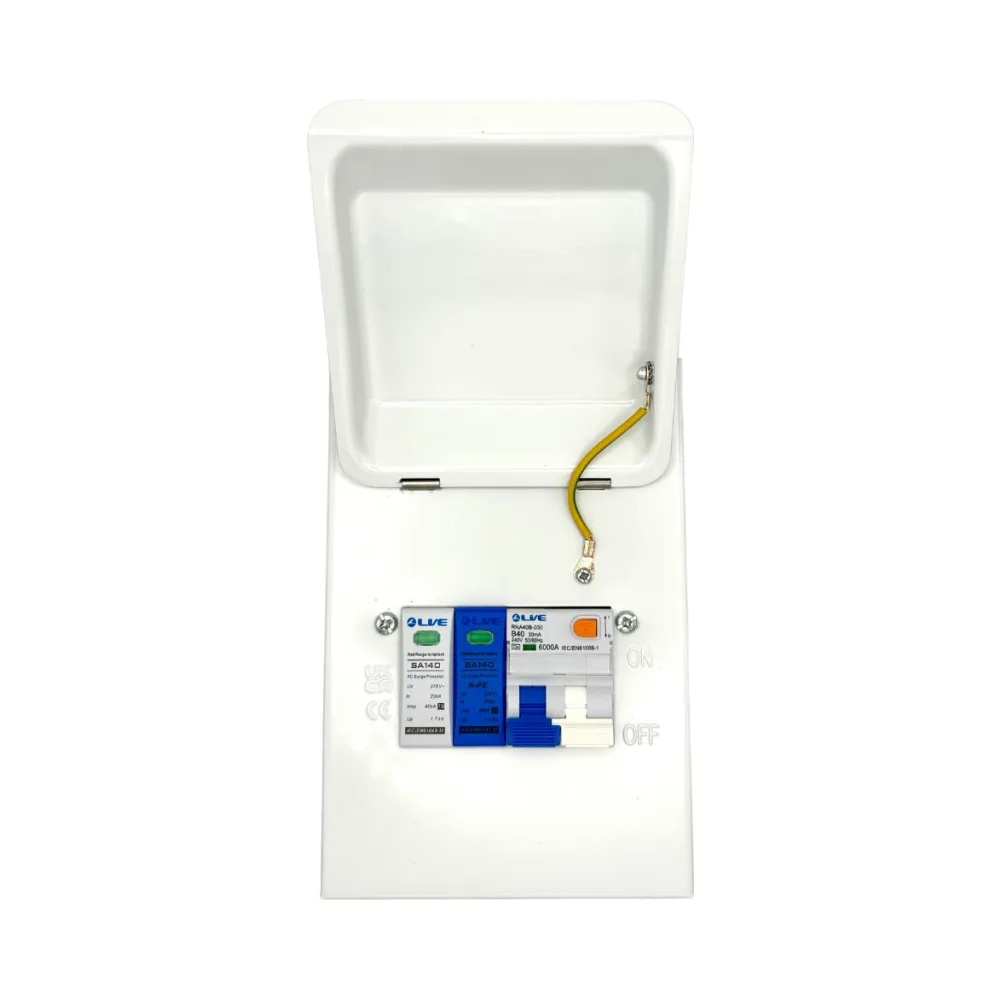

- Drop-Down Front Cover – Enhances safety and aesthetics with secure access.
- Top and Bottom Knockouts – For flexible cable entry during installation.
- Compact Dimensions – 125 x 183 x 110 mm, ideal for tight indoor spaces.
- IP20 Rating – For indoor use only; not suitable for outdoor environments.
⚙️ Why Choose a 32A B Curve EV-Optimised RCBO?
The B Curve EV-Optimised RCBO included with this unit is ideal for EV chargers that draw steady loads without sudden spikes. With a trip threshold of 3–5x the rated current, it ensures quick fault response without nuisance tripping for standard installations.
Although B Curve breakers are generally used where inrush currents are low, always ensure your Zs values are within allowable limits. This should be verified by a qualified electrician following BS 7671 standards.
Reminder: All technical advice is for general guidance only. Always follow manufacturer specifications and consult BS 7671.
Best Suited For
- Residential EV Chargers with Low Inrush Loads
- Indoor-Only Installations (IP20)
- Electricians Seeking Compact, Compliant EV Units
- Home or Garage Charging Points
✅ Why Choose the MMGU32B-SP?
- EV-Optimised 32A B Curve Type A RCBO
- Type 2 SPD for surge protection
- Internal busbar simplifies wiring
- Designed with UK oversight
- IP20-rated for safe indoor use
- Fully tested for BS 7671 compliance
⚠️ Always ensure this product is installed by a qualified electrician and used indoors only.
❓Is B Curve Right for You❓ Compare Breaker Types & Explore the IP65 32A Option
Not sure if a 32A B Curve RCBO fits your setup? Read our post B Curve vs. C Curve | 32A vs. 40A Explained for clear answers.
Need IP65 protection? Go for the Live Electrical LEV432SP-BP. It’s the outdoor-ready version with the same 32A B Curve RCBO and SPD.
❓ FAQs
- Q: Is this RCBO suitable for all EV chargers?
A: It’s ideal for EV chargers that don’t produce high inrush current. For more demanding chargers, a C Curve RCBO may be preferable—consult your electrician. - Q: Can I use this unit outdoors?
A: No. This unit is IP20 rated and must be installed indoors. - Q: What kind of surge protection does it include?
A: A Type 2 SPD, which is standard for protecting domestic and commercial circuits against transient voltages. - Q: Who should install this unit?
A: All installations must be performed by a qualified electrician in compliance with BS 7671.
Summary of the Live Electrical MMGU32B-SP EV Consumer Unit
The Live Electrical MMGU32B-SP EV Consumer Unit is a 4-way, indoor-rated metal enclosure equipped with a 32A B Curve EV-Optimised RCBO, Type 2 SPD, and internal busbar. Developed under UK design oversight and fully BS 7671 tested, it offers a compact and reliable solution for residential EV charger installations. For qualified electrician installation only.
