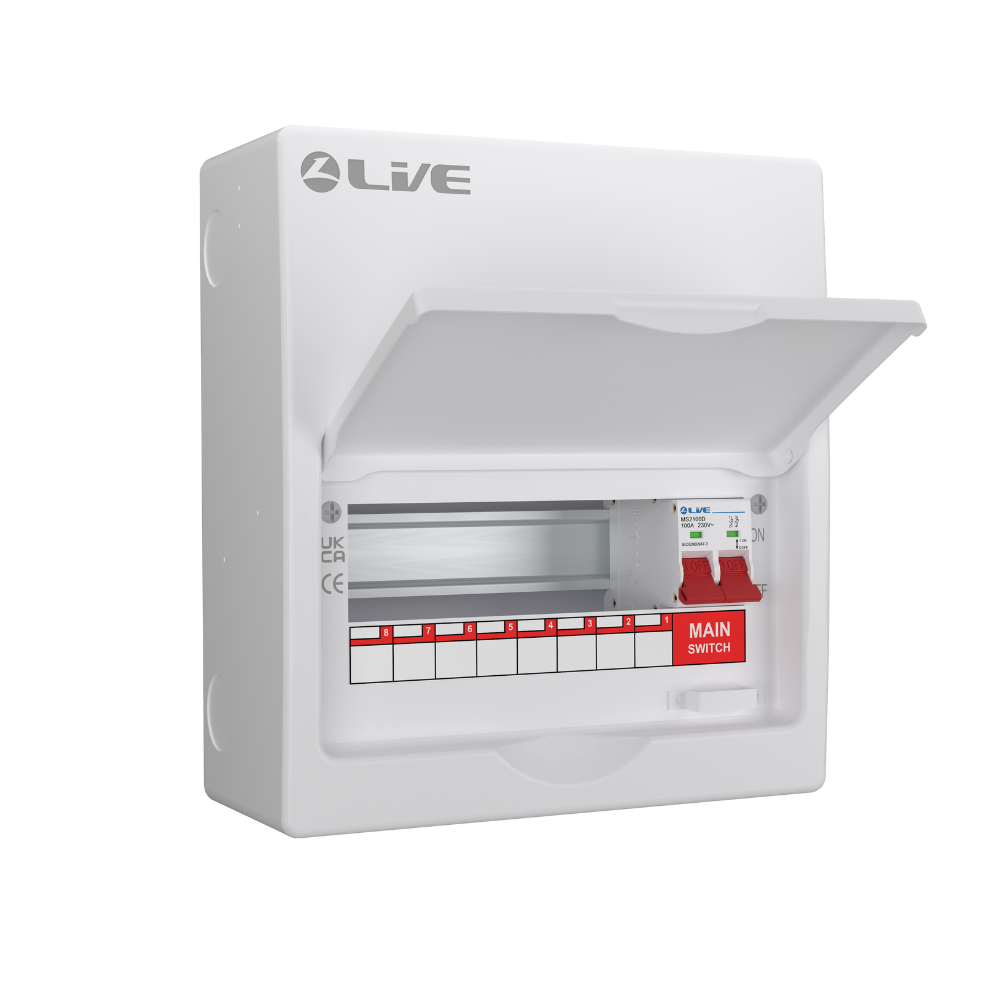

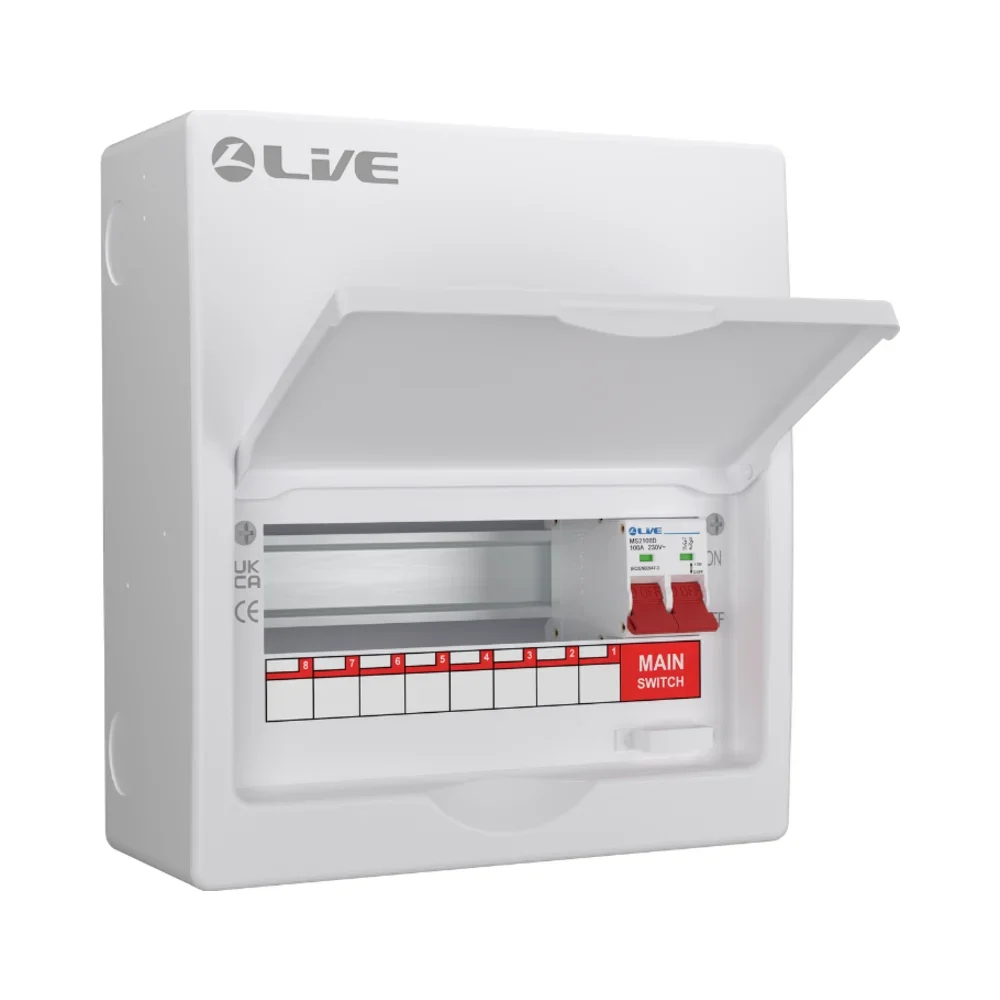

Live Electrical 8 Way Main Switch Consumer Unit
LSMC10/100 – Metal Consumer Unit with Eight Usable Ways
The Live Electrical 8 Way Main Switch Consumer Unit provides eight usable ways for residential and commercial electrical installations. A pre-installed 100A double pole main switch provides incoming isolation, while the durable metal enclosure offers a practical solution for installations requiring additional circuit capacity.
The LSMC10/100 measures 244 x 270 x 110mm and has an IP40-rated surface-mounted steel enclosure. Multiple 25mm and 32mm cable-entry knockouts and a raised DIN rail help provide flexible cable routing and convenient access during installation.
Key Features and Specifications
- 8 usable ways
- Pre-installed 100A double pole main switch
- Dimensions: 244mm (W) x 270mm (H) x 110mm (D)
- Surface-mounted metal enclosure
- IP40 protection rating
- Multiple 25mm and 32mm cable-entry knockouts
- Raised DIN rail for improved cable routing
- Spacious internal wiring area
- Secure flush lid design
- White polyester powder-coated finish – RAL9010
- Compliant with BS EN 61439-3
Eight Ways for Flexible Circuit Distribution
This 8 Way Consumer Unit provides additional capacity for installations requiring several individually protected outgoing circuits. Its 244mm-wide enclosure offers useful internal wiring space while remaining compact enough for a wide range of indoor applications.
The steel construction provides a robust housing, while the flush lid gives the finished installation a neat and professional appearance.
Pre-Installed 100A Main Switch
The double pole 100A incoming switch provides convenient isolation and control of the electrical supply. With the main switch already installed, all eight outgoing ways remain available for the required circuit protection devices.
Installer-Friendly Cable Access
Multiple 25mm and 32mm knockouts allow cables to be routed into the enclosure from suitable entry positions. The raised DIN rail provides additional clearance behind the protective devices, helping electricians organise conductors and make effective use of the available wiring area.
The enclosure is finished in white polyester powder coating to RAL9010 for a clean, durable finish suitable for professional indoor installations.
Designed for Live Electrical AMR RCBOs
This particular metal consumer unit range is designed specifically for use with Live Electrical AMR RCBOs, providing the outgoing circuit protection required to complete the board.
Practical Capacity in a Compact Metal Board
The LSMC10/100 combines eight usable ways, a 100A incoming switch and flexible cable access within a durable steel enclosure. Its spacious internal arrangement provides convenient access for initial wiring, inspection and future maintenance.
