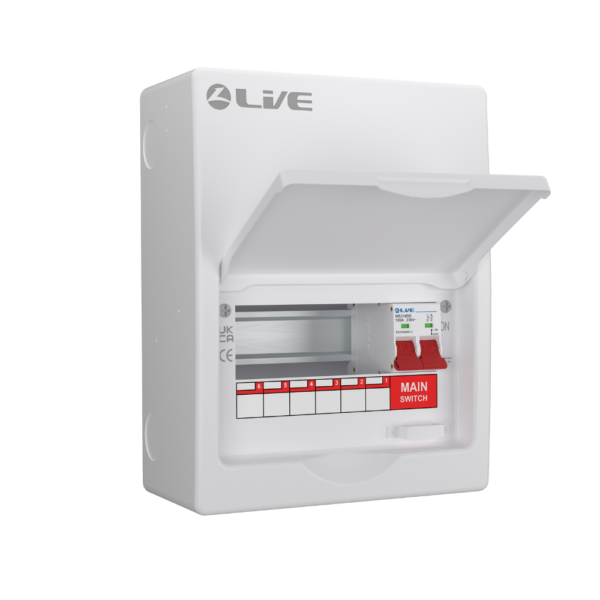

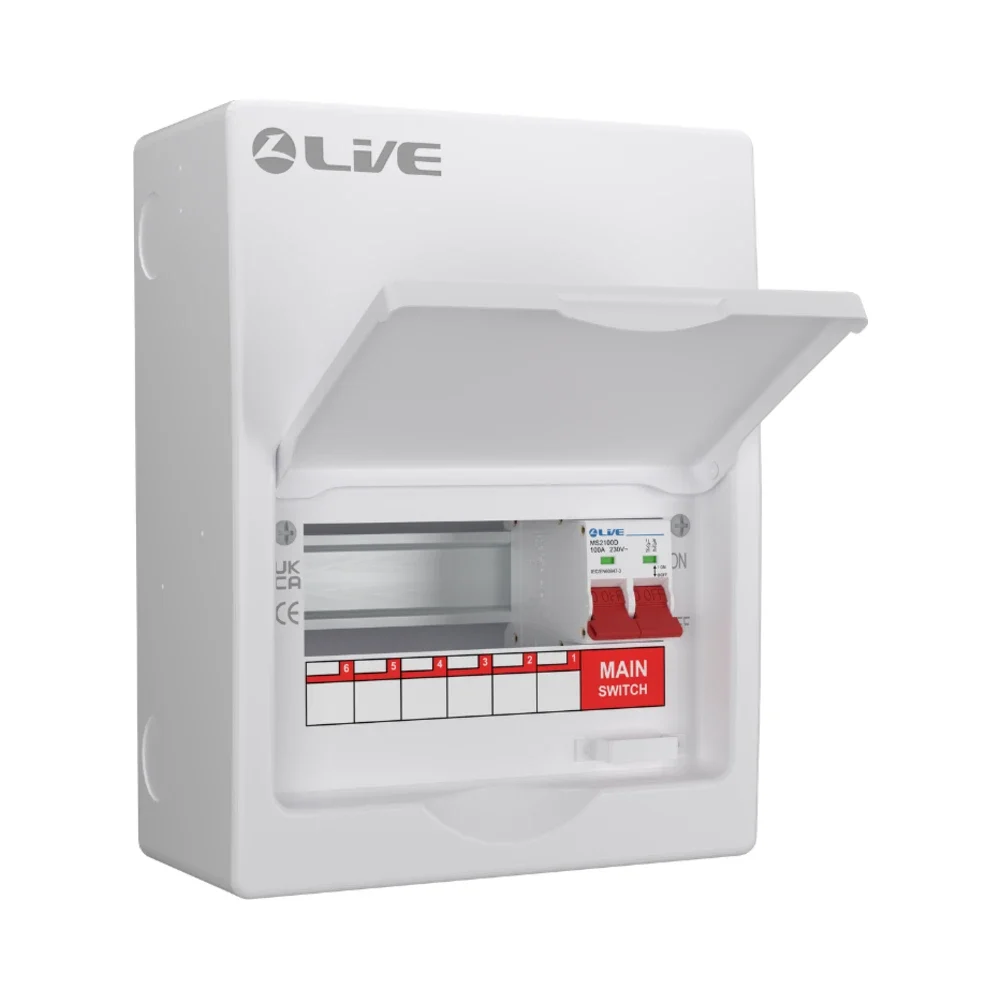

Live Electrical 6 Way Main Switch Consumer Unit
Compact Metal Distribution Board with 100A Incoming Switch
The Live Electrical 6 Way Main Switch Consumer Unit provides six usable ways for residential and commercial electrical installations. Its compact steel enclosure includes a pre-installed 100A double pole main switch, providing convenient incoming isolation and control.
Model LSMC08/100 measures 208 x 270 x 110mm and features an IP40-rated metal enclosure with multiple cable-entry knockouts. A raised DIN rail and practical internal layout provide useful space for conductor routing and termination.
Key Features and Specifications
- 6 usable ways
- Pre-installed 100A double pole main switch
- Dimensions: 208mm (W) x 270mm (H) x 110mm (D)
- Surface-mounted metal enclosure
- IP40 protection rating
- 25mm and 32mm cable-entry knockouts
- Raised DIN rail for improved cable routing
- Spacious internal wiring area
- Secure flush lid design
- White polyester powder-coated finish – RAL9010
- Compliant with BS EN 61439-3
Practical 6 Way Consumer Unit
This 6 Way Consumer Unit provides six outgoing positions for individual circuit protection devices. The 208mm-wide enclosure offers useful working space while maintaining a compact format suitable for a wide range of indoor installations.
Its durable steel construction and flush lid provide a neat professional finish, with convenient access for installation, inspection and maintenance.
100A Double Pole Main Switch
The fitted 100A double pole switch provides isolation and control of the incoming electrical supply. This arrangement leaves all six outgoing ways available for the required protective devices.
Flexible Cable Entry and Wiring Access
Multiple 25mm and 32mm knockouts give electricians flexibility when selecting cable-entry positions. The raised DIN rail creates additional clearance for conductor routing and helps maintain an organised internal wiring area.
The enclosure is finished in white polyester powder coating to RAL9010, providing a durable and clean appearance for professional installations.
Designed for Live Electrical AMR RCBOs
This particular metal consumer unit range is designed specifically for use with Live Electrical AMR RCBOs, providing the outgoing circuit protection required to complete the board.
Compact Circuit Distribution
The LSMC08/100 combines six usable ways, robust metal construction and flexible cable access in a compact enclosure. Its accessible internal arrangement supports straightforward installation and future maintenance without unnecessary complexity.
Browse additional consumer units, RCBOs and circuit protection products in our Live Electrical Shop.
