Upgraded Live Electrical EV Consumer Unit / EV Charger Distribution Board for Outdoor Installations
⚡ Live Electrical IP65 EV Consumer Unit with B40 RCBO – Advanced EV Charger Fuse Board for Quick, Reliable Protection

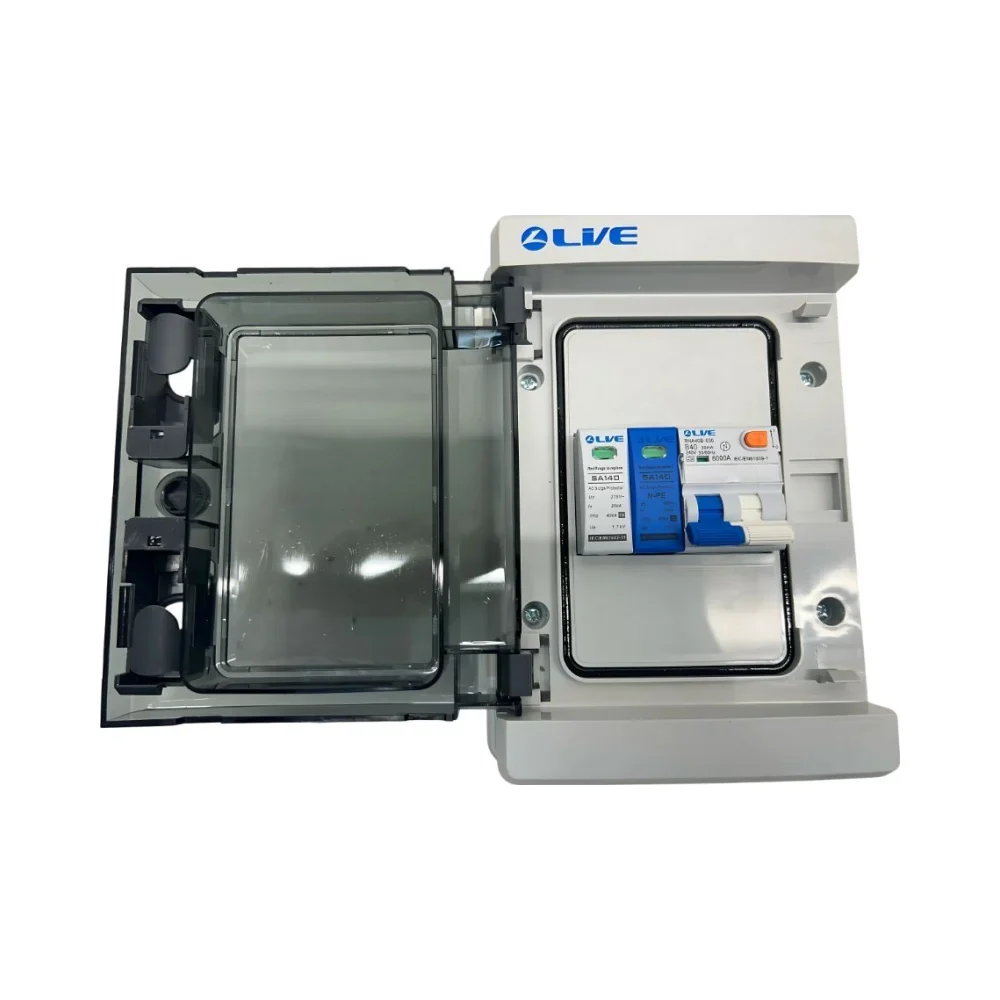

The Live Electrical EV440SP-BP IP65 EV Consumer Unit with B40 RCBO is expertly engineered for electric vehicle charger installations. As part of the trusted Live Electrical range, this upgraded EV Consumer Unit is based on installer feedback, offering smarter space and easier cable routing.
Replacing the previous LEV440SP-BP model, this advanced EV Consumer Unit features a 10mm deeper housing for better wiring space, plus a raised DIN rail for improved cable access. A strengthened earth terminal bar has been fitted, while the unnecessary neutral bar has been removed, creating a cleaner, simpler layout ideal for EV circuits.
The modern enclosure now comes with dark grey/black hinges and clips for a stylish look that matches many EV chargers. Like all Live Electrical EV Consumer Units, this model comes pre-fitted with a 40A B Curve Type A RCBO and a double pole Type 2 SPD, providing critical protection against earth faults, overloads, and surge voltages. Its IP65-rated flame-retardant ABS casing makes it ideal for outdoor installations in both domestic and commercial environments.
Key Features – Live Electrical EV Consumer Unit / EV Distribution Box
- Designed by Live Electrical for superior EV protection
- Enhanced 10mm deeper enclosure for better cable management
- Raised DIN rail (10mm) for smoother cable routing
- Strong earth terminal strip; neutral bar removed for simplicity
- Supplied with 40A B Curve Type A RCBO (30mA)
- Double pole Type 2 SPD (20/40kA) for surge protection
- IP65-rated weatherproof casing for outdoor use
- Pre-formed knockouts on each side for fast, flexible installs
- Dark grey/black hinges and clips for modern aesthetics
- Fully compliant with BS EN 61439-3, BS EN 61009-1, and BS EN 61643-11
Technical Overview – Live Electrical EV Circuit Protection Unit / Weatherproof Consumer Unit
- Model: EV440SP-BP
- Manufacturer: Live Electrical
- Rated Current: 40A
- RCBO Type: Type A, B Curve, 30mA sensitivity
- SPD Rating: Type 2, Double Pole, 20/40kA
- IP Rating: IP65 (Weatherproof)
- Construction: Flame-retardant ABS, 10mm deeper than previous model
- Dimensions: 206mm (W) x 140mm (H) x 115mm (D)
- Compliance: BS EN 61439-3, BS EN 61009-1, BS EN 61643-11
Included – Live Electrical EV Protection Kit / Pre-Wired EV Consumer Unit
- 4-Module IP65-rated Live Electrical EV Consumer Unit
- 40A Type A RCBO (B Curve, 30mA)
- Double Pole Type 2 SPD (Surge Protection Device)
- Raised DIN Rail & Internal Busbar
- Strong Earth Terminal Bar
- Pre-formed Knockouts
- Installation Instructions
✅ Why Choose This Product? – Live Electrical EV Consumer Unit for Faster, Smarter Installs
The Live Electrical EV Consumer Unit with B40 RCBO has become a favourite among electricians for its installer-friendly design. Its deeper case, elevated DIN rail, and simplified earth-only terminal bar reduce installation time and simplify wiring. Providing excellent protection from faults, overcurrents, and surges, this Live Electrical EV Consumer Unit is ideal for outdoor EV charging points.
Guarantee & Compliance – Fully Certified Live Electrical EV Consumer Unit
Manufactured by Live Electrical to meet strict standards:
- BS EN 61439-3
- BS EN 61643-11
- BS EN 61009-1
Explore Other Live Electrical EV Consumer Units
Looking for an EV consumer unit with higher startup tolerance? Check out the
Live Electrical EV440SP-P IP65 EV Consumer Unit with SPD and C40 RCBO – ideal for circuits with heavier loads.
Browse our full selection of Live Electrical EV Consumer Units for more options.
