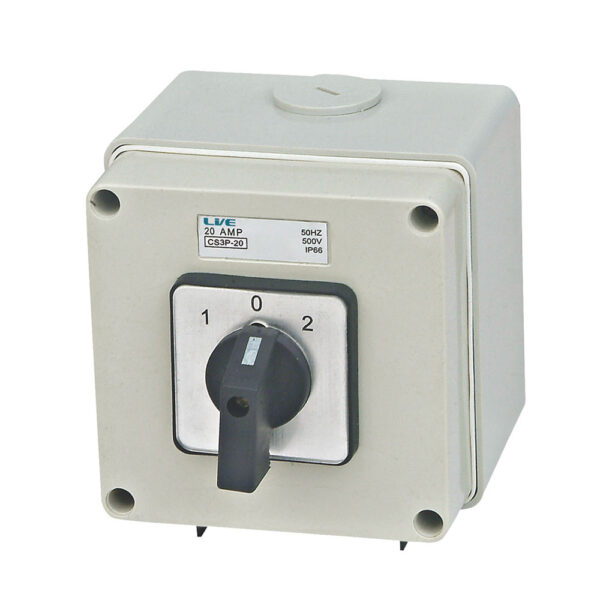

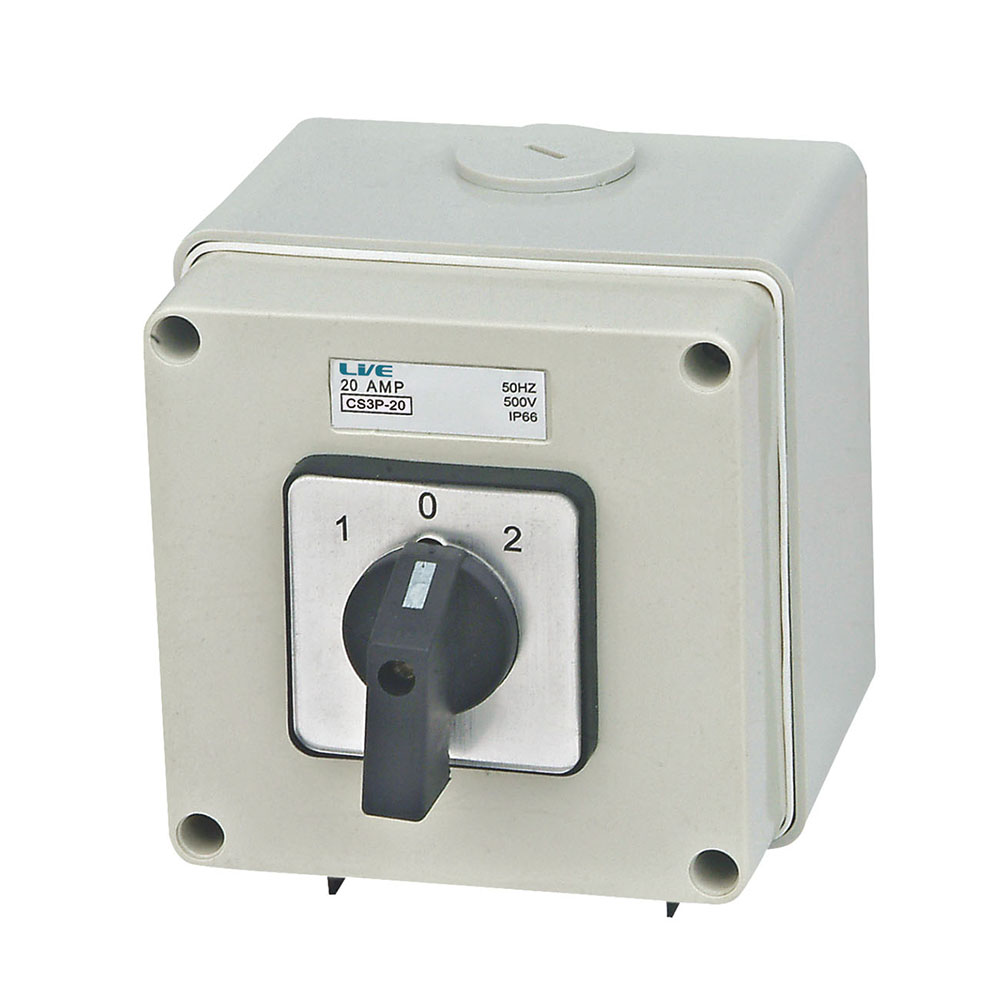

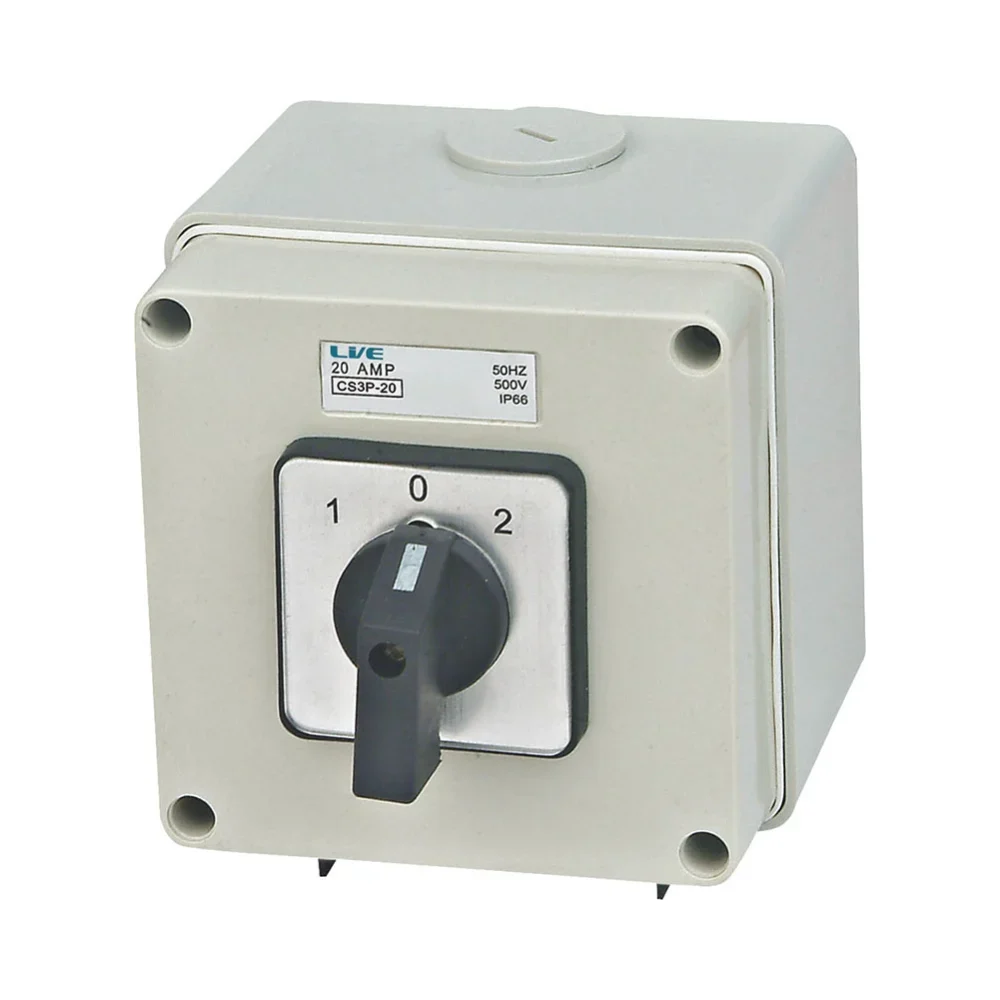

25A 3-Pole IP66 Changeover Switch
Live Electrical CS3P25 – Industrial Power Control Solution
The Live Electrical CS3P25 3-Pole Changeover Switch is a robust and reliable power switching solution, designed for safe and efficient control of power sources. With a three-position switch including a centre-off function, this unit provides smooth and controlled power transitions, making it an ideal choice for backup power systems, machinery, and distribution networks.
Featuring an IP66-rated enclosure, this heavy-duty changeover switch offers superior protection against dust and water, ensuring durability and longevity in industrial and commercial environments. Constructed with flame-retardant materials, it is surface-mountable and meets BS EN60947-3 compliance, guaranteeing safe and long-term operation.
Key Features
- IP66 Rated – Provides maximum dust and water resistance, perfect for industrial use
- 25A Rated Current – Suitable for medium power switching applications
- 3-Pole Configuration – Designed for three-phase power distribution
- 3-Position Changeover with Centre-Off – Allows for controlled switching
- Flame Retardant Enclosure – Ensures enhanced safety and impact resistance
- Knockouts on Top & Bottom – Enables flexible cable entry options
- Certified to BS EN60947-3 – Compliant with industrial safety standards
Technical Specifications
- Product Code: CS3P25
- Rated Current: 25A
- Number of Poles: 3
- IP Rating: IP66
- Mounting Type: Surface-Mounted
- Outgoing Terminals: 1, 3, 5, 7, 9, 11
- Input Terminals:
- Position 1: 2, 6, 10
- Position 2: 4, 8, 12
- Standards Compliance: BS EN60947-3

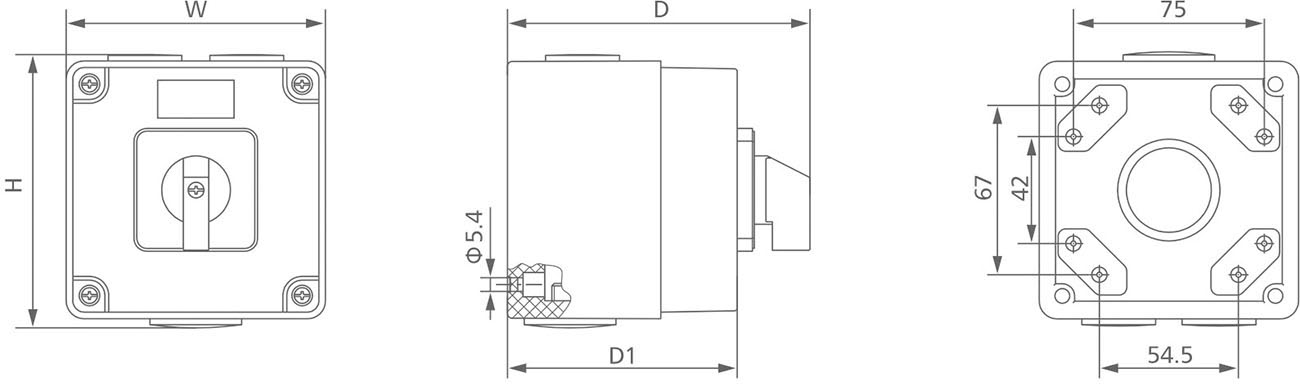

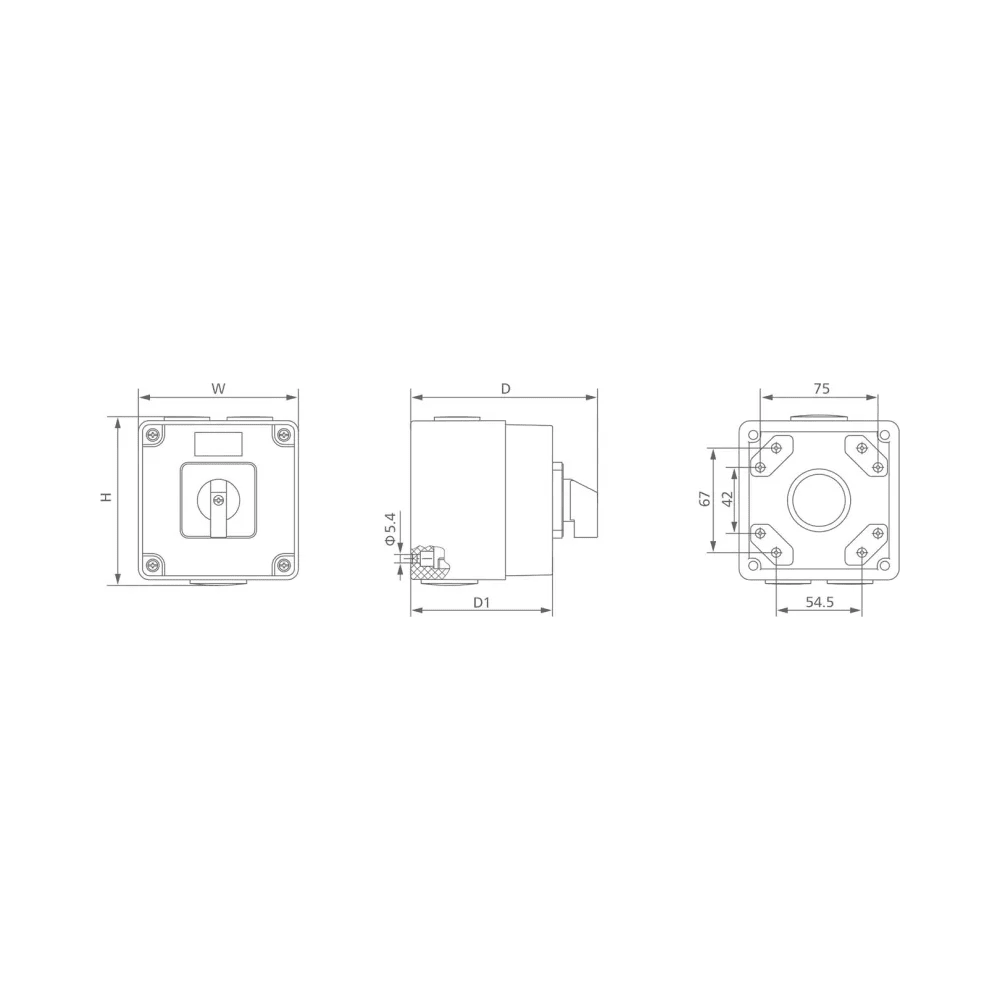

Dimensions (mm)
- Width (W): 101
- Height (H): 110
- Depth 1 (D1): 90
- Depth (D): 120
Why Choose This Product?
The Live Electrical CS3P25 Changeover Switch is a durable and versatile power control solution, offering safe and efficient power distribution for commercial and industrial applications. Its flame-retardant construction, IP66 protection, and easy cable entry design make it a reliable choice for demanding electrical installations.
