Live Electrical | CB316D | 10kA | Curve D | 3 Pole Bi-Directional MCB | 16A

SKU: CB316D
2 In Stock
More available within:
Usually 2 - 3 Working Days
Read More

The Live Electrical CB316D 3 Pole 16A D Curve 10kA MCB provides bi-directional circuit protection for suitable three-phase AC installations. Featuring a high-inrush D curve characteristic, 10kA breaking capacity and compact 54mm housing, it mounts onto standard 35mm DIN rails.

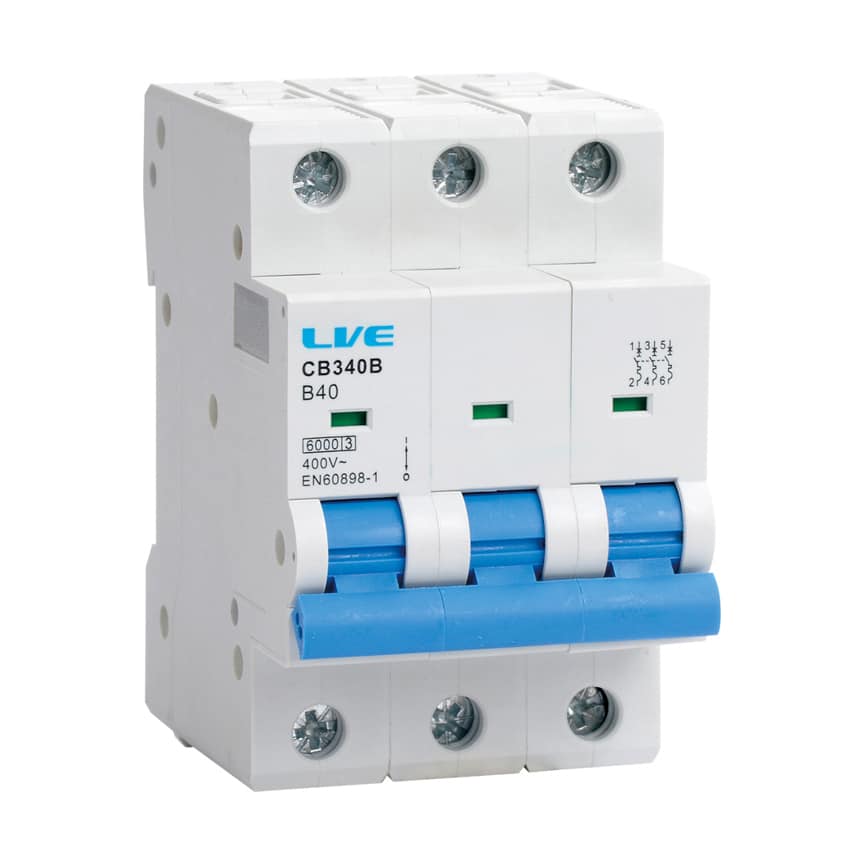

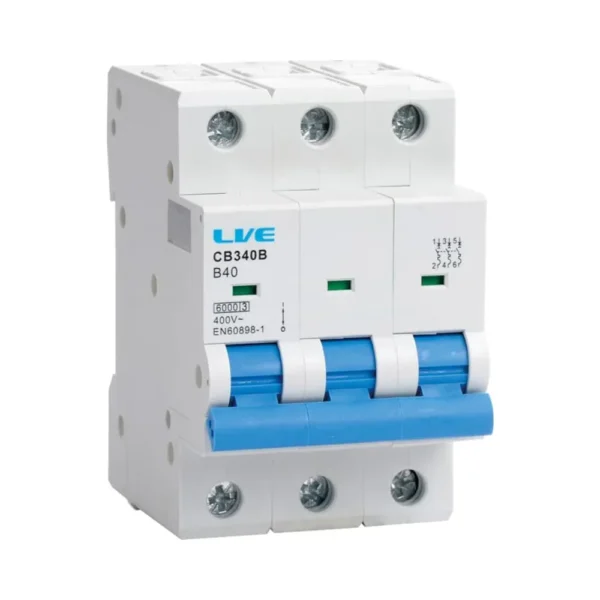

Live Electrical CB316D 3 Pole 16A D Curve 10kA MCB

The Live Electrical CB316D 3 Pole 16A D Curve 10kA MCB is a bi-directional miniature circuit breaker designed for suitable three-phase AC installations. Combining a 16A current rating with a 10kA breaking capacity, it provides overload and short-circuit protection for circuits supplying equipment with high starting currents.

Features and applications

The CB316D features a D curve tripping characteristic, which permits higher instantaneous inrush currents than comparable B or C curve MCBs. This makes it an option for appropriately designed circuits supplying smaller three-phase motors, transformers and other inductive loads where nuisance tripping during equipment start-up needs to be considered.

Its three-pole configuration provides linked switching across all three phases, while the 54mm-wide housing fits standard 35mm DIN rail assemblies. The breaker is rated for 230/400V AC operation and features IP20 protection. Correct selection depends on the circuit’s prospective fault current, earth fault loop impedance and required disconnection times.

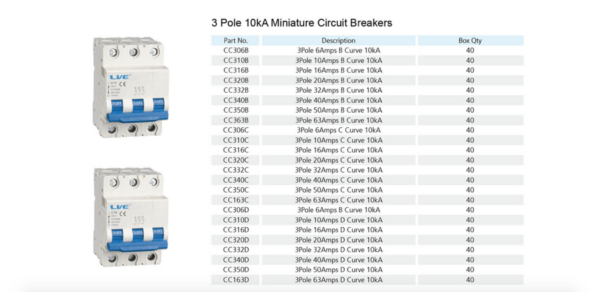

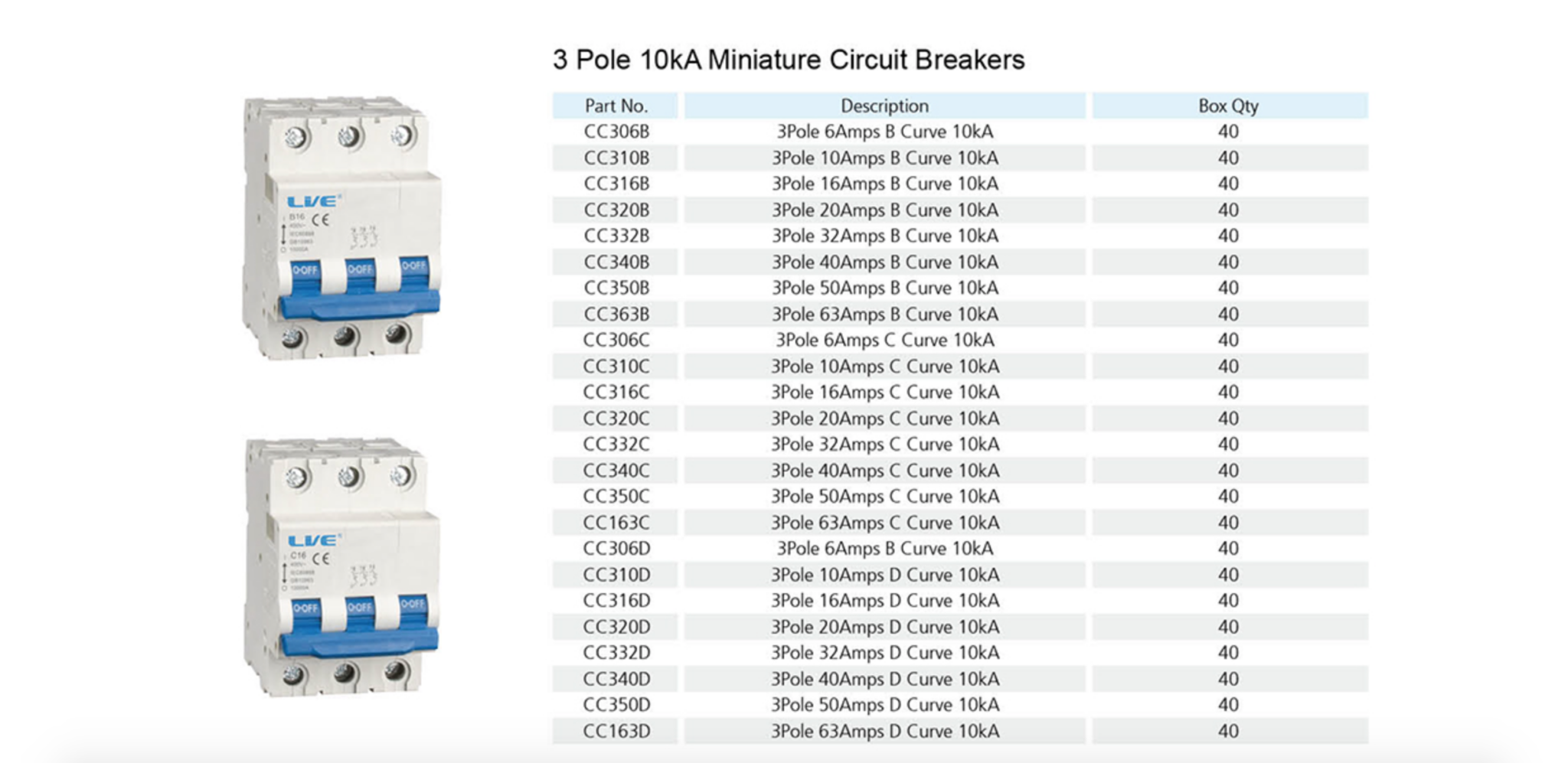

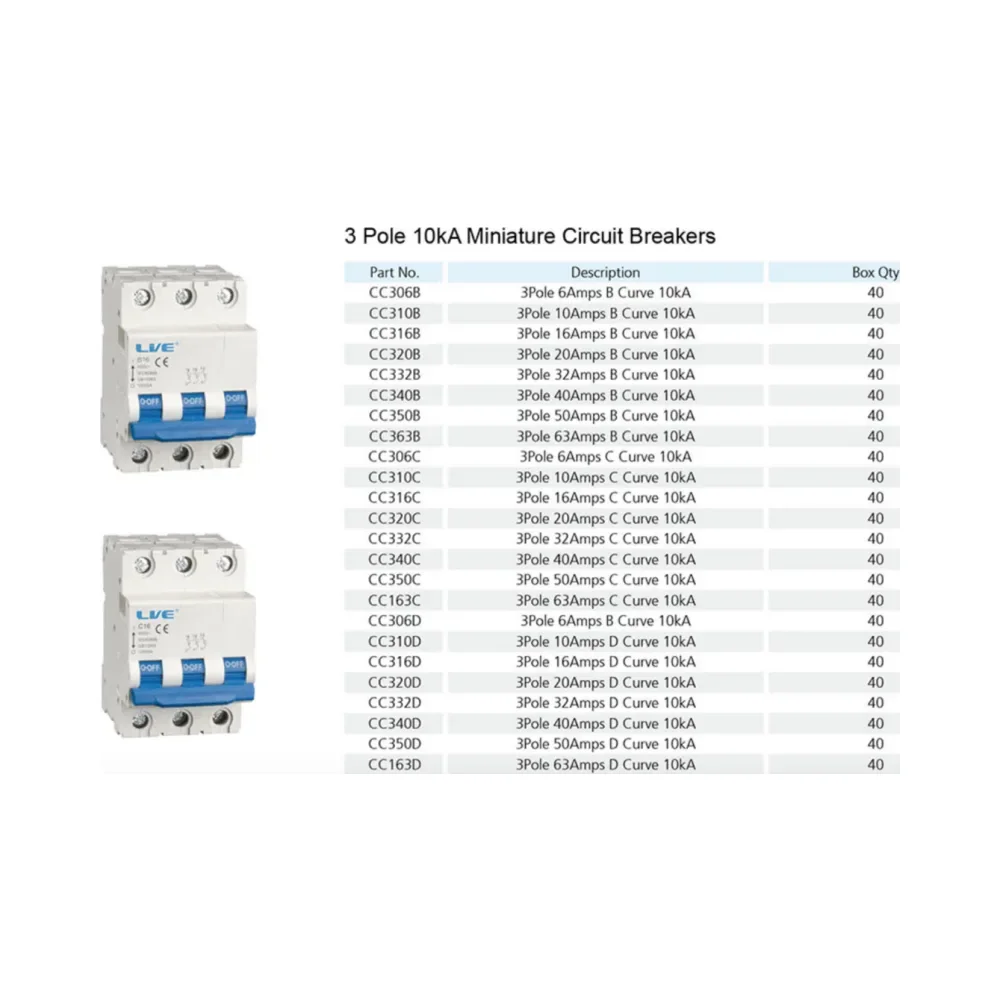

Technical specifications – Live Electrical CB316D 3 Pole 16A D Curve 10kA MCB

  • Manufacturer: Live Electrical
  • Part number: CB316D
  • Rated current: 16A
  • Number of poles: 3
  • Tripping characteristic: Curve D
  • Rated breaking capacity: 10kA
  • Rated operational voltage: 230/400V AC
  • Rated frequency: 50/60Hz
  • Standard: BS IEC/EN 60898
  • Ingress protection: IP20
  • Mounting: 35mm DIN rail
  • Width: 54mm
  • Maximum cable terminal capacity: 16mm²

Explore Live Electrical distribution equipment

Browse our Live Electrical TPN distribution boards for three-phase distribution equipment, or visit the Live Electrical product range to explore additional circuit protection devices and installation accessories.
