Live Electrical 7 Way SPD Metal Consumer Unit
Compact Distribution with Seven Usable Ways
The Live Electrical 7 Way SPD Metal Consumer Unit is designed for residential and light commercial installations requiring a practical balance between circuit capacity and enclosure size. Seven usable ways provide flexibility for a range of outgoing circuit arrangements.
The LSMC10M-SP is supplied with a 20/40kA double pole Surge Protection Device and DP 100A Main Switch. Its durable steel construction, raised DIN rail and multiple cable entry options help provide an organised and installer-friendly layout.
Key Features and Technical Details
- 7 usable ways
- 20/40kA Double Pole SPD – SP140 1P+N/1
- Double Pole 100A Main Switch
- Neutral cable and busbar included
- Neutral and earth terminals supplied
- Dimensions: 244mm (W) x 270mm (H) x 110mm (D)
- Operating voltage: 230V / 50Hz
- IP40 protection rating
- Fully enclosed steel body

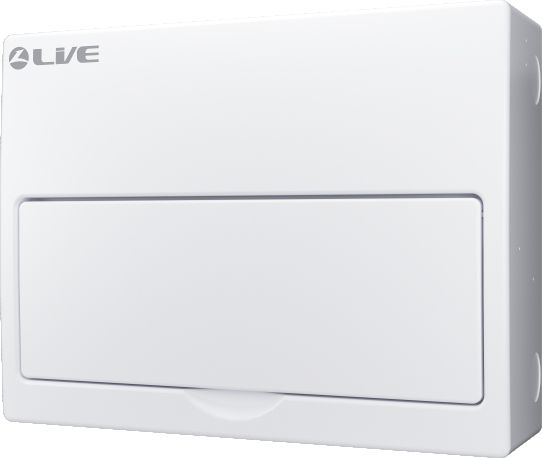

- Drop-down lid for convenient access
- 25mm and 32mm cable entry knockouts
- Entry points on the top, bottom, sides and rear
- Larger rear slots for additional cable routing
- Raised keyholes for secure mounting
- Raised DIN rail for improved cable management
- Spacious internal wiring area
- White polyester powder-coated finish – RAL9010
- Compliant with BS EN 61008, BS EN 60898 and BS EN 61439-3
Flexible Cable Entry and Wiring Space
Measuring 244 x 270 x 110mm, the enclosure provides useful internal space while remaining compact enough for a wide range of installations. Multiple 25mm and 32mm knockouts allow cables to enter from several directions, with larger rear slots providing further routing options.
The raised DIN rail creates extra clearance behind the protective devices, helping installers organise conductors and make effective use of the available wiring space.
Surge Protection with 100A Incoming Control
The fitted SP140 1P+N/1 device provides a 20/40kA surge rating to help protect connected equipment against transient overvoltages. A double pole 100A main switch provides incoming isolation and dependable control of the electrical supply.
Designed for Live Electrical AMR RCBOs
This particular metal consumer unit range is designed specifically for use with Live Electrical AMR RCBOs, providing the outgoing circuit protection required to complete the board.
Practical Seven-Way Circuit Capacity
With seven usable ways, robust steel construction and a spacious internal layout, this board offers a practical solution for installations requiring several protected circuits. Flexible cable-entry positions and the raised DIN rail also help simplify installation, inspection and future maintenance.
