Live Electrical 3 Way SPD Metal Consumer Unit
Compact Protection for Smaller Installations
The Live Electrical 3 Way SPD Metal Consumer Unit provides 3 usable ways within a compact steel enclosure. Designed for residential and light commercial installations, it combines incoming isolation and surge protection with a practical internal layout for straightforward wiring.
Model LSMC6M-SP is supplied with the SP140 1P+N/1 surge device and a 100A double pole incoming switch. A raised DIN rail and multiple cable entry points give installers useful flexibility when routing and terminating cables.
Key Features
- 3 usable ways
- SP140 1P+N/1 surge protection device
- 20/40kA surge rating
- 100A double pole incoming switch
- Neutral cable and busbar included
- Neutral and earth terminal bars supplied
- Raised DIN rail for improved cable routing
- 25mm and 32mm cable knockouts
- Entry points on the top, bottom, sides and rear
- Larger rear slots for additional cable access
- Raised keyholes for secure wall mounting

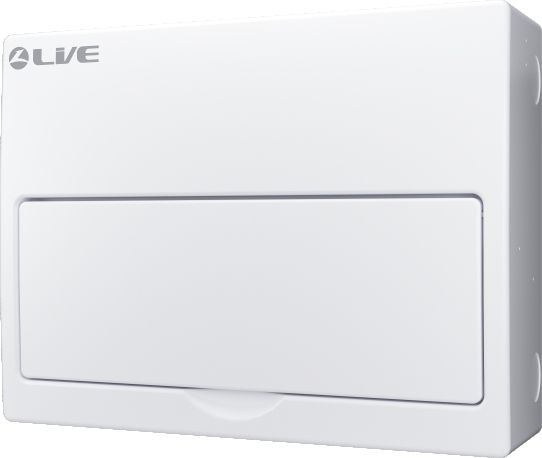

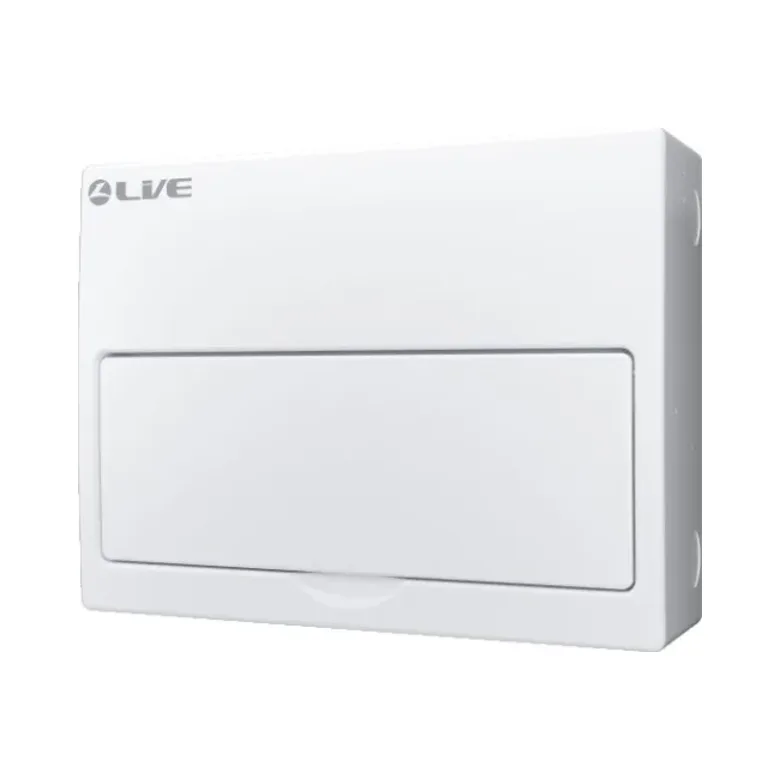

- Fully enclosed steel body with drop-down lid
- IP40 protection rating
- Operating voltage: 230V / 50Hz
- Dimensions: 172 x 270 x 110mm
- White polyester powder-coated finish – RAL9010
- Compliant with BS EN 61008, BS EN 60898 and BS EN 61439-3
Flexible Wiring and Cable Entry
Measuring 172 x 270 x 110mm, the enclosure offers useful wiring space without taking up unnecessary room. Cable access is available from several directions, while the raised DIN rail provides additional clearance for routing conductors behind the protective devices.
The steel body, drop-down lid and RAL9010 powder-coated finish provide a durable and professional installation suitable for indoor environments.
Integrated Incoming and Surge Protection

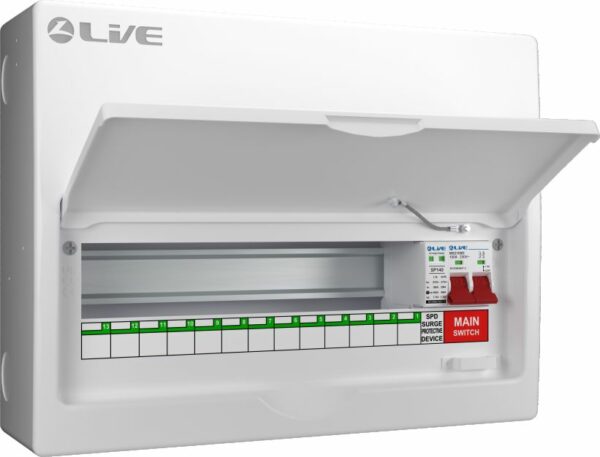

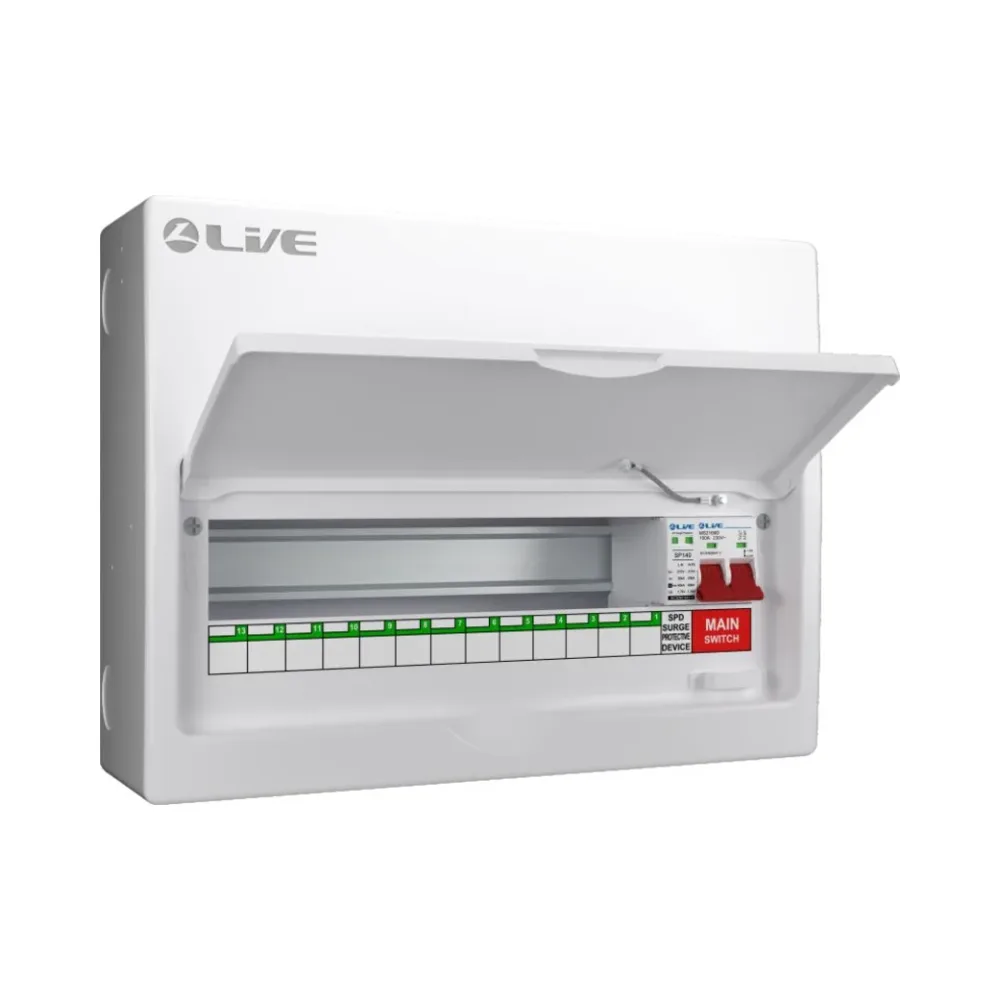

The fitted SP140 1P+N/1 device helps protect connected equipment against transient overvoltages. The double pole incoming isolator provides convenient control of the supply, with both components housed neatly within the enclosure.
Designed for Live Electrical AMR RCBOs
This particular range is designed specifically for use with Live Electrical AMR RCBOs, providing the appropriate outgoing circuit protection for these boards.
Compact and Practical
With three usable ways, robust metal construction and a space-efficient layout, LSMC6M-SP is a practical option for smaller electrical installations. The arrangement provides installers with straightforward cable access while retaining useful internal wiring space.
