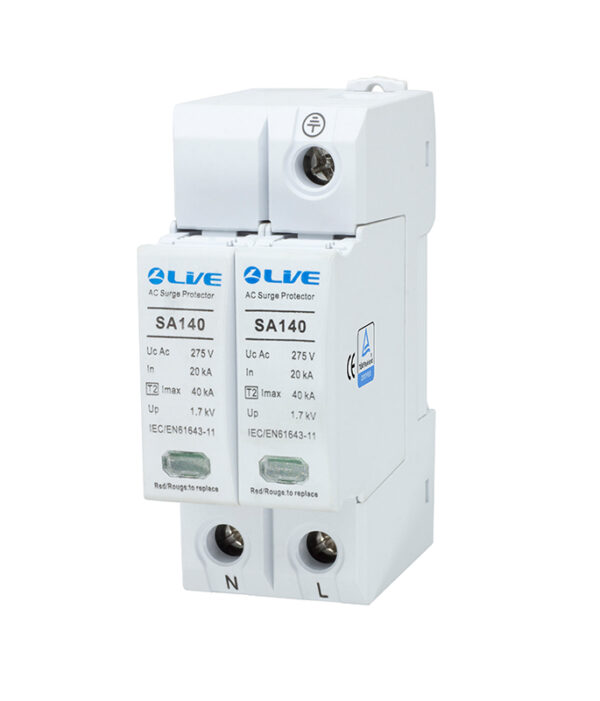

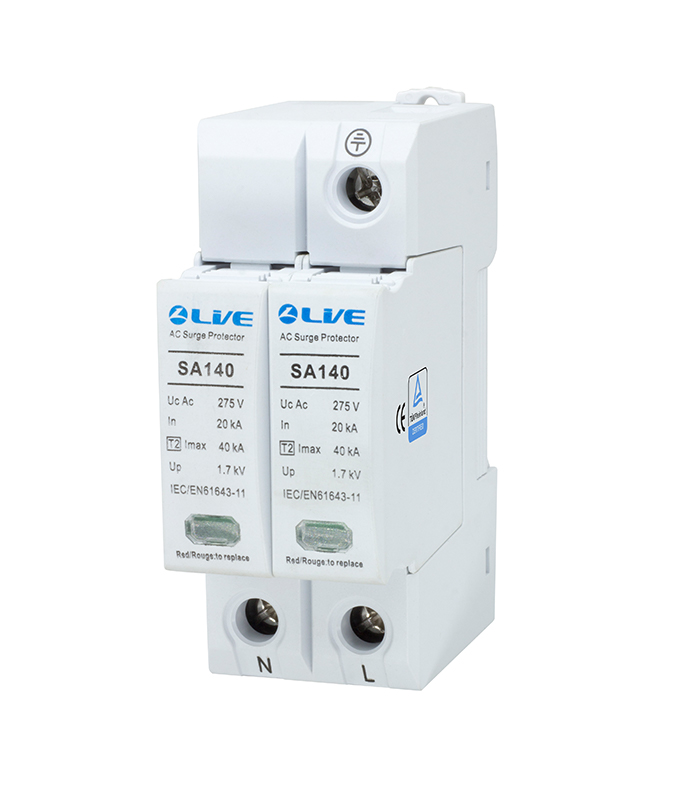

Live Electrical 2 Pole 20kA/40kA Type 2 Surge Protective Device

Live Electrical 2 Pole 20kA/40kA Type 2 Surge Protective Device

Protect your electrical system effectively with the Live Electrical 2 Pole 20kA/40kA Type 2 Surge Protective Device, available from Electrical4Less. This robust device is designed to safeguard your electrical installations from harmful voltage spikes and surges, ensuring the safety and longevity of your equipment.

Key Features:

• Surge Protection: Handles surges and voltage spikes to protect sensitive electrical equipment.
• Current Wave: Operates with an 8/20 μs current wave, ensuring quick and effective surge suppression.
• Compliance: Fully complies with BS EN 61643-11, the European standard for surge protection devices.
• Type: Classified as a Type 2 device, suitable for secondary surge protection within electrical installations.
• Voltage Rating: Compatible with 230/380V systems, making it versatile for various installations.
• Temporary Overvoltage Withstand (UT): Can withstand temporary overvoltages of up to 440/640V AC, providing added resilience.
• Nominal Discharge Current (In): Capable of discharging up to 20kA, offering strong protection against surges.
• Maximum Discharge Current (Imax): Withstands surges up to 40kA, ensuring comprehensive protection.
• Protection Level: Offers a protection level (at In) of 1.5kV in both common mode (CM) and differential mode (DM).
• Residual Voltage: Maintains a residual voltage of 1.3kV at 5kA, providing effective protection with minimal residual risk.
• Short-circuit Current: Can handle short-circuit currents up to 25kA, enhancing the device’s reliability.
• Fuses: Compatible with Type gG fuses, with a maximum rating of 125A.
• Operating Temperature: Functions reliably across a wide temperature range from -40°C to +85°C, making it suitable for various environments.
• Protection Class: Rated IP20, providing protection against solid objects greater than 12.5mm and ensuring safe operation in indoor environments.

Why Choose This Surge Protective Device?

This Type 2 surge protective device is ideal for use in residential, commercial, and industrial installations where reliable surge protection is critical. It not only meets industry standards but also provides peace of mind by ensuring your electrical systems are well-protected against unpredictable power surges. Whether you’re safeguarding home appliances, sensitive electronics, or industrial equipment, this device offers the performance and reliability you need.
