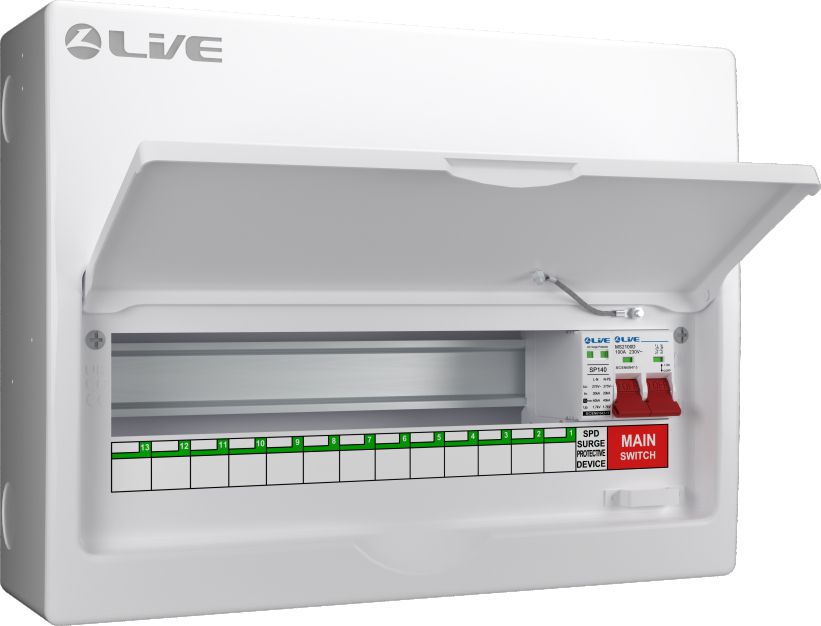

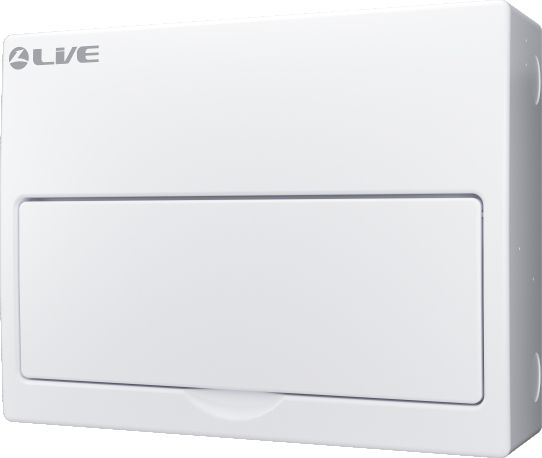

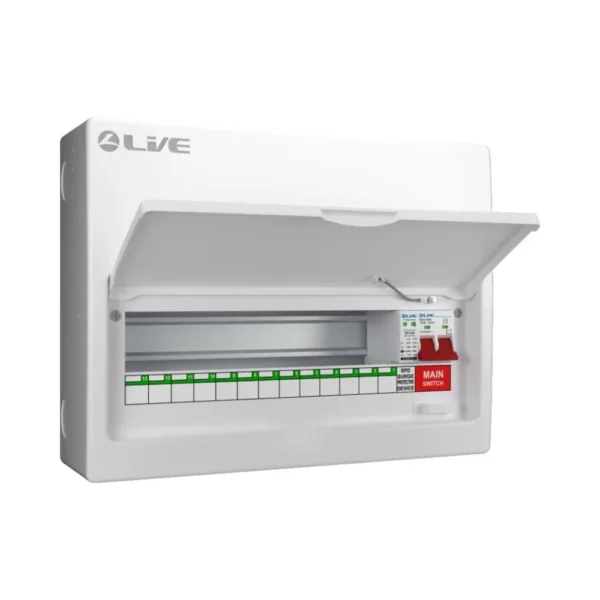

Live Electrical 19 Way SPD Metal Consumer Unit
High-Capacity Board for Extensive Circuit Layouts
The Live Electrical 19 Way SPD Metal Consumer Unit provides substantial circuit capacity for larger residential and commercial installations. With 19 usable ways, the board gives installers plenty of room for arranging multiple outgoing circuits and accommodating more demanding electrical layouts.
The LSMC22M-SP features integrated Type 2 surge protection together with a durable steel enclosure. Its spacious internal area, raised DIN rail and multiple cable-entry options provide a practical arrangement for professional installation and ongoing maintenance.
Key Features and Technical Details
- 19 usable ways
- Integrated Type 2 Surge Protection Device
- Dimensions: 460 x 270 x 110mm
- Operating voltage: 230V / 50Hz
- IP40 protection rating
- Durable steel construction
- White polyester powder-coated finish – RAL9010
- 25mm and 32mm knockouts on the top and bottom
- 32mm knockouts on the sides
- Larger rear slots for additional cable routing
- Raised keyholes for secure mounting
- Raised DIN rail for easier wiring
- Generous internal wiring space
- Supports a variety of protected-way configurations
- Suitable for residential and commercial installations
- Compliant with BS EN 61008, BS EN 60898 and BS EN 61439-3
Generous Capacity for Larger Installations
Measuring 460 x 270 x 110mm, the enclosure provides ample room for organising conductors and protective devices. Nineteen usable ways make it particularly suitable for installations requiring a greater number of individually protected circuits.
The spacious internal layout also makes access easier during initial wiring, inspection and future maintenance.
Flexible Cable Routing
Multiple cable-entry positions give installers several options when bringing conductors into the enclosure. The top and bottom include 25mm and 32mm knockouts, while the sides provide additional 32mm entries and larger rear slots accommodate alternative cable routes.
Raised keyholes assist with secure mounting, while the raised DIN rail creates additional clearance behind the protective devices for more organised wiring.
Integrated Type 2 Surge Protection
The built-in Type 2 Surge Protection Device helps protect connected circuits and electrical equipment against transient overvoltages. Combined with the robust steel construction and IP40 protection rating, the board provides a practical solution for professional indoor installations.
Designed for Live Electrical AMR RCBOs
This particular metal consumer unit range is designed specifically for use with Live Electrical AMR RCBOs, providing the outgoing circuit protection required to complete the board.
Built for Extensive Circuit Requirements
With nineteen usable ways, substantial wiring space and flexible cable-entry options, this board is well suited to installations where greater circuit capacity is required. Its steel construction and accessible internal arrangement also help simplify installation and future servicing.
