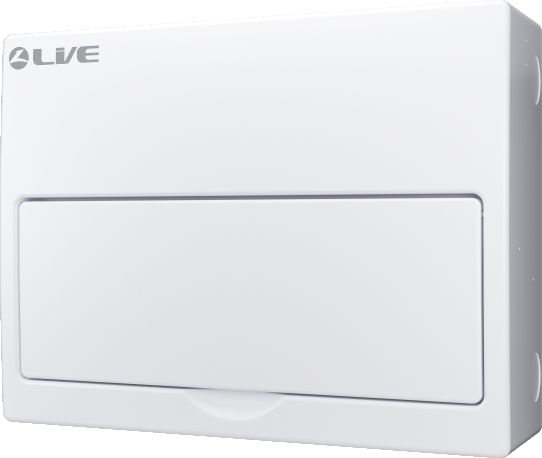

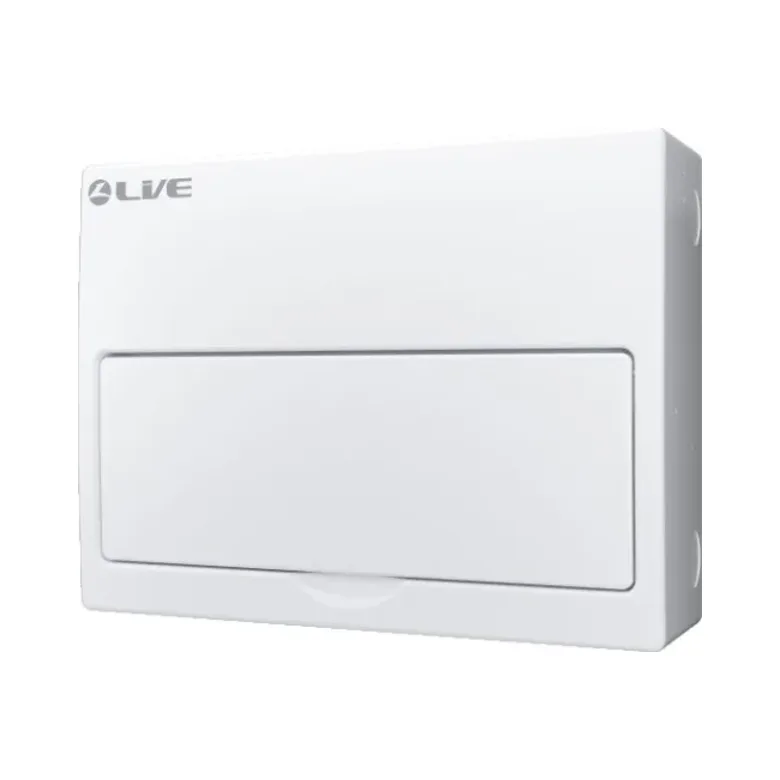

Live Electrical 15 Way SPD Metal Consumer Unit
High-Capacity Board for Larger Electrical Installations
The Live Electrical 15 Way SPD Metal Consumer Unit provides extensive circuit capacity for larger residential and commercial installations. With 15 usable ways, it gives installers plenty of flexibility when planning multiple outgoing circuits or allowing space for future additions.
The LSMC18M-SP includes a 20/40kA double pole Surge Protection Device and a 100A Main Switch. Its robust steel construction, generous internal wiring area and flexible cable-entry arrangement make it a practical choice for professional installations.
Technical Overview
- 15 usable ways
- 20/40kA DP Surge Protection Device
- 100A Main Switch
- Dimensions: 388 x 270 x 110mm
- Operating voltage: 230V / 50Hz
- IP40 protection rating
- Durable steel construction
- White polyester powder-coated finish – RAL9010
- 25mm and 32mm cable knockouts
- Cable entry available from the top, bottom, sides and rear
- Larger rear slots for additional cable-routing options
- Raised keyholes for secure installation
- Raised DIN rail for improved cable routing
- Spacious internal wiring area
- Supports a variety of protected-way configurations
- Compliant with BS EN 61008, BS EN 60898 and BS EN 61439-3
15 Ways for Expanding Circuit Requirements
With dimensions of 388 x 270 x 110mm, the enclosure provides substantial working space while maintaining a practical format for indoor installation. Fifteen usable ways give electricians room to organise a larger number of protected circuits and accommodate changing requirements.
The generous wiring area also helps simplify conductor arrangement and access during installation, inspection and future maintenance.
Flexible Cable Entry and Installation
Multiple 25mm and 32mm knockouts are positioned around the enclosure, with additional larger rear slots providing further cable-routing flexibility. Raised keyholes assist with secure mounting, while the raised DIN rail creates additional clearance for wiring behind the protective devices.
The steel enclosure is finished in a white RAL9010 polyester powder coating, providing a clean and durable appearance for professional indoor installations.

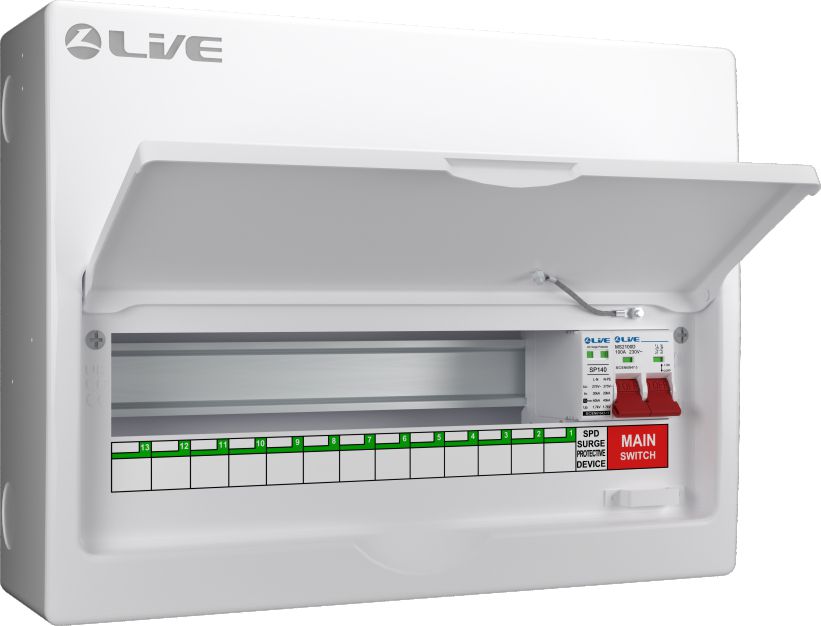

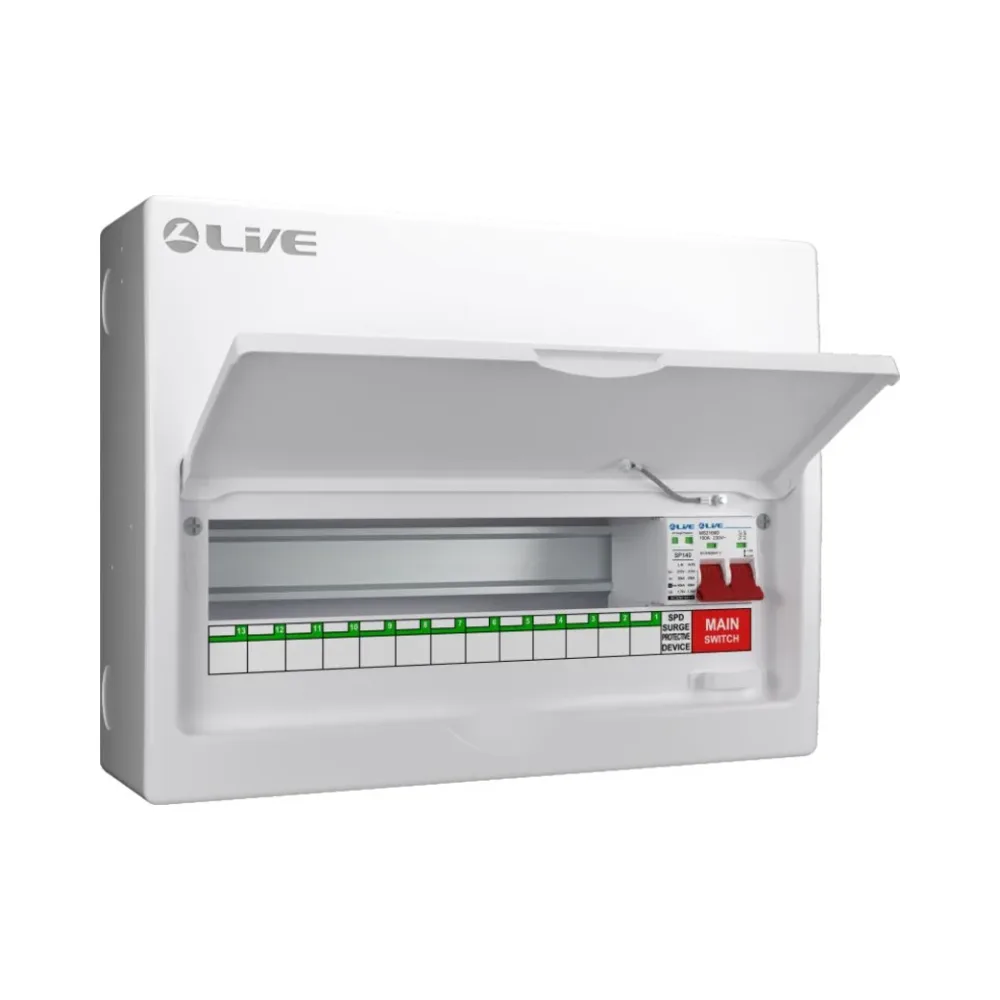

Surge Protection and Incoming Isolation
The integrated 20/40kA surge device helps protect connected electrical equipment against transient overvoltages. A 100A incoming main switch provides isolation and control of the electrical supply, combining the principal incoming components within one enclosure.
Designed for Live Electrical AMR RCBOs
This particular metal consumer unit range is designed specifically for use with Live Electrical AMR RCBOs, providing the outgoing circuit protection required to complete the board.
Practical Capacity for Larger Circuit Layouts
With fifteen usable ways, substantial wiring space and multiple cable-entry positions, this board gives installers the flexibility required for more involved electrical installations. Its raised DIN rail and robust steel construction also support straightforward wiring and ongoing maintenance.
