Live Electrical 11 Way SPD Metal Consumer Unit
Flexible Circuit Capacity for Residential and Commercial Installations
The Live Electrical 11 Way SPD Metal Consumer Unit provides plenty of capacity for installations requiring multiple protected circuits. With 11 usable ways, it is suitable for residential and commercial applications where additional circuit space and straightforward wiring access are important.
The LSMC14M-SP includes a 20/40kA double pole Surge Protection Device and DP 100A Main Switch. Its fully enclosed steel body, raised DIN rail and flexible cable-entry arrangement provide a practical layout for professional installation.
Features and Technical Details
- 11 usable ways for multiple outgoing circuits
- 20/40kA DP Surge Protection Device
- DP 100A Main Switch
- Dimensions: 316 x 270 x 110mm
- Operating voltage: 230V / 50Hz
- IP40 protection rating
- Durable steel construction

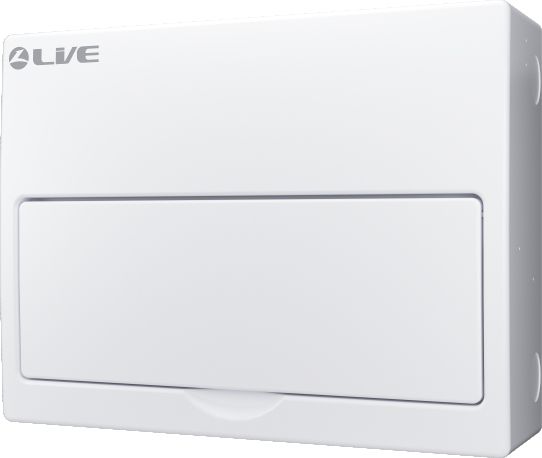

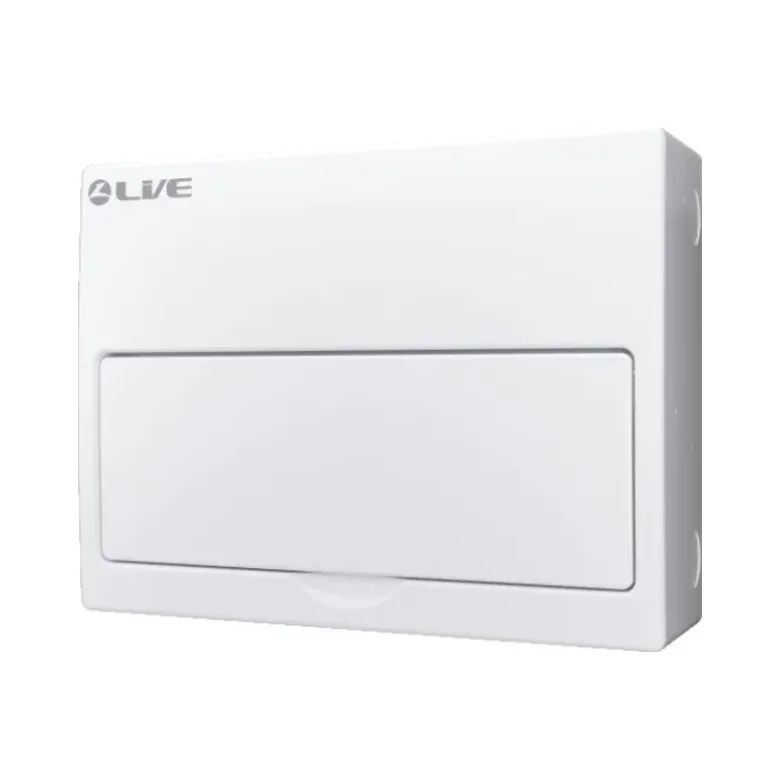

- Fully enclosed metal body with drop-down lid
- 25mm and 32mm knockouts on the top and bottom
- 32mm knockouts on the sides and rear
- Larger rear slots for additional cable entry
- Raised keyholes for secure mounting

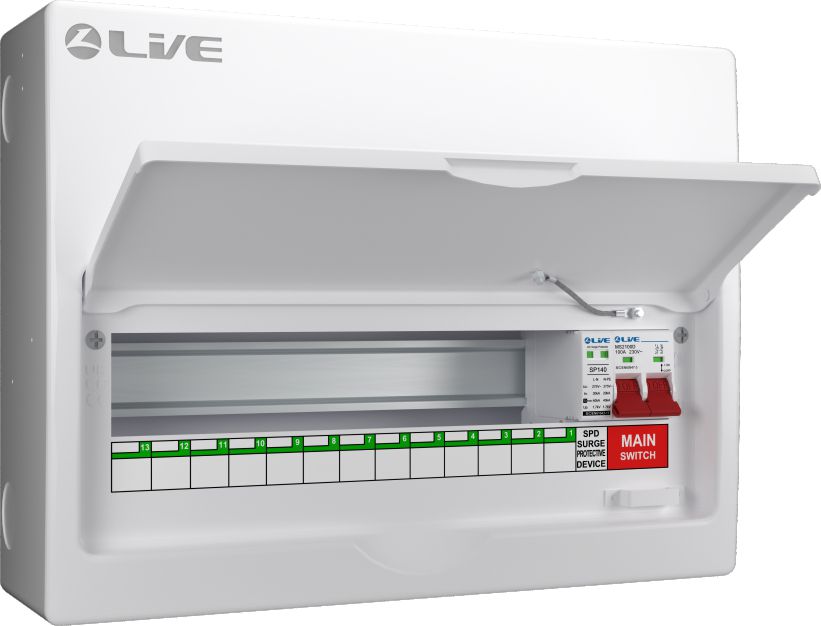

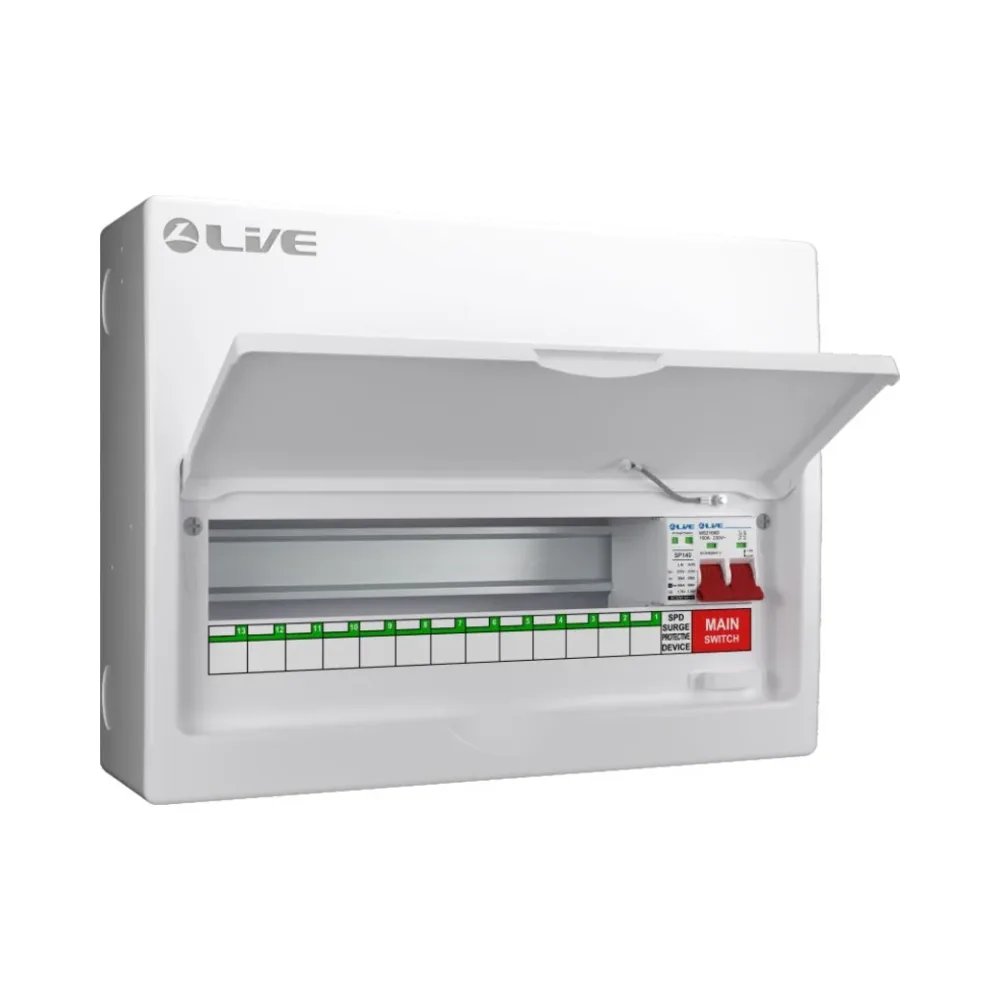

- Raised DIN rail for easier cable routing
- Spacious internal wiring area
- White polyester powder-coated finish – RAL9010
- Compliant with BS EN 61008, BS EN 60898 and BS EN 61439-3
11 Ways with Flexible Cable Access
Measuring 316 x 270 x 110mm, the enclosure provides useful space for organising conductors and protective devices while maintaining a manageable overall size. Eleven usable ways give installers flexibility when planning installations with a larger number of outgoing circuits.
Cable entry is available through 25mm and 32mm knockouts on the top and bottom, with additional 32mm entries on the sides and rear. Larger rear slots provide further options where cable routing requires additional space.
Practical Internal Layout
The raised DIN rail creates additional clearance for routing cables and helps maintain an organised wiring area. Raised keyholes simplify secure mounting, while the drop-down lid provides convenient access during installation, inspection and maintenance.
The steel enclosure is finished in white polyester powder coating to RAL9010, providing a clean and durable finish for indoor electrical installations.
Designed Specifically for Live Electrical AMR RCBOs
This range of metal consumer units is designed specifically for use with Live Electrical AMR RCBOs, providing the outgoing circuit protection required to complete the board.
Protection and Capacity in One Enclosure
With eleven usable ways, built-in surge protection and 100A incoming control, this board provides a versatile solution for installations requiring additional circuit capacity. The spacious wiring area and varied cable-entry positions also help make installation and future maintenance more straightforward.
