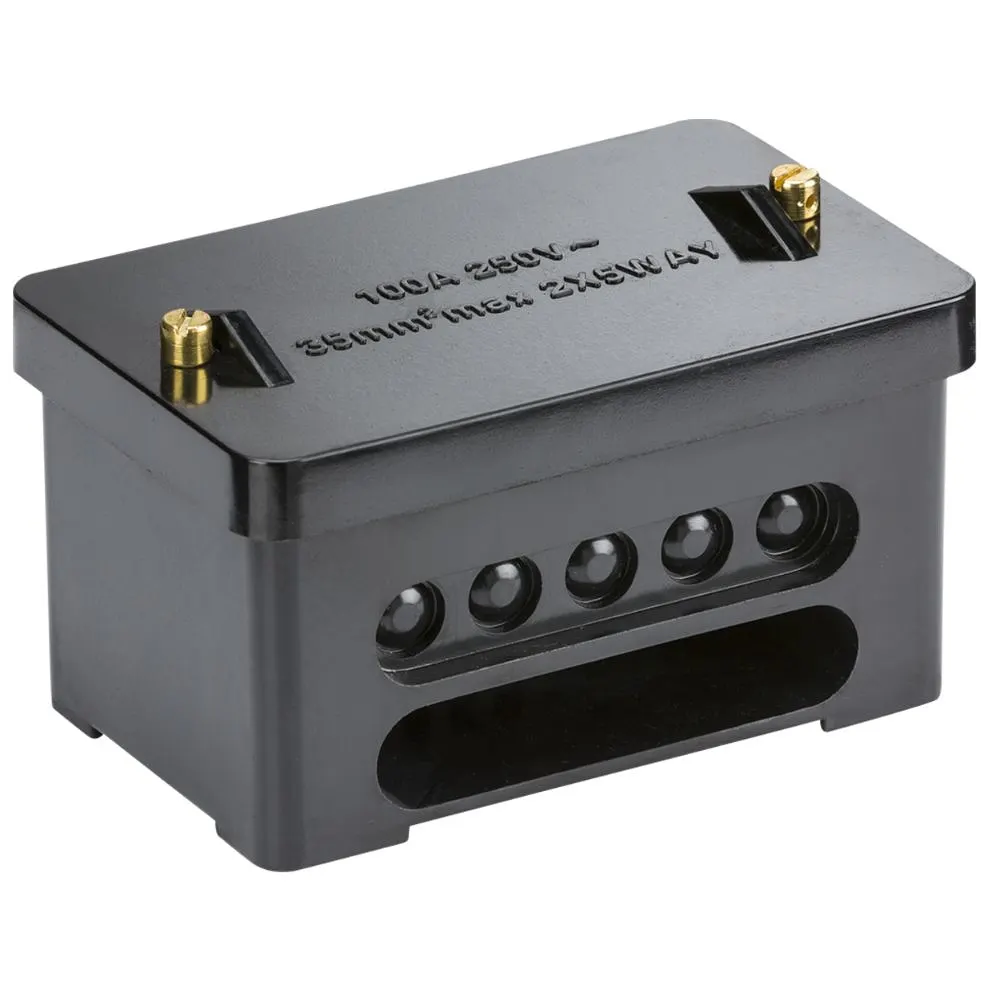

Knightsbridge SNEB2 Service Connector Block
The Knightsbridge SNEB2 Service Connector Block is a heavy-duty 100A double pole connector designed for meter and mains positions. Its 2 x 5-way configuration provides five cable connections per pole, with durable brass terminals suitable for rigid conductors up to 35mm.
Manufactured from black thermoset phenolic urea resin, the connector block provides dependable electrical insulation and a robust enclosure for indoor installations. Easy knockout entries simplify cable access, while the secure sealable lid helps protect the completed connections against unauthorised access.
Key Features – Knightsbridge SNEB2 Service Connector Block
- Heavy-duty service connector block
- Suitable for meter and mains positions
- 100A rated current
- Double pole configuration
- 2 x 5-way connection layout
- Five cable connections per pole
- Brass connection terminals
- Accepts rigid conductors up to 35mm
- Black thermoset phenolic urea construction
- Easy knockout cable entries
- Secure sealable lid
- IP20 rated
- Certified to EN 60670
Double Pole Meter and Mains Connections
The SNEB2 provides separate live and neutral connection sections within one compact enclosure. Each pole accommodates up to five cables, making it suitable for applications where multiple meter tails or mains conductors require a secure and organised connection point.
Its brass terminals provide reliable electrical contact, while the knockout entries allow cables to be routed into the enclosure from the most suitable direction.
Technical Specifications – Knightsbridge SNEB2 Service Connector Block
- Brand: Knightsbridge
- Product code: SNEB2
- Product type: Service connector block
- Current rating: 100A
- Voltage rating: 230–240V AC
- Frequency: 50Hz
- Poles: Double pole
- Configuration: 2 x 5-way
- Cable capacity: Five cables per pole
- Maximum conductor size: 35mm rigid conductor
- Terminal material: Brass
- Construction: Thermoset phenolic urea resin
- Finish: Black
- IP rating: IP20
- Length: 106.3mm
- Width: 67.3mm
- Height: 57.5mm
- Standard: EN 60670
