Description

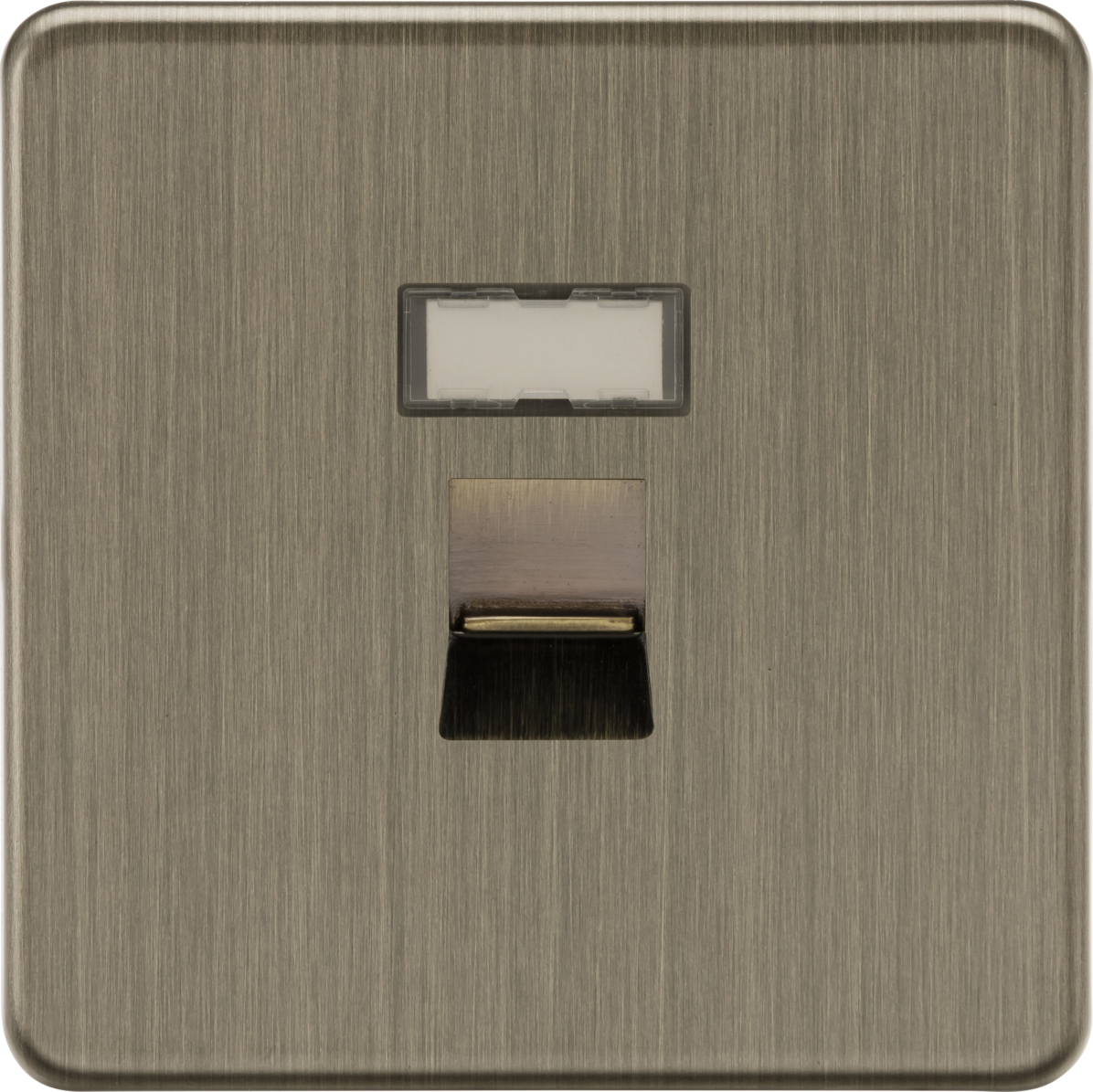

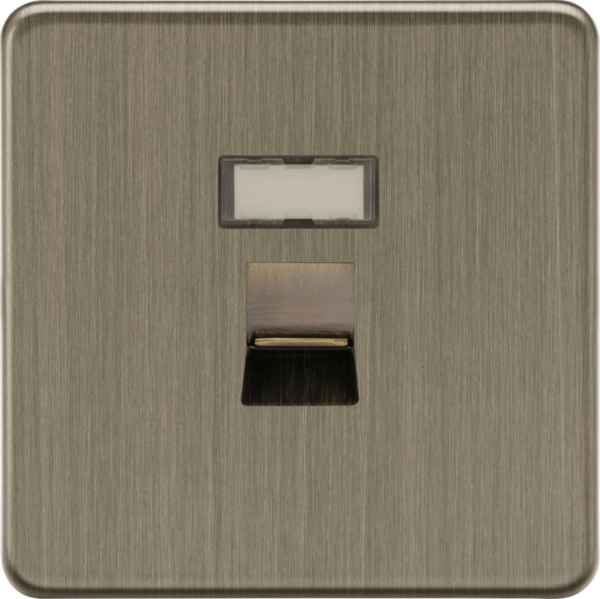

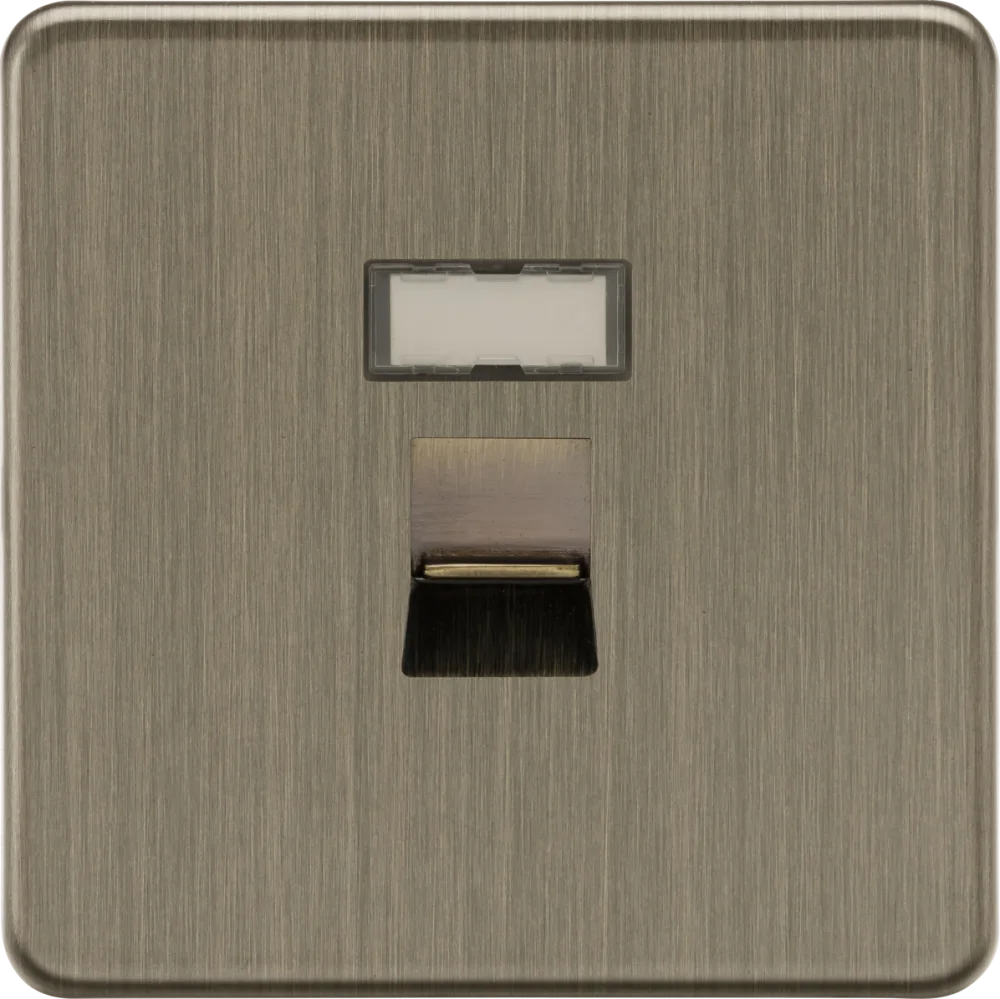

Knightsbridge SFC6AB CAT6a Outlet
Knightsbridge SFC6AB CAT6a Outlet is a Knightsbridge telephone & network outlets product in a screwless antique brass finish. Flawless low profile screwless flat plate design, projecting just 4.3mm from wall. Perfect finishing touch to any modern home. Constructed of high-quality steel with a discreet built-in protective gasket and matching metal shutter detail.
Key Features – Knightsbridge SFC6AB CAT6a Outlet
- Single shuttered CAT6A Unshielded RJ45 Outlet
- Conforming to ANSI/TIA/EIA 568B. 2-10
- Insulation Resistance: less than 500 milli-ohm at 100V DC
- Withstand Voltage: 1000V DC, 700V AC RMS 60Hz 1 min
- Operating Temperature: -10°C to 60°C
- 16-20 AWG wire gauges
- Increased bandwidth – Capable of supporting data transfer rates of up to 10Gbps over 100m at a maximum bandwidth of 500Mhz (CAT6 can only support 30-50m or 1Gbps at 100m at max. 250Mhz)
- Backwards compatible with both CAT6 and CAT5e – however its important to note that speed will be affected
Technical Specifications – Knightsbridge SFC6AB CAT6a Outlet
- SKU: SFC6AB
- Manufacturer: Knightsbridge
- Finish: Antique Brass
- Construction: 201 Stainless steel
- IP rating: IP20
- Plate depth: 4.3 mm
- Minimum mounting box depth: 35mm
- Dimensions: height 87.5 mm, width 87.5 mm, depth 32.9 mm, projection 4.3 mm
- Terminal: IDC
- Earth terminal: Yes
- Warranty: 2 years
- Barcode: 5061061272305
Part of the Knightsbridge screwless antique brass wiring accessories range, designed for a coordinated finish across matching switches, sockets, faceplates and outlets.
