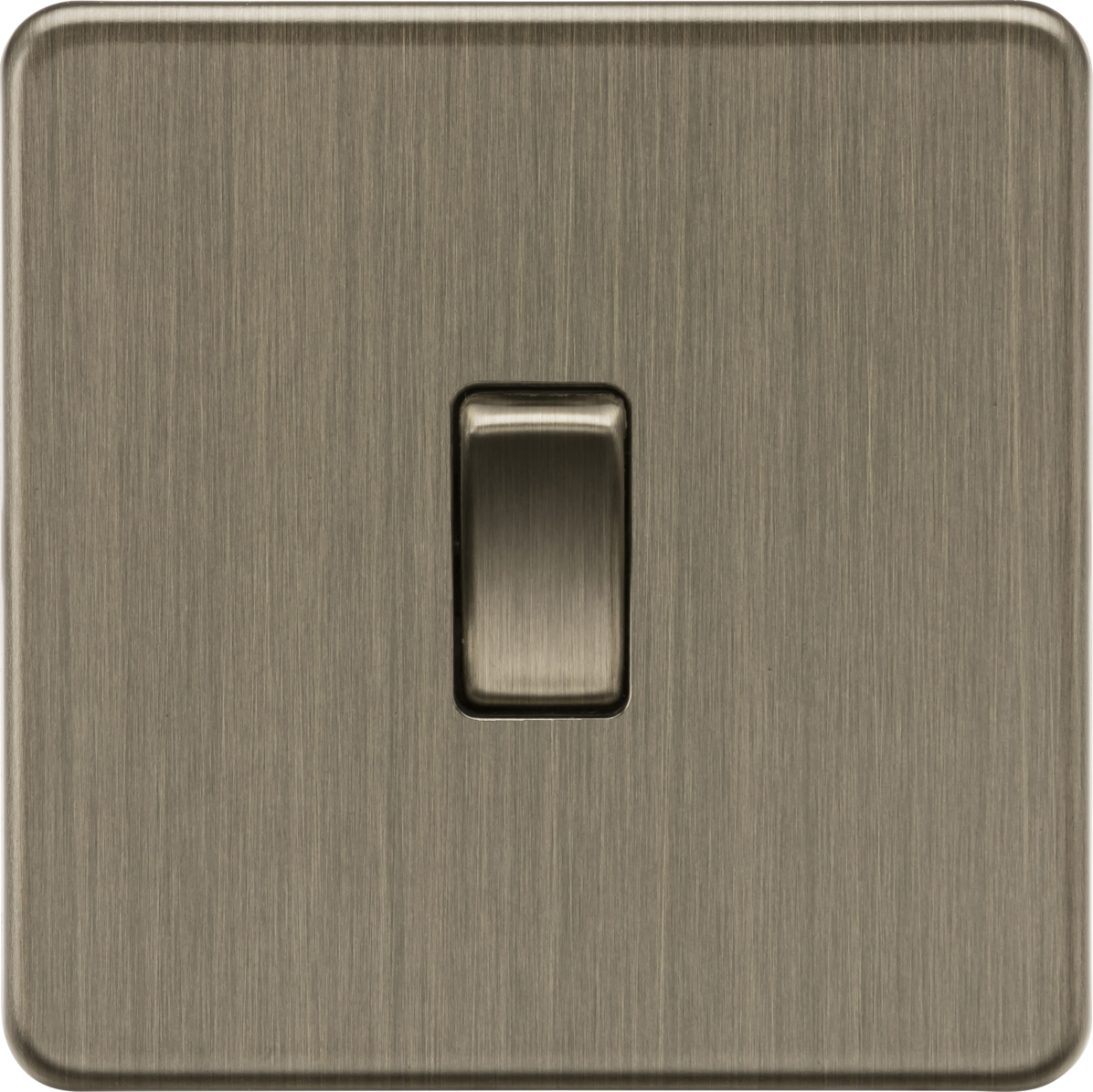

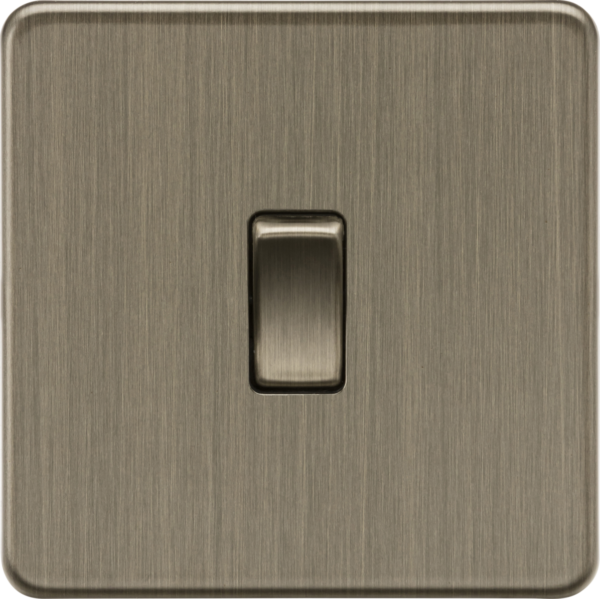

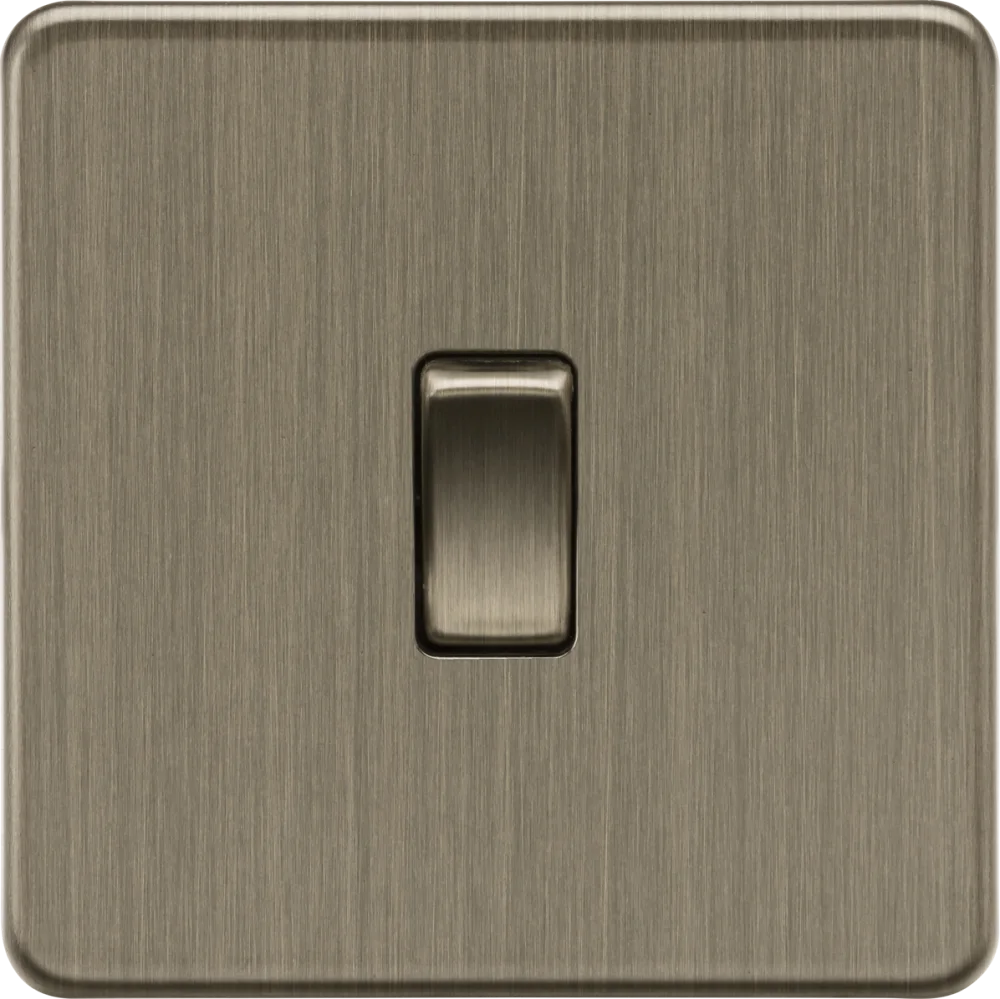

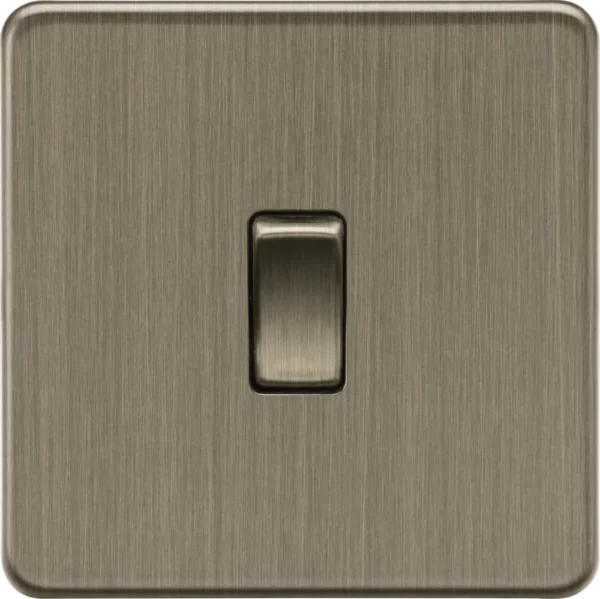

Knightsbridge SF1200AB Intermediate Switch
Knightsbridge SF1200AB Intermediate Switch is a Knightsbridge 10ax switches product in a screwless antique brass finish. An intermediate switch is used when you have three switches controlling one light. A typical example of this is on a landing. There is a switch at the bottom of the stairs, one at top of the stairs and one at the end of the landing. On this circuit you would need the middle switch to be intermediate (i.e. the one at the top of the stairs) in…
Key Features – Knightsbridge SF1200AB Intermediate Switch
- 10AX rated
- Screwless low profile design with built in gasket
- Certified to EN 60669-1
- Minimum mounting box 16mm
- Finish: Antique Brass
- IP rating: IP20
- Minimum mounting box depth: 16mm
Technical Specifications – Knightsbridge SF1200AB Intermediate Switch
- SKU: SF1200AB
- Manufacturer: Knightsbridge
- Finish: Antique Brass
- Construction: 201 Stainless steel
- Class: I
- IP rating: IP20
- Primary voltage: 230V 50Hz
- Plate depth: 4.3 mm
- Minimum mounting box depth: 16mm
- Dimensions: height 87.5 mm, width 87.5 mm, depth 21.6 mm, projection 8.4 mm
- Terminal: Captive
- Earth terminal: Yes
- Warranty: 25 years
- Barcode: 5056270850345
Part of the Knightsbridge screwless antique brass wiring accessories range, designed for a coordinated finish across matching switches, sockets, faceplates and outlets.
