Description

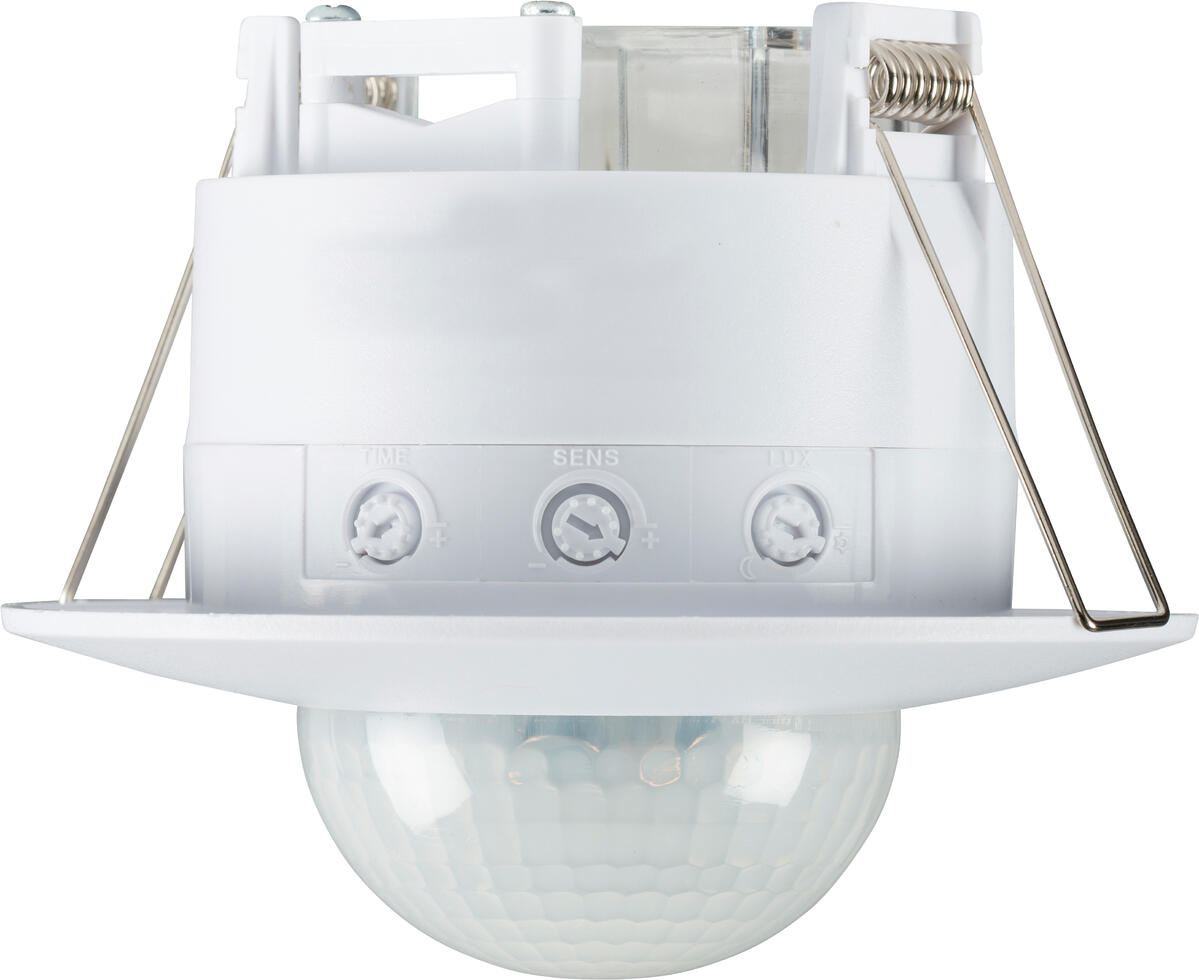

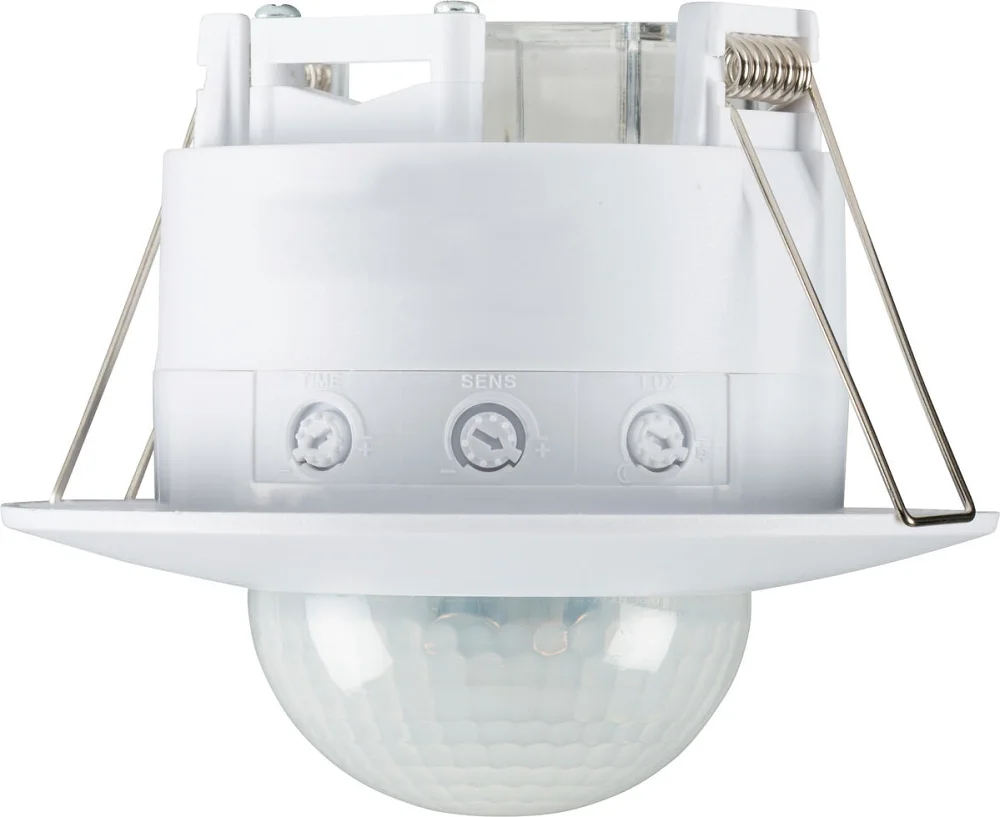

Knightsbridge OS0016 PIR Sensor
Knightsbridge OS0016 PIR Sensor is a Knightsbridge lighting control sensor in White. It is supplied as IP20 Wide Range 360° PIR Sensor – Recess Mounting and is designed for presence detection and automatic lighting control in suitable indoor areas.
Key features – Knightsbridge OS0016 PIR Sensor
- IP20 rated for indoor use only
- Recess fitting
- Cut out: 80mm
- 360° field of detection
- 2-20m range
- Adjustable Lux
- Adjustable time: Approx. 10 seconds to 10 minutes
- Can be wired in parallel
- Switching capacity: Max. 2000W Incandescent / Max. 1000W LED
- Certified to EN 55015, EN 61547, EN 61000, LVD Directive
Technical information
- Finish: White
- IP rating: IP20
- Primary voltage: 230V 50Hz
- Class: II
- Construction: Polycarbonate
- Diameter: 110mm
- Height: 90mm
- Width: 110mm
- Projection: 35mm
- Cut-out diameter: 80mm
- Warranty: 2 years
