Description

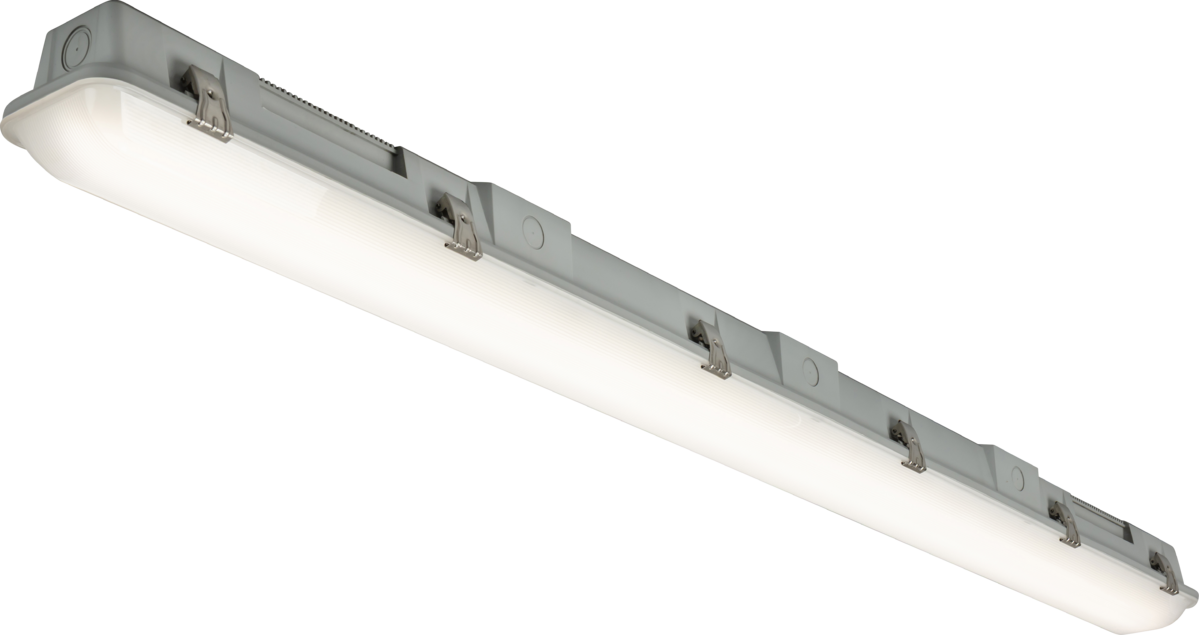

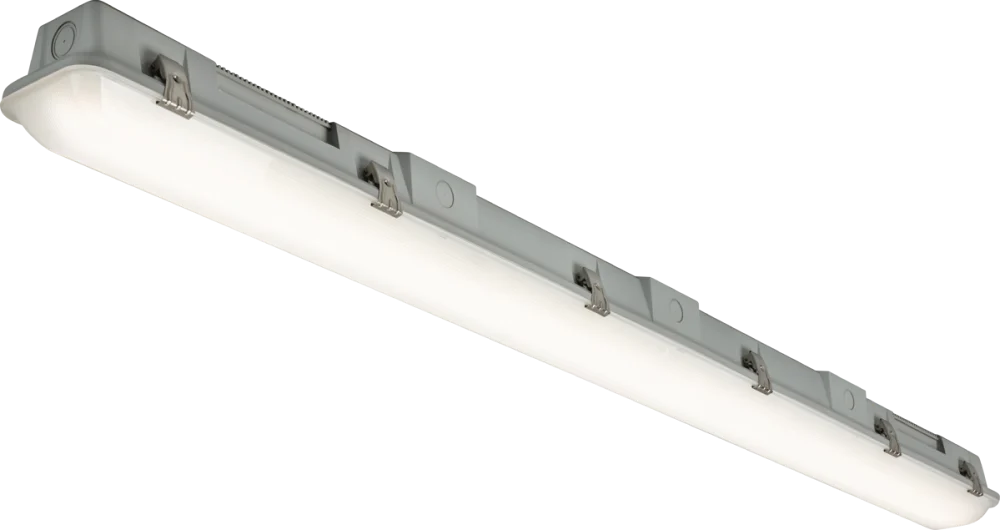

HELIX SHIFT 4ft CCT Adjustable Non-Corrosive LED Fitting
The Knightsbridge HEXSCW4 LED Non-Corrosive Fitting is a 4ft HELIX SHIFT modular luminaire designed for commercial, industrial and utility lighting. It combines a robust non-corrosive body with IP66 protection, IK10 impact resistance, selectable wattage and adjustable colour temperature.
Knightsbridge HEXSCW4 HELIX SHIFT Modular Fitting
This 230V HELIX SHIFT fitting gives installers useful flexibility on site, with quad wattage settings of 22W, 27W, 33W and 39W. The CCT adjustment allows the colour temperature to be selected between 3000K, 4000K and 5700K, helping one fitting suit different areas and lighting preferences.
The modular design supports plug-and-play accessory options where required. The MODMWS microwave sensor and MODEMKIT2 dual mode emergency conversion kit are available separately, allowing the fitting to be adapted for sensor-controlled or emergency lighting applications.
Applications – Knightsbridge HEXSCW4 LED Non-Corrosive Fitting
This 4ft fitting is suitable for workshops, plant rooms, corridors, stores, garages, loading bays, service areas, warehouses and industrial spaces. The IP66 and IK10 ratings make it a practical choice for demanding environments where dust, moisture and impact protection are important.
Key Features – Knightsbridge HEXSCW4 LED Non-Corrosive Fitting
- 4ft HELIX SHIFT modular non-corrosive LED fitting
- 230V input voltage
- Quad wattage selectable: 22W / 27W / 33W / 39W
- CCT adjustable: 3000K / 4000K / 5700K
- IP66 rated for dust and water ingress protection
- IK10 rated for high impact resistance
- Robust anti-corrosive polycarbonate construction
- Stainless steel clips supplied as standard
- Rear, side and end conduit entries
- Body design compatible with BESA box mounting
- Pre-drilled rear and end conduit entries with replaceable end caps
- Large bracket fixing point to help ease mounting
- Detachable terminal blocks for easier cable entry
- Push-fit loop in-loop out terminal block
- Compatible with MODMWS microwave sensor, sold separately
- Compatible with MODEMKIT2 dual mode emergency conversion kit, sold separately
- Supplied with surface mount plates as standard
- TORCSUSP suspension kit available separately
Technical Specifications – Knightsbridge HEXSCW4 LED Non-Corrosive Fitting
- Brand: Knightsbridge
- SKU: HEXSCW4
- Range: HELIX SHIFT
- Product type: Modular non-corrosive LED fitting
- Length: 4ft
- Input voltage: 230V
- Wattage settings: 22W / 27W / 33W / 39W
- Colour temperature settings: 3000K / 4000K / 5700K
- IP rating: IP66
- IK rating: IK10
- Construction: Polycarbonate
- Clips: Stainless steel clips supplied as standard
- Sensor option: MODMWS, sold separately
- Emergency option: MODEMKIT2, sold separately
- Suspension kit option: TORCSUSP, sold separately
