Description

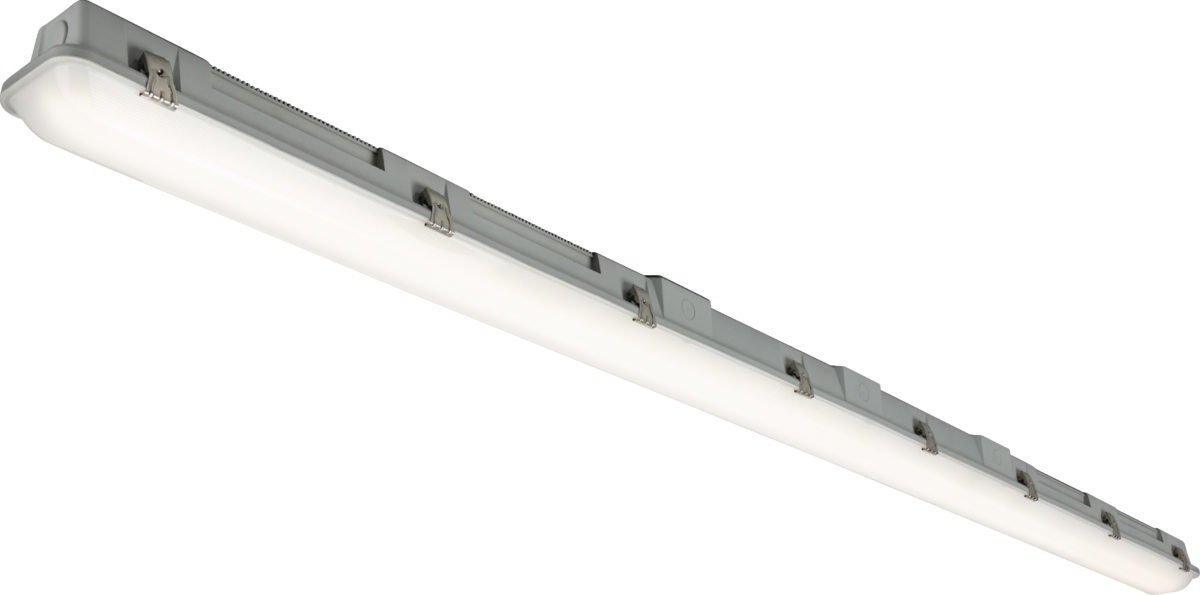

HELIX MAX 6ft Corridor Sensor Non-Corrosive LED Fitting
The Knightsbridge HEXMCF6 LED Non-Corrosive Fitting is a 6ft HELIX MAX modular luminaire for commercial, industrial and utility lighting. It combines a tough non-corrosive body with IP66 ingress protection, IK10 impact resistance, selectable wattage, Tri-CCT adjustment and an integrated corridor sensor.
Knightsbridge HEXMCF6 HELIX MAX Modular Fitting
This 230V HELIX MAX fitting gives installers flexibility on site, with quad wattage settings of 34W, 42W, 51W and 60W. The adjustable colour temperature switch allows selection between 3000K, 4000K and 5700K, making the fitting suitable for different working areas, ceiling heights and lighting preferences.
The built-in corridor sensor provides automatic control without needing to purchase a separate sensor module. Its fully adjustable three-step dimming function allows lighting levels to reduce when the area is unoccupied and return to full output when movement is detected.
Applications – Knightsbridge HEXMCF6 LED Non-Corrosive Fitting
This 6ft corridor sensor fitting is suitable for warehouses, workshops, corridors, loading bays, plant rooms, stores, garages, service areas and industrial spaces. The IP66 and IK10 ratings make it a practical option for demanding indoor and suitable outdoor environments where durable LED lighting is required.
Key Features – Knightsbridge HEXMCF6 LED Non-Corrosive Fitting
- 6ft HELIX MAX modular non-corrosive LED fitting
- 230V input voltage
- Quad wattage selectable: 34W / 42W / 51W / 60W
- Tri-CCT selectable: 3000K / 4000K / 5700K
- Integrated corridor sensor included in the fitting
- Fully adjustable corridor sensor with three-step dimming function
- IP66 rated for dust and water ingress protection
- IK10 rated for high impact resistance
- Robust anti-corrosive polycarbonate construction
- Stainless steel clips supplied as standard
- Rear, side and end conduit entries
- Body design compatible with BESA box mounting
- Pre-drilled rear and end conduit entries with replaceable end caps
- Large bracket fixing point to help ease mounting
- Detachable terminal blocks for easier cable entry
- Push-fit loop in-loop out terminal block
- Compatible with MODEMKIT2 dual mode emergency conversion kit, sold separately
- Supplied with surface mount plates as standard
- TORCSUSP suspension kit available separately
Technical Specifications – Knightsbridge HEXMCF6 LED Non-Corrosive Fitting
- Brand: Knightsbridge
- SKU: HEXMCF6
- Range: HELIX MAX
- Product type: Modular non-corrosive LED fitting with corridor sensor
- Length: 6ft
- Input voltage: 230V
- Wattage settings: 34W / 42W / 51W / 60W
- Colour temperature settings: 3000K / 4000K / 5700K
- Sensor: Integrated corridor sensor
- Dimming function: Three-step dimming via corridor sensor
- IP rating: IP66
- IK rating: IK10
- Construction: Polycarbonate
- Clips: Stainless steel clips supplied as standard
- Emergency option: MODEMKIT2, sold separately
- Suspension kit option: TORCSUSP, sold separately
