Description

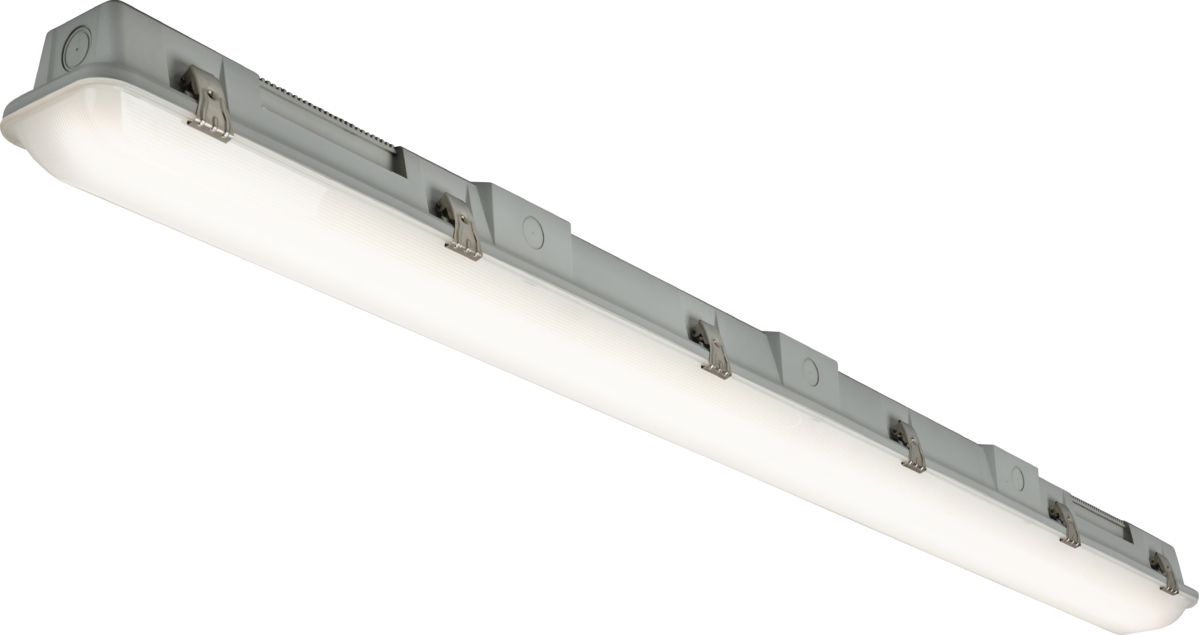

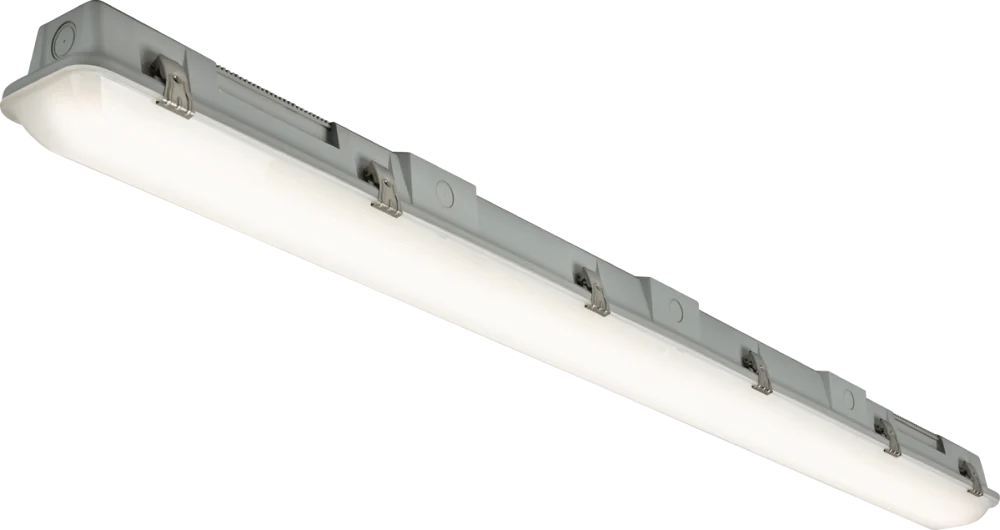

HELIX MAX 4ft Corridor Sensor Non-Corrosive LED Fitting
The Knightsbridge HEXMCF4 LED Non-Corrosive Fitting is a 4ft HELIX MAX modular luminaire designed for commercial, industrial and utility lighting applications. It combines IP66 ingress protection, IK10 impact resistance, adjustable wattage, Tri-CCT selection and an integrated corridor sensor in one flexible non-corrosive fitting.
Knightsbridge HEXMCF4 HELIX MAX Modular Fitting
This 230V HELIX MAX fitting is built for performance and flexibility, with quad wattage settings of 22W, 27W, 33W and 39W. The Tri-CCT adjustment allows the installer to select 3000K, 4000K or 5700K colour temperature to suit the area being lit.
The fitting comes with a corridor sensor built into the unit. The fully adjustable sensor supports three-step dimming, making it suitable for corridors, service areas, stores, back-of-house spaces and other areas where lighting levels may need to reduce when no movement is detected.
Applications – Knightsbridge HEXMCF4 LED Non-Corrosive Fitting
This 4ft corridor sensor fitting is suitable for warehouses, workshops, plant rooms, corridors, stores, loading bays, garages, utility spaces and industrial areas. The IP66 and IK10 ratings make it a strong choice where a durable LED fitting is required for demanding indoor and suitable outdoor applications.
Key Features – Knightsbridge HEXMCF4 LED Non-Corrosive Fitting
- 4ft HELIX MAX modular non-corrosive LED fitting
- 230V input voltage
- Quad wattage selectable: 22W / 27W / 33W / 39W
- Tri-CCT selectable: 3000K / 4000K / 5700K
- Integrated corridor sensor included in the fitting
- Fully adjustable corridor sensor with three-step dimming function
- IP66 rated for dust and water ingress protection
- IK10 rated for high impact resistance
- Robust anti-corrosive polycarbonate construction
- Stainless steel clips supplied as standard
- Rear, side and end conduit entries
- Body design compatible with BESA box mounting
- Pre-drilled rear and end conduit entries with replaceable end caps
- Large bracket fixing point to help ease mounting
- Detachable terminal blocks for easier cable entry
- Push-fit loop in-loop out terminal block
- Compatible with MODEMKIT2 dual mode emergency conversion kit, sold separately
- Supplied with surface mount plates as standard
- TORCSUSP suspension kit available separately
Technical Specifications – Knightsbridge HEXMCF4 LED Non-Corrosive Fitting
- Brand: Knightsbridge
- SKU: HEXMCF4
- Range: HELIX MAX
- Product type: Modular non-corrosive LED fitting with corridor sensor
- Length: 4ft
- Input voltage: 230V
- Wattage settings: 22W / 27W / 33W / 39W
- Colour temperature settings: 3000K / 4000K / 5700K
- Sensor: Integrated corridor sensor
- Dimming function: Three-step dimming via corridor sensor
- IP rating: IP66
- IK rating: IK10
- Construction: Polycarbonate
- Clips: Stainless steel clips supplied as standard
- Emergency option: MODEMKIT2, sold separately
- Suspension kit option: TORCSUSP, sold separately
