Description

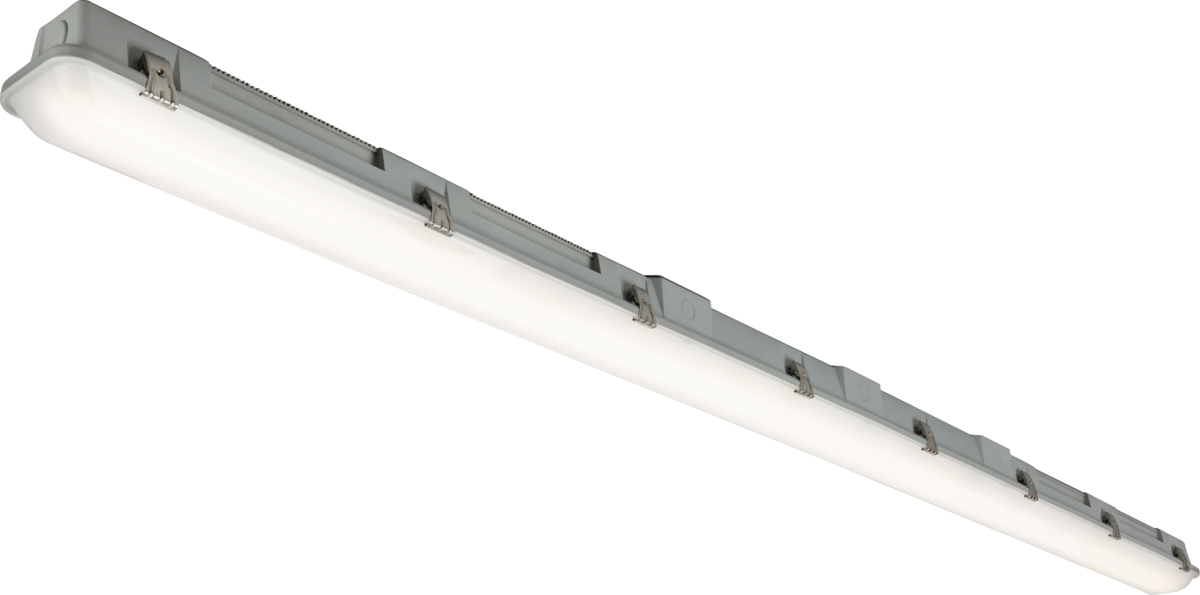

6ft IP66 IK10 LED Non-Corrosive Light Fitting
The Knightsbridge HEX6 LED Non-Corrosive Fitting is a 6ft HELIX ONE modular luminaire designed for reliable lighting in commercial, industrial and utility environments. It delivers high output 4000K illumination from a robust IP66 and IK10 rated body, making it suitable for demanding indoor and suitable outdoor applications.
Knightsbridge HEX6 HELIX ONE Modular Fitting
This 230V fitting provides 31W LED performance with 4515 lumens of cool white light. The opal diffuser gives a practical, even light output, while the grey polycarbonate body and stainless steel clips provide a durable, anti-corrosive construction for long-term use with minimal maintenance.
The HELIX modular design allows compatible plug-and-play accessories to be added where required. The MODMWS microwave sensor and MODEMKIT2 dual mode emergency conversion kit are available separately, giving the installer flexibility to adapt the fitting for sensor-controlled or emergency lighting applications.
Applications – Knightsbridge HEX6 LED Non-Corrosive Fitting
This 6ft fitting is suitable for warehouses, workshops, plant rooms, garages, loading bays, corridors, stores, service areas and industrial spaces where a longer high-output non-corrosive LED fitting is required.
Key Features – Knightsbridge HEX6 LED Non-Corrosive Fitting
- 6ft HELIX ONE modular non-corrosive LED fitting
- 230V input voltage
- 31W power rating with 4515 lumen output
- 4000K cool white colour temperature
- IP66 rated for dust and water ingress protection
- IK10 rated for high impact resistance
- Robust anti-corrosive polycarbonate construction
- Grey finish with opal diffuser
- Stainless steel clips supplied as standard
- Rear, side and end conduit entries
- Body design compatible with BESA box mounting
- Pre-drilled rear and end conduit entries with replaceable end caps
- Large bracket fixing point to help ease mounting
- Detachable terminal blocks for easier cable entry
- Push-fit loop in-loop out terminal block
- Compatible with MODMWS microwave sensor, sold separately
- Compatible with MODEMKIT2 dual mode emergency conversion kit, sold separately
- Supplied with surface mount plates as standard
- TORCSUSP suspension kit available separately
- Non-dimmable LED fitting
Technical Specifications – Knightsbridge HEX6 LED Non-Corrosive Fitting
- Brand: Knightsbridge
- SKU: HEX6
- Range: HELIX ONE
- Product type: Modular non-corrosive LED fitting
- Length: 6ft
- Dimensions: 1865mm length x 95mm width x 81mm height
- Input voltage: 230V 50Hz
- Wattage: 31W
- Circuit wattage: 31.71W
- Lumens: 4515lm
- Light source lumens: 5255lm
- Colour temperature: 4000K
- Light colour: Cool white
- CRI: >80
- Beam angle: 120°
- IP rating: IP66
- IK rating: IK10
- Construction: Polycarbonate
- Finish: Grey
- Diffuser: Opal
- Class: Class I
- Dimmable: No
- Emergency conversion kit: MODEMKIT2, sold separately
- Cable entry: 20mm
- Cable gland included: Compression gland
- Operating temperature: -20°C to 45°C
- Net weight: 2.35kg
- L70B50 lifespan: 70,000 hours
- EAN: 5056270892260
- Warranty: 5 years
